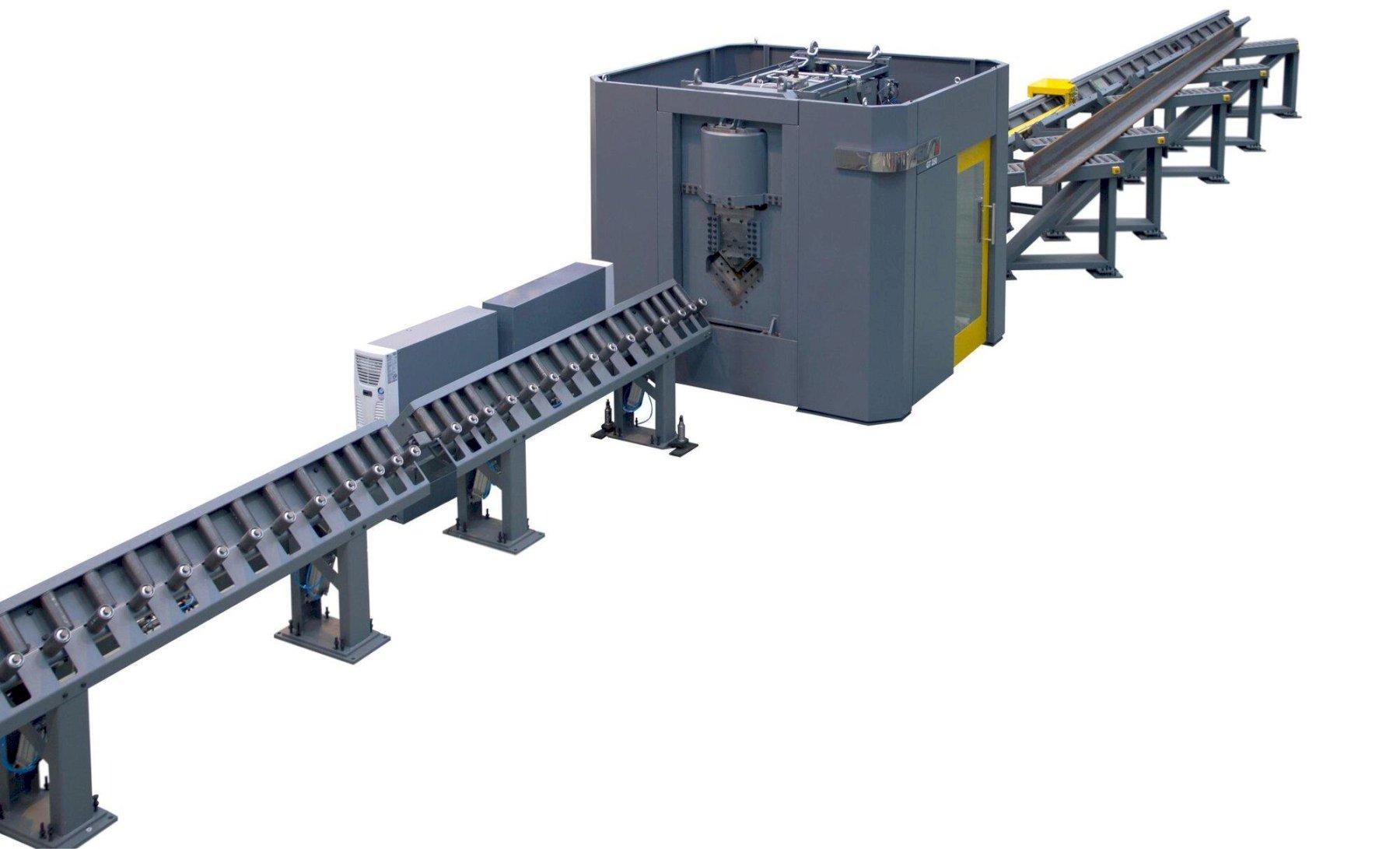

Geka Gamma Traction GT-250 CNC Structural Steel Punch, Shear, Drill Line, 2025

Min Angle Processing: 2″ x 2″ x 3/16″ Max Angle Processing: 10″ x 10″ x 1″ Max Flats Processing: 10″ x 1″ C-Channel Processing: 6″ Material Infeed: Via Gripper Number of Punches Per Leg: 3 x 2 Max Punching: 1-1/4″ Punching Power Tons: 88 Tons Shear Power Tons: 492 Tons Measure Marking: 5 Holders, 10 Characters Each Wheel Marking: 40 Characters Each Drilling Station: 1 per Leg w/4 Tools Software in Windows 10: Std. LinePro Net/ Optional LANTEK

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Punching Unit – 6x Punches. CNC-controlled backmark. Hydraulic hold down.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Input Converyor Unit – Material held and pushed with clamp. Rack & pinion system servo motor driven.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Double Drilling Unit – 8 tools (4 per leg). Maximum diameter 1-9/16″.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shearing Unit – Clean cuts without waste. Easy and quick access to blades.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full CNC Control – Windows 10 based PC control. Standard remote assistance.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Marking Unit – CNC controlled positioning and marking selection with adjustable pressure valid for galvanizing.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***Full Catalog Available Upon Request***

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***Many Other Sizes Available Upon Request***

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*** FOB from the warehouse, Install Included***

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1-Year Warranty
