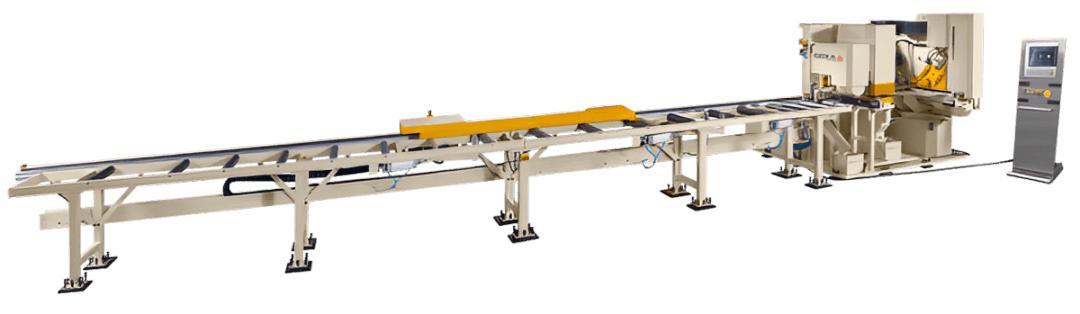

Geka Alfa 500/150 – 220 Ton CNC Structural Processing Angle/Flat, 2025

Min Flat Processing: 2″ x 3/16″ Max Flat Processing: 19-1/2″ x 1-1/4″ Min Angle Processing: 2″ x 2″ x 3/16″ Max Angle Processing: 6″ x 6″ x 1/2″ Material Infeed: Via Gripper Max Ø: 1-9/16″ Number of Punches: 3 Center Punching Power Tons: 240 T Lateral Punching Power Tons: 185 T Vertical Leg Punching Power Tons: 67 T Wheel Marking: 40 Characters Drilling Unit Kw: 9

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MITER SHEARING FOR FLATS Maximum turning capacity +/- 45º.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DRILLING UNIT 9kW Drilling unit up to 1- 9/16″ diameter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MARKING UNIT Wheel marking unit. Selected from the CNC. Dimensions: 9/16″ x 3/8″ x 3/4″. Marking power 9 Us Tons.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***More sizes available, and Catalog available upon Request***

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,***Includes Installation and 1 Year Warranty***
