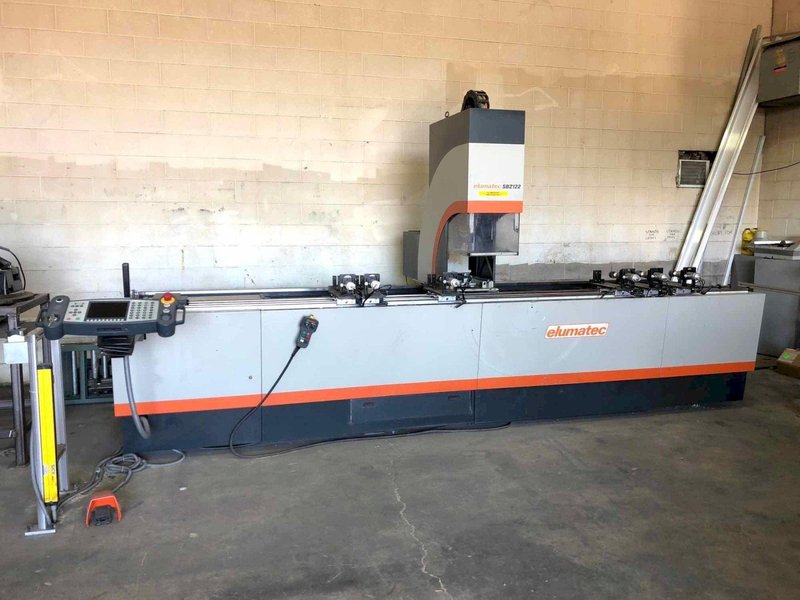

Elumatec SBZ122 CNC Machining Center, 2005 – Needs Work

Table Capacity X-Axis: 137.7″ Table Capacity Y-Axis: 13.75″ Routing Capacity Top: 9″ Routing Capacity Front: 7″ Table Capacity Z-Axis: 11″ Step Over Capacity: 7.3″ Rapid Positioning Y-Z Axes (max.): 1,176″/min Rapid Positioning X-Axes (max.) 1,968″/min Spindle Speed: 21,000 Rpm Router Spindle: 8.1 Hp Power Output: 480 Volt, 3 Phase Profile Height/ste Over Max: 11″ Max. Diameter of Tooling: 2.4″ Max. Diameter of Disk Cutter: Manual 7.87″/automatic 3.62″ Max. Air Pressure 102 Psi Max. Length of Tooling (top): 7.9″ Max. Dia. Shaft for Er-32 Collet. 78″ Max. Dia. Shaft for Er-16 Collet (angle Head Cap Collet): .511″ Max. Dia. Shaft for 077 Collet .394″ Tapping Capacity up To (w/float Collet-Er32 Collet Size): .375″ @65% Thread Tool Chuck: Hsk F63 Tool Holder for Auto Tool Change Dimensions: 62″x49.5″ Light Curtain Width: 181.3″l X 88″ H Weight: 3,605 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Note: 7 K in Repairs Needed (list of Repairs Available)
