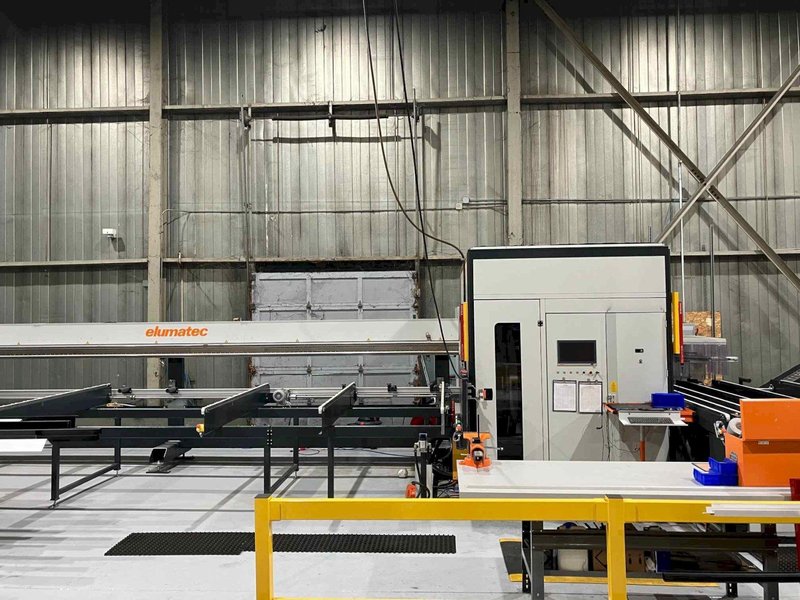

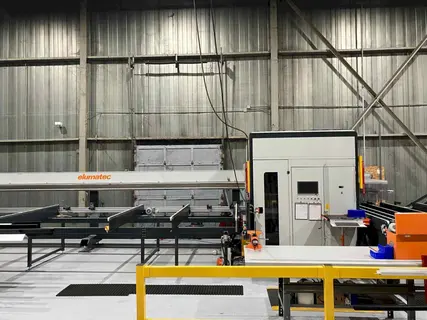

Elumatec SBZ-628 S Profile Machining Center, 2022 – Like New & Available Immediately!

SBZ 628 S: Pass-Through System for Windows, Doors and Curtain Walls. Four Spindles for Routing or Drilling Separating Cuts from -45° to 90° (Lead Cut), from 90° to 45° (end cut) Continuously Adjustable.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Configuration: Left loading magazine for automatic production processes. The routing spindles can be positioned continuously over 360° on the profile bar for machining profiles in various clamping situations. Easy-access controls and maintenance elements simplify operation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max. profile cross-section (WxH): 200 x 160 / 160 x 200 mm Min. profile cross-section: 30 x 10 mm (depending on gripper position)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Blank Bar Length: 7,600 mm Finished Part Length: 350-4,600 mm Short Parts: (50-150 / 150-350) –

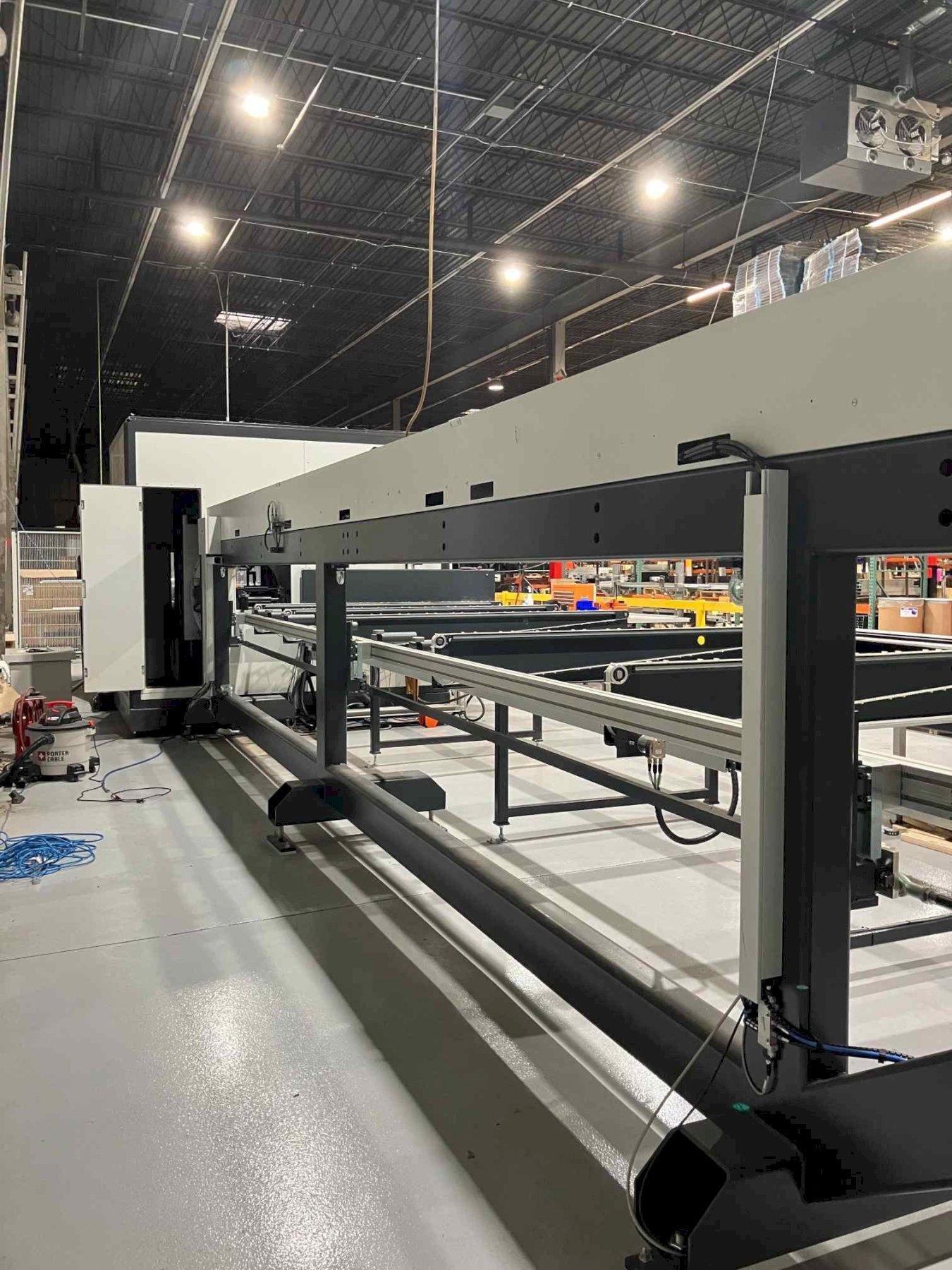

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed magazine Shortest Blank Bar Length: 3,000 mm Number of Swing Arms: 5 Mounting Positions: 10

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Infeed Servo Drive: Linear Motorized Gripper Adjustment: Y/Z Gripper rotation: Optional

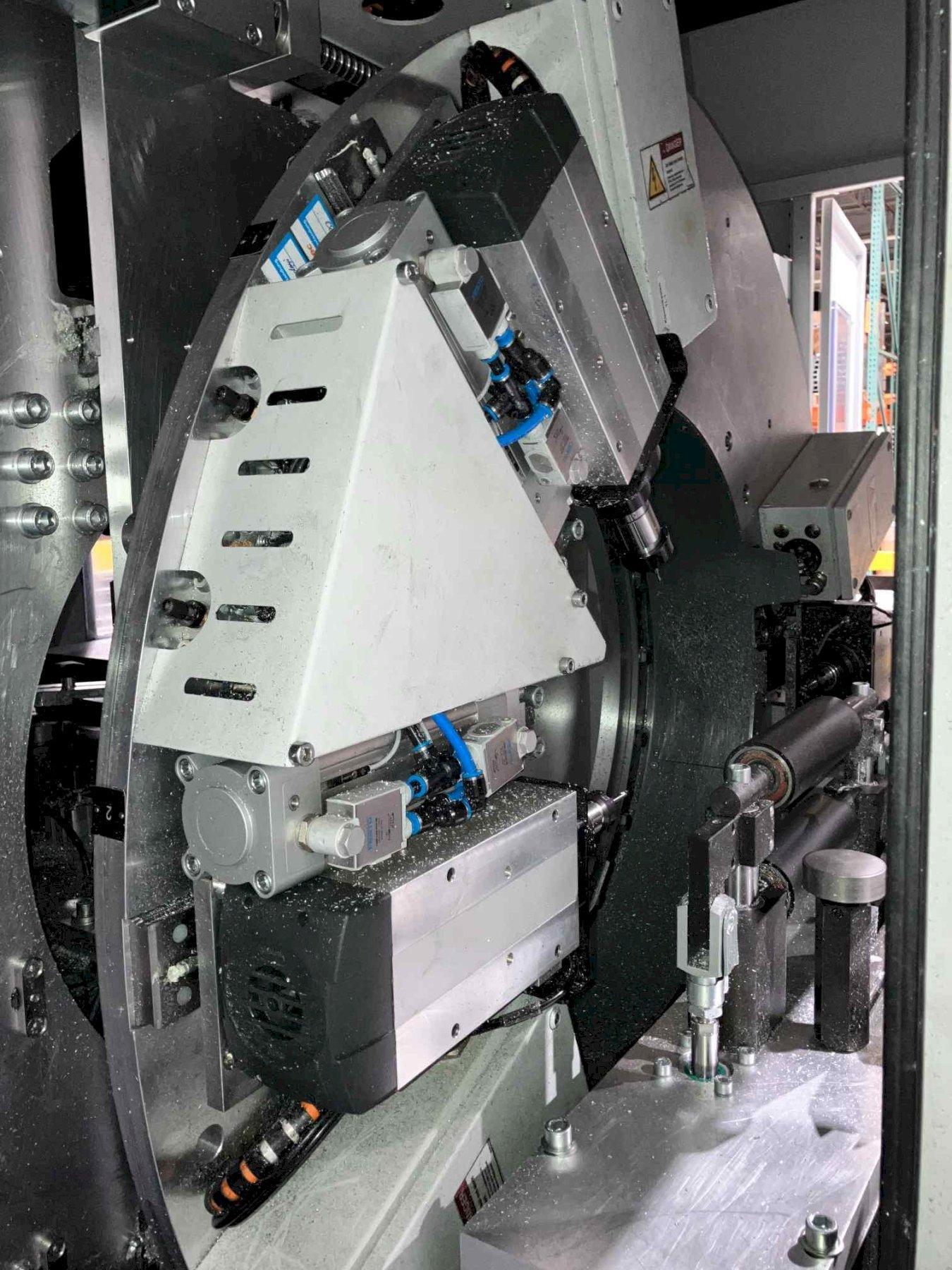

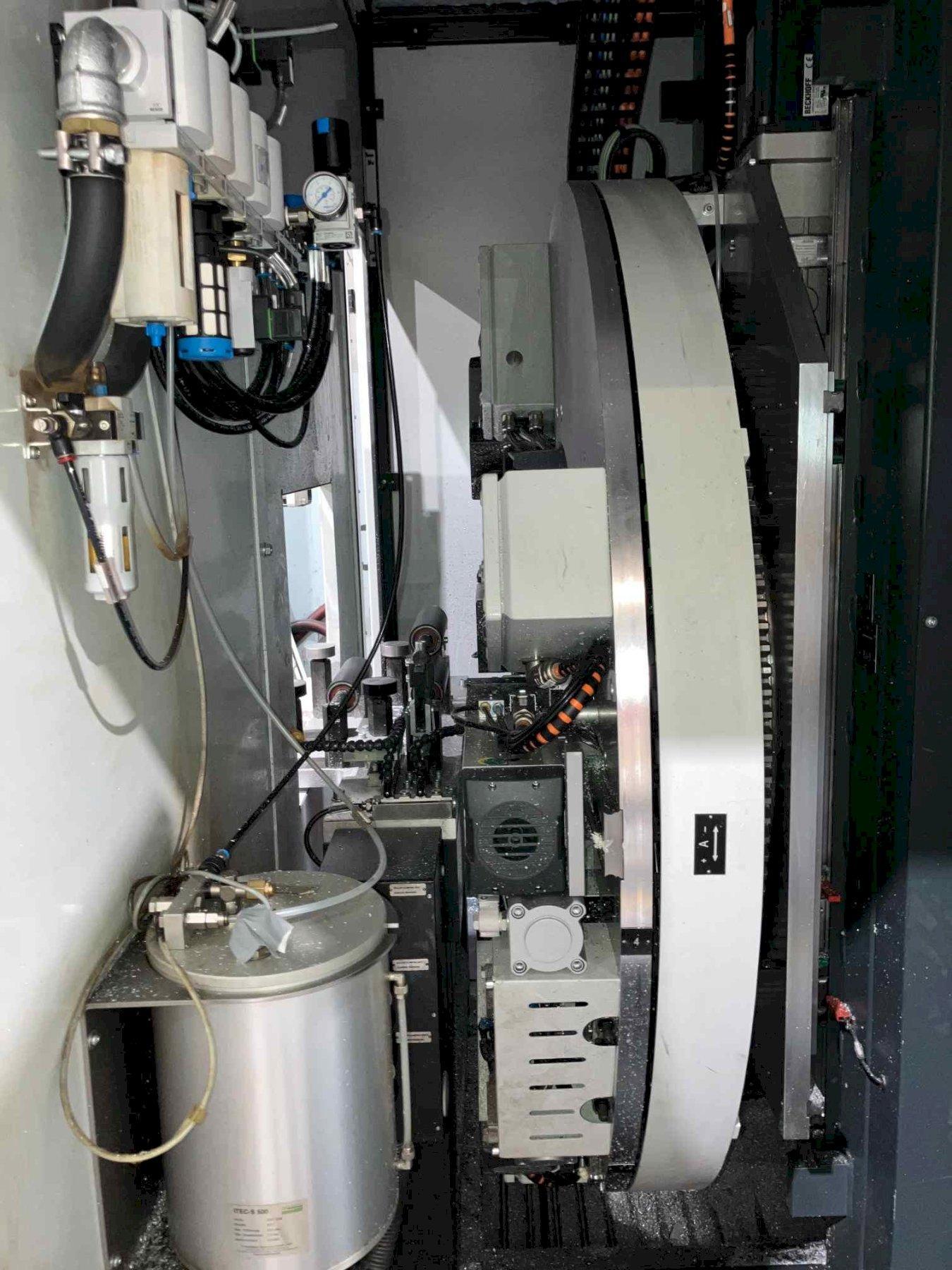

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining station: 4-Axes Router spindles: 4 (servo-assisted)

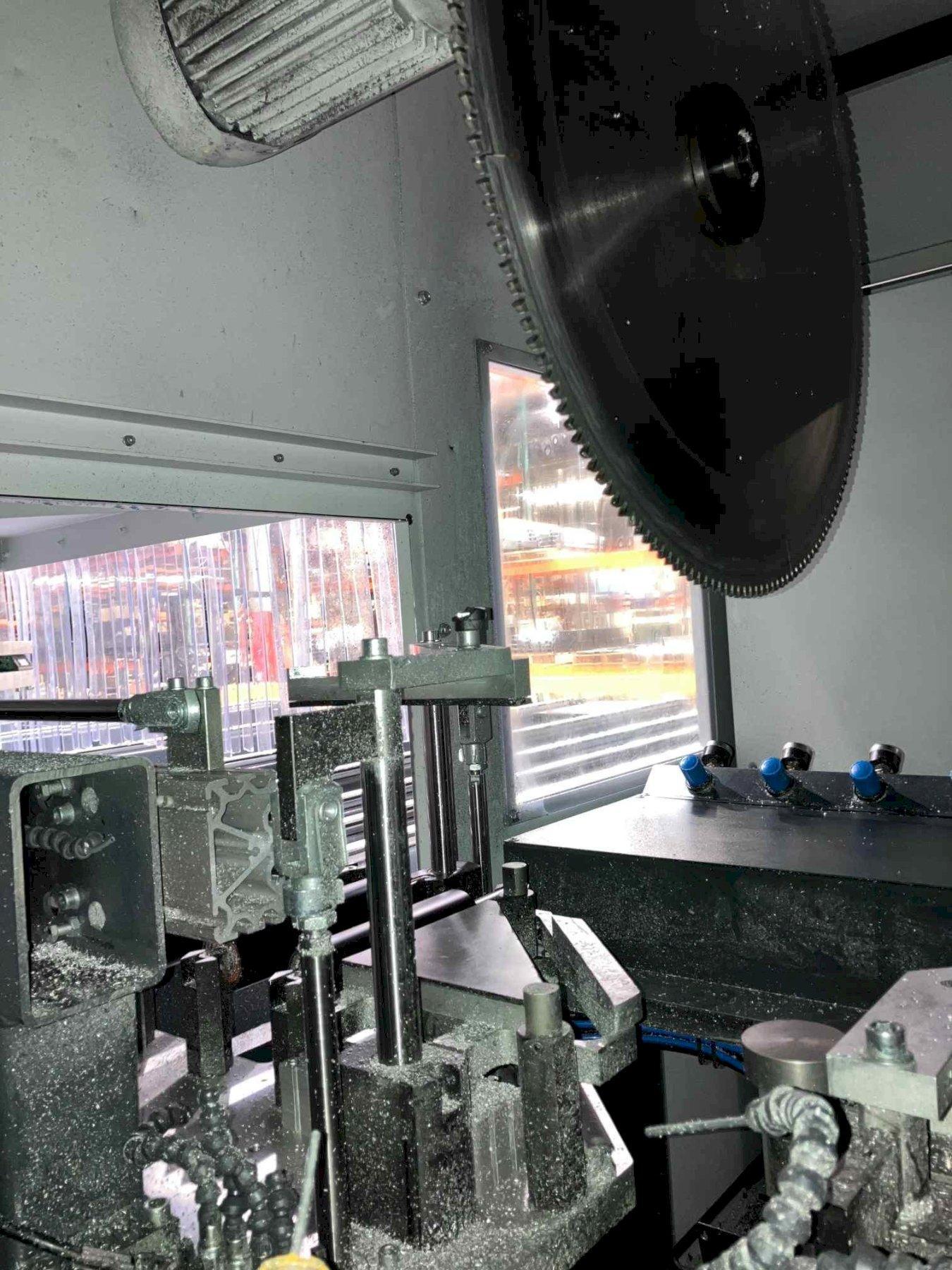

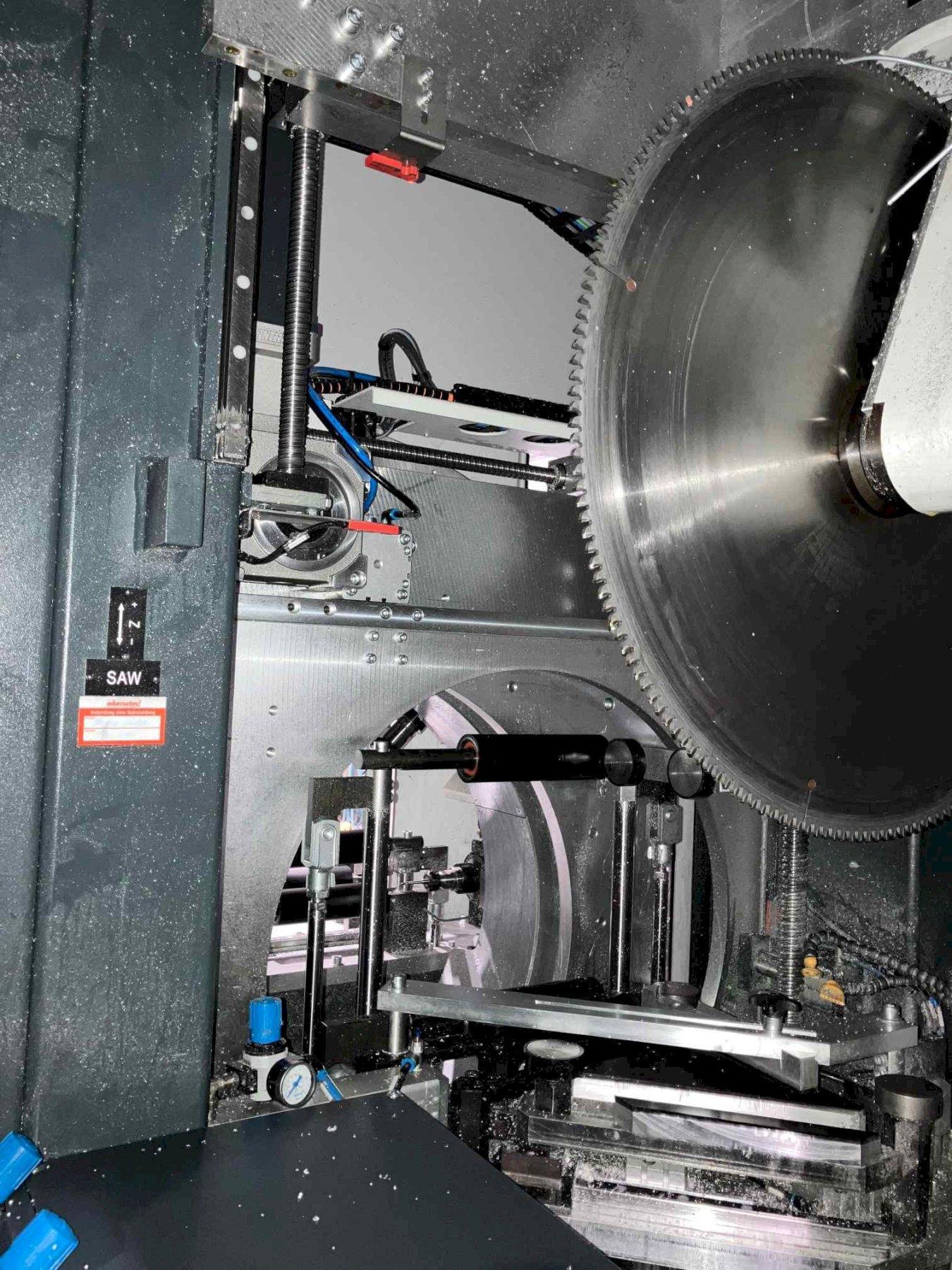

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Saw: Axes: 2 Saw Blades (diameter): 1 (650 mm) Sawing Angles: 45° – 135° (pivoting) Notching

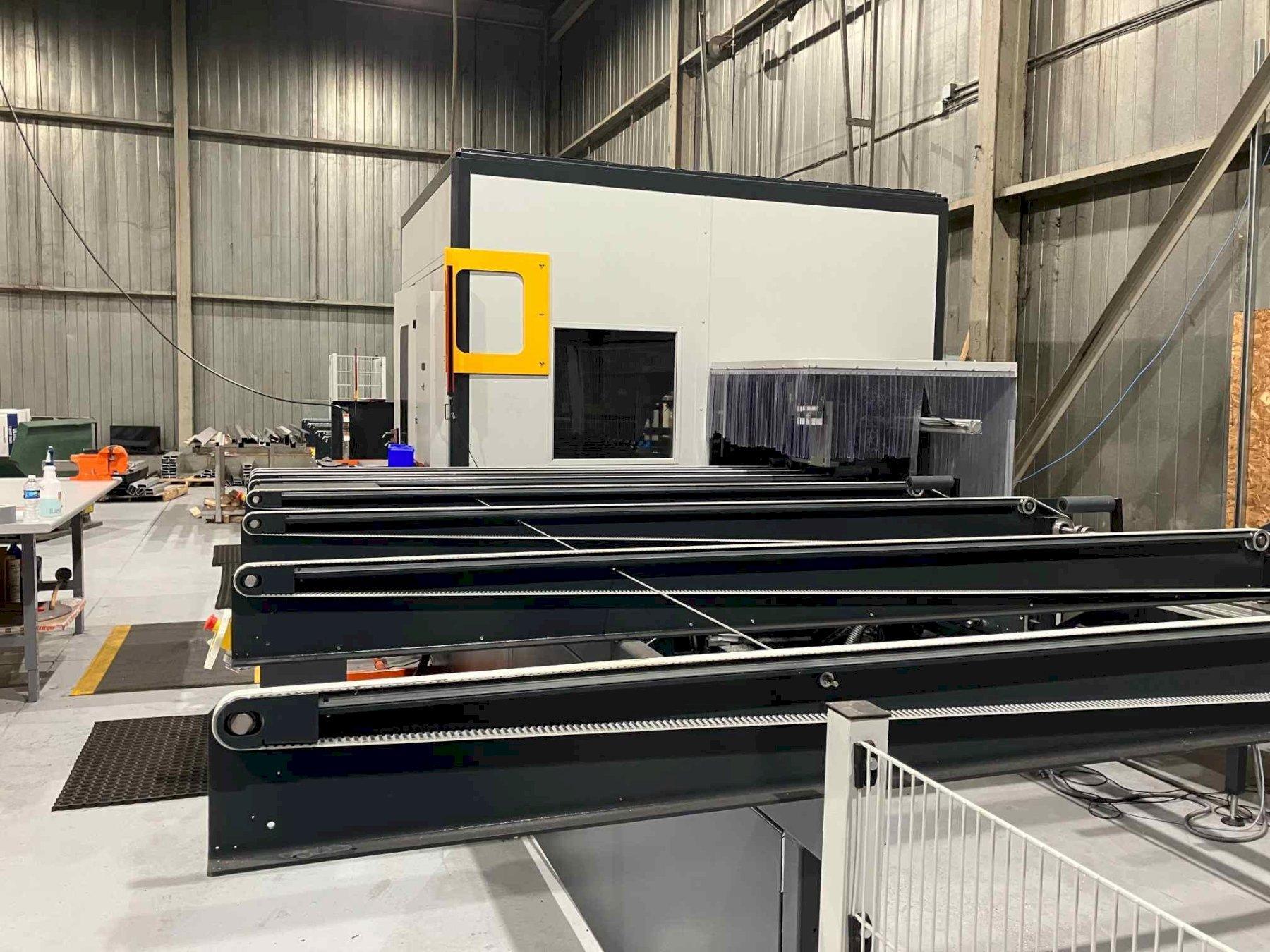

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Beckhoff Drive Control Outfeed Conveyor: Lifting Station: Yes Number of Swing Arms: 8 Outfeed conveyor width (options): 4,000 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
