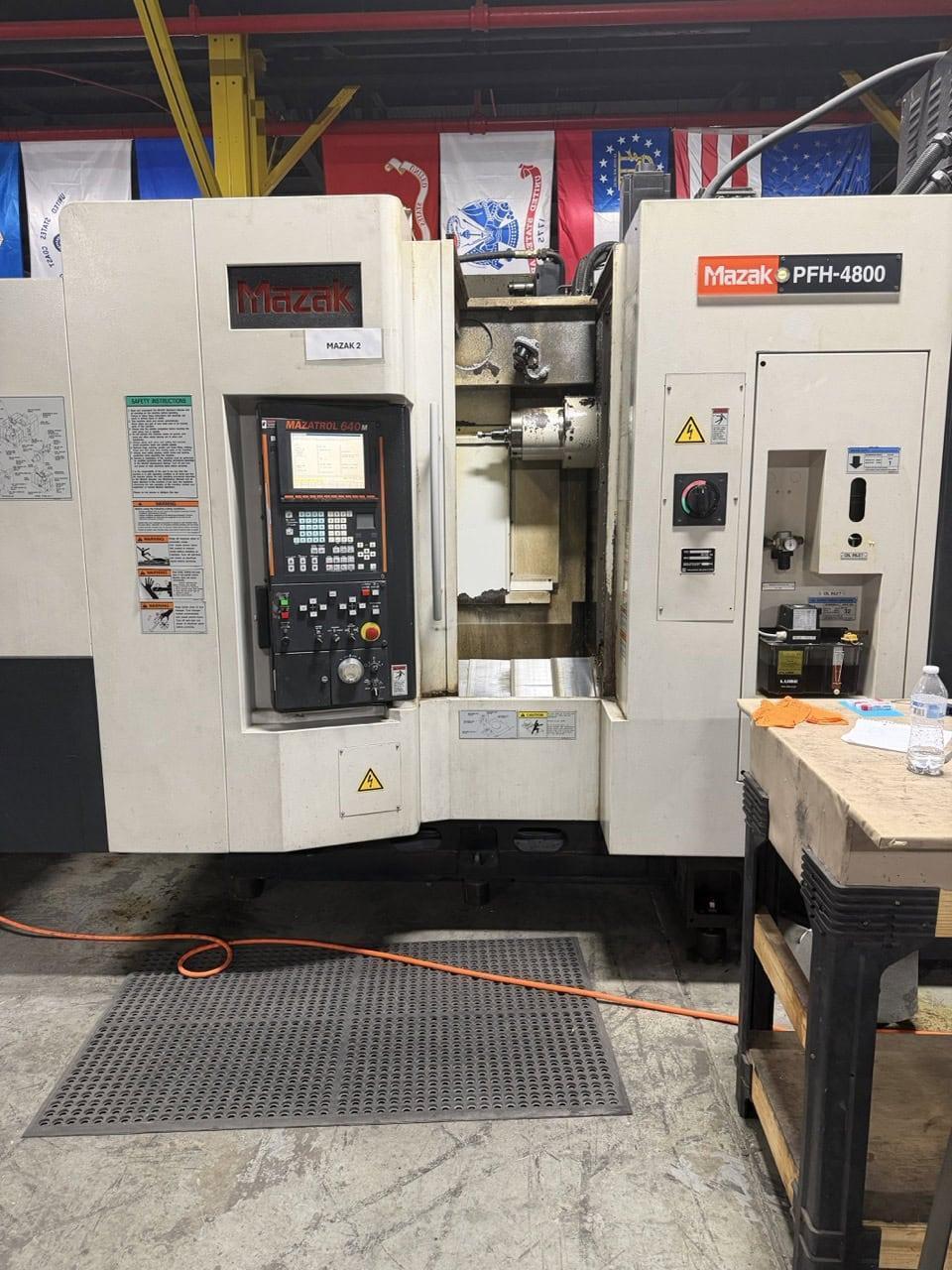

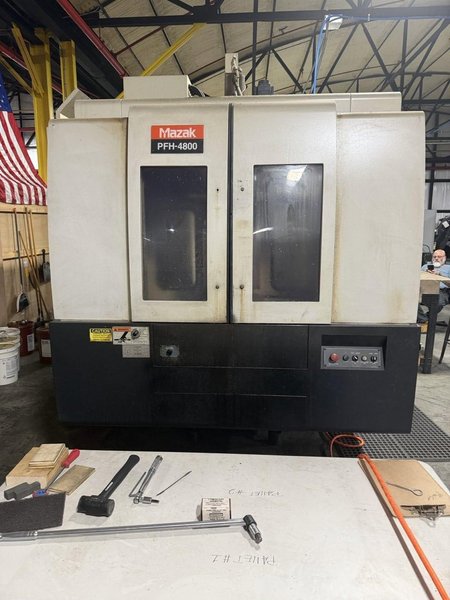

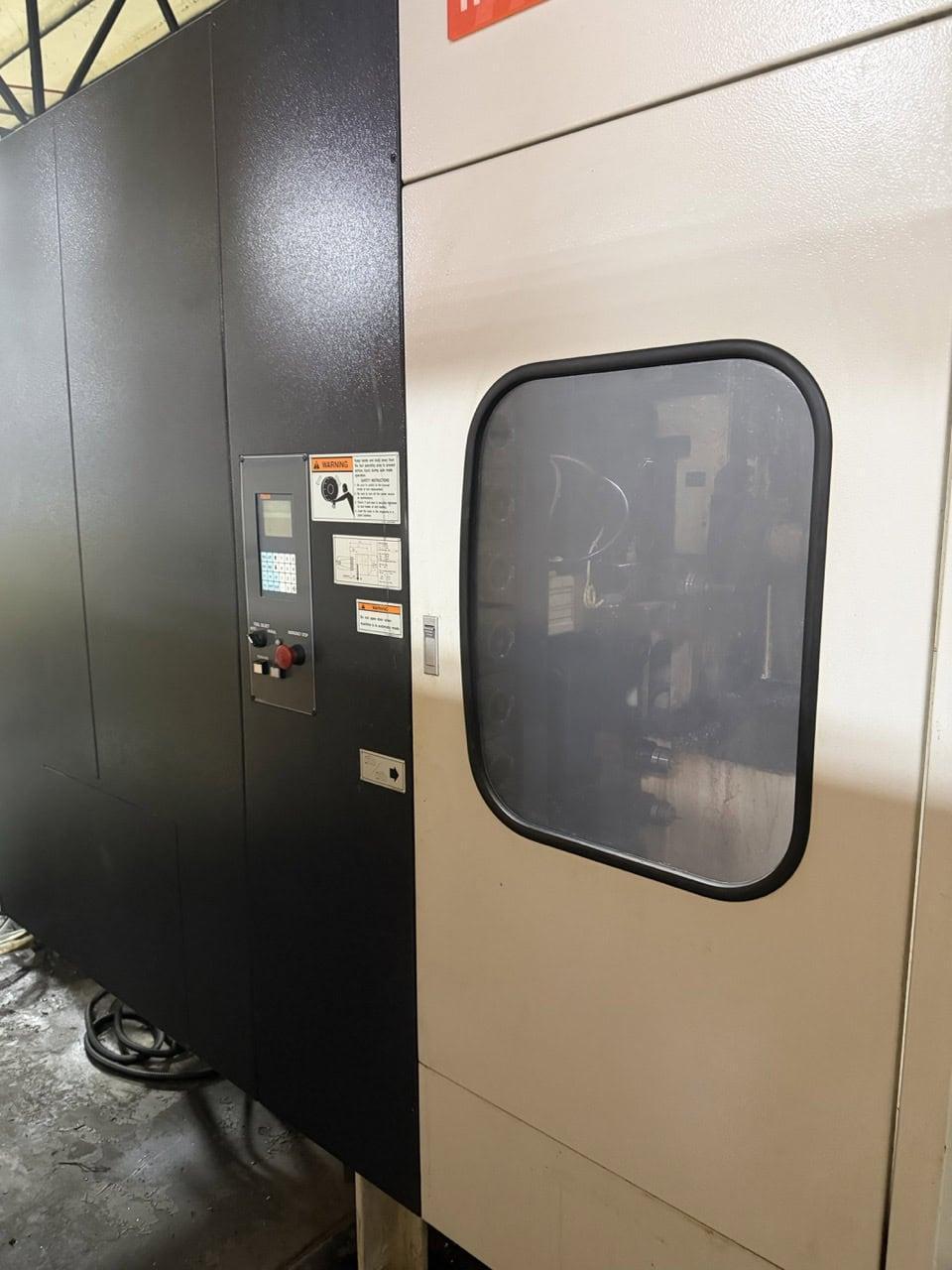

Mazak PFH-4800 Horizontal Machining Center, 2005 – Chip Conveyor, Full 4th Axis

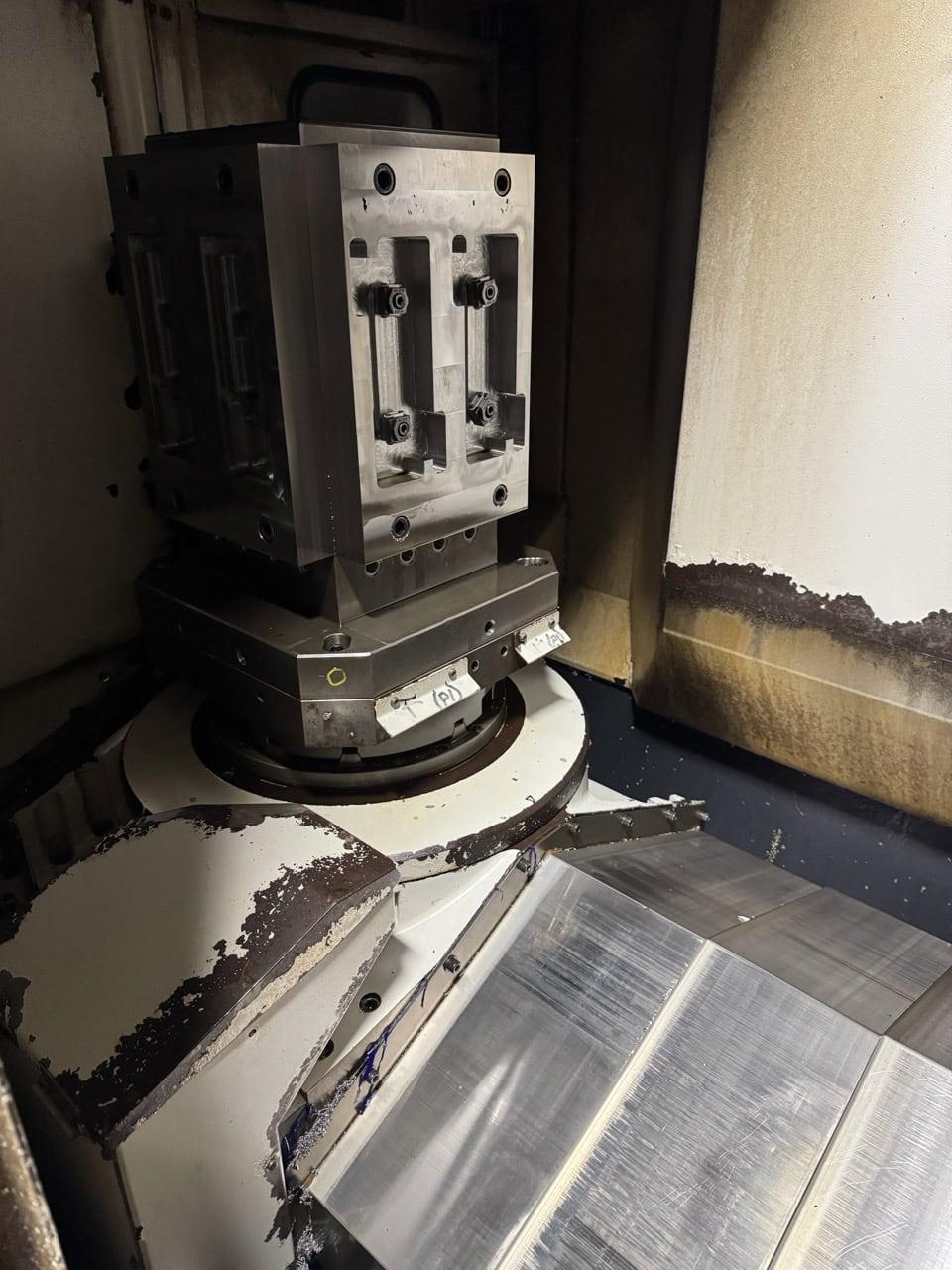

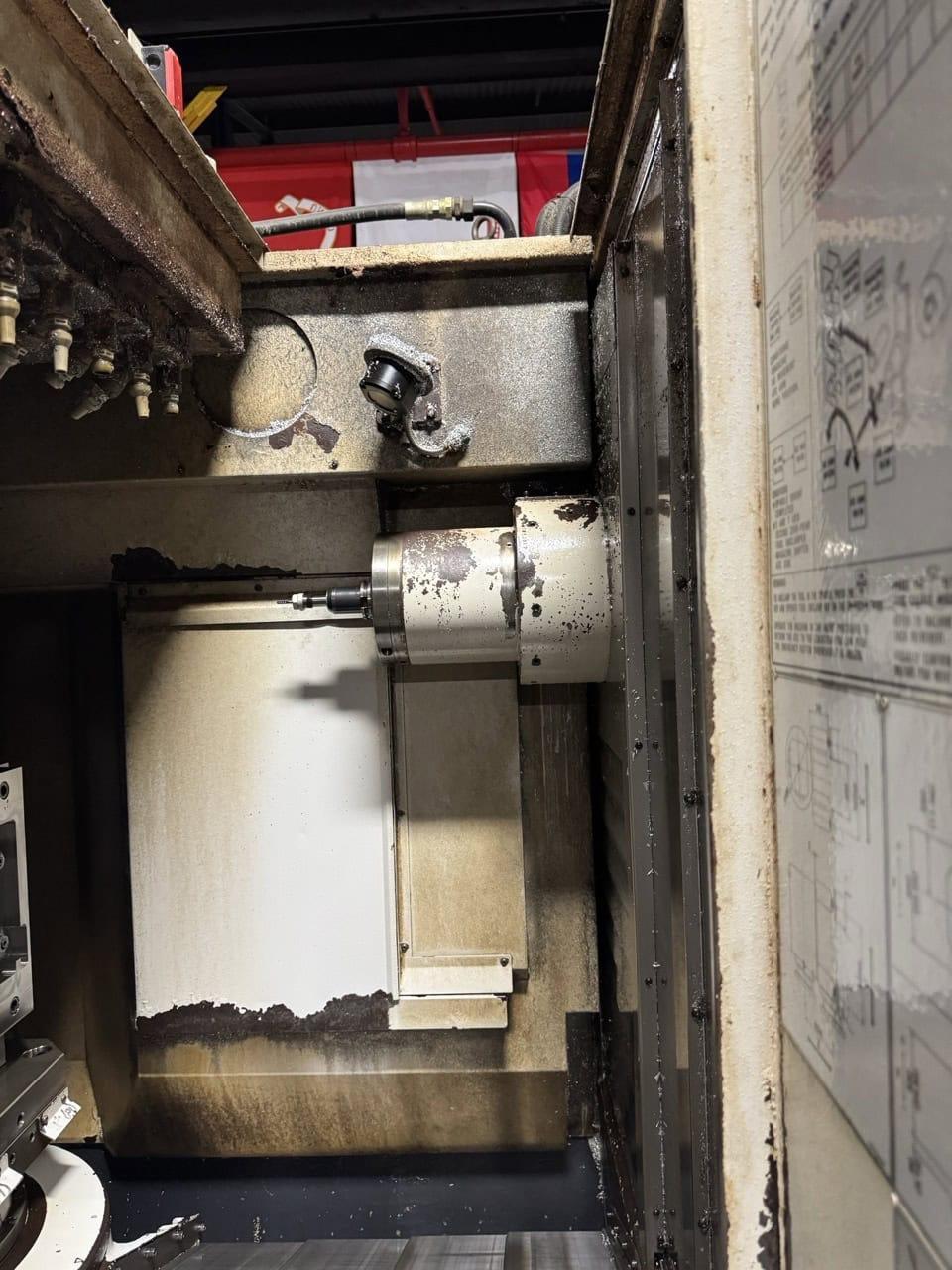

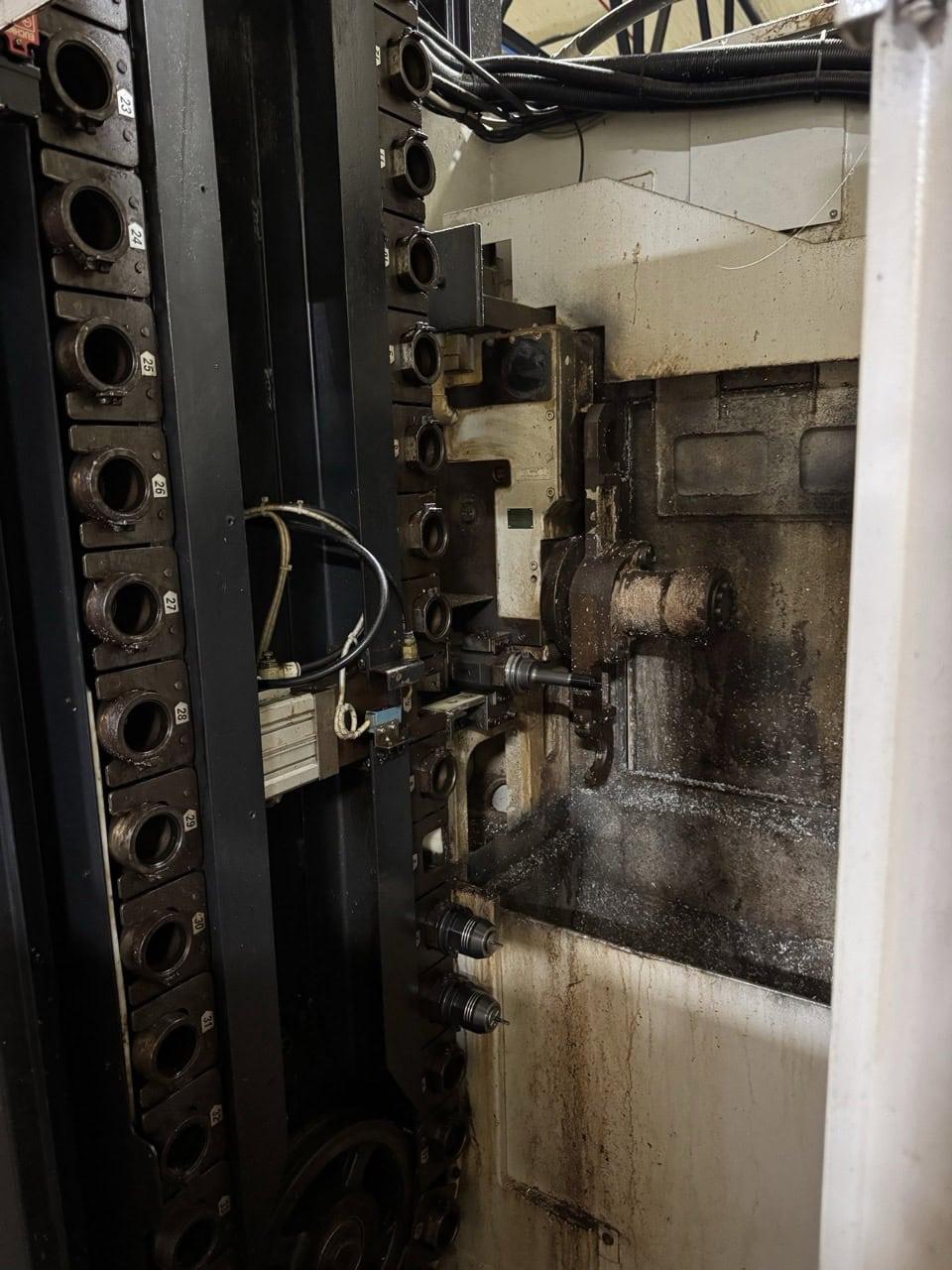

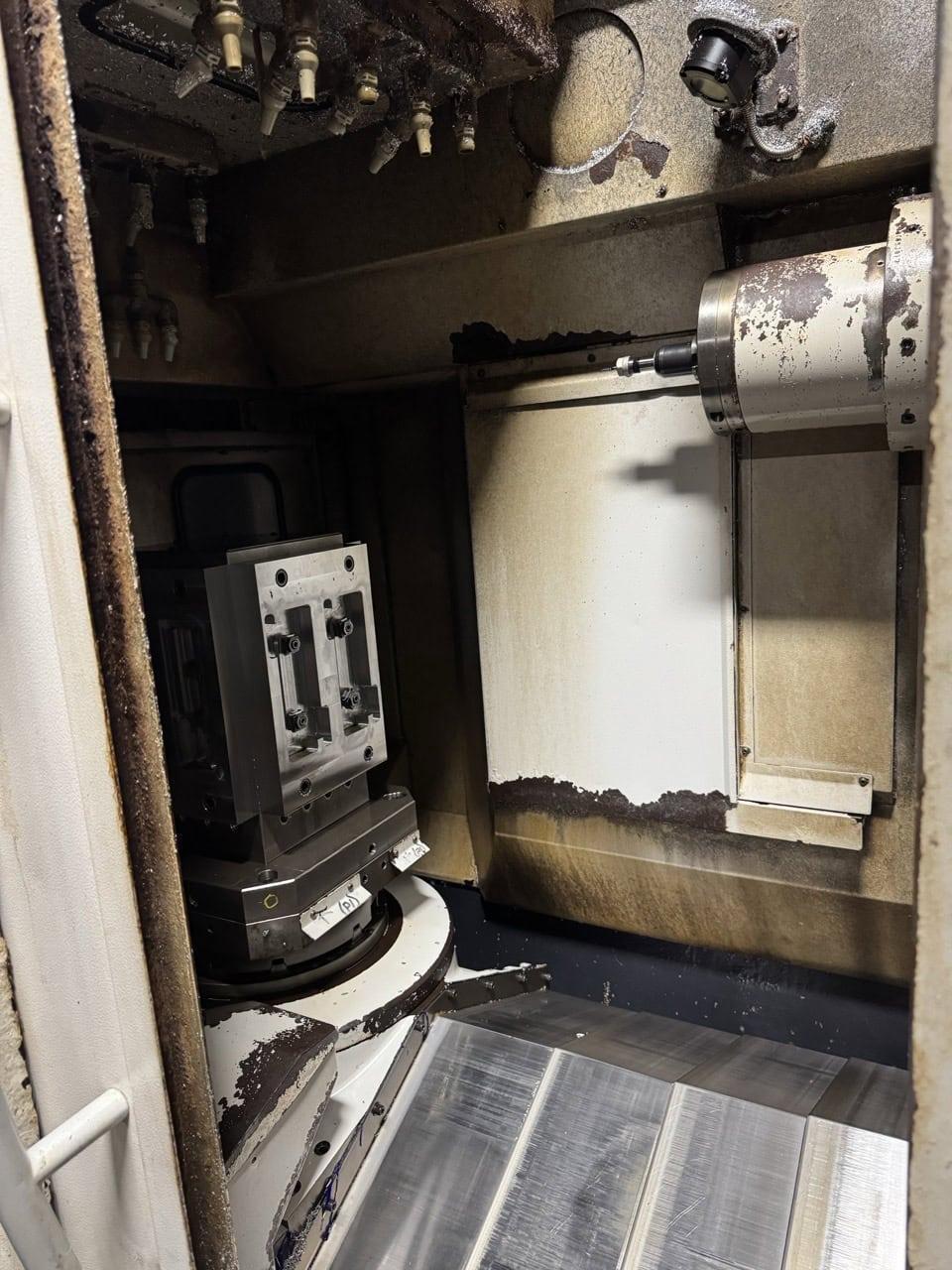

Pallet Size: 15.75″ x 15.75″ (400 x 400 mm) Number of Pallets: 2 X-Axis Travel: 22.05″ (560 mm) Y-Axis Travel: 24.80″ (630 mm) Z-Axis Travel: 23.62″ (600 mm) Maximum Workpiece Weight: 880 lbs. (400 kg) Maximum Workpiece Diameter: 24.8″ Maximum Workpiece Height: 27.95″ Spindle Taper: CAT 40 Spindle Speed: 18,000 RPM Spindle Motor: 30/40 HP (22/30 kW) Automatic Tool Changer Capacity: 80 Tools (Dual Arm) Maximum Tool Diameter: 3.74″ Maximum Tool Length: 14.17″ Chip-to-Chip Tool Change Time: 2.2 Seconds Pallet Indexing: 0.001° (Full 4th Axis Contouring) Approx. Machine Dimensions (L x W x H): 112″ x 192″ x 110″ Approx. Machine Weight: 24,250 lbs. (11,000 kg)

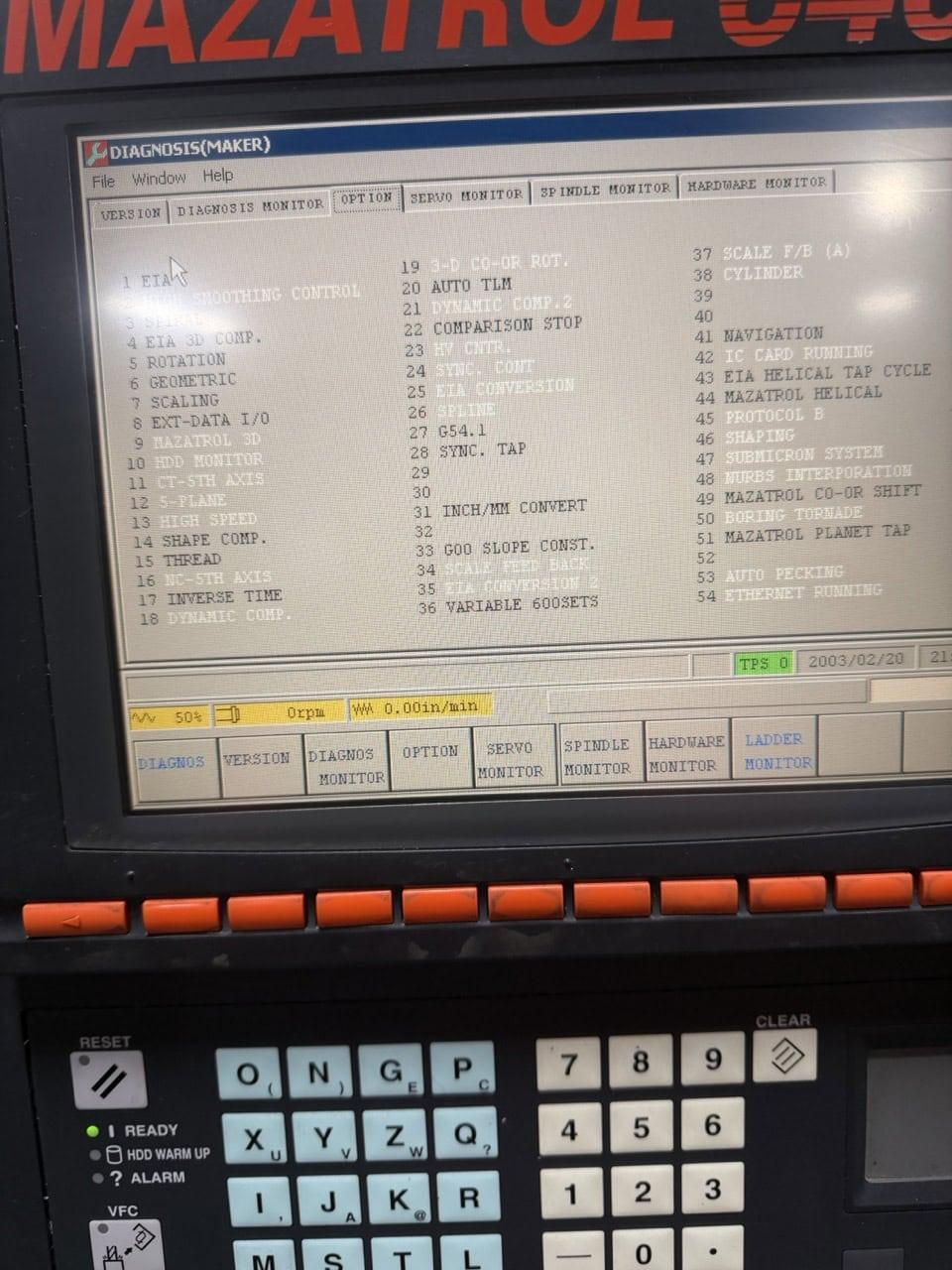

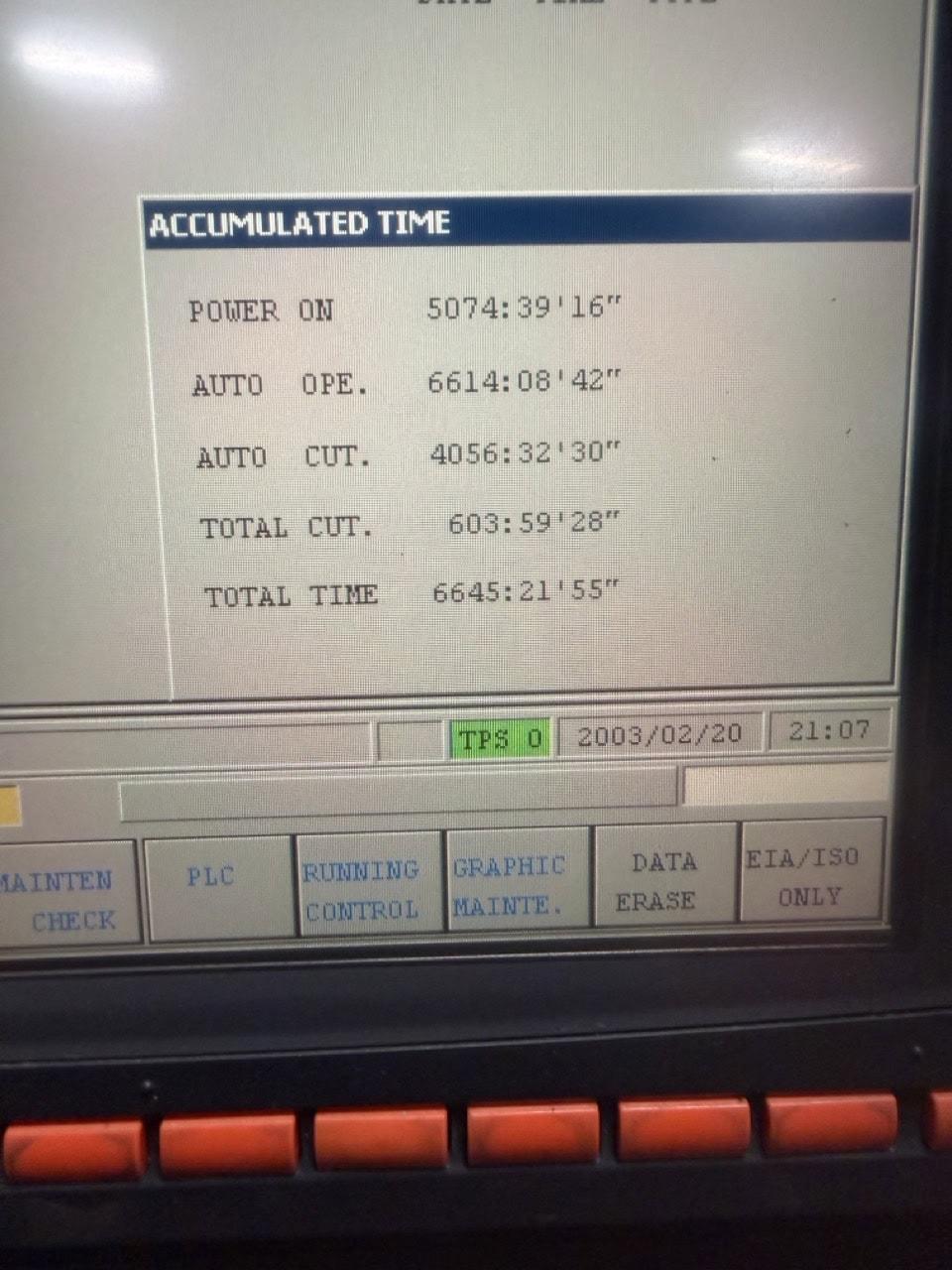

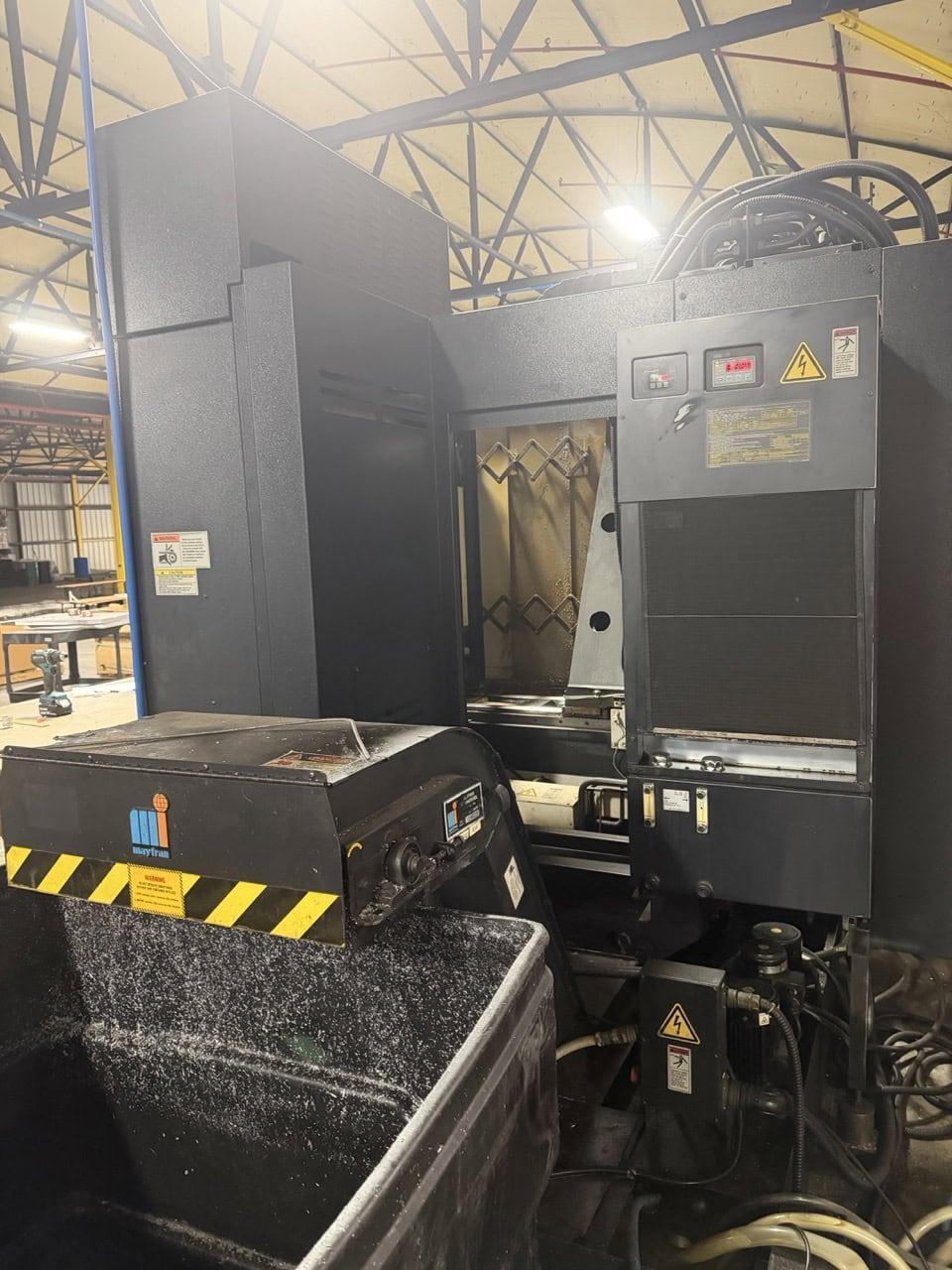

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol Fusion 640M Control Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
