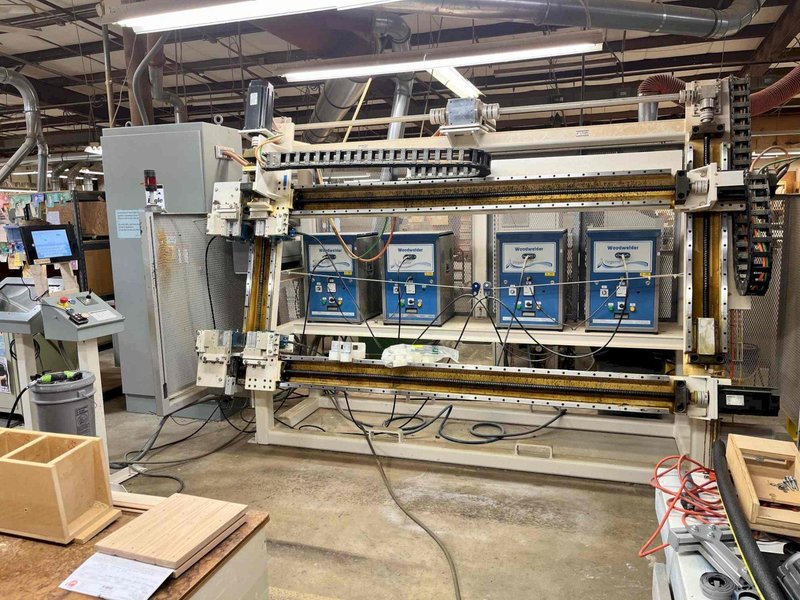

Eagle Machinery RF Door Assembly Machine, 2017

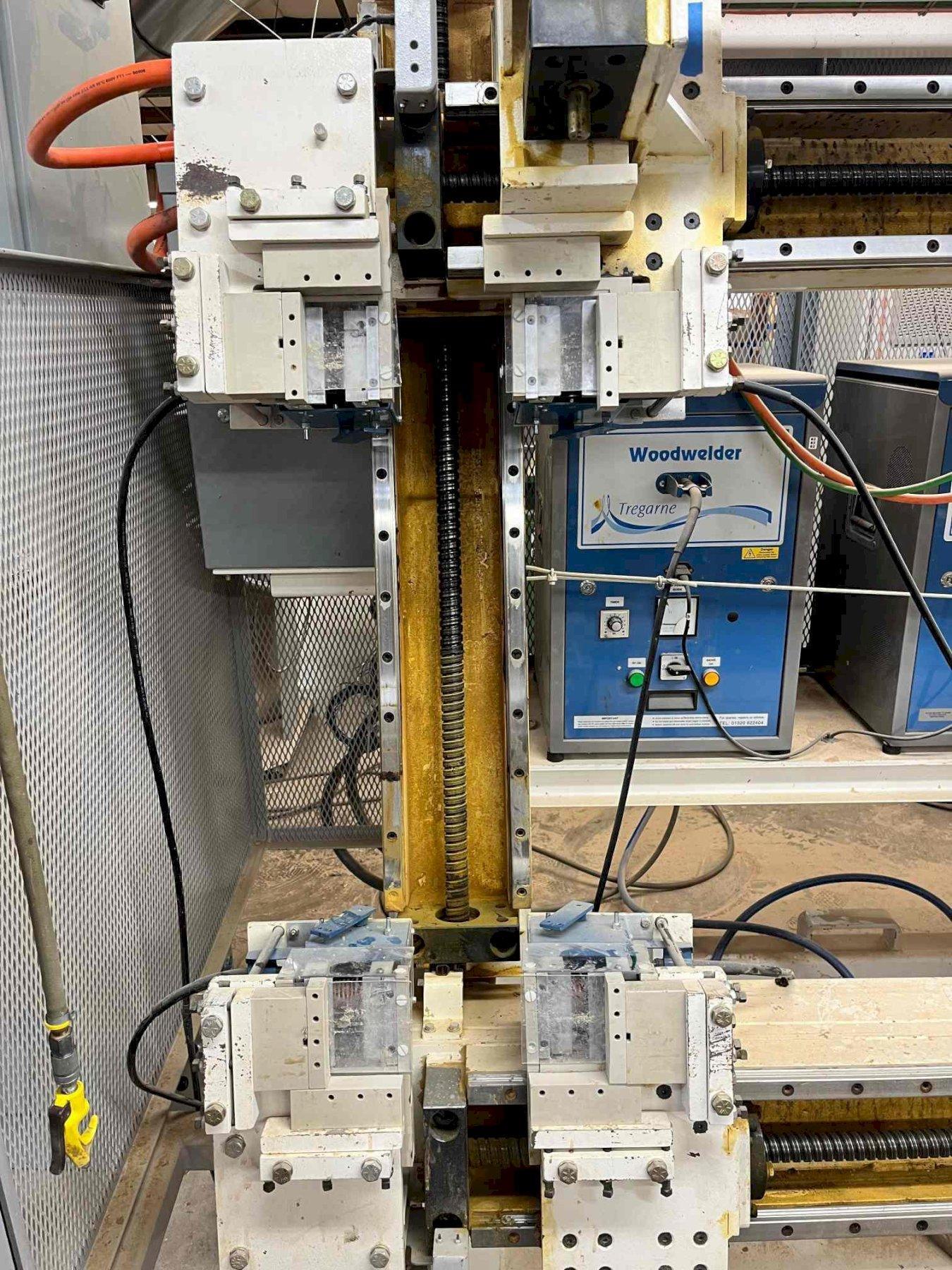

Maximum Assembled Product Size: 37.5” x 98” Minimum Assembled Product Size: 11.375” (vertical) x 9.75” (horizontal) with spacer blocks 7.5” (vertical) x 5.5” (horizontal) Maximum Framing Width: 4” Minimum Framing Width: 1.5” Tubular Steel Frame THK Linear Bearings and Rails (1) Allen Bradley Compact Logix PAC (4) Allen Bradley Kinetix Servos and Drives a. (1) Vertical Beam b. (1) Horizontal Beam (2) On the Upper Right Hand Clamp to ensure that uniform pressure can be applied regardless of the cut accuracy of the frame parts

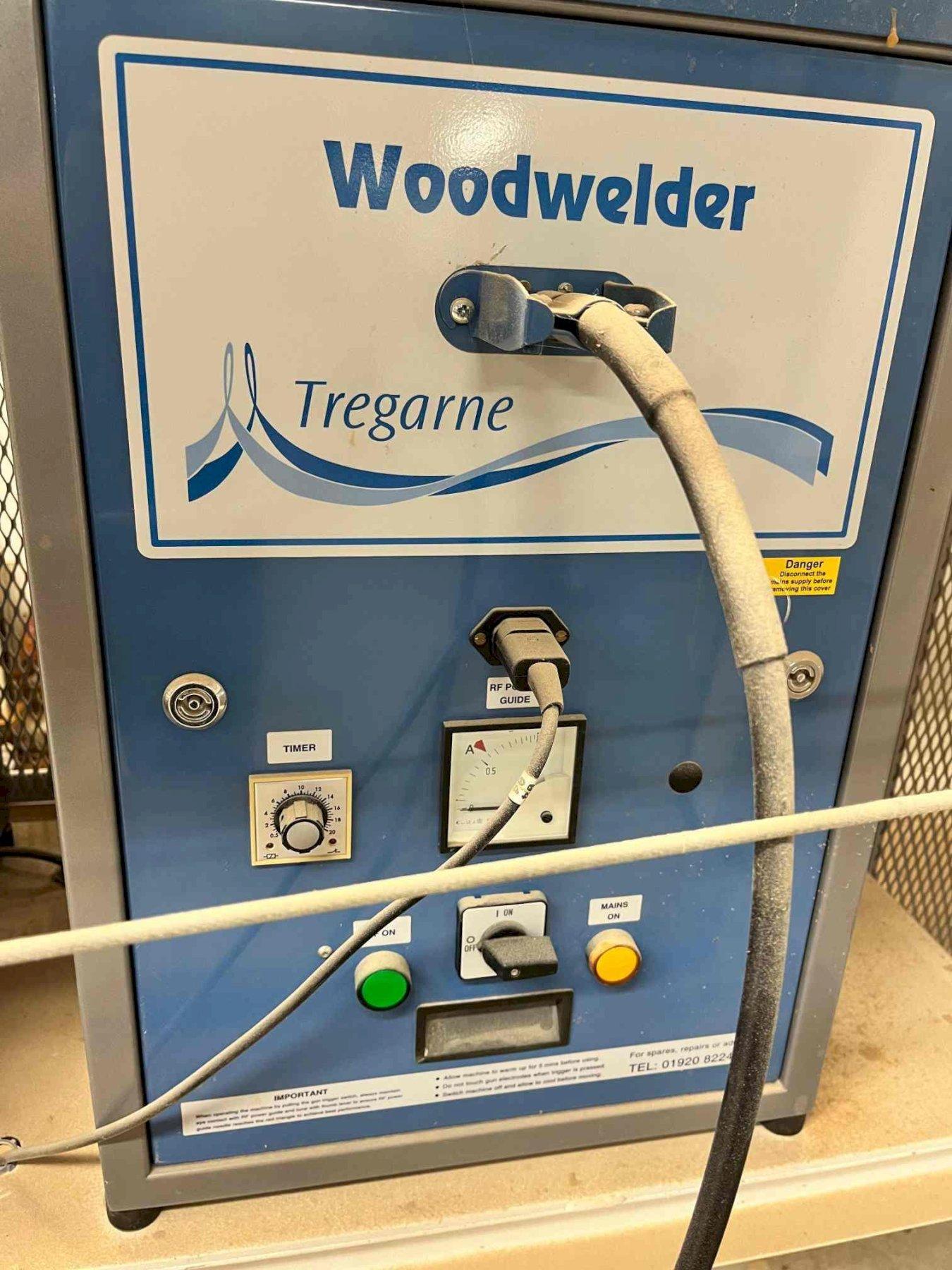

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(1) Hoffman Upright Enclosure Allen Bradley Control Components (Push Buttons, Relays, Power Supplies, Buzzer, etc.) (1) Hoffman Air Conditioner for Electrical Enclosure EMS Press Control/Server Communication Software Package (4) Tregarne Woodwelder with Production Gun

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
