Dorner 6200 Series End Drive Conveyor Belt, 2011

Min: 6 feet per minute Max: 50 feet per minute Infeed Gravity: 12″ Wide x 3′-0″ Long Light Duty Gravity Roller Conveyor 3/4″ Dia aluminum Roller on 2″ Centers 24″ Infeed Height/20″ Discharge Height (from Top of Table) Includes Aluminum Adjustable Height Supports

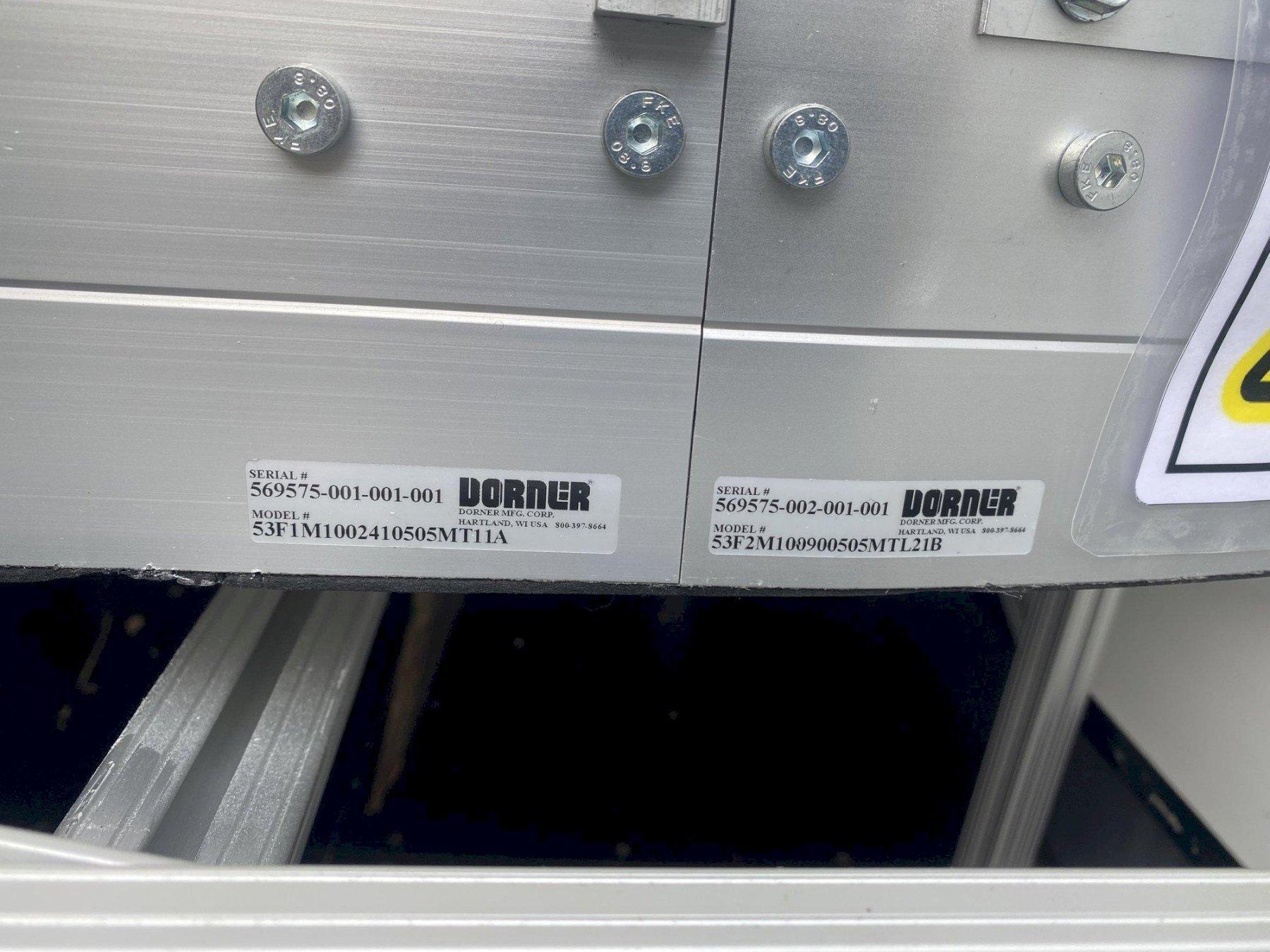

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Conveyor: Dorner 6200 Series End Drive Conveyor 12″ Wide Low Friction White Urethane Belt 1.5″ Tall Bolt-On Sides Guards Stainless Steel Frame and Bedplate Side Mounted Drive, .5hp, 230V, 3 Phase Includes Aluminum Adjustable Height Supports for 20″ Top of Belt Height (From Top of Table) Includes Variable Speed Controller NEMA 4x 230V, 3 Phase Input and Output 4.9 to 49 Feet Per Minute Belt Speed 40 Lbs. Total Load Capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Discharge Conveyor: 90-degree Curve x 12″ Overall Width 1-3/8″ Dia Aluminum Rollers 20″ Infeed Height / 16″ Discharge Height Includes Side Guards, Adjustable Height Supports, and Butt End Stop

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
