Doral 6048 Structural Plate Shot Blast, 2016- 62″ wide plate, 30″ x 48″ I-Beam

PLATE 62” WIDE STRUCTURAL I-BEAM 30” X 48” MISC PARTS With various design configurations of work fixtures allows special blast part geometry and size parts to be blasted.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,WORK CONVEYORS POWERED VARIABLE SPEED Width 68” ROLLER WIDTH Length 103’-0” TOTAL ENTRY-EXIT -MACHINE ENTRY CONVEYOR LENGTH 40’-0” MACHINE CONVEYOR LENGTH 26’-0” EXIT CONVEYOR LENGTH 40’-0” ROLLER SPACING 36”CENTERLINES FLOOR TO TOP OF ROLLERS 36” ROLLER DIA 4.5”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BLAST CABINET SIZE LENGTH 21’-0” WIDTH 15’-0” HEIGHT 12’-6” FLOORLINE TO TOP OF ELEVATOR 16’-6” PIT DEPTH 3’-2” PIT WIDTH 15’-0” PIT LENGTH 26’-0” HEIGHT BOTTOM OF ELEVATOR TO TOP OF ELEVATOR 20’-0”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CABINET CONSTRUCTION 12 TO 14% MAGANESE STEEL 1⁄2” THICK BLAST ZONE AND OTHER ABRASIVE CONTACT AREAS 3/16” AND 1⁄4” THICK MILD STEEL ENTRY AND EXIT VESTIBULES ENTRY VESTIBULE LENGTH 5’-2” BLAST CABINET LENGTH 8’-0” EXIT VESTIBULE LENGTH 7’-3” MULTIPLE RUBBER CURTAINS AND CAST POLY FINGER SEALS PROVIDE ABRASIVE RETENTION IN VESTIBULES

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SHOT BLAST WHEELS NORTH STAR BLAST WHEELS DIRECT DRIVE PREMIUM WEAR PLATE PACKAGE BLAST WHEEL HORSEPOWER 25 HP 3600 RPM NUMBER OF BLAST WHEELS 6 POSITION OF BLAST WHEELS 2 TOP 2 BOTTOM 2 CENTER 16” DIAMETER 8 QTY. BLADES CENTER FEED 1⁄2” THICK 1 PC FRONT & REAR MAGANESE STEEL LINERS 1” THICK CAST WEAR ALLOY LINERS TOP, & END LINERS 5 PIECE

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ABRASIVE BLOW-OFF AIR FORCE ONE 30 HP WITH 8 ADJUSTABLE NOZZLES

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ABRASIVE RECOVERY SYSTEM LOWER & UPPER SCREW CONVEYORS BUCKET ELEVATOR WITH CAST IRON BUCKETS SINGLE LIP AIRWASH SEPARATOR WITH SCREEN TRAYS ADJUSTABLE AIR VOLUME

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,SCREW CONVEYOR HP 2 BUCKET ELEVATOR HP 5 DUST COLLECTION MODEL SSC-12 SOC CARTRIDGE DUST COLLECTOR BLOWER HP 20 cfm 7,200 MODEL SSC-20 SOC CARTRIDGE DUST COLLECTOR BLOWER HP 25 cfm 10,000

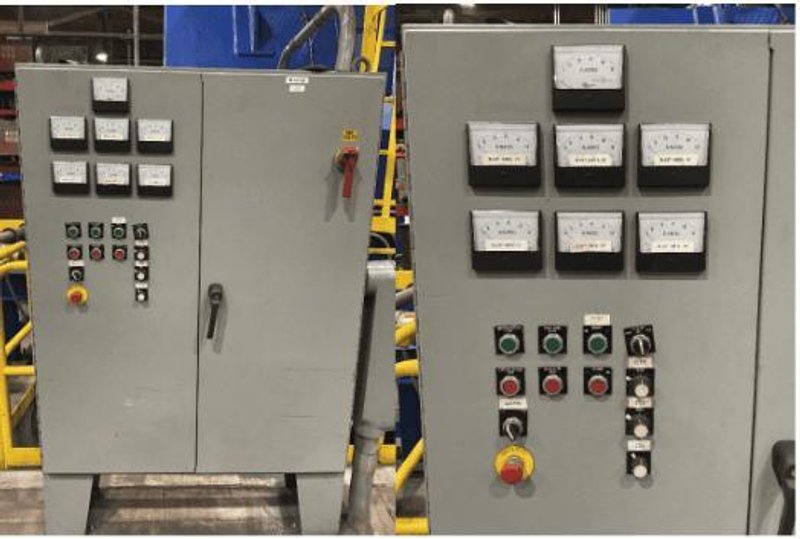

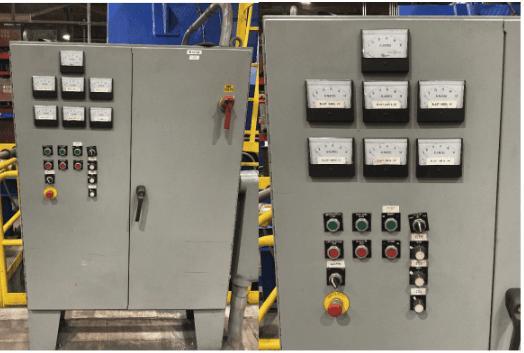

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ELECTRICAL CONTROLS NEMA 12 CABINET FLOOR MOUNTED HEIGHT 72” WIDTH 48” MAIN BREAKER 480 VOLT 3 PHASE 60 HZ. AMPERAGE 400 ALL IEC CONTROL COMPONENTS 120 VOLT CONTROL VOLTAGE E-STOPS LOCATED ON MAIN PANEL AND WORK CONVEYORS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
