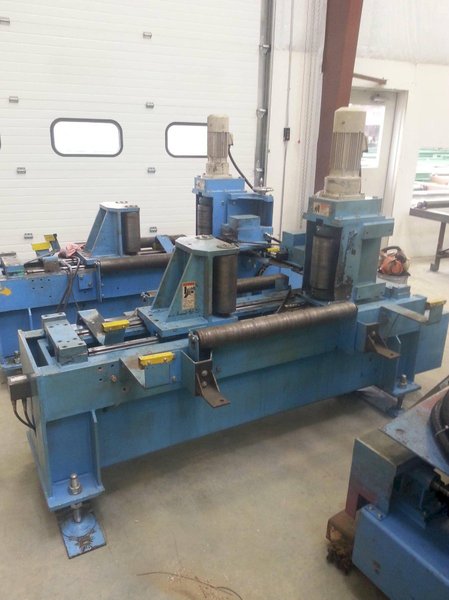

Daito DNE 700 Structural Drill, 1994 -Manual CNC, Power Rollers

Motor: AC200V Drill: 3.7kw x 3, Coolant Pump 0.06kw x 1, Hydraulic Pump 1.5kw x1, Left Assembly 0.4kw x1, Lubricant Pump 0.01kw x1 Electrics: AC100V: DC12V, 24V Dimensions: W-121.25″ x D- 87.8″ x H- 86.5″ Shipping Weight: 8708 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,H-Beam Capacity: Max 27×12 Max Work Thickness: Flange 2”, Web 2-1/4” Hole Diameter: Upper .5″ – 1-5/16”, Left/Right .5″ – 1” Spindle Socket: Upper: 4MT, Left/Right – 3MT Minimum Feed Length: 59” Maximum Weight: 6400 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Powered Coolant Pump and Lubrication Pump, 3-spindle Manual Style CNC Structural Drill, No Direct Download Capability “Feed Master” Power Rollers Rush 250A Drill Sharpener (available at additional cost)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included Conex

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
