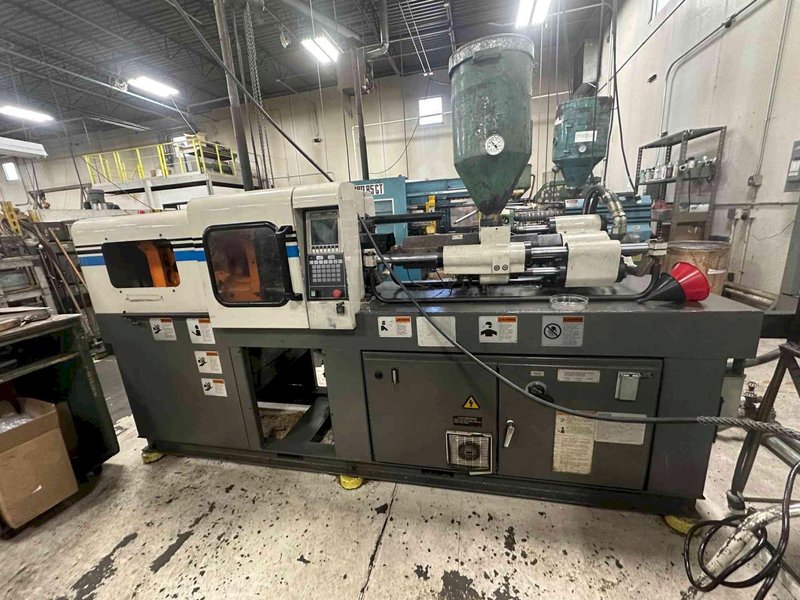

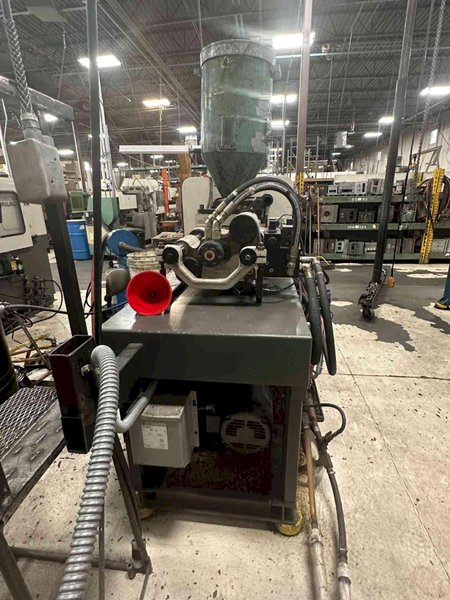

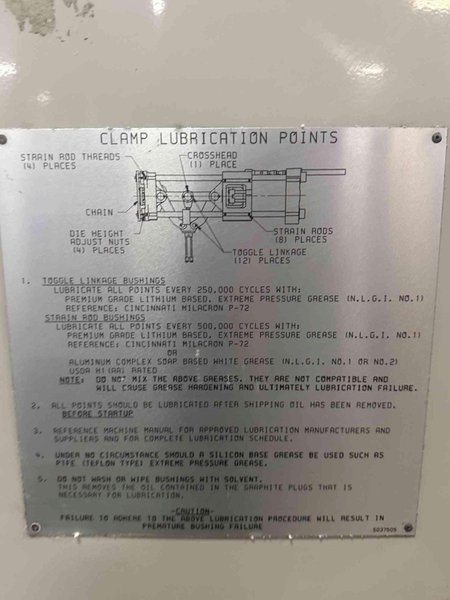

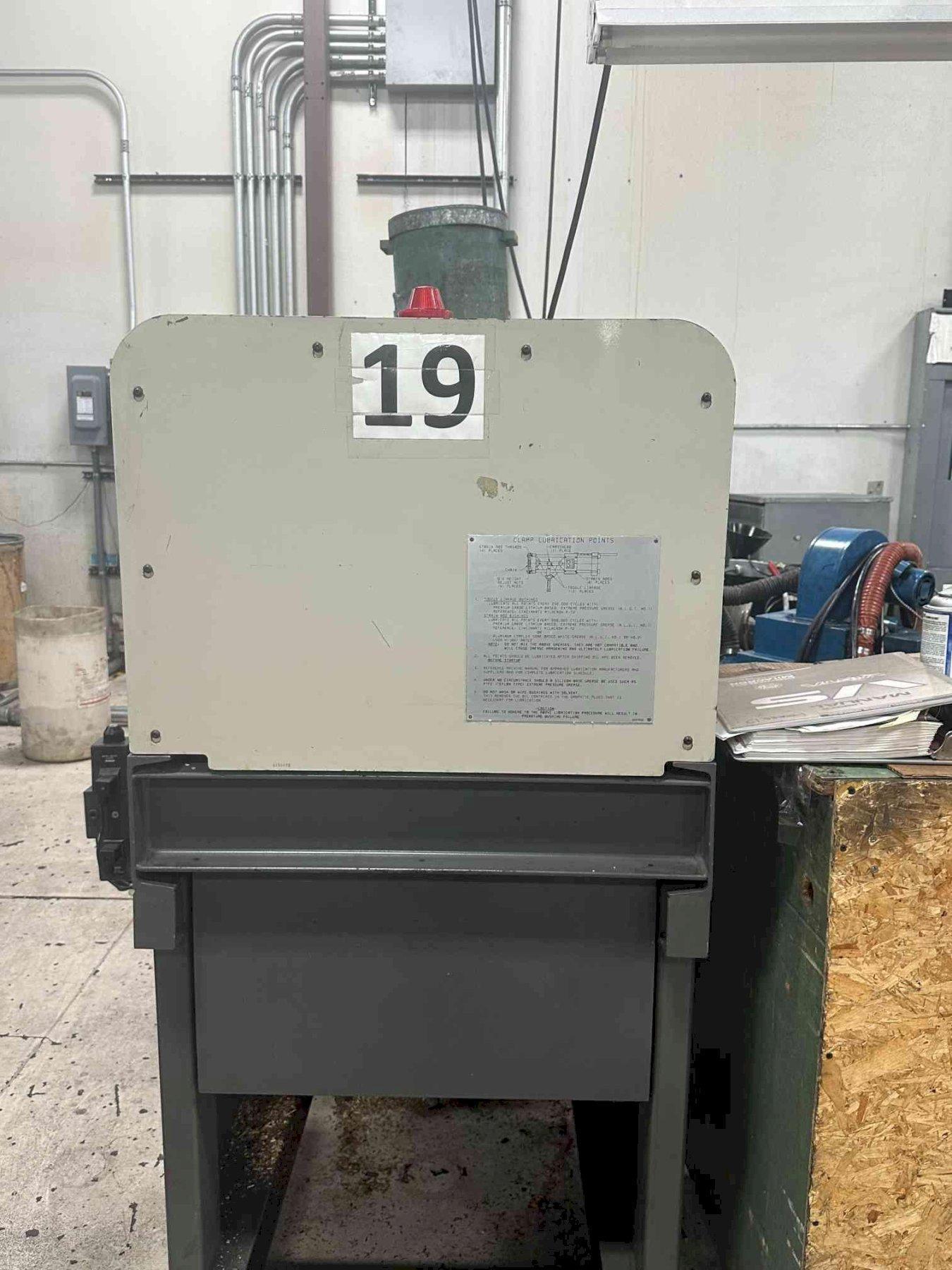

55 Ton, 2.97oz, Cincinnati Injection Moulding Machine, 12.8″ x 12.2″

55 Ton, 2.97oz, Cincinnati Injection Moulding Machine: – Maximum mold: 12.8″ height x 12.2″ width – Supply volts: 460V – Control volts: 24-VDC – Short circuit interrupting capacity 14000 RMS AMPS at 480 Volts – Soak timer – Up to 5 programmable speeds for Injection High and Screw RPM – Up to 11 programmable injection pressures – Adaptive shot control – Closed loop control of injection velocities and pressures – Cold screw start-up protection – P.I.D. loop control of barrel temperatures – High/Low temperature alarms – Digital setup of injection speed, extruder speed, and screw position set points – Digital readout of extruder speed, injection pressure, and screw position – Transfer from injection igh to injection pack byscrew position, hydraulic pressure, or time – Process monitoring – Alarm and fault messages – Auto shutdown on End of Run and Alarms – Semi-Auto Purge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
