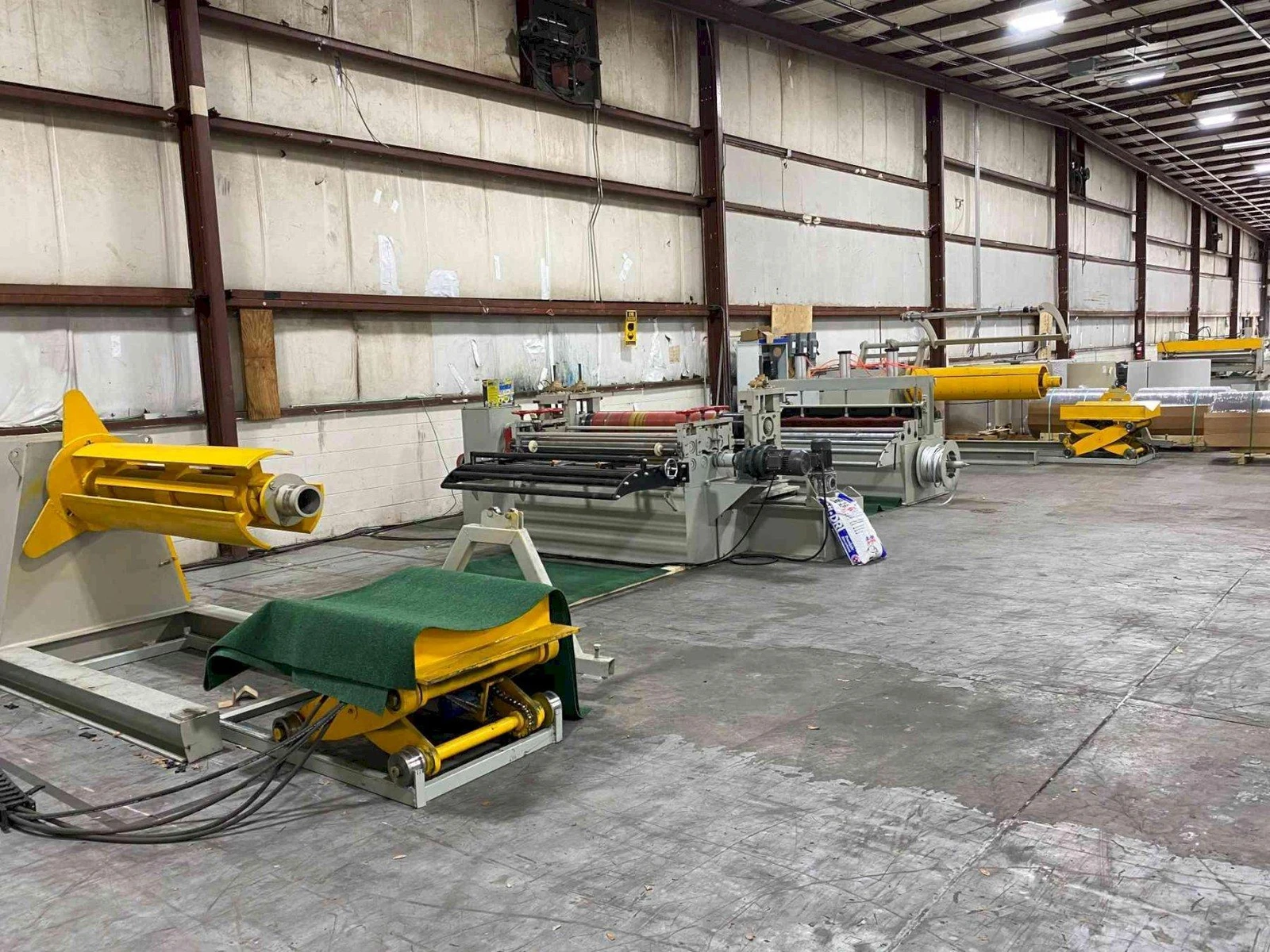

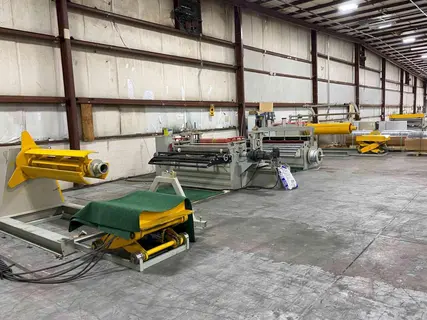

0.078″ x 5′ Wide Slitting Line, With Decoiler, Recoiler, & Leveling Machine

Types of Raw Materials: Galvanized, Aluminum,Color steel, Hardness 350MPa – 485MPa Raw Material Thickness: 0.3 mm – 2.0 mm Tape Inner Diameter: φ 480 mm – φ 530 mm Tape Outer Diameter: φ 1600 mm Coil Weight: Max 6 tons Slitting Quantity: Max 12 pieces Working Speed: 20 m/min – 60 m/min Mini Cutting Line Width: 35 mm Cutting Width Precision: ± 0.01 – ± 0.05 mm Rated Operational Voltage: 240 V, 3 Phase, 60 Hz Total Weight: 13000 KG Working Space (L*W): 20 meters * 6 meters

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Each Working Group Perameter: Feeding Unit: 5-ton Automatic Hydraulic Decoiler with Car Reel Width: 600 mm – 1600 mm Reel Tight Range: φ 480 mm – φ 530 mm Reel Inner Diameter: φ 480 mm – φ 530 mm Reel Outer Diameter: φ 1600 mm Load Bearing Max: 6 tons Shaft Diameter: Φ 180 mm Working Speed: 20 m/min – 60 m/min Drive Motor Power: 30 KW Loading Car Diameter: φ 700 mm – φ 1500 mm Car Load Max: 6 tons Car Movement Speed: 4 m/min Car Trip Distance: 0.4 meters height, 2.5 meters length

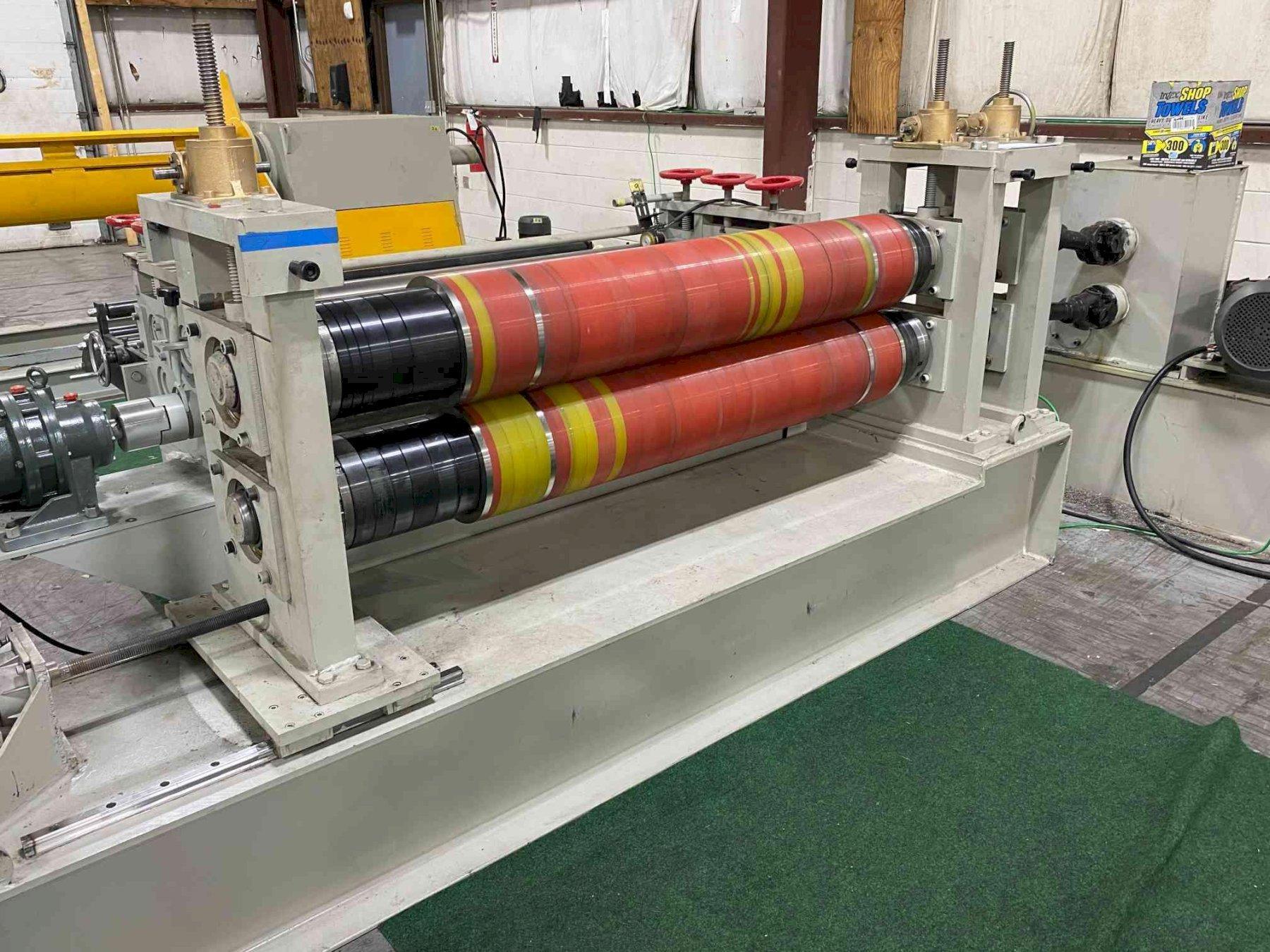

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Slitting Machine: Cutting Width Max: 1600 mm Cutting Thickness: 0.3 mm – 2.0 mm Cutter Shaft Diameter: φ180 mm Cutter Shaft Material: Cr 40 Cutter Size: 200 mm*300 mm*15 mm Cutter Material: Cr12MoV Cutter Spacer Size: 180 mm*240 mm*15 mm Drive Motor Power: 15 KW Cutting Pieces Max: 12 pcs Cutter Quantity: 26 pieces

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Leveling Machine: Shaft Diameter: φ 130 mm Shaft Layout: Up 2 rows, down 3 rows Mid Plate Thickness: 40 mm Mulch Applicator Diameter: φ 130 mm Film Width: 1600 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tension Table: Segregation Shaft: 3 pcs, 1 pcs pressure shaft Air Cylinder: 3 pcs Edge Collecting Machine Drive Motor: 3 kw Collecting Material Width: Max 20 mm Two Edge Width: 400 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Winding Unit: 5-ton Automatic Hydraulic Recoiler with Car Reel Width: 600 mm – 1600 mm Reel Tight Range: φ 480 mm – φ 530 mm Reel Inner Diameter: φ 480 mm – φ 530 mm Reel Outer Diameter: φ 1600 mm Load Bearing Max: 6 tons 6 Shaft Diameter Φ 180 mm Working Speed: 20 m/min – 60 m/min Drive Motor Power: 30 KW Loading Car Diameter: φ 700 mm – φ 1500 mm Car Load Max: 6 tons Car Movement Speed: 4 m/min Car Trip Distance: 0.4 meters height, 2.5 meters length

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Decoiler with Cart Leveling Machine Tension Table Recoiler with Cart New Bearings Reinforced For Heavier Gauge Metal And Coils, Now Rated For 12k

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
