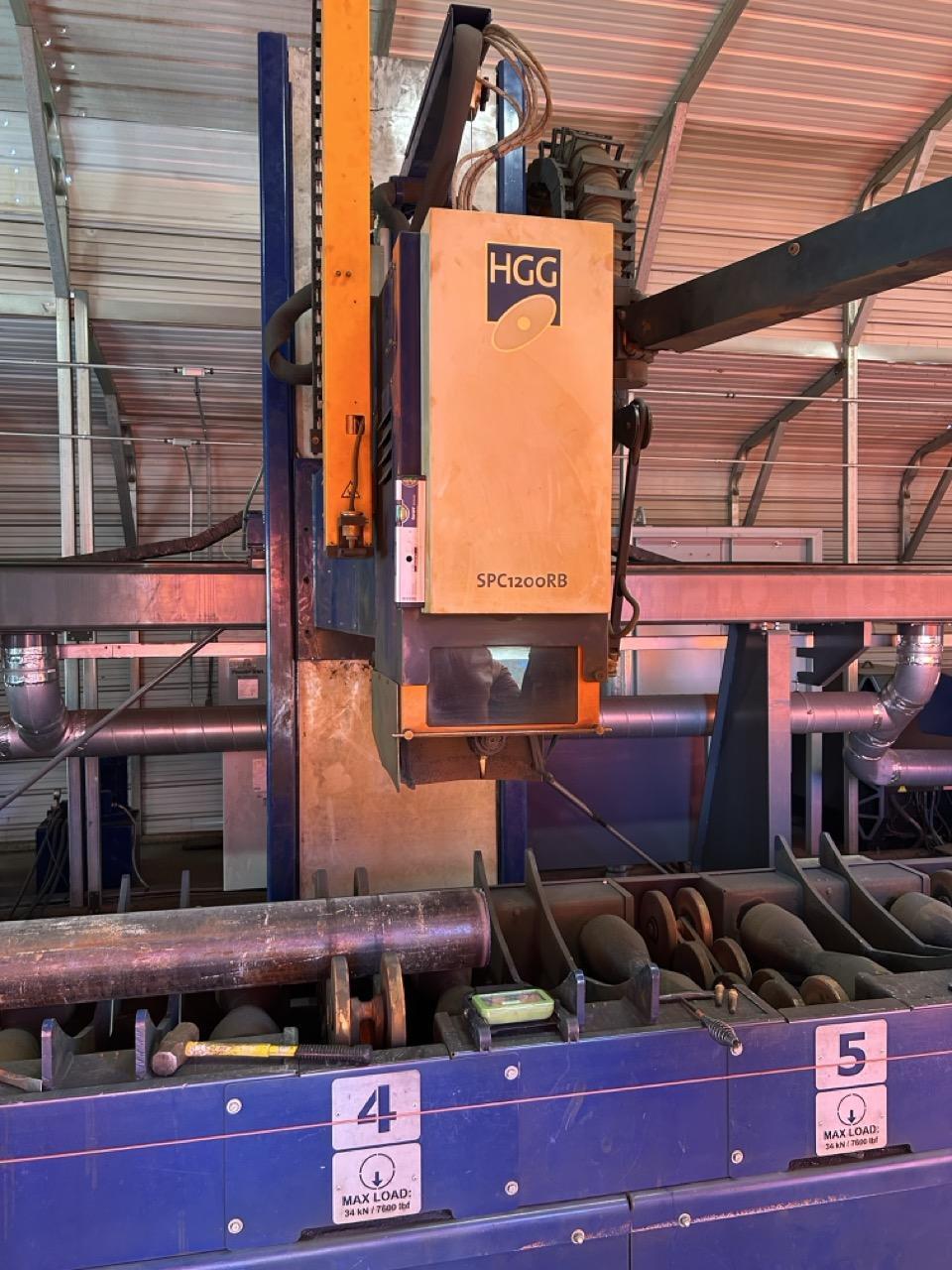

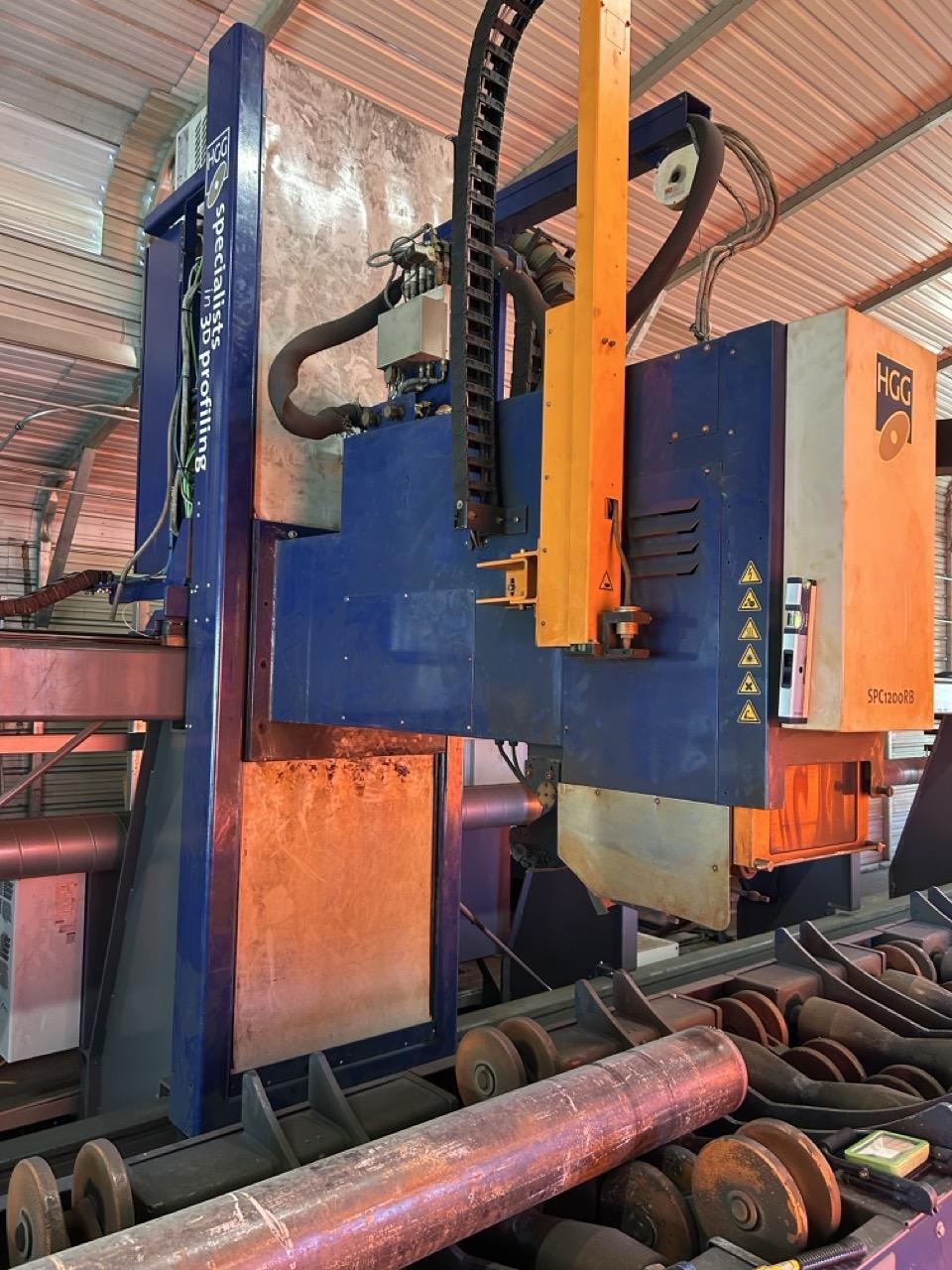

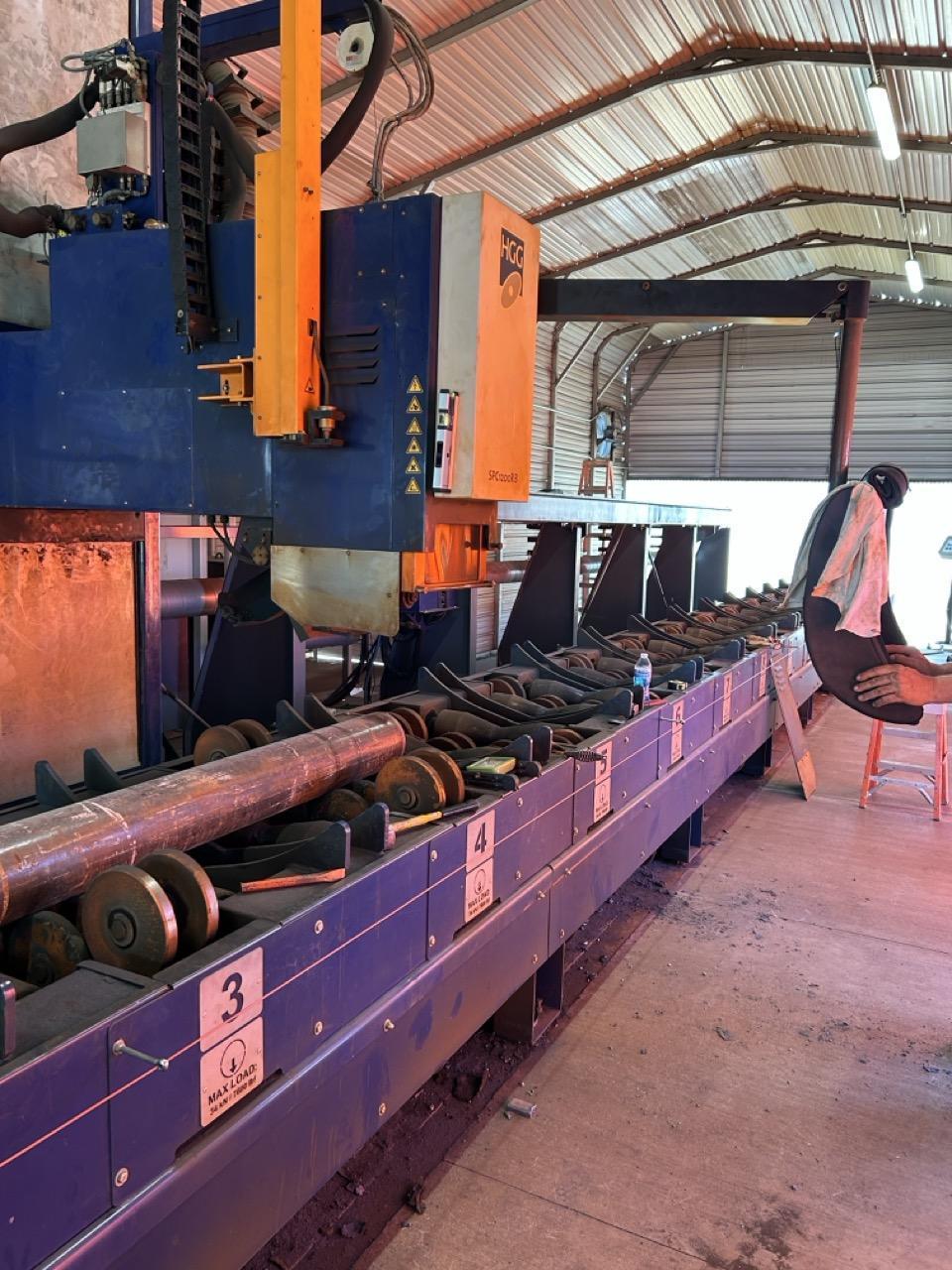

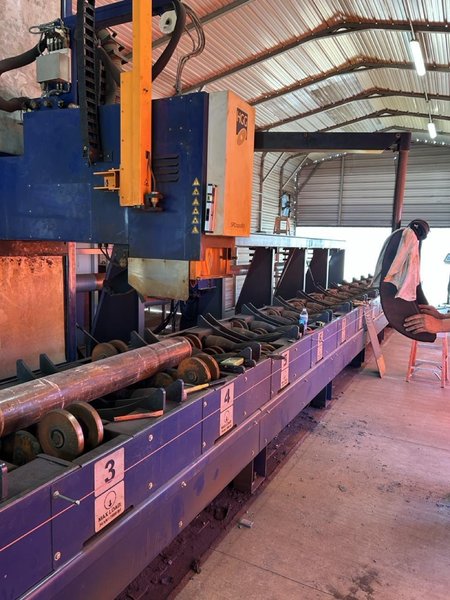

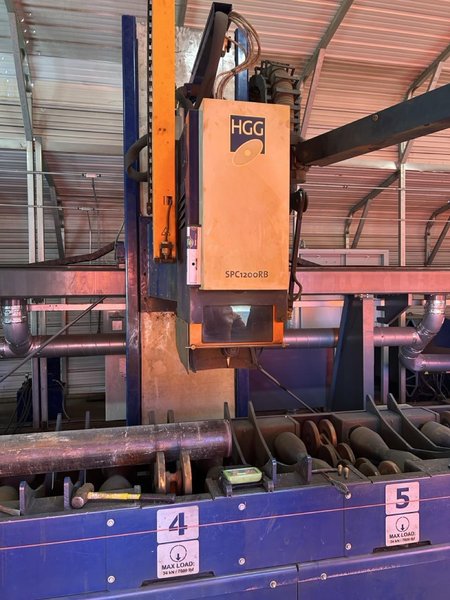

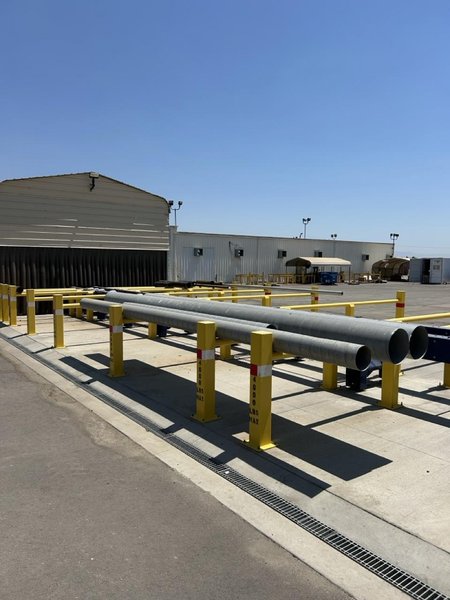

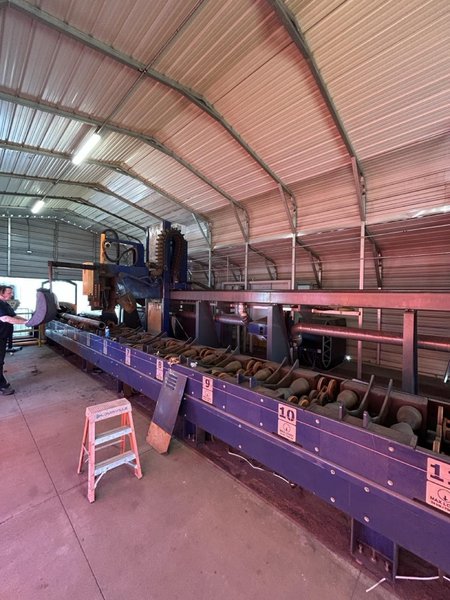

HGG SPC 1200 RB Thermal Profiling Machine, 2022

Max Outer Diameter: 48″ Min Outer Diameter: 3″ Max Pipe Weight: 26,455 lbs (12 t) Max Pipe/Shell Weight for Rotation (Main Drive 1200): 26,455 lbs (12 t) Max Pipe Weight per Meter (Roller Bed): 4,409 lbs (2 t) Max Pipe Length: 20’/40′ — any length possible adding increments of 6′ Min Scrap Length (Long Jaws): 2″ Min Scrap Length (Zero Scrap Jaws): 0″ Min Infeed Length (Roller Bed): 79″ Min Outfeed Length (Roller Bed): 39″ Admissible Ambient Temperature: 41–104°F Cutting Trolley Tilt Angle: -70° to 70° Cutting Trolley Rotation: 540° Cutting Holes Minimum Diameter: 8 mm (~0.31″) or 2× wall thickness Cutting Holes Diameter ≥ 40 mm (~1.57″): Independent of wall thickness

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With • Deltatau Motion Control • Control Techniques Electronics and Motors • Wago Remote Bus IO • Oxyfuel and Hypertherm XPR 300 Cutting Technology • All Available Manuals
