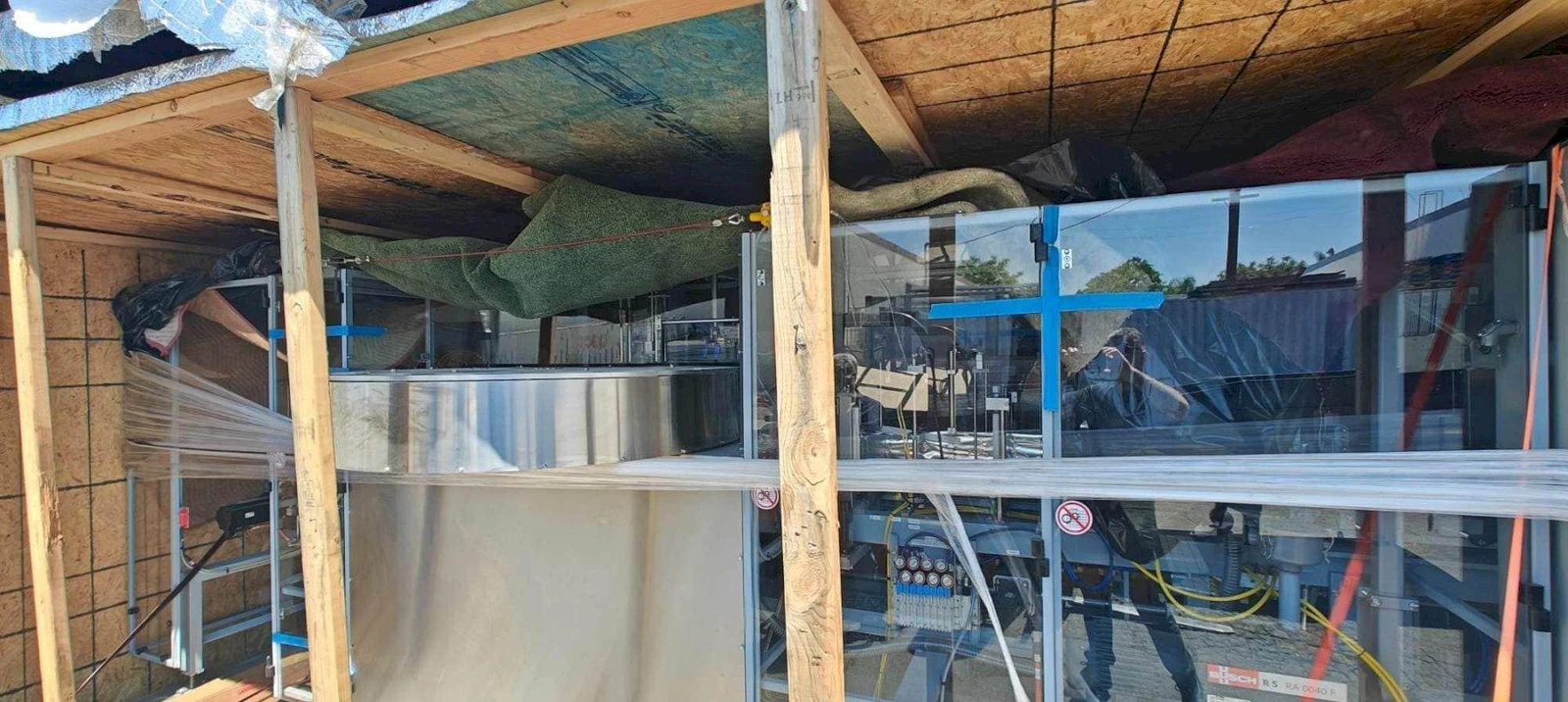

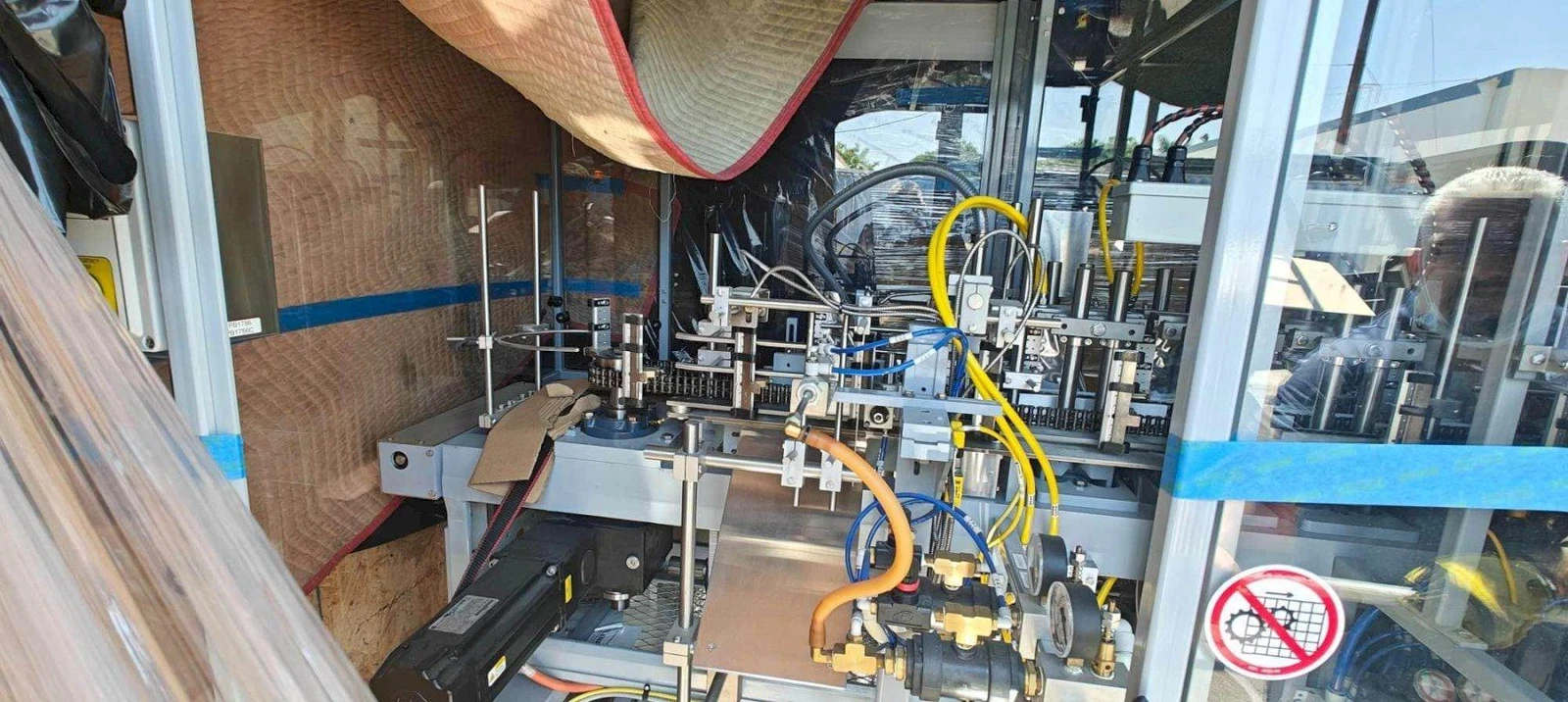

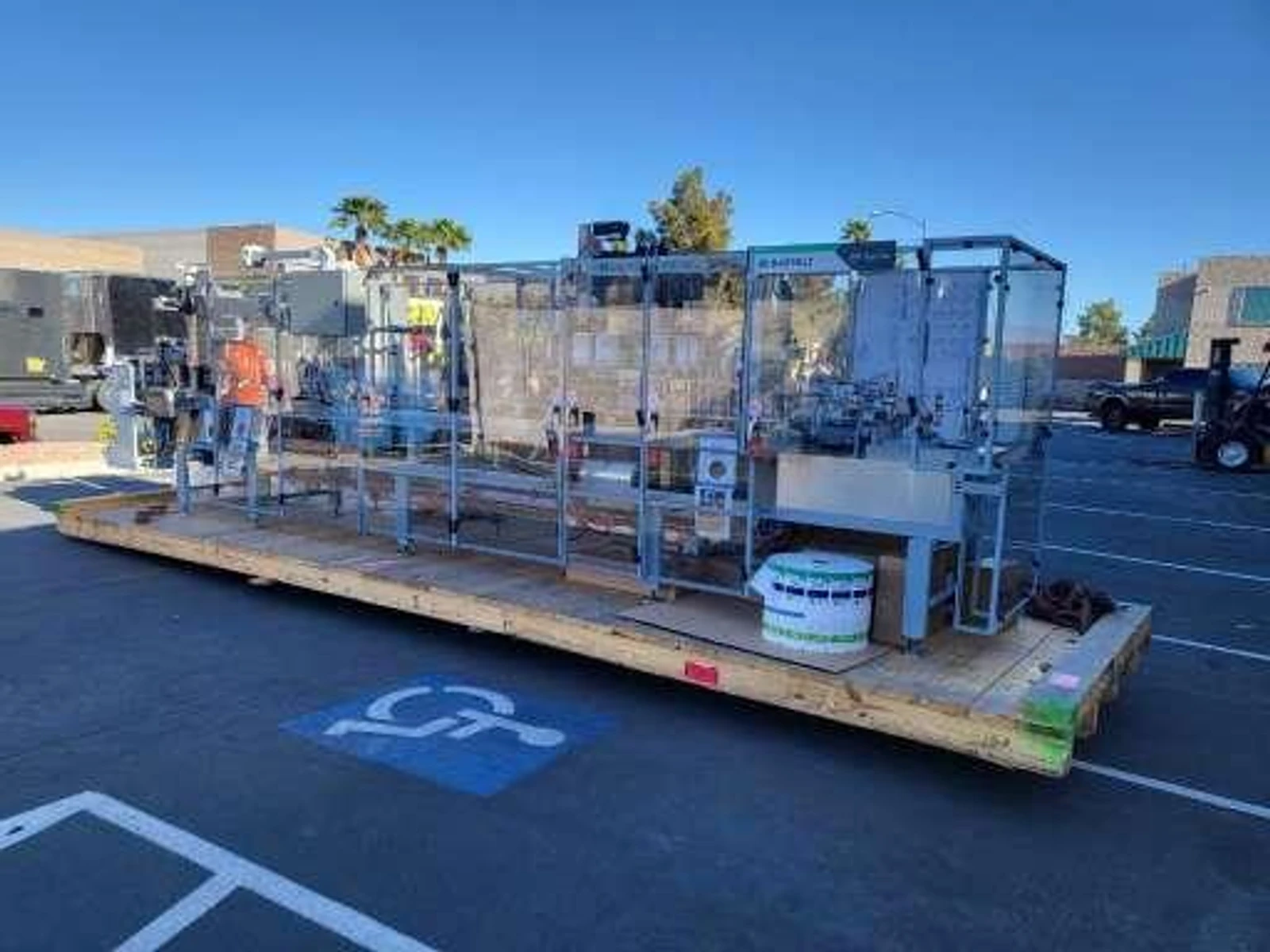

2021 Bartelt IM‑7 Servo‑Driven Intermittent Motion Pouch Machine – Never Commissioned, Full OEM Spec

Specs Capacity: 80–90 ppm (Format 1); Max mechanical speed: 100 CPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Performance: Pouch sizes 2.00–5.75″ W × 2.00–9.50″ H; Gusset up to 2.25″; Max pouch weight: 16 oz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control: Allen‑Bradley PanelView Plus HMI, Rockwell CompactLogix controller, Kinetix 5700 drives, full servo (feed roll, main, clamp chain)

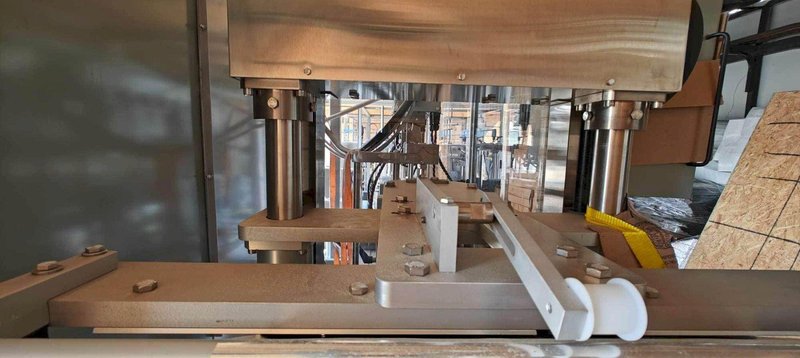

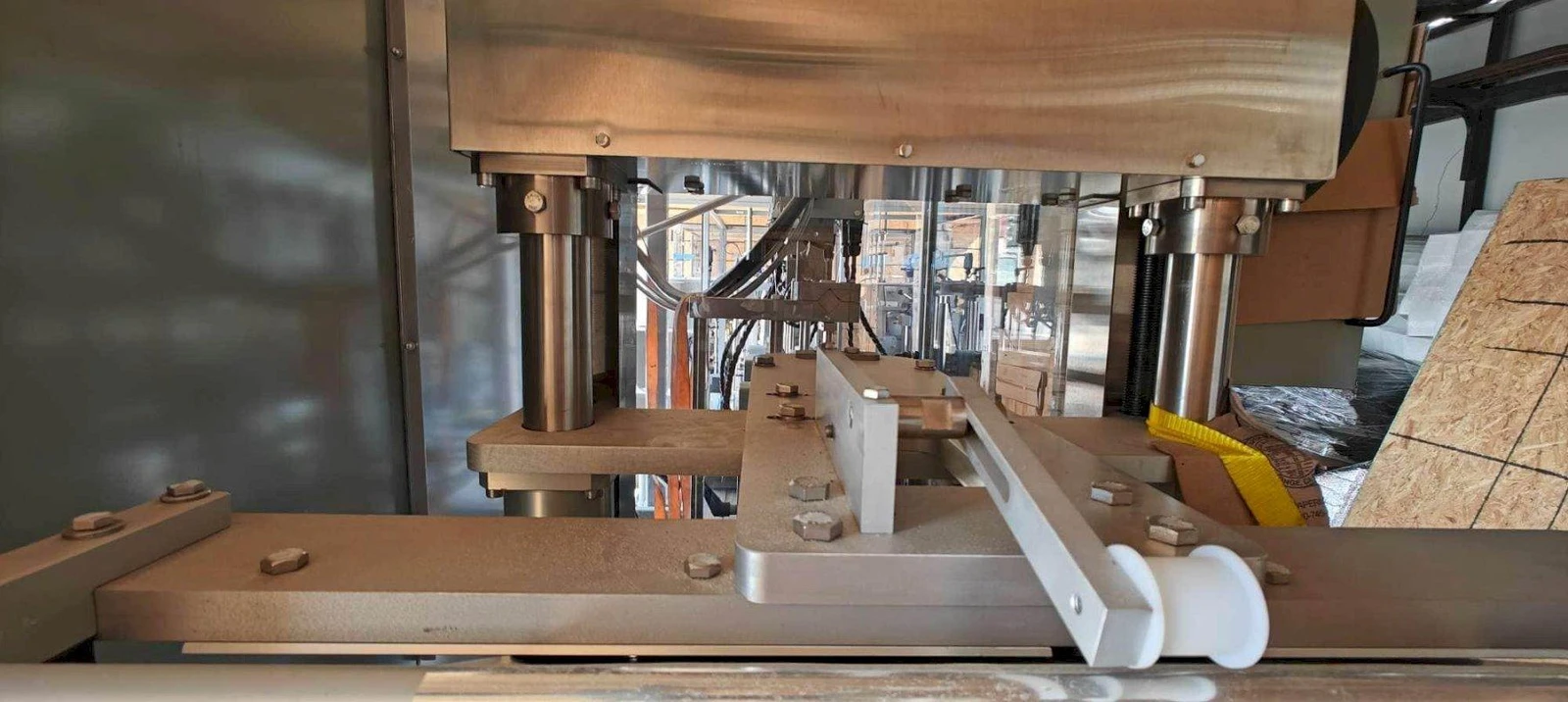

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accessories: Dual servo vacuum pouch openers Graphic Packaging Dual Lane Pick & Place system Dial feeder with slotted inserts Pre-heat, side, bottom, top seal bars Zipper application unit with unwind stand Product detection (top seal laser, no-bag stop, reject mechanisms)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities: 480 V 3-phase 60 Hz (40 amps); 20 SCFM compressed air @ 80 psi; Chiller (2 GPM at 32–50°F)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 272.7″ L × 120.5″ W × 77.75″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: Approx. 3,500 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installed options Graphic Packaging dual-lane pick-and-place loader Dial feeder with two pouch size setups Full zipper applicator system Pneumatic reject & vacuum pick-off discharge Water chiller package Static bar eliminators, laser top seal detection, and slit notcher

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feature spotlight Never commissioned—fully OEM spec with zero-hour production history Dual format capability with integrated pick-and-place for automated loading Full Rockwell motion control & Allen‑Bradley HMI for precision pouching Zipper-capable with upgraded web handling and reject system
