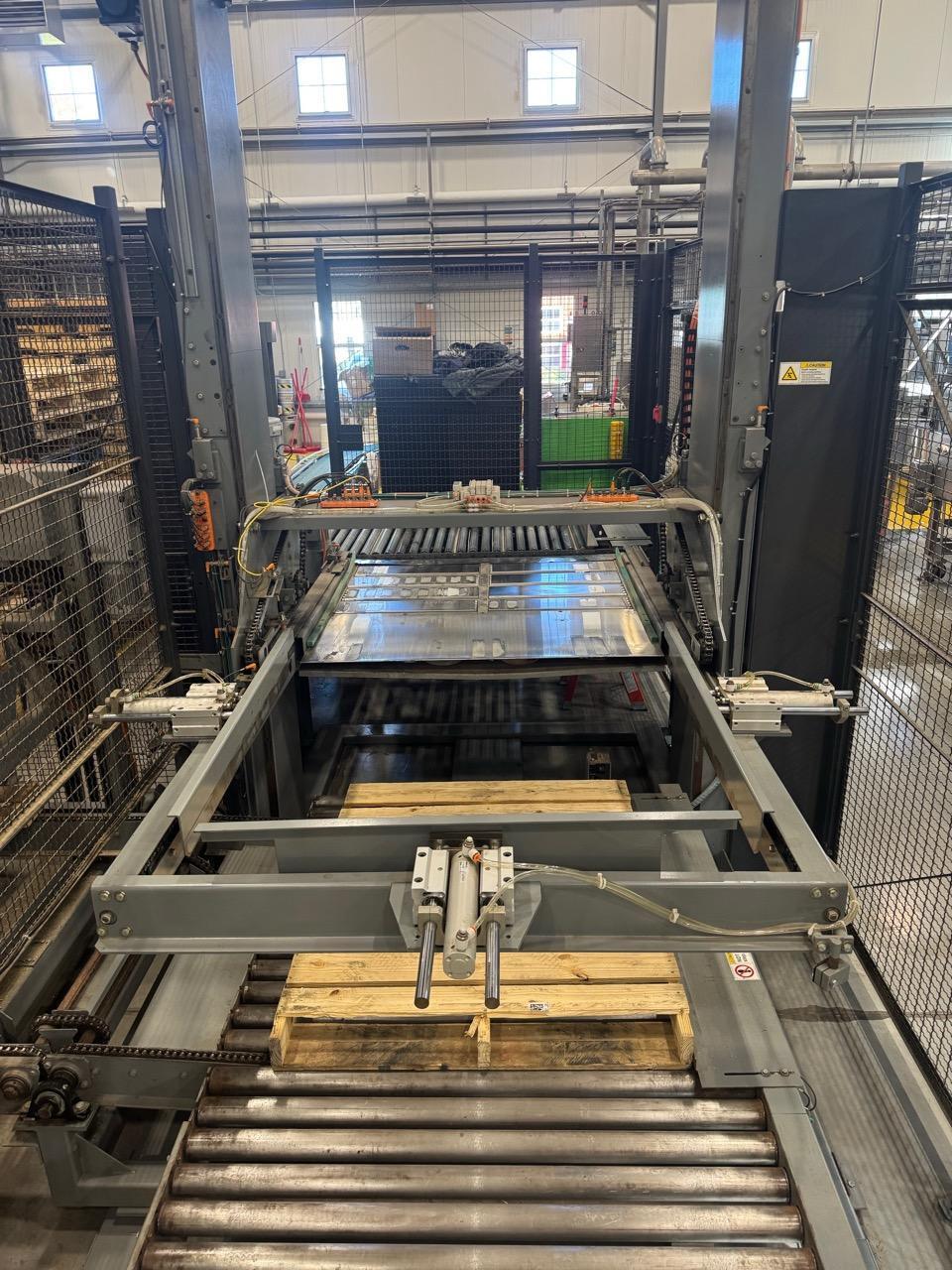

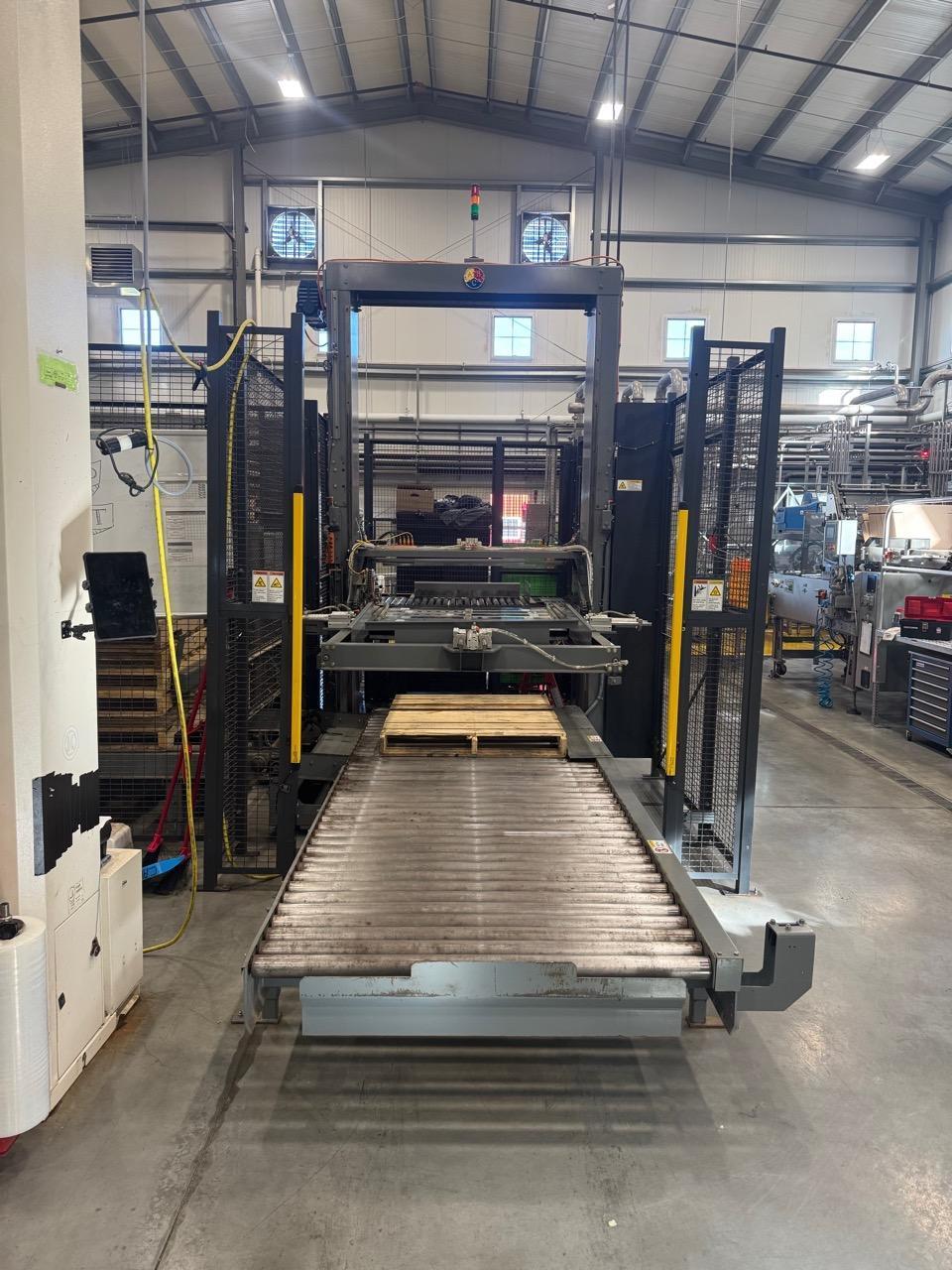

ABC 72A Low Level Palletizer – 2021

Palletizer Style: Automatic Case Style: Tray Cases Per Tier: 10 Tiers Per Pallet: 6 Pallet Size: 40″ X 48″ Speed: 12 Trays Per Minute Layer Speed: Up To 3 Layers Per Minute NEMA Rating: NEMA 12 Control Voltage: 24 VDC Power: 480V, 60Hz, 3 Phase Air Requirement: 80 PSI Air Connection: 0.5 NPT Air Consumption: 4 SCFM Controls: Allen Bradley CompactLogix PLC VFD: Allen Bradley PowerFlex 525 VFD HMI: Allen Bradley PanelView Plus 7 1000 Standard Terminal HMI Model: 2711P-T10C21D8S Feed Conveyor Length: 43″ Roller Length: 25″ Roller Diameter: 1.9″ Pallet Dispenser Size: 40″ X 48″ Additional Feed Conveyor Length: 6′ Pallet Discharge Conveyor Length: 6′ Approx. Dimensions: 8’7″ L X 8’2″ W X 8’7″ H Color: Gray Machinery Enamel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High Speed Option Powered Timing Belt Feed Conveyor Row Forming Conveyor Heavy Duty Row Pusher Stainless Steel Tapered Layer Deposit Plate Electrically Operated Automatically Adjustable Layer Retainer Bar Adjustable Layer Side Guide Rails Ethernet Communication Dual Configurable Ethernet Ports IO Link System Remote Access Capability Heavy Duty Gearmotors Sealed Bearings Effector Photo Eyes Proximity Switches With Micro Quick Disconnect Cables Elevated Tower Beacon Lights Allen Bradley Emergency Stop Pushbuttons Guarding Package Safety Light Curtain At Full Pallet Discharge Allen Bradley SensaGuard RFID Safety Door Switches SMC Manual Air Shut Off Valve SMC Air Regulator And Water Eliminator SMC Automatic Air Dump Valve Solid State Air Pressure Switch SMC Solenoid Valves EWON Internet Modem Rotary Style Fused Main Machine Disconnect 90° Case Turning Device Two Blade Stop For Layer Pattern Positioning Low Friction Rollers On Transfer Table Tower Extension Lift And Set Style Pallet Dispenser 90° Two Chain Pallet Transfer Conveyor Driven Roller Full Pallet Discharge Conveyor Allen Bradley VFD Conveyor Controls Operation And Maintenance Manuals USB With PLC And HMI Programs Electrical And Pneumatic Drawings

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
