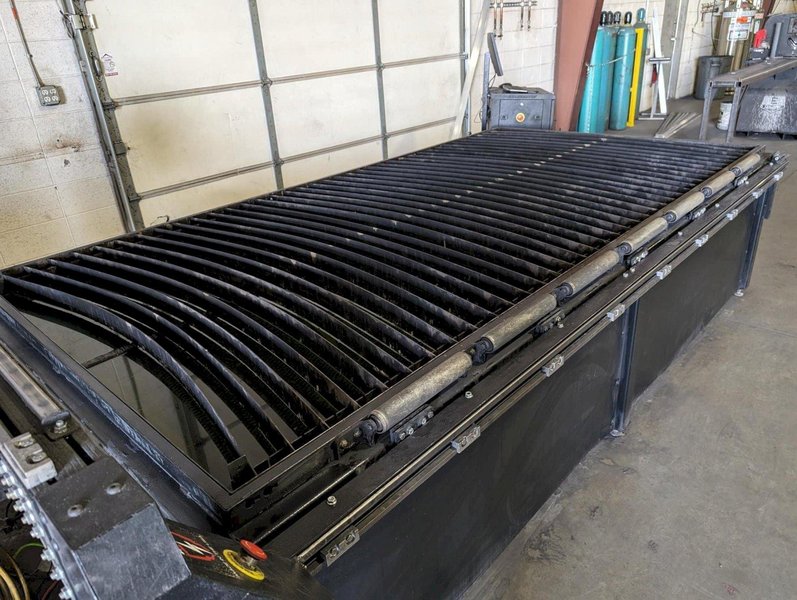

(2) 5’x10′ Arclight ArcMax CNC Plasma Table, 2022 – Hypertherm Powermax 85

Model
ArcMax
Stock #
976990
Year
2022
Condition
Not specified

Location

Not specified
Two available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motors: Four 620 oz Stepper Belt Drive: 3:1 gear reduction Gear Engagement: Spring loaded precision, Rack and Pinion Drive X&Y Axis Rails: Dual 20mm Linear Guides Z-Axis: Anti-backlash lead screw w/floating head & magnetic torch mount Traverse Speed: 600 IPM Max Cut Speed: 600 IPM Controller: CoreCNC Delta 3 Phase 2 Materials: Unitized Frame Welded and powder coated Slat Spacing: 1.5″ Apart standing Gantry Clearnence: 7″ Standard Computer: Linux Mini Computer Qcad: CAD Software for 2D Inkscape: Vector Graphics Editor SheetCAM: Layout and tool selection CommandCNC: Controller Operating Software Vltage: 110V @ 15 amps Overall Dims: 88’wx143″Lx60″H Size at Base: 70″Wx133″L Cutting Envelope: 62″W X 124:L Cabinet: 21.5″ x 17.75″ Water Capacity 300 Gallons Weight: 2500 lbs Hypertherm powermax 85

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - (2) 5’x10′ Arclight ArcMax CNC Plasma Table, 2022 – Hypertherm Powermax 85
5’x10′ ArcLight Arc Max CNC Plasma Table, 2019 – Hypertherm 65, Water Table
ARCLIGHT

Plasma Cutters

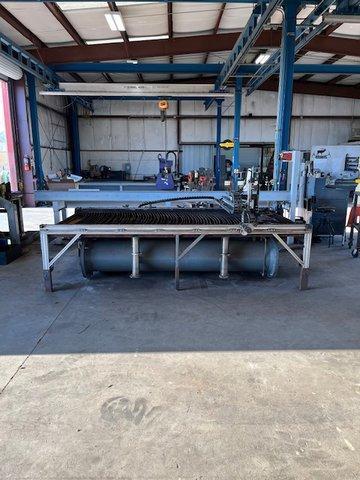

5′ x 10′ Arclight Arc Pro V2 Elite CNC Plasma Table, 2015
