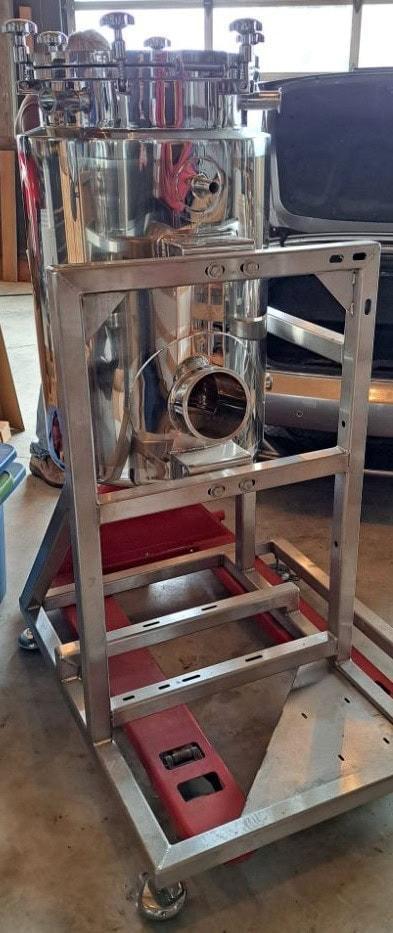

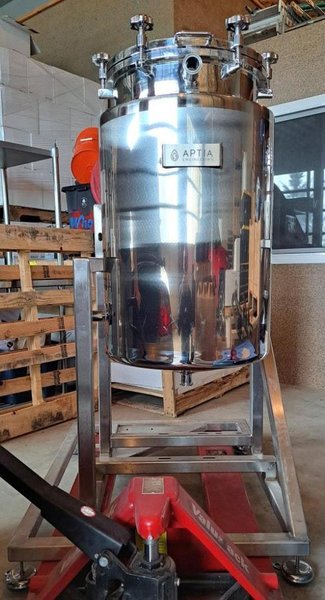

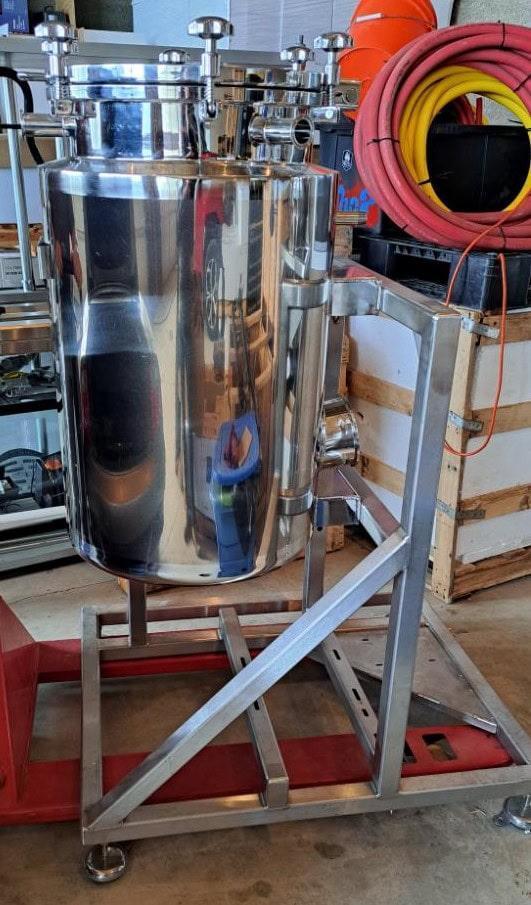

35 Gallon Aptia Engineering Stainless Steel Jacketed Vacuum Reactor Vessel – New!

Features

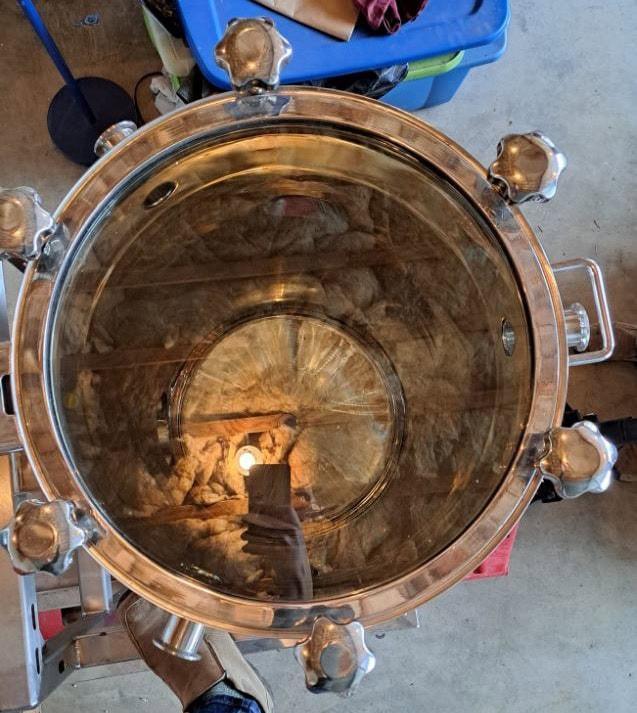

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,35 Gallon / 132 Liter tank volume Rated for full vacuum and +15 PSI internal pressure (not an ASME pressure vessel) Designed with top mount glass manway for process observation Dimpled jacket Insulation under exterior stainless-steel skin Reinforced 6″ TC side-entry nozzle for side-mount agitator Full diameter top manway can be completely removed for easy cleaning Approx. Support Frame & Tank Dimensions: ~50” L x 36” W x 65″ H Port Locations

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Top Ports:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY1 – 18” Top Manway (completely removable) · Side Ports:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY3 – 1.5” TC (located up high on side of tank) QTY1 – 1.5” TC (located down low through side of tank) QTY1 – 6” TC (reinforced for mixer mount) QTY1 – 3/4” MNPT Heating / Cooling Media Outlet (located up high on side of tank) · Bottom Ports:

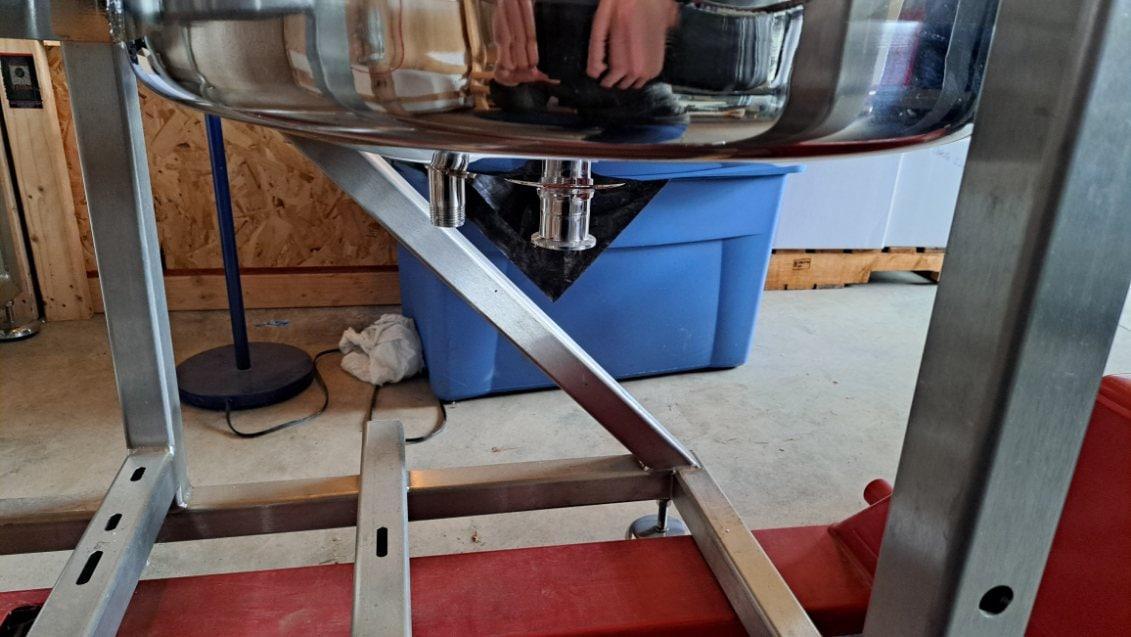

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY1 – 1.5” TC (center bottom drain) QTY1 – 3/4” TC Heating / Cooling Media Inlet Additional specs available upon request, just let us know.
