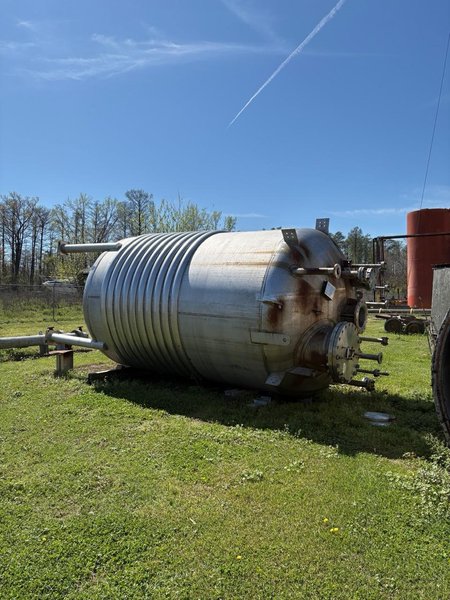

6,000 Gallon Roben Mfg 304 Stainless Steel Jacketed Reactor, 2015 – 100 PSI, Half-Pipe Coil

Manufacturer: Roben Material: 304 Stainless Steel Vessel Dimensions: Approx. 102″ diameter × 144″ straight side height; dished heads for added strength and pressure integrity Pressure & Temperature Ratings:

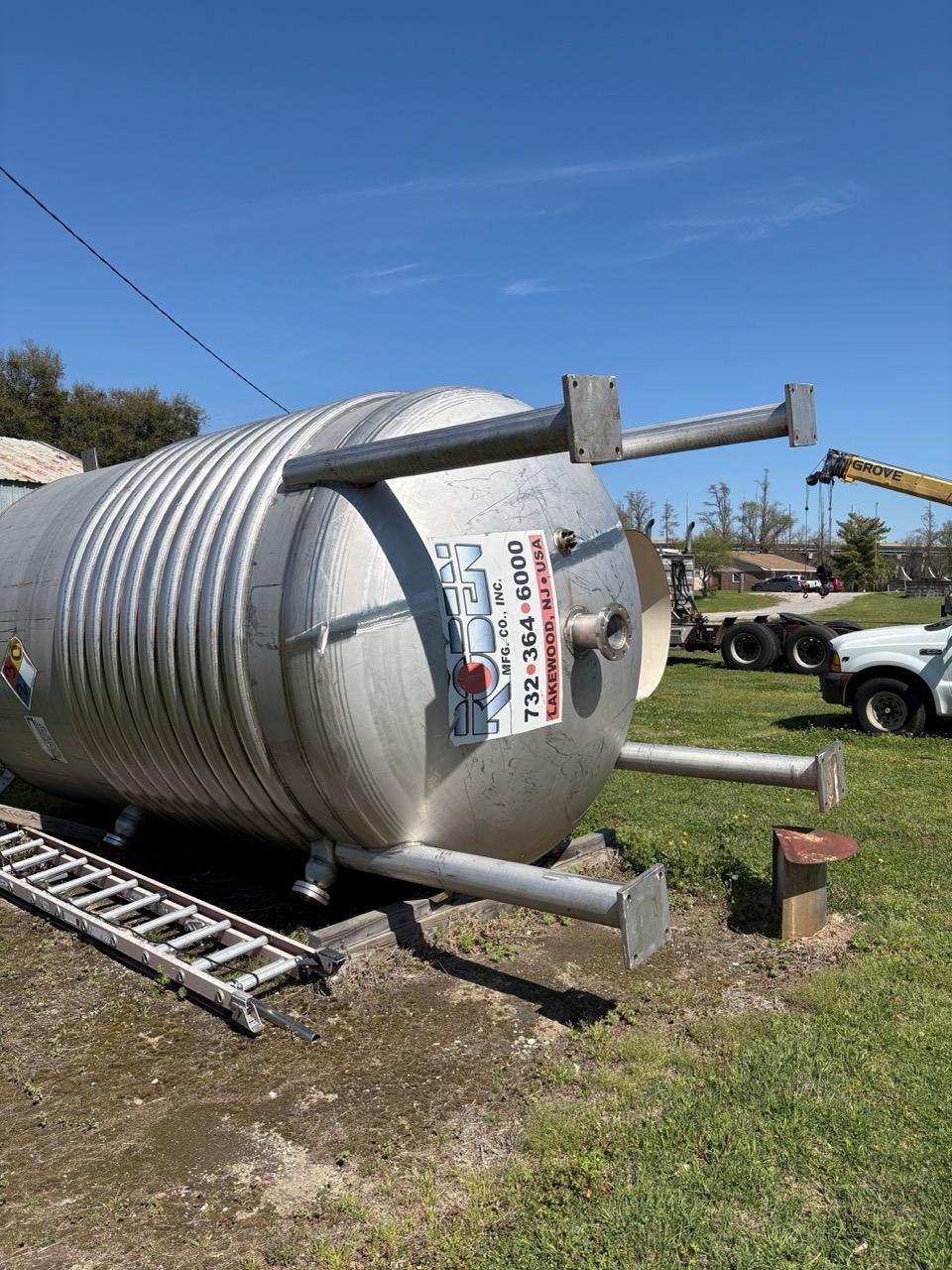

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Internal vessel: 100 PSI / Full Vacuum, -25°F to 450°F Half-pipe coiled jacket: 150 PSI / Full Vacuum, up to 375°F (compatible with steam, glycol, or hot oil for efficient thermal transfer)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Top Fittings & Nozzles:

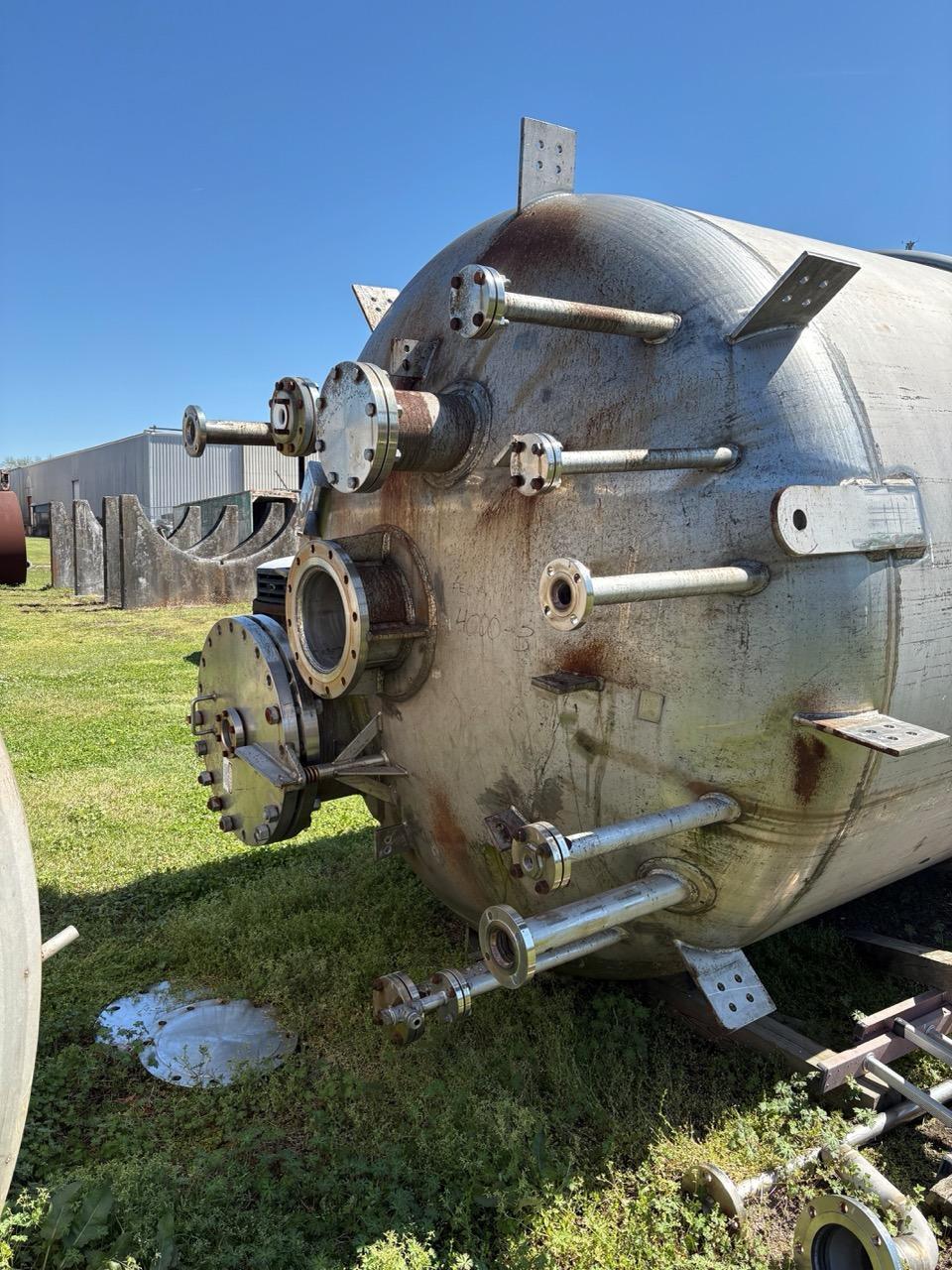

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,24″ manway with sight glass 12″ agitator nozzle (agitator and drive not included) Multiple process nozzles ranging from 1.5″ to 8″ for flexible instrumentation and product flow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional Features:

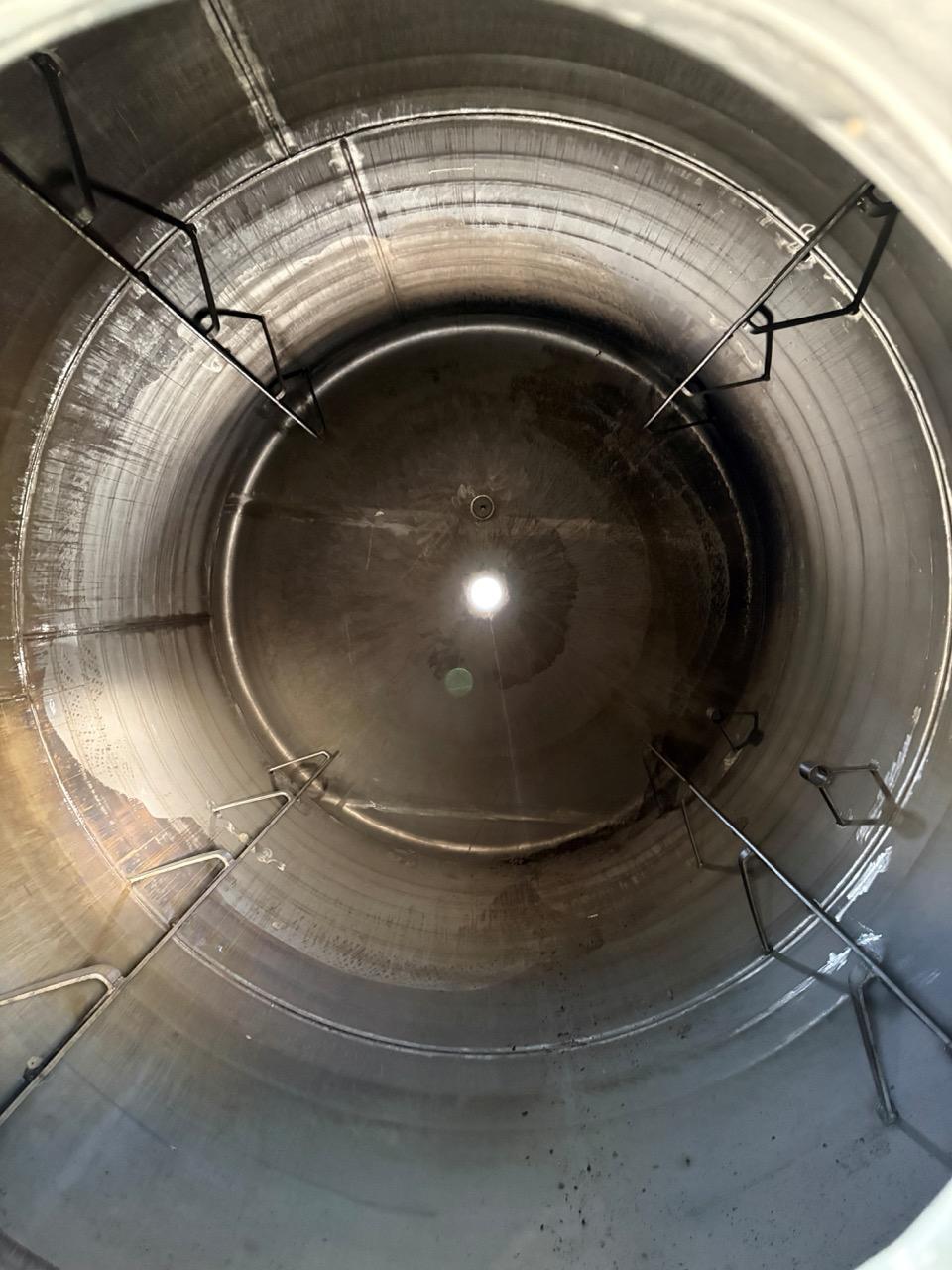

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,6″ center bottom outlet 1″ offset bottom head thermocouple port (4) internal baffles for improved mixing Dip tube support stands Mounted on (4) stainless steel legs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
