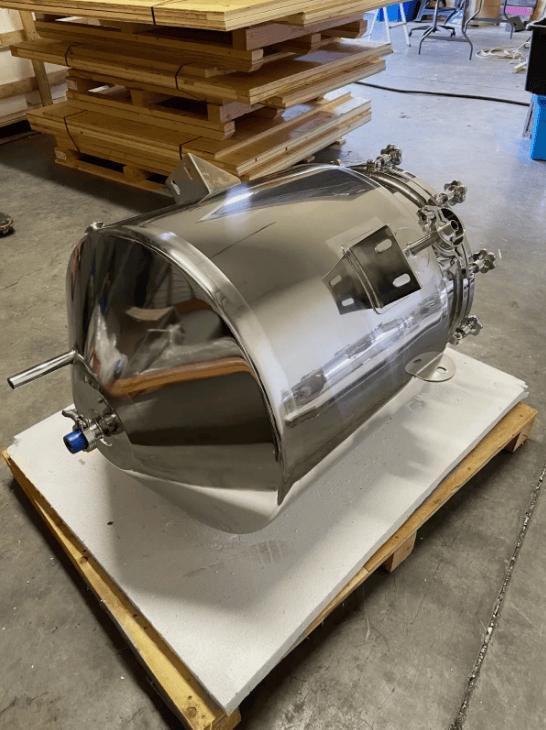

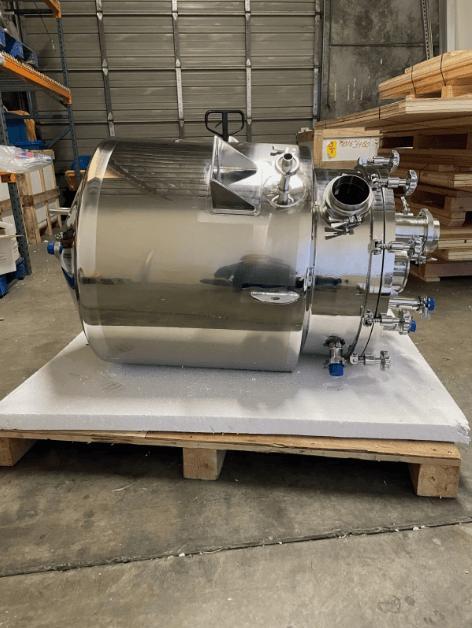

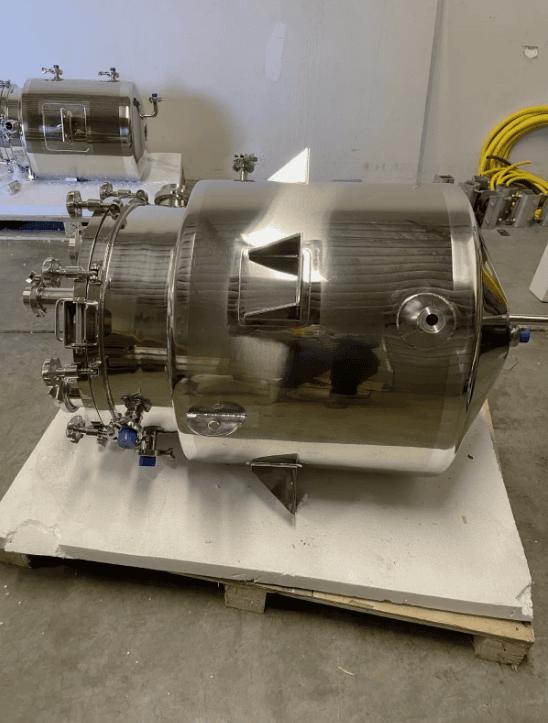

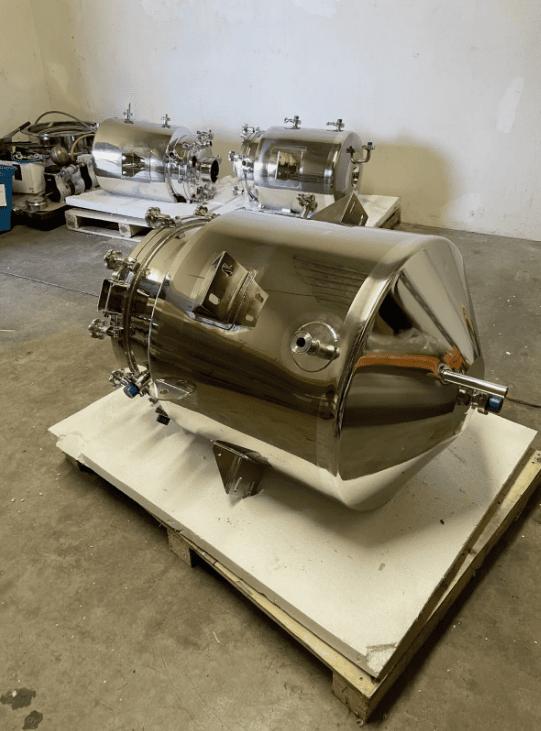

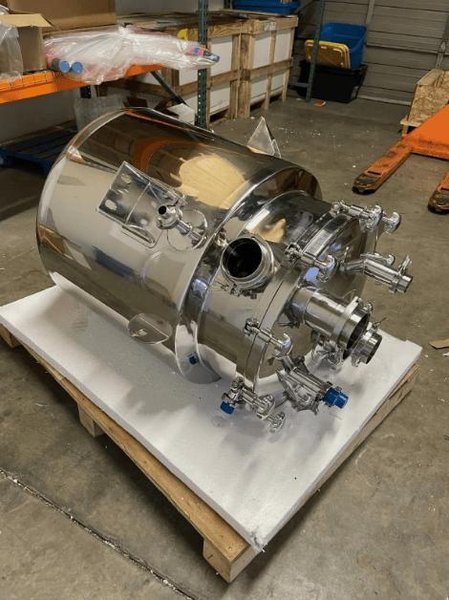

60 Gallon Aptia Engineering Stainless Steel Jacketed Vacuum Reactor Vessel – NEW!

60 Gallon / 225 Liter tank volume Rated for full vacuum and +15 PSI internal pressure (not an ASME pressure vessel) Designed to have a top-mount agitator installed for internal mixing Dimple Jacket Insulation under exterior stainless-steel skin f Internal baffles Full diameter top manway can be completely removed for easy cleaning Approx. Tank Dimensions: ~43” H x 33” W

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Top Ports:

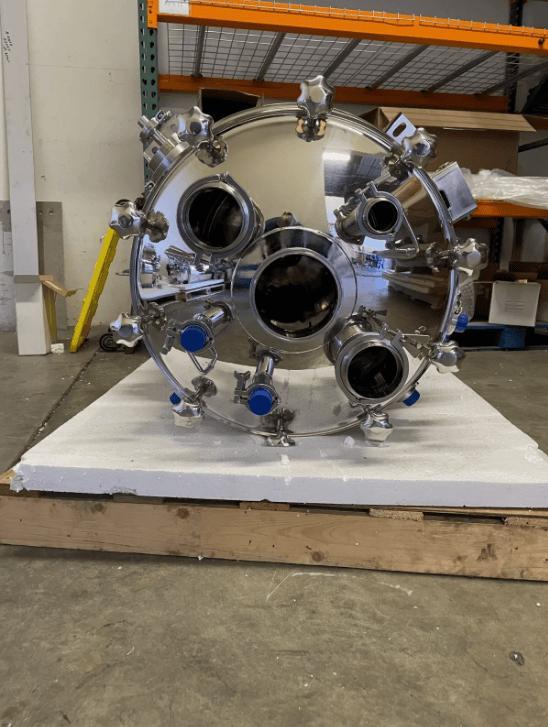

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY1 – 24” Top Manway (completely removable) QTY1 – 6” TC QTY2 – 4” TC QTY1 – 2” TC QTY2 – 1.5” TC · Side Ports:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY1 – 4” TC (located up high on side of tank) QTY3 – 1.5” TC (located up high on side of tank) QTY1 – 1.5” TC (located down low through side of tank) QTY1 – 6” TC (for mixer mount) QTY1 – 1” TC Heating / Cooling Media Outlet(located up high on side of tank) · Bottom Ports:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,QTY1 – 1.5” TC (center bottom drain) QTY1 – 1” TC Heating / Cooling Media Inlet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
