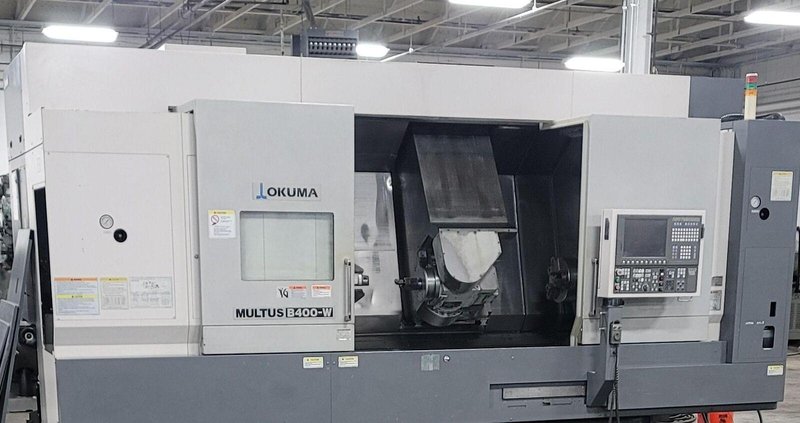

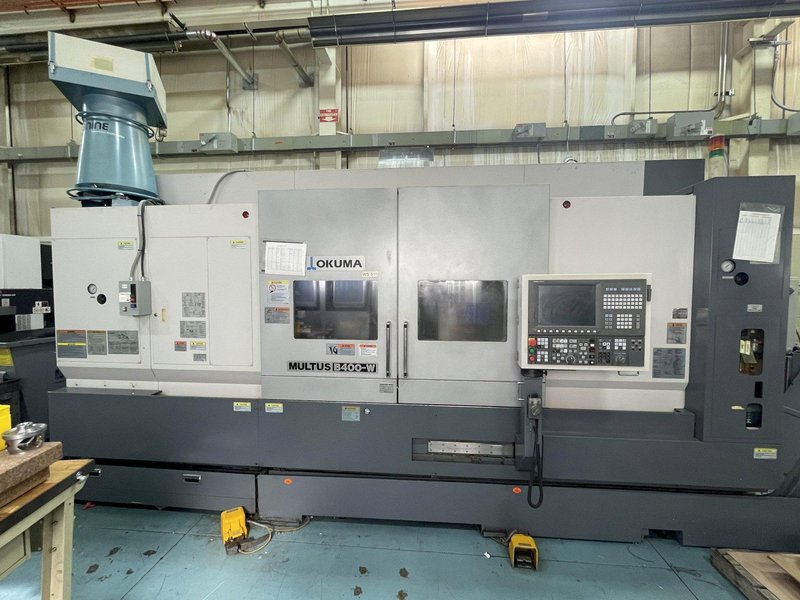

OKUMA MULTUS B400W MULTI-TASKING CNC LATHE, 2800 RPM, 40 ATC, CAPTO, 10000 Tool Speed, 60" Centers , 40HP, Year 2008
Brand
Category
Model
Multus B400W
Stock #
56228
Year
2008
Condition
Very Good
Location
Kentucky
| CNC Control | yes |
| Type of CNC Control | Okuma OSP P200L CNC Control |
| Max Machining Diameter | 27.9" |
| Max Working Distance Between Spindles | 60.00" |

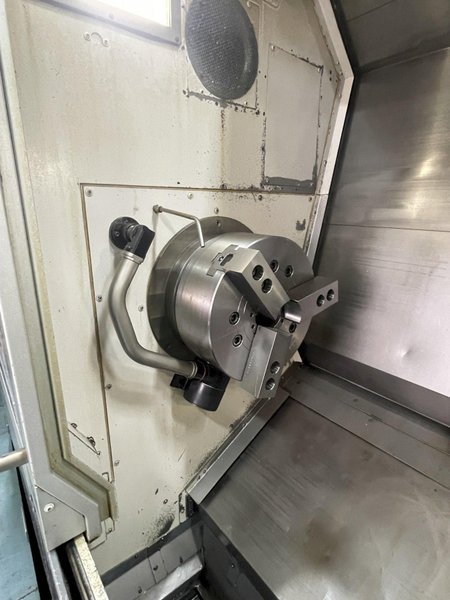

| Main Spindle Chuck Size | 15" |
| X-Axis (Cross Travel of Universal Head) | 27.95" |
| Z-Axis (Longitudinal Travel of Universal Head) | 60.00" |
| Y-Axis (Travel of Universal Head) | 4.33" |
| Y Axis (Yes / No) | yes |
| W-Axis (Sub-Spindle Slide) | 61.02" |
| C-Axis (Indexing Positions of Main Spindle) | .001° |
| C2-Axis (Indexing Positions of Sub-Spindle) | .001° |
| Main Spindle Bore | 5.91" |
| Main Spindle Speed Range | 38 - 2,800 RPM |
| Main Spindle Nose | A2-11 |
| Main Spindle Horsepower | 40/30 HP |
| Automatic Tool Changer Capacity (ATC) | 40 Total |
| Live Tooling Speed Range | 50 - 10000 RPM |
| Tool Taper in the M-Spindle | Capto (C6) |
| B Axis Indexing Angle 225 Degree at | 0.001″ |
| Live Tooling Horsepower | 10/13 HP |

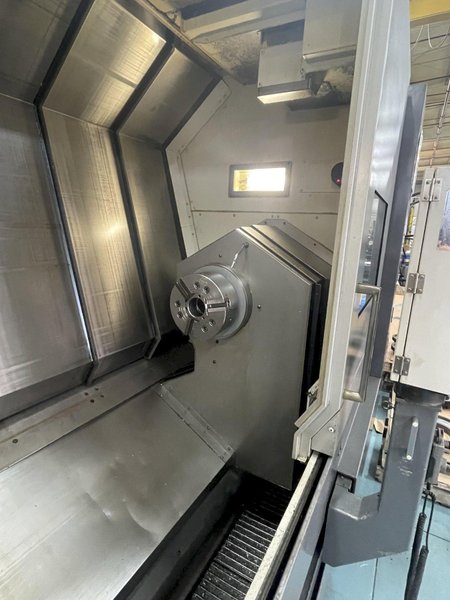

| Sub Spindle Chuck Size | 12″ Chuck |
| Sub-Spindle Speed Range | 50 - 3,800 RPM |
| Opposing Spindle Speed Range Auto | 2 – Speed |
| Sub Spindle Bore Dia | 4.72" |
| Sub-Spindle Horsepower | 30/20 HP |

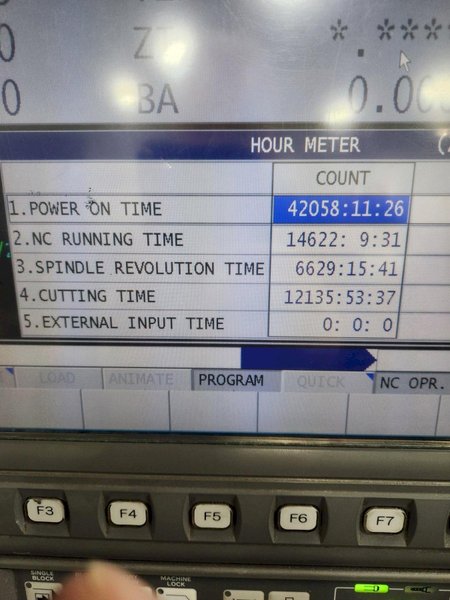

| Machine Cutting Hours | 12135 Hours |
| Dimensions | L226.38" x W104.73" x H118" |
| Machine Weight | 34000 Lbs. |
|

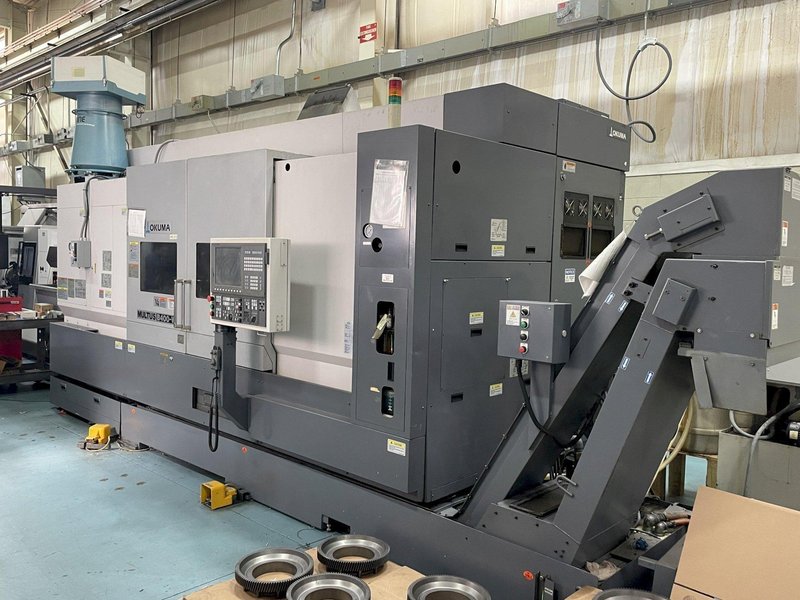

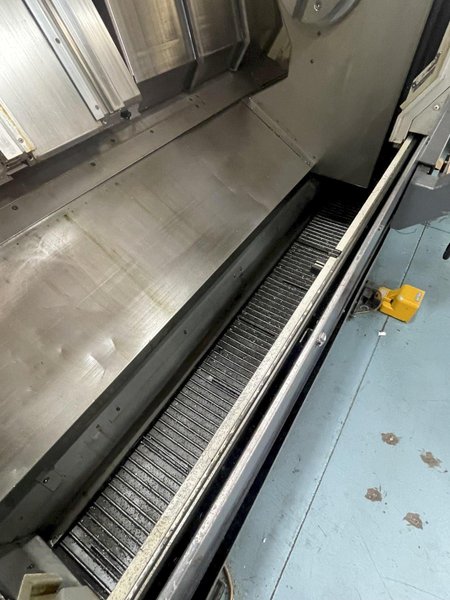

EQUIPPED WITH: Okuma OSP P200L CNC Control, 15" 3-Jaw Chuck on Main 12" Chuck on Sub Spindle 40 Station Automatic Tool Changer, CAPTO C6 Spindle Taper Lots of Tooling - All Pocket have toolholders Touch Setter M Coolant System Chip Conveyor Foot Switches |
|
