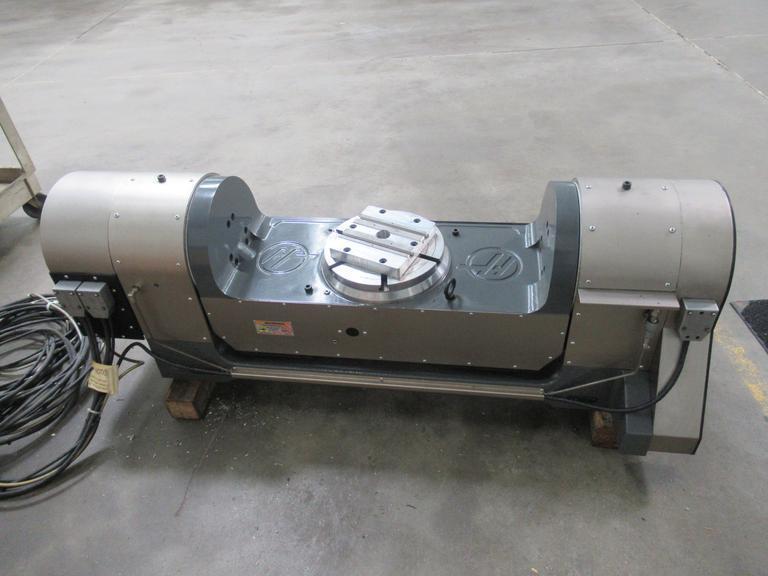

Haas TR310 5-Axis Trunnion Table For Sale - 2012

Brand
Category
Model
TR310
Stock #
13743-1
Year
2012
Condition
Used
Location
Michigan
CNC Control yes
Platter Diameter 12.2 inches
Max Part Swing 31 inches
Max Table Load 500 pounds
Table Speeds 50°/sec
A-Axis Trunnion Tilt Range ±120°
A-Axis Trunnion Speed 50°/sec
B-axis Indexing 999.999°
Weight 2105 pounds
Specifications
Brand: Haas
Model: TR-310

Specifications:
Platter diameter: 12.20"
Max weight on platter: 500 Lbs.
Part swing max: 31"
Number of T-slots: 6 @ 60 degrees

Spindle A (tilt)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 1,000 ft lbs.

Spindle B (rotary)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Runout max: 0.0010"
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 500 ft lbs.

Indexing A (tilt)
Max rotation / step: +/- 120 degrees
Resolution: 0.001 degrees

Indexing B (rotary)
Max rotation / step: 999.999 degrees

Air pressure max: 150 psi.
Weight: 2,105 Lbs.
