2.5" x .120" Oto Mills High Speed Tube Mill Line with Mair Packaging Line
Brand
Category
Type
Model
Not specified
Stock #
116473
Year
Not specified
Condition
Used
Location
Not specified
| Tube Dia | 2.5 inches |
| Max. Wall Thickness | .120 inches |
|
Equipped With

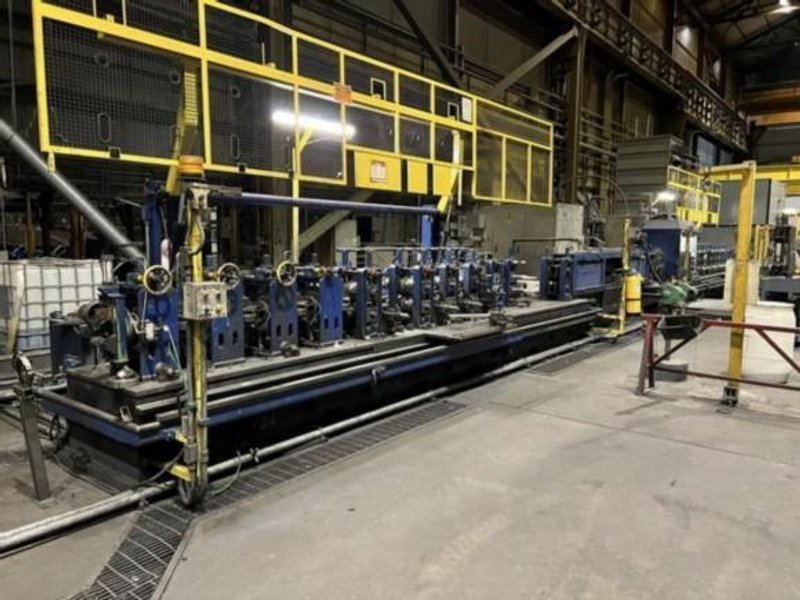

Oto Mills High Speed Tube Mill Line
Rafted Bases
Tube Diameter: .623" - 2.500" (16mm - 63.5mm)
Wall Thickness: .040" - 118" (1.0mm - 3.0mm)
Max Line Speed: 400 FPM (120 Meters/Min)
Lengths: 13' - 29' (4M - 9M)
Oto Mills Double End Uncoiler
Hydraulic Expansion
Drag Brake
Coil Holder
Oto Mills Automatic Shear & End Welder
Oto Mills Vertical Floop

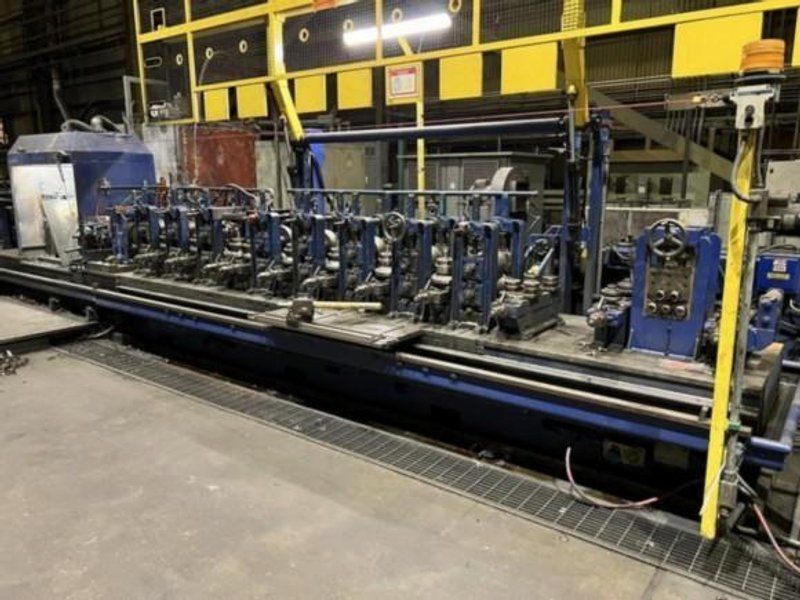

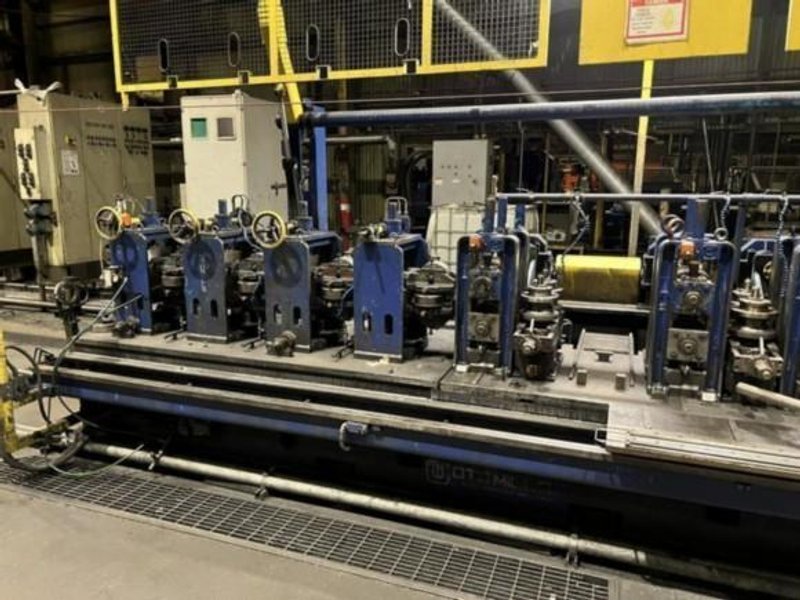

Oto Mills Forming Mill
Rafted Bases
Universal Drive
Single Point Adjustment
(2) 80KW DC Drives
2 Speed Gear Boxes
2 Sets of Entry Guides
5 Roll Flattener
2 Sets Entry Edge Guides
5 Forming Stands
4 Side Idler Roll Stands
3 Finn Pass Stands
2 Side Idler Roll Stands
250 KW Emmedi High Frequency Welder
2 Roll Weld Box
Entry Seam Guide Roll
2 OD Scarfing Stands
Cooling Trough
Oto Mills Sizing Mill
Rafted Bases
Universal Drive
Single Point Adjustment
80 KW DC Drive
2 Speed Gear Boxes
3 Sizing Stands
3 Side Idler Rolls
1 Sizing Stand
4 Turks Head
Oto Mills Flying Double Cut Cut-Off
Inclined
Run Out Table
Eltav 5 Motion Controller
Digital Readouts
Ellytre Electrics
ABB Digital Drives

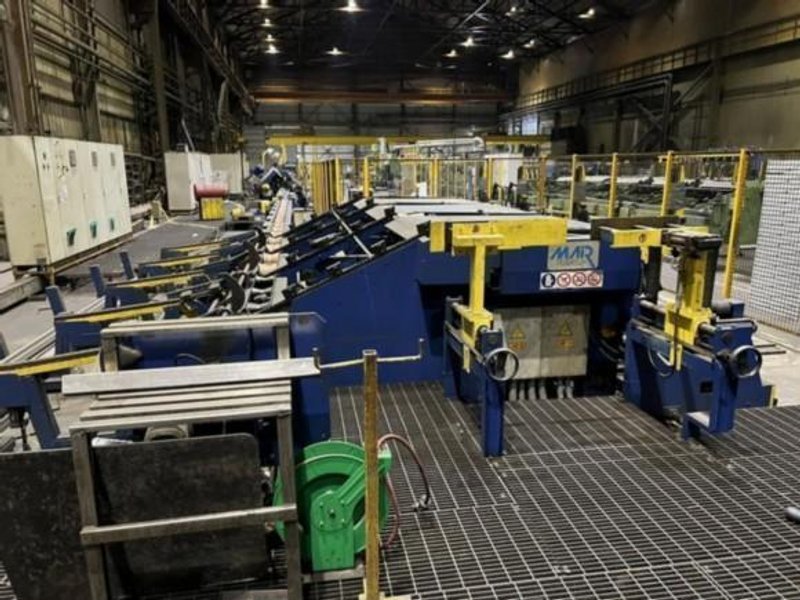

Mair Packaging
New in 2005
Sortation Table
Stacker
Bundle Run Out Conveyor
Bundle Tilting Siemens
Touch Screen Controls
Tooling for the following: 20mm, 22mm, 1.0 Rn, 1.0" Sq, 1.25" Sq, 1.5" Sq, 2" Sq, 1.5" Rn, 1-5/8" Rn, 1 x 2" Rt, 2.375 rd, 40mm, 1.66" rd, 1.90" rd |
|
