1.5" x .128" Oto Mills Laser Stainless Tube Mill Line
Brand
Category
Type
Model
Not specified
Stock #
116477
Year
Not specified
Condition
Used
Location
Not specified
|
Oto Mills Laser Stainless Tube Mill Line
Tube Diameter: 5/8" - 1.5"
Thickness Range: .028" - .128"
Max Line Speed: 13 ft/min
Complete Mill With:
Oto Mills Double End Uncoiler
Coil Holder
Drag Brake
Hydraulic Expansion

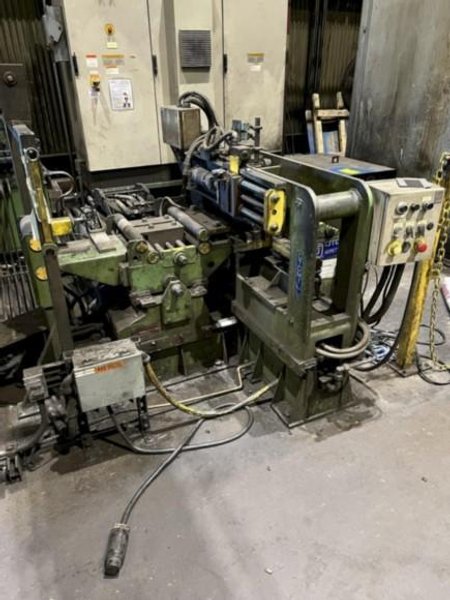

Oto Mills Shear & End Welder
Oto Mill Vertical Floop Accumulator
Year 1999
Model GG-254
Siemens Touch Screen Controls

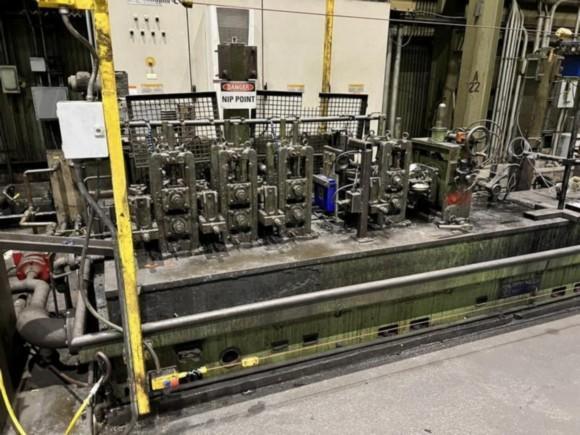

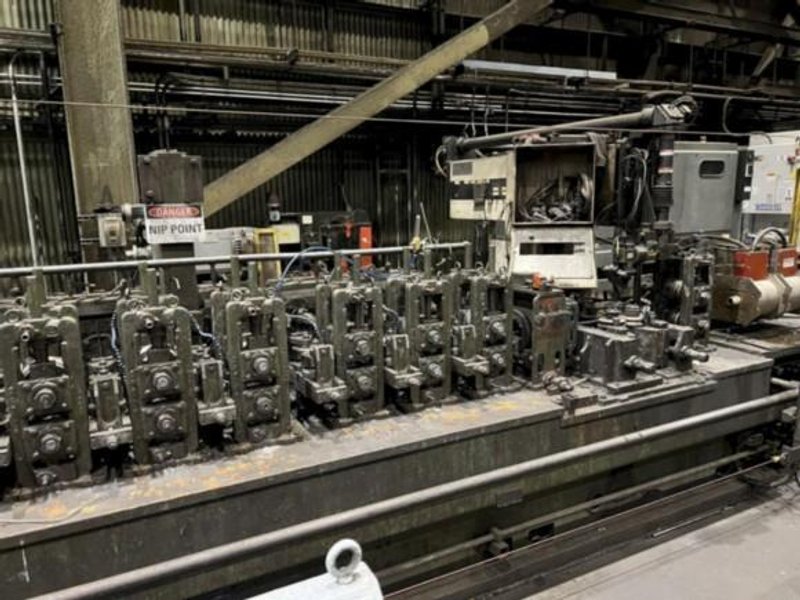

Oto Mills Forming Mill
(2) 16.1 KW Motors
Universal Drive
Single Point Adjustment
6 Roll Entry Edge Guides
4 Forming Stands
4 Side Idler Rolls
3 Finn Pass Stands
3 Side Idler Rolls
Rofin Sinar Laser Welder
Model FH 8000
Koolant Chiller Unit
Digital Readout Controls
Entry Tube Guide Stand
4 Roll Weld Box
Exit Squeeze Stand
2 Induction Heaters
Traversing Bead Rolling Stand

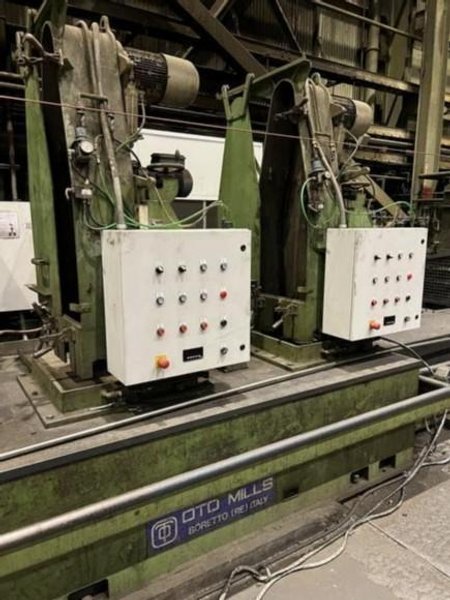

2 Polishing Heads
2 Pre-Sizing Stands
16.1 KW Drive

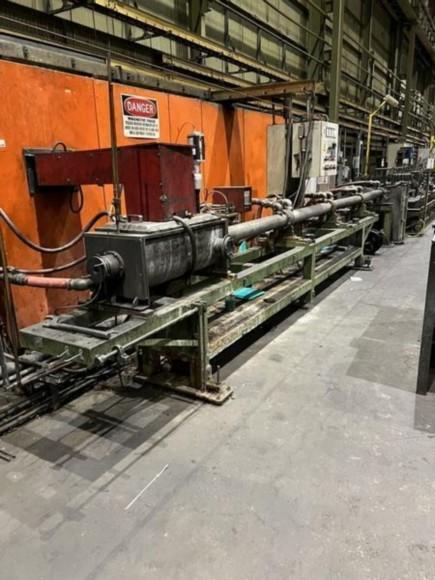

In Line Bright Annealing
Elotherm Power Supply
Nitrogen / Hydrogen Gases
Cooling Chamber
4 Sizing Stands
3 Side Idler Rolls
Universal Drive
Single Point Adjustment
Turks Heads
Multi Mac Eddy Current Tester

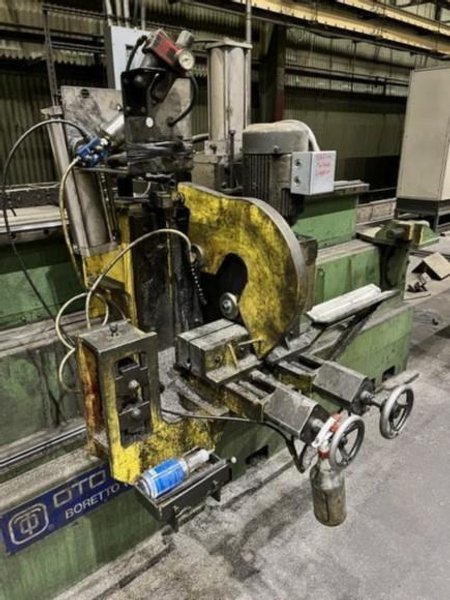

Oto Mills Flying Saw Cut Off
Linear Tracking
DC Accelerator
Run Out Table
Elletre Electrics

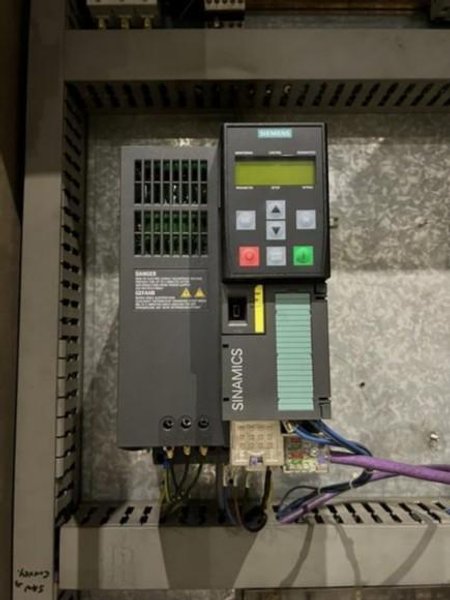

Siemens Sinamics Digital Drive
PLC Controls
Operator Push Button Station with Digital Readouts |
