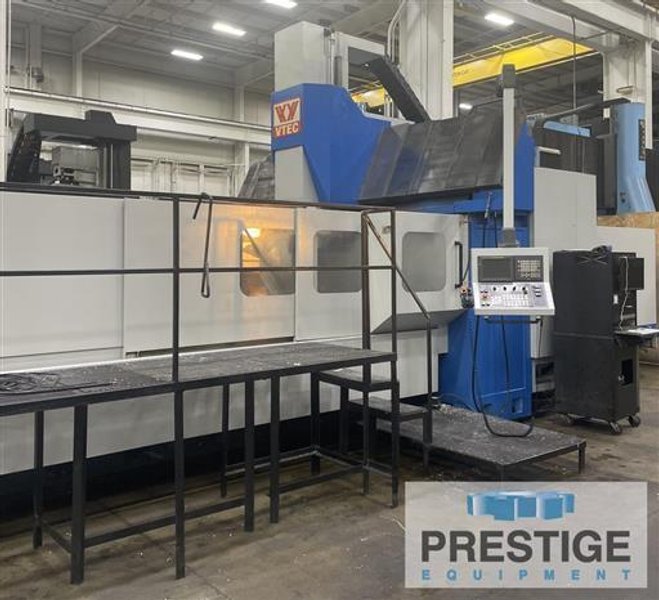

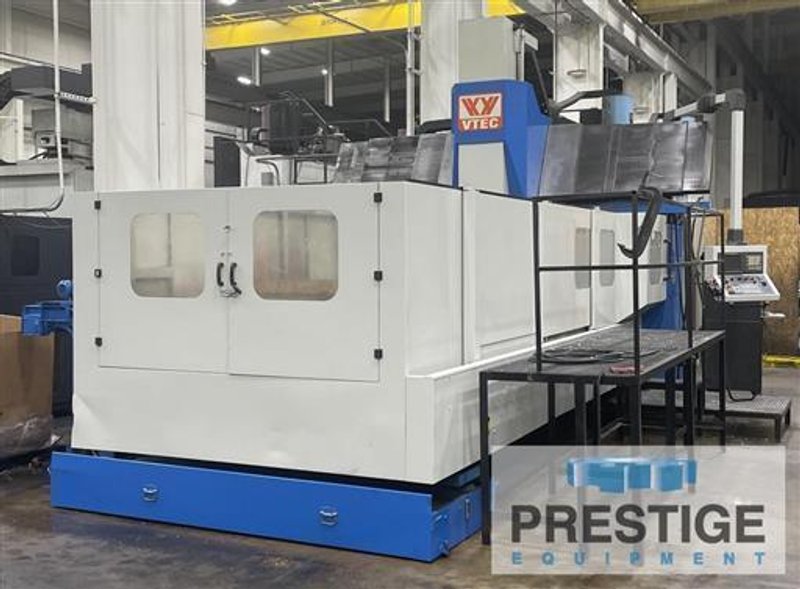

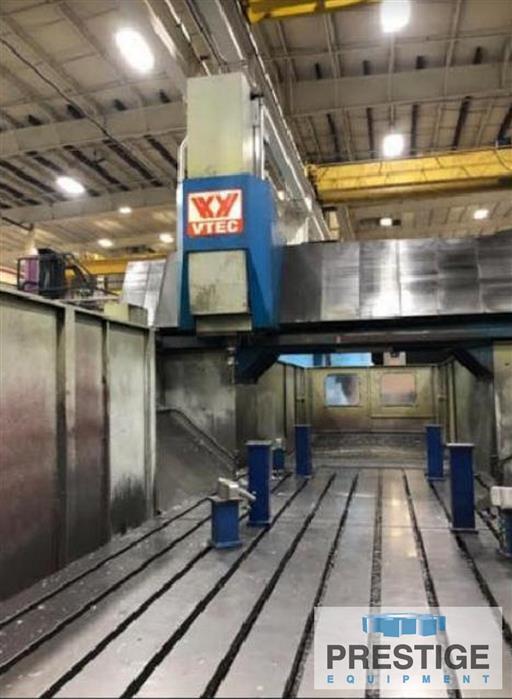

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
X-Axis, Table Travel 165.35"
Y-Axis, Spindle Head Travel 90.55"
Z-Axis, Vertical Travel 36.22"
Distance Between Columns 94.48"
Minimum Distance Spindle to Table 5.9"
Maximum Distance Spindle to Table 42.12"

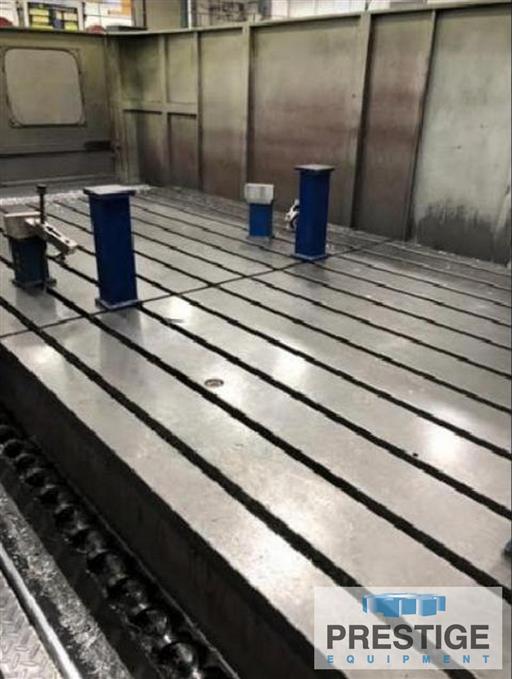

Table Size 80.70" x 165.35"
Table Load Capacity 28,600 lbs
Spindle Taper #50
Spindle Speeds (2-Gear Ranges) 6000 RPM
Spindle Motor 35 HP
Rapid Feed Rates X,Y,Z Axis 590 IPM
Cutting Feed Rate 275 IPM
Machine Weight 86,680 Lbs



Equipped With:

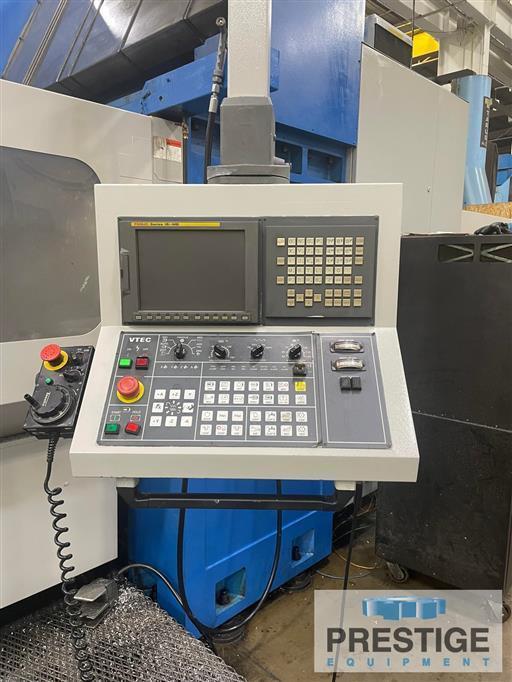

FANUC 18iMB CNC Control
40 Station Automatic Tool Changer
Box Way Construction

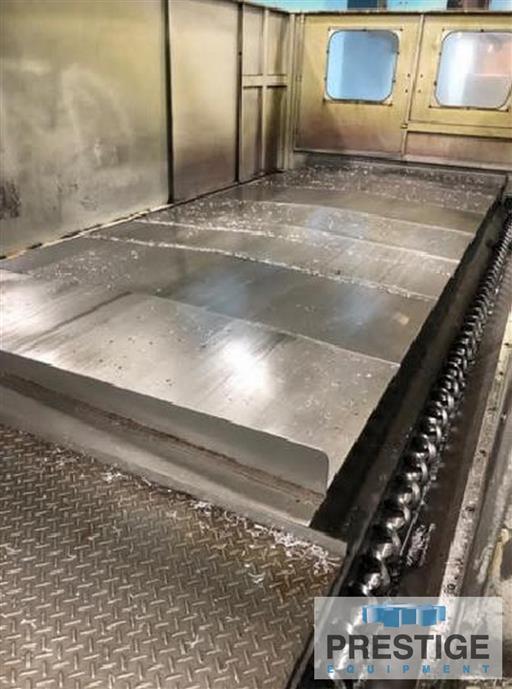

Telescopic Steel Way Covers on All Axes
Spindle Chiller
Full Splash Guards

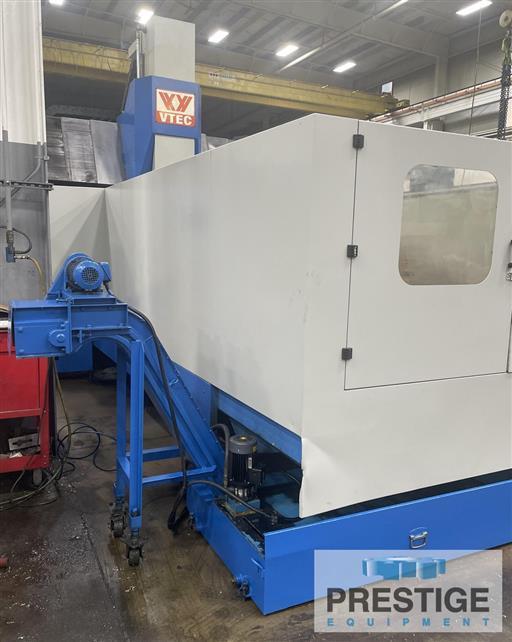

Chip Conveyor


NOTE: New OEM Spindle in 2024!
New Ball Screws on X & Z Axis November 2025
All New Thrust Bearing X & Z in November 2025
Inspect Under Power in Midwest Plant!
