20" X 40" KENT KGS-510AHD HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER

20" X 40" KENT KGS-510AHD HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER

Name: 20" X 40" KENT KGS-510AHD HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER
Brand: KENT
SKU: 30235
Availability: PreOrder

Brand

KENT

Location

Wisconsin

REQUEST FINANCING

Specifications
Files & Videos

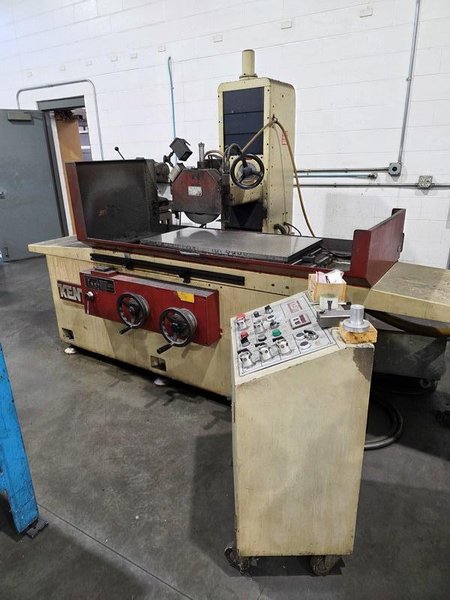

20" X 40" KENT KGS-510AHD HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER

New 1987

Motor Driven with 5 HP, 3-Phase, 60 Cycle, AC Spindle Drive and Contrtols

EQUIPPED WITH:

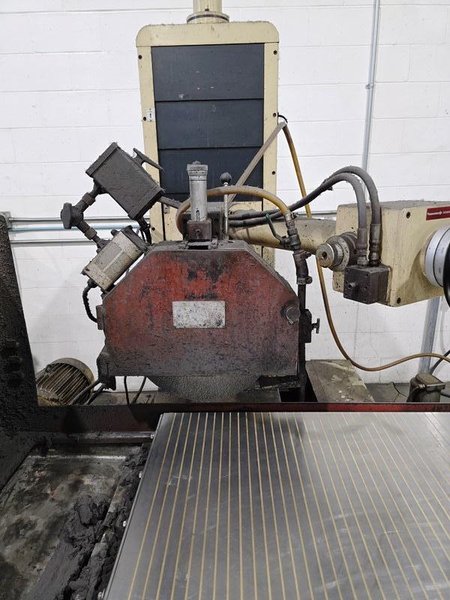

Overhead Wheel Dresser
Electro-Magnetic Chuck
Incremental Automatic Down Feed
Coolant System
Auto Lube System

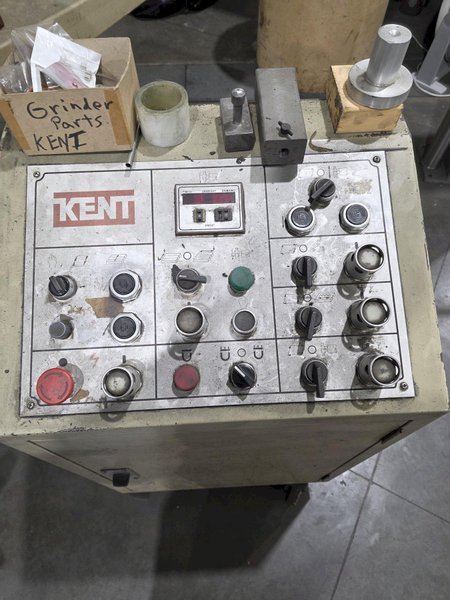

Stand Alone Control Console

SPCIFICATIONS:
Table Working Surface, W x L 19.75" x 39.5"
Grinding Width Capacity, Maximum 20.125"
Grinding Length Capacity, Maximum 40.125"
Spindle Center to Table, Maximum 23"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Speed 1740 RPM
Table Longitudinal Feeds, Range 13 to 73 FPM
Incremental Power Down Feeds, Range .0002 to .0016 IPR
Power Column Cross Feed 60 IPM
Hydraulic System Motor 3 HP
Overall Dimensions, L x W 130" x 83"
Overall Height 83"
Weight, Approximately 11000 LBS
