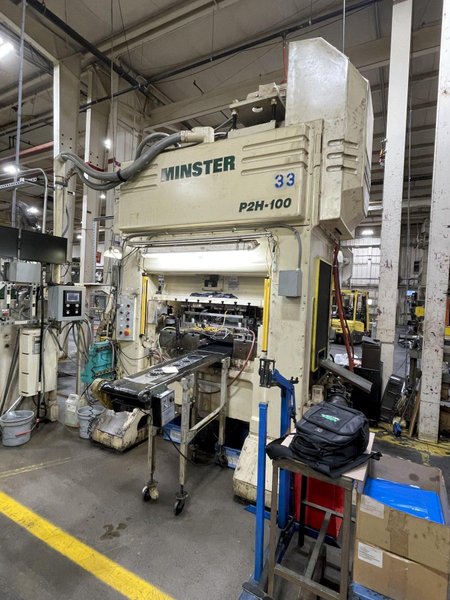

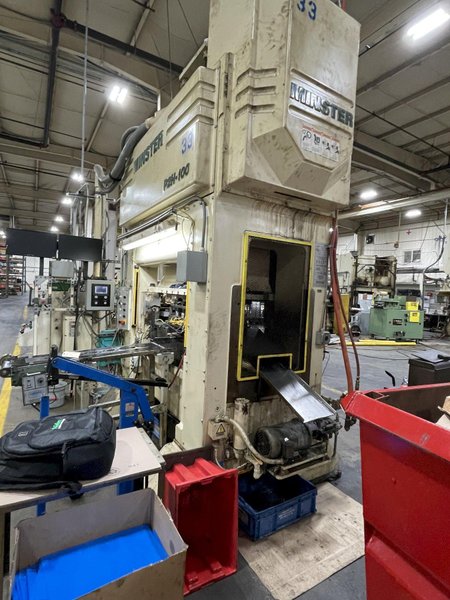

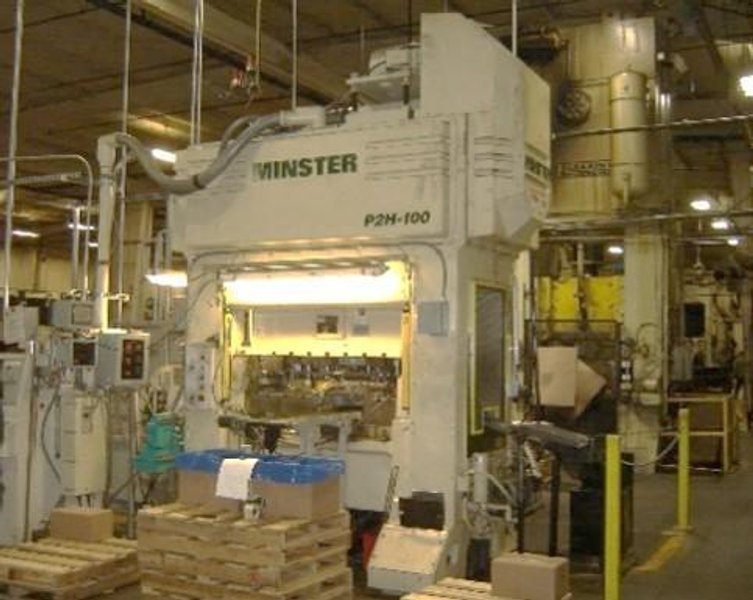

Factory Certified Minster P2H-100-48
Brand
Category
Model
P2H-100-48
Stock #
30435
Year
2006
Condition
Certified
Location
Ohio
| Tonnage | 110 tons |
| Stroke | 1.57 inches |
| Shut Height | 19.9 inches |
| SPM | 450 |
| Vari Speed (Yes/No) | yes |
| Bed W | 31.5 inches |
| Bed L | 48 inches |
| Crank (Single/Double) | double |
| Air Clutch (Yes/No) | no |

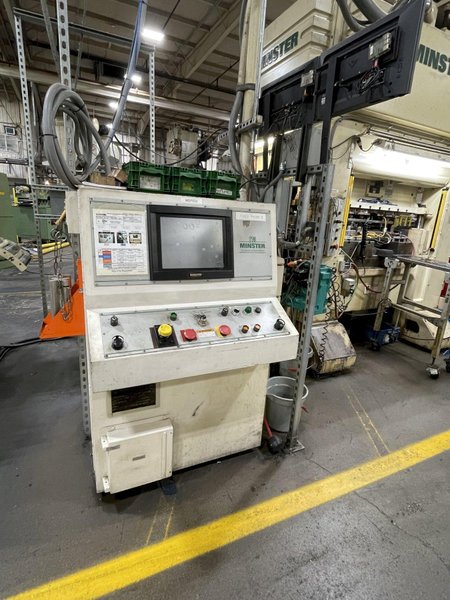

| CNC Control | yes |
| Type of CNC Control | Minster PMC |
| Dimensions | 155T x 113W x 70D |
| Weight | 41000 pounds |
|
P2H Precision Straight Side Press Specifications (INCH) Press Specifications Model Number........................................................ P2H-100-48×31-FW Force × Distance off Bottom.................................. 110 ton × 0.063 in Crankshaft Extension Location............................... Opposite Drive Side Drive Arrangement.................................................. Flywheel Drive Location........................................................ Right Hand Side (Rev 1.01) Lube Unit Location................................................. Opposite Feed Side Approximate Press Weight..................................... 41,000 lb Shutheight Indicator Readout................................. Inch Shop Air Pressure, Minimum.................................. 85 psi
Press Slide Specifications Stroke Length, Speed Range................................... 1.57 in, 90 - 450 spm Shutheight Adjustment........................................... 3.94 in Quick Access Slide Range...................................... 0.50 - 4.50 in Area of Slide, R-L × F-B........................................ 48.0 × 26.0 in Slide Face Machining.............................................. Standard
Press Bolster Specifications Bolster Plate Material.............................................. Cast Iron Bolster Plate Thickness............................................ 7.5 in Area of Bolster, R-L × F-B..................................... 48.0 × 31.5 in Opening in Bolster, R-L × F-B................................ 31.5 x 7.5 in Bolster Plate Machining.......................................... Standard
Press Frame Specifications Upright Passline Opening, F-B............................... 22.0 in Area of Bed, R-L × F-B.......................................... 48.0 × 31.5 in Opening in Bed, R-L × F-B.................................... 40.0 × 14.2 in Bed Deflection at 67% of Die Area........................ 0.0013 in/ft Shutheight, Maximum (SDAU)............................. 11.4 in, on Bolster Approx Clearance, Mount to Bottom of Bed......... 17.0 in Approx. Distance Mount to Top of Bolster ........... 46.7 in. Approx. Distance Mount to Top of Bed................. 40.7 in Approx. Floor Area, R-L × F-B.............................. 104 × 70.0 in Approx. Overall Area, R-L × F-B........................... 104 × 70.0 in Approx. Overall Height, from Mount..................... 155 in |
|
