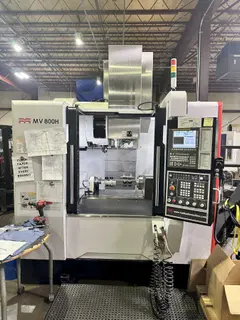

Methods MV-800H CNC Vertical Machining Center with 4th Axis Rotary For Sale 2020
Brand
Category
Model
MV-800H
Stock #
K87113
Year
2020
Condition
Like New
Location
Michigan
| CNC Control | yes |
| Type of CNC Control | Fanuc 0i-MF |
| # Axis | 4 |
| Table Size | 37.4" x 20.5" |
| Table Capacity | 1102 pounds |
| X-Axis Travel | 31.5 inches |
| Y-Axis Travel | 20.47 inches |
| Z-Axis Travel | 19.88 inches |
| Rapid Traverse Rate (X/Y/Z) | 2,362/2,362/1,181 ipm |
| Spindle Taper | CAT 40 Big Plus |
| Spindle Speed | 15,000 rpm |
| Main Motor | 25 hp |
| Tool Changer Capacity | 24 |
| Coolant Thru Spindle | yes |
| Machine Dimensions | 137" x 109" x 118" - Floor Space |
| Machine Weight | 15200 pounds |
|
- Fanuc 0i-MF CNC Control
- Fast Data Server w/ 4GB Flash Card (MMT-37055) - 400 Block Look Ahead (#A02B-0340-R386) - Koma RWE-200: 4th Axis Rotary Table & TS-160 Support Spindle - Chip Blaster D-30-35: 500 psi High Pressure Coolant Thru Spindle - Air Thru Spindle - Renishaw RMP400 Spindle Probe - Renishaw NC-4 Laser Tool Setter - Manual Guide i (Conversational Programming) - AICC II 200 Block Look Ahead - Chip Conveyor - Coolant Tank & Pump - X/Y Axes Roller Type Linear Guides - Z Axis Box Way - Dual Chip Screws - Spindle Chiller |
|
Watch https://youtu.be/IJcyy81mNxk
