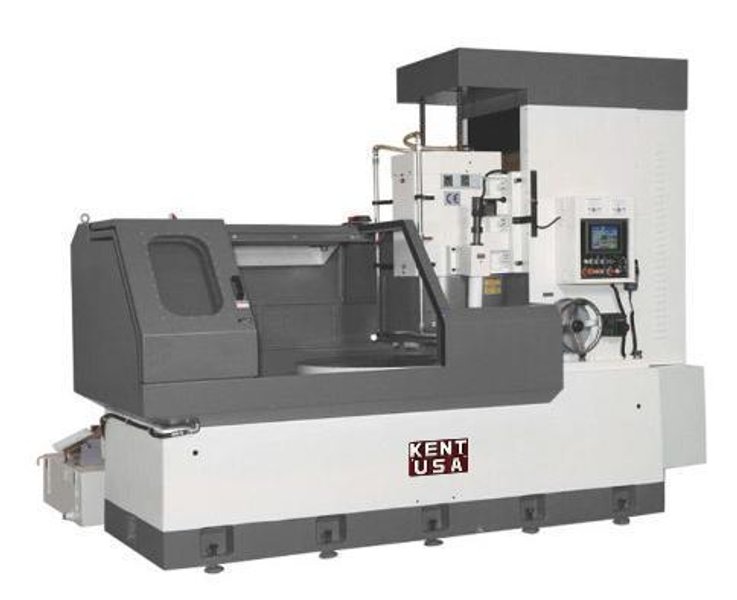

NEW KENT USA MODEL RGV-1200A CNC ROTARY SURFACE GRINDER

Name: NEW KENT USA MODEL RGV-1200A CNC ROTARY SURFACE GRINDER
Brand: KENT USA
SKU: 19392
Availability: PreOrder

Brand

KENT USA

Not specified

NEW KENT USA MODEL RGV-1000A CNC ROTARY SURFACE GRINDER

· Meehanite class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine

· Spindle lateral design creates stability during heavy cutting.

· Spindle motor: 50

· Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding while maintaining high stiffness

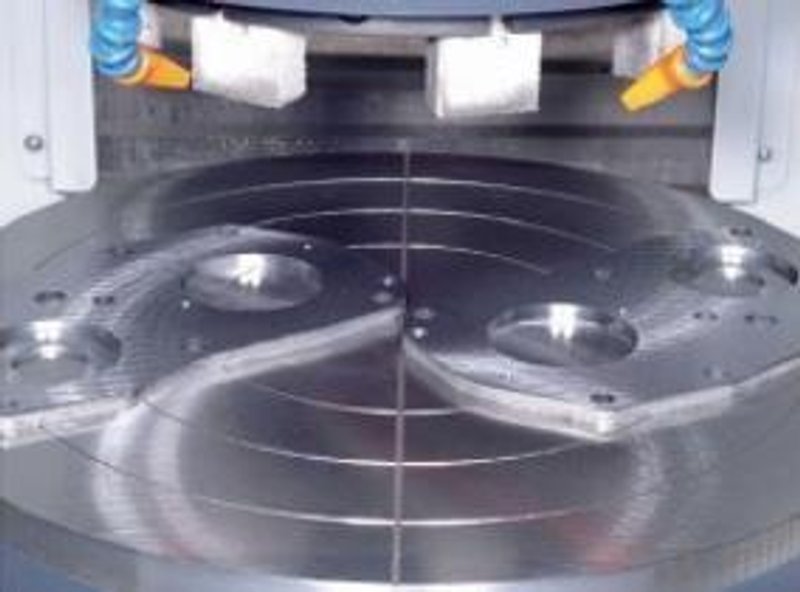

· Small work piece suction is accomplished by fine electrical magnetic chuck

· Y-axis (vertical) Auto down feed and Z-axis (cross) feed by servo motor

STANDARD ACCESSORIES

GENERAL SPECIFICATIONS

Rotary magnetic chuck’s diameter:	47.2”
Max grinding radius:
Distance of table surface to spindle surface:	11.8”
Rotary magnetic chuck speed:	5-18 RPM”
Rotary magnetic chuck horse power:	4.7 HP
Spindle motor:	50 HP
Spindle speed (50/60 Hz):	850 RPM
Auto down feed horse power:	1.34 HP
Vertical hand wheel down feed per revolution:	X5, x10. X10 (MPG) / 0.1, 0.5, 1mm
Vertical hand wheel down feed per graduation:	X1, x5. X10 (MPG) / 0.001, 0.005, 0.01mm
Wheel size (DiameterxWidthxbore):	3.5”x3.2”x1.2”x 6.3”
Net weight:	22,487 lbs
Gross weight:	24,250 lbs
