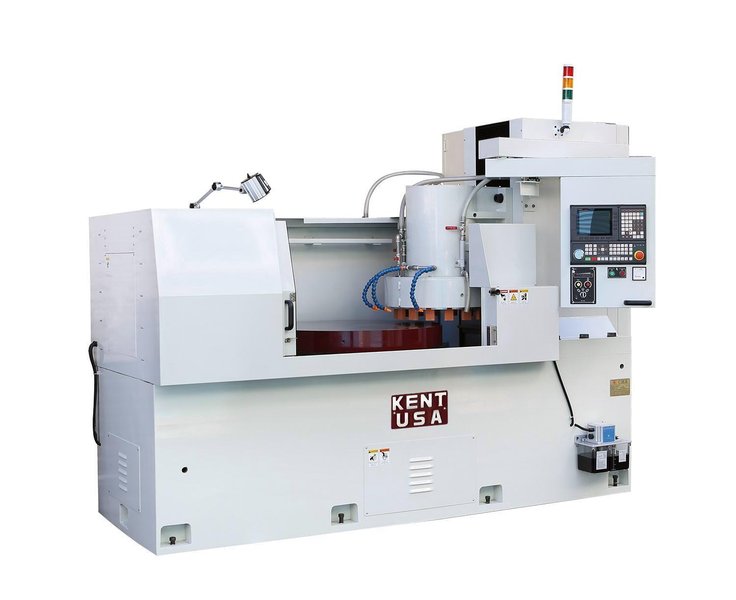

NEW 31.5" KENT USA MODEL CHS-V800A CNC ROTARY SURFACE GRINDER

NEW 31.5" KENT USA MODEL CHS-V800A CNC ROTARY SURFACE GRINDER

FEATURES

• *The major machine parts are manufactured from high-quality cast iron (FC30) for maximum structural stability, and heat treated for maximum deformation reduction and equipment longevity.
• *The column slideways surfaces are hardened and precision ground to ensure high accuracy. The vertical travel is transmitted through a precision ball screw, combined with counter-balance weight for outstanding vertical feed accuracy and motion stability.
• *The spindle is directly driven by a motor and is dynamically balanced. It runs on high-precision bearings for longer service life and high-quality grinding.
• *The table is driven by a hydraulic motor combined with the use of a throttle valve providing variable table running speed.
• *The cooling system is equipped with two motors: One for delivering cutting fluid and the other is used for flushing workpieces on the table. The cooling system employs a magnetic dust separator to keep fluid clean and ensure smooth circulation.
• *Fully enclosed splash guard effectively avoids dust and cooling fluid splashing.

SPECIFICATIONS

Rotary Magnetic Chuck Diameter                                31.5"
Load of Rotary Table                                                    882 Lbs
Distance Table Surface To Spindle                               21.7"
Speed of Rotary Table                                                  5-30 RPM
Table Motor                                                                 5 HP
Max Grinding Radius                                                   21.7"
Spindle Speed                                                             720 RPM
Wheel Size (Dia x Width x Bore)                                  2" x 1" x 4.7" (19 Pieces)
Spindle Motor                                                             30 HP
Z Axis Travel                                                                19.7
Z Axis Feed Rate                                                          0-11.8 IPM
Z Axis Motor                                                                1 HP
Y Axis Travel                                                                 19.7"
Y Axis Feed Rate                                                           0-39.4"
Y Axis Motor                                                                 2 HP
Approx. Floor Space                                                     104" x 72" x 92"
Approx Weight                                                             14,330 Lbs
