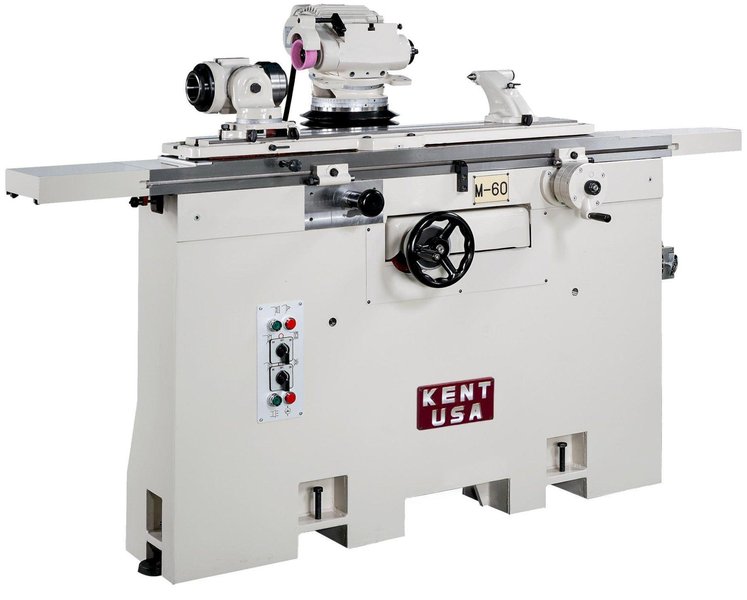

KENT USA MODEL M-60 UNIVERSAL TOOL & CUTTER GRINDER - NEW
PRODUCT FEATURES
- 1.5 H.P. Spindle Motor;
- Precision ABEC 7 Angular Contact Ball Bearing Spindle;
- Roller ball on linear table ways for easy and smooth movements;
- Centralized one-shot lube; Table Swivels 120 degree Allows for More Versatile Setups;
- Tilting Wheelhead Also for Easy Angle Grinding;
Accessories
Standard Accessories
- Leveling Blocks
- Workhead
- Right-hand Tailstock
- Center Gauge
- Ejector Rod
- Center for Workhead Spindle MT5
- Diamond Dresser Holder
- Grinding Wheel Washer Set
- Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø90)
- Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø110)
- Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø125)
- Wheel Guard (Outer Diameter of Grinding Wheel Max. Ø150)
- Wheel Guard Holder (short)
- Wheel Guard Holder (long)
- 2 Sets Grinding Wheel Flanges
- 4” Grinding Wheel Flange Extension (Ø31.75 mm)
- Grinding Wheel (PA 90D x 38T x 31.75H)
- Grinding Wheel (GC 125D x 38T x 31.75H)
- Grinding Wheel (WA 150D x 13T x 31.75H)
- Grinding Wheel (GC 150D x 13T x 31.75H)
- Grinding Wheel (WA 150D x 19T x 31.75H)
- Draw-in Bolt for Workhead and Spacer (metric thread)
- Wheel Spanner
- Collet Wrench
- Fixture Rod
- Open End Wrench (17-19 mm)
- Combination Wrench (19 mm)
- Combination Wrench (24 mm)
- Tool Box & Adjusting Tool
Optional Accessories
- Left-hand Tailstock
- Tool Holder
- MT5 to MT2 Morse Taper Sleeve
- MT5 to MT3 Morse Taper Sleeve
- MT5 to MT4 Morse Taper Sleeve
- 4” Grinding Wheel Flange Extension (Ø12.7 mm)
- Universal Tooth Rest Plate and Blade Holder Extension Tool Grinding Attachment
- Plain Tooth Rest Holder
- Plain Tooth Rest Holder
- Fine Adjustment Guide Rod
- Grinding Wheel (WA 76D x 12.7T x 12.7H) 31.5C Chuck
- Grinding Wheel (A 100D x 1.5T x 12.7H)
- Frequency Converter
- T-Wrench
- Belt for Spindle Drive
- Touch-Up Paint
- Radius Grinding Attachment (Radius NO.1)
- Radius Grinding Attachment (Radius NO.2)
- Face Mill Grinding Attachment
- Helical Grinding Attachment
- Cylindrical Grinding Attachment
- Internal Grinding Attachment
- Workhead Indexing Attachment
- Extended Grinding Wheel Spindle
- Surface Grinding Attachment
- Drill Pointing Attachment
- Lathe Tool & Planer Tool Grinding Attachment
- Spring Collet Set
- Dust Collector
- Wet Grinding Attachment with Waterproof Equipment
- 5C Chuck
- CCD System with Software and IPC
- Linear Scale (Resolution of X and Y axes is 0.001)
- Linear Guideway – X axis (M-40)
- Hydraulic Device – X axis (M-40) Travel:350 mm
- PLC Controller – X axis (M-40) Travel:300 mm
- PLC Controller – Y axis
- Upgrading Grinding Wheel Spindle Motor to 2 HP
- CE Safety Device
- Transformer
|
Swing Over Table:
|
10” (250mm)
|
|
Distance Between Centers:
|
35.43”
|
|
Distance Between Tailstock and Workhead:
|
30.7”
|
|
Taper Hole in Workhead Spindle:
|
One End – ASA #50; other end – M.T. #5
|
|
T-Slot (number and size):
|
One - 0.565”
|
|
Working Surface:
|
5 5/16” x 44.88”
|
|
Grinding Wheel Spindle:
|
2600, 3700, 6200 R.P.M.
|
|
Spindle Motor:
|
1.5 H.P.
|
|
Table Longitudinal Travel:
|
23.62”
|
|
Saddle Cross Travel:
|
10”
|
|
Table Swivel Travel:
|
+/- 60°
|
|
Table Graduation on End:
|
+/- 10°
|
|
Wheel Head Tilt:
|
+/- 15°
|
|
Wheel Head Swivel:
|
360°
|
|
Vertical Travel of Wheel Head:
|
10”
|
|
Wheel Spindle Center to Top of Table:
|
Max – 12”, Min – 2”
|
|
Wheel Spindle Center to T-Slot Center:
|
Max – 16.5”, Min – 6 ½”
|
|
Floor Space Required:
|
61” x 108”
|
|
Packing dimension:
|
(L x W x H) 120" x 70" x 60"
|
|
Net weight:
|
2,800 LBS
|
|
Gross weight:
|
3,200 LBS
|
|
