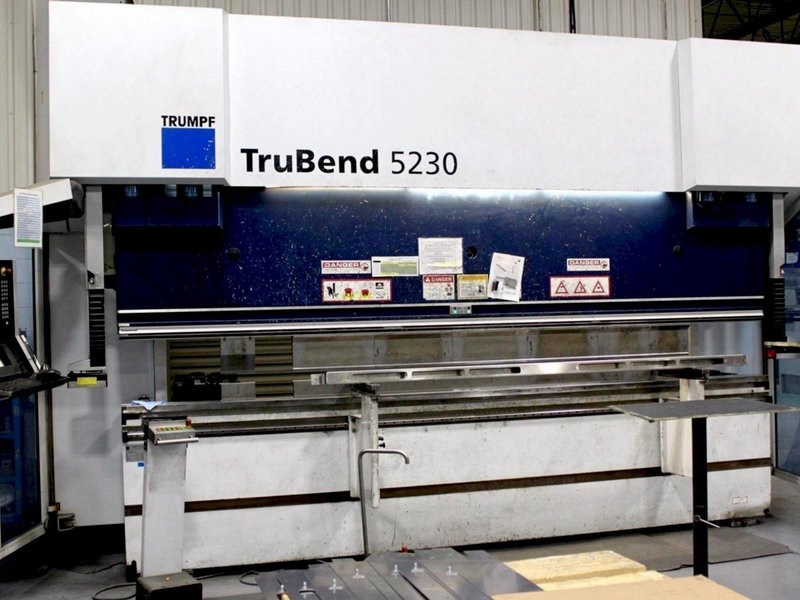

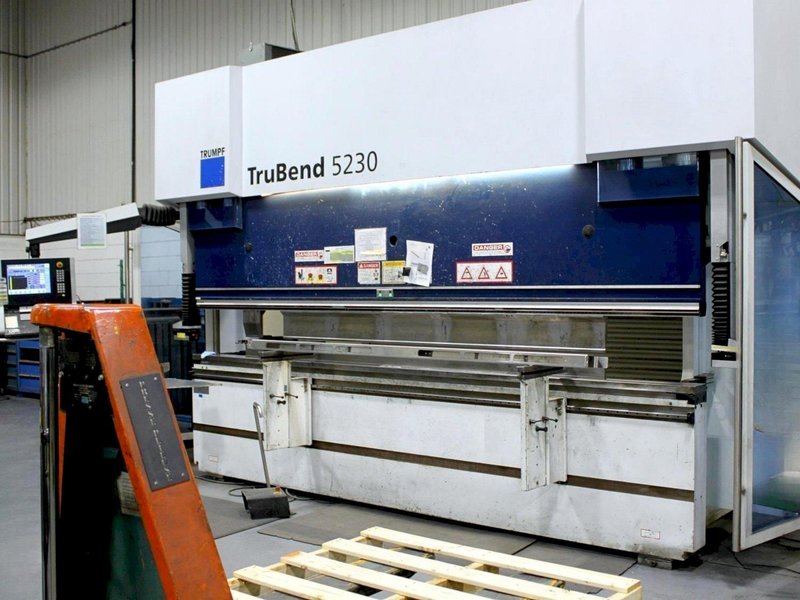

Trumpf TruBend 5230 Press Brake
Brand
Category
Type
Model
TruBend 5230
Stock #
100530
Year
2013
Condition
Very Good
Location
Not specified

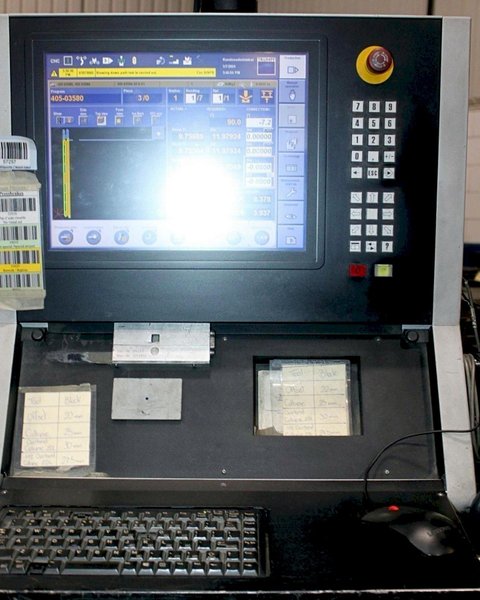

| Control | TASC 6000 |
| Press Force | 230 Ton |
| Bending Length | 167.32" |
| Width Between Columns | 144.88" |
| Throat (C) | 16.53" |
| Bed Width | 7.086" |
| Usable Open Height | 24.21" |
| Y-Axis Speed Rapid Down | 8.66 IPS |
| Y-Axis Press Speed | 0.0039 IPS |
| Y-Axis Rapid Up Speed | 8.66 IPS |
| Y-Axis Stroke | 17.51" |
| Backgauge | 6 Axis |
| Ram Positioning Accuracy | 0.00019" |
| Ram Tilt | 0.393” |
| Dimensions | L 164” X W 81” X H 118” |
| Weight | 37,919 Lbs. |
|
Equipped With: Trumpf CNC Press Brake Control 6-Axis CNC Back Gauge, R1, R2, X1, X2, Z1, Z2 CNC Programmable Crowning Extended Opening Height Upper & Lower Hydraulic Clamping Angle Correction Compensation Laser Light Guarding Rear Safety Enclosure |
|
