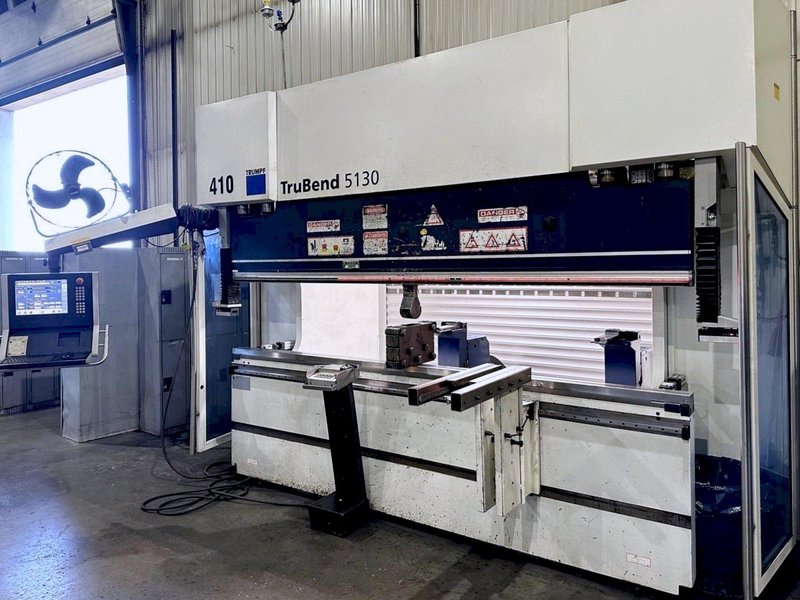

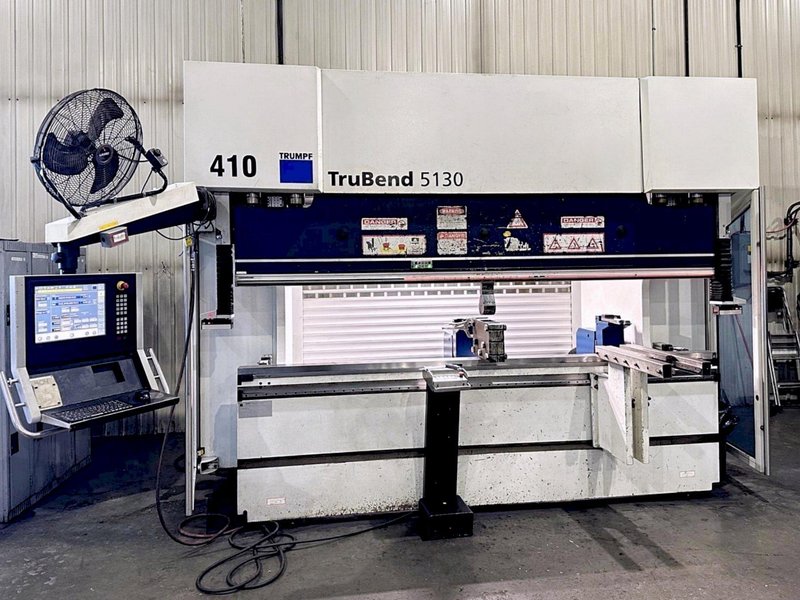

Trumpf TruBend 5130X Press Brake
Brand
Category
Type
Model
TruBend 5130X
Stock #
100504
Year
2011
Condition
Very Good
Location
Not specified
| Control | TASC 6000 |
| Press Force | 141 Tons |
| Bending Length | 127″ |
| Width Between Columns | 106″ |
| Usable Height | 24″ |
| Throat Depth | 16.5″ |
| Operating Height | 43.1” – 43.8″ |
| Inclination Of Beam | +/- 0.39″ |
| Y Rapid Speed | 520 IPM |
| Y Working Speed | 24 - 48 IPM |
| Y Return Traverse Speed | 520 IPM |
| X Axis Speed | 2362 IPM |
| R Axis Speed | 780 IPM |
| Z Axis Speed | 2362 IPM |
| Y Axis Position Accuracy | 0.0002" |
| X Axis Position Accuracy | 0.002" |
| R Axis Position Accuracy | 0.003" |
| Y Axis Stroke | 17.5" |
| Travel Path X Axis | 24" |
| Max. Gauge Area In X | 34" |
| Travel Path R Axis | 10" |
| Connected Load | 27 KVA |
| Oil Capacity | 58 Gal. |
| Dimensions | L 160” X W 69” H 112” |
| Machine Weight | 24,030 Lbs. |
|

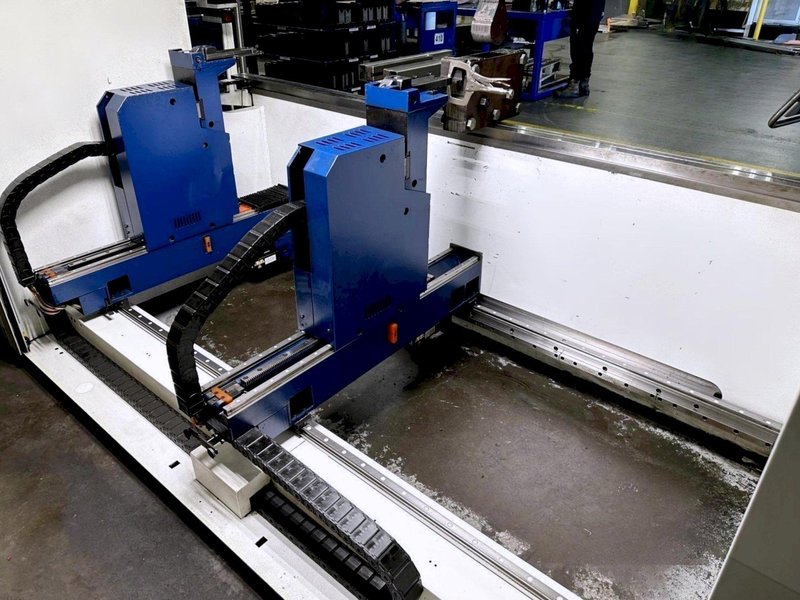

Equipped With: 6-Axis Control Backgauge CNC Crowning Extended Opening Version Hydraulic Clamps Foot Pedal & Control Station Sheet Supports |
|
