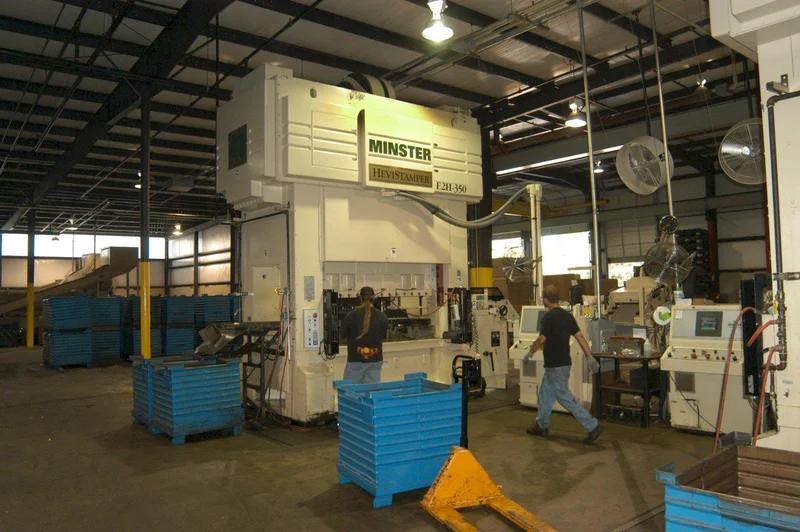

E2H HeviStamper

Specifications (INCH)

Press Specifications

Model Number........................................................   E2H-350-86×47-SG

Force × Distance off Bottom..................................   350 ton × 0.236 in, w/ASM

Crankshaft Extension Location...............................   None

Drive Arrangement..................................................   Single-Gear Twin-End

Drive Location........................................................   Twin Drive

Lube Unit Location.................................................   Rear Leg

Approximate Press Mass.........................................   140,000 lb.

Scale and Display Units..........................................   Inch

Shop Air Pressure, Minimum..................................   85 PSI

Press Slide Specifications

Stroke Length..........................................................   9.84 in

Speed Range............................................................   30 - 100 stroke/min

Quick Access Slide Range......................................   2.95 in

Area of Slide, R-L × F-B........................................   86.6 × 47.4 in

Slide Face Machining..............................................   Standard

Recommended Max Upper Die Mass.....................   5500 lb.

Press Bolster Specifications

Bolster Plate Material..............................................   Steel

Plate Thickness........................................................   9.09 in

Area of Bolster, R-L × F-B.....................................   86.6 × 47.4 in

Opening in Bolster, R-L × F-B...............................   None

Bolster Plate Machining..........................................   Standard

Press Frame Specifications

Upright Passline Opening, F-B...............................   33.5 in

Area of Bed, R-L × F-B..........................................   86.6 × 47.4 in

Opening in Bed, R-L × F-B....................................   76.8 × 15.0 in

Bed Deflection at 50% of Die Area........................   0.0012 in/ft

Shutheight, Maximum (SDAU)..............................   19.6 in., on Bolster

Shutheight Adjustment...........................................   6.89 in

Approx. Clearance, Mount to Bottom of Bed........   4.9 in

Approx. Distance Mount to Top of Bed.................   42.9 in

Approx. Floor Area, R-L × F-B..............................   133 × 91.3 in

Minster Electric Feed Specifications

Model Number........................................................   MEF6-32S

Feed Line Height....................................................   58.0 – 70.0 in over Floor

Feed Roll Diameter.................................................   6.37 in (162mm)

Number of Rolls Driven..........................................   (2)

Minimum Stock Width...........................................   2.00 in (50.8mm)

Maximum Stock Width...........................................   32.0 in (813mm)

Minimum Stock Thickness......................................   0.020 in (.508mm)

Maximum Stock Thickness.....................................   0.312 in (7.92mm)

Max Stk Thickness @ Max Width (40 kpsi yield).   0.151 in x 32 in (3.84mm x 813mm)

Max Stk Width @ Max Thickness (40 kpsi yield).   8.71 in x 0.312 in (221mm x 7.92mm)

Max Stk Thickness x Width x Yield.......................   See Capacity Chart

Roll Opening for Threading....................................   0.470 in (11.9mm)

Feed Repeatability Accuracy..................................    +/- 0.002 in (.05mm)

Maximum Feed Length Preset................................   100 in (2540mm)

Maximum Roll Lift Rate.........................................   250 spm

Scale and Display Units..........................................   Inch

PMC Control Language..........................................   English

Approximate Feed Mass.........................................   6400 lb (2902 Kg)

Drive Reduction Ratio............................................   Single 5 : 1

Feed Setup Station Location...................................   Press Setup Station

Thread Table Specifications

Model Number........................................................   MTT14-32S

Length of Table.......................................................   168 in.

Maximum Stock Width...........................................   32.0 in

Straightener Specifications

Model Number........................................................   MSH30-32

Line Speed..............................................................   40 - 1200 in/min (1 m x 30.48m/min)

Maximum Stock Width...........................................   32.0 in (813mm)

Minimum Stock Width...........................................   2.0 in (50.8mm)

Minimum Stock Thickness......................................   0.020 in (.508mm)

Maximum Stock Thickness.....................................   0.312 in (7.92mm)

Max Stk Thickness @ Max Width (40 kpsi yield).   0.151 in x 32 in (3.84mm x 813mm)

Max Stk Width @ Max Thickness (40 kpsi yield).   8.71 in x 0.312 in (221mm x 7.92mm)

Max Stk Thickness x Width x Yield.......................   See Capacity Chart

Work Rolls Full Open.............................................   0.300 in (7.62mm)

Work Rolls Full Close.............................................   - 0.300 in (7.62mm)

Work Rolls Number Driven....................................   6

Work Rolls Quantity...............................................   7

Work Rolls Diameter..............................................   3.00 in (76.2mm)

Work Rolls Center Distance...................................   4.50 in (114mm)

Pinch Roll Diameter................................................   5.06 in (128mm)

Pinch Roll Opening.................................................   0.50 in (12.7mm)

Pinch Roll Sets........................................................   1

Pinch Rolls Number Driven....................................   2

Head Inclination......................................................   15 Degrees

Entry Pass Line Height...........................................   68.0 in (1727mm)

Exit Pass Line Height.............................................   56.0 in (1422mm)

Scale and Display Units..........................................   Inch

Pneumatic Supply Pressure.....................................   80 PSI (551 Kpa)

Approximate Straightener Mass..............................   8000 lb (3628 Kg)

Approx. Floor Area, R-L × F-B..............................   42 in × 53 in (1.06 m x 1.35 m)

Approx. Overall Area, R-L × F-B...........................   115 in × 58.5 in (2.92 m x 1.49 m)

Reel Specifications

Model Number........................................................   MRH20-38S

Maximum Capacity per Mandrel............................   24,000 lb

Maximum Strip Width............................................   38.0 in

Minimum Strip Width.............................................   2.0 in

Maximum Strip Thickness......................................   0.38 in

Coil I.D. Range.......................................................   20.0 - 24.0 in

Coil O.D. Maximum................................................   72.0 in

Max Width at Full OD (by wt.)..............................   27.3 in

Max OD at Full Width (by wt.)..............................   62.3 in

Scale and Display Units..........................................   Inch

Coil Load Position..................................................   Towards Operator

Number of Coil Shoes.............................................   (3)

Approx. Floor Area, R-L × F-B..............................   78.0 × 119 in

Center Mandrel to Floor .........................................   72.0 in

Approximate Reel Mass..........................................   9500 lb
