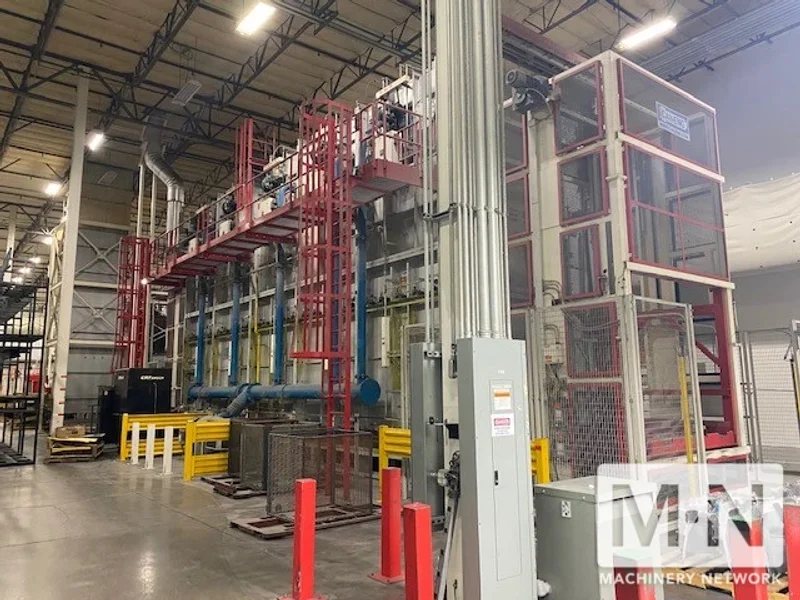

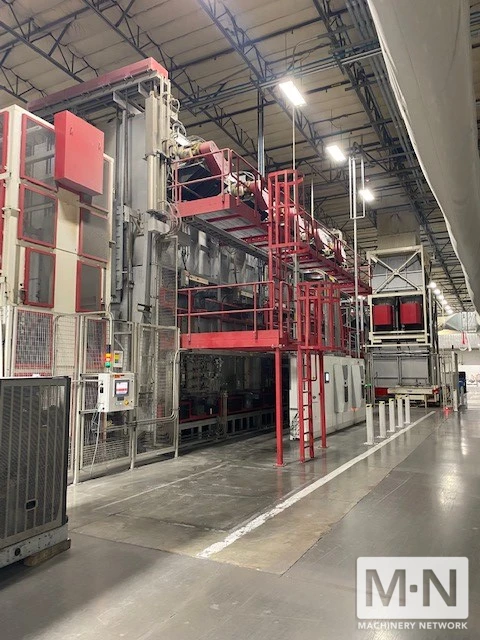

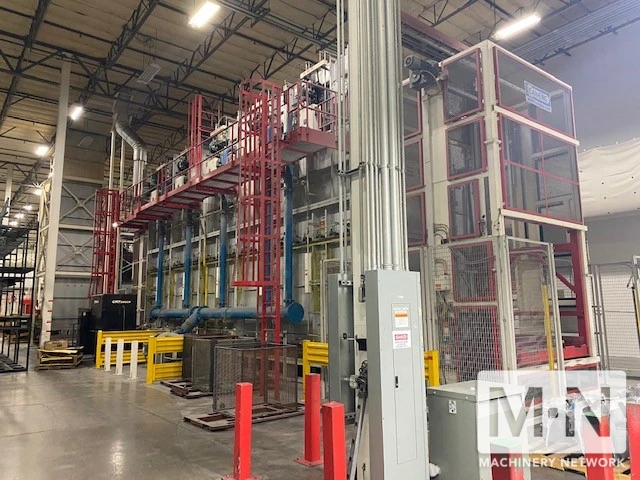

CAN-ENG Heat Treat 2 Furnace for Aluminum Ingots

CAN-ENG Heat Treat 2 Furnace for Aluminum Ingots

Name: Used CAN-ENG CAN-ENG For Sale 40892
Brand: CAN-ENG
SKU: 40892
Availability: PreOrder

Brand

CAN-ENG

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

FURNACES, HEAT TREATING

Manufacturer:

CAN-ENG

Model:

CAN-ENG

Stock #:

40892

Status:

For Sale

Description

Solution & Aging Furances, 565 degrees C max , Allen Bradley Controller, PanelView Displays, Powerflex Drives, SEW Drives, Used to dry aluminum ingots

Specifications

Solution Furnace Utilities
• Max Operating Temperature = 565°C
• Heat Input = 5,500,000 BTU/h
• Natural Gas = 5500 SCFH @ 3-5 PSIG
• Power = 460V, 3PH, 60HZ, FLA 625A
• Compressed Air = 24 ft3/hr @ 80psi
• Dimensions- 43’X24’X25’

Air Quench Utilities
• Quench Rate = From 500°C to 100°C in 4 minutes or less (Tempered Air medium)
• Power = 480V, 3PH, 60Hz, FLA 315A
• Compressed Air = 24 ft3/hr @ 80psi
• Dimensions- 34’X14’X27’

Age Furnace Utilities
• Max Operating Temp = 260°C
• Heat Input = 3,500,000 BTU/h
• Natural Gas = 3,000 SCFH @ 3-5 PSIG
• Power = 460V, 3PH, 60Hz, FLA 340A
• Compressed Air = 24 ft3/hr @ 80psi
• Dimensions - 46’X 35’X 29’

Equipped With:

Allen Bradley Controller 1756-L72
PanelView Displays
Powerflex Drives
SEW Drives
