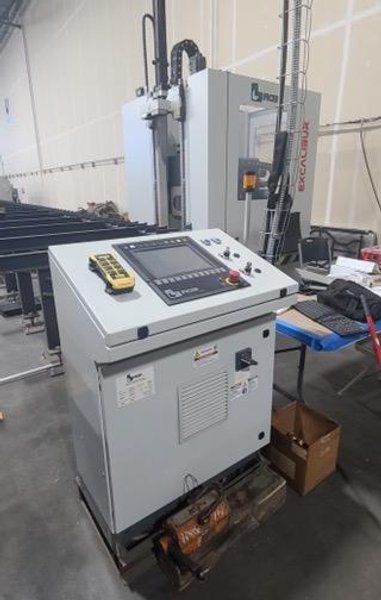

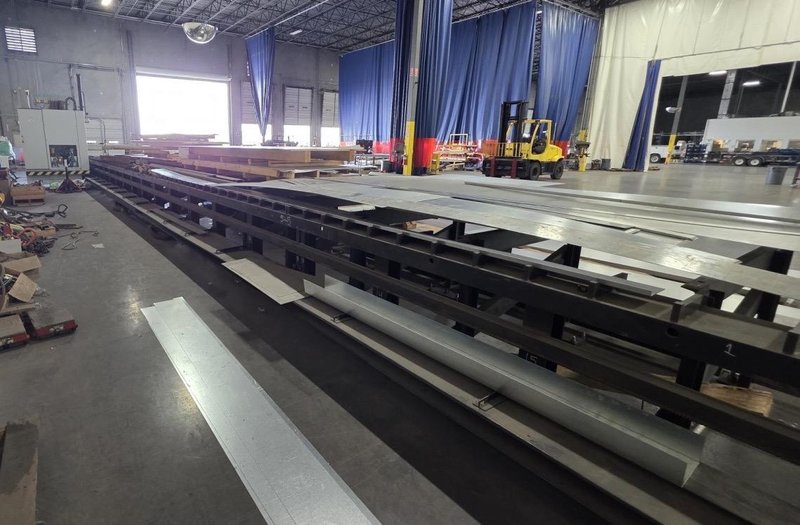

Ficep Excalibur 1201EX Single Spindle CNC Drilling Line, 2021 – Structural Steel Beam Drill Line | High Precision

The Ficep Excalibur 1201EX Single Spindle Drilling Line is a state-of-the-art CNC structural steel drilling system engineered for precision, speed, and efficiency in beam and profile fabrication. Built in 2021, this Excalibur model represents one of Ficep’s most advanced single-spindle solutions, ideal for fabricators looking to maximize throughput without sacrificing footprint or accuracy. Designed for I-beams, channels, angles, and flat profiles, the Excalibur 1201EX features a servo-driven single spindle, automatic positioning, and advanced CNC controls to handle hole drilling, scribing, and part marking with minimal operator input. Its compact design delivers large-scale capabilities in a smaller shop space, making it a favorite among mid-to-large fabrication shops seeking high production flexibility. ⚙️ Technical Specifications Specification Details Manufacturer Ficep S.p.A. Model Excalibur 1201EX Year 2021 Type Single Spindle CNC Drilling Line for Structural Steel Spindle Configuration 1 Spindle (X, Y travel automatic) Spindle Power Approx. 20 HP (15 kW) Spindle Speed Up to 3,000 RPM (variable) Tool Changer Automatic 8-position tool changer Drilling Capacity Up to 1-9/16″ (40 mm) diameter Beam Width Capacity Up to 47″ (1,200 mm) Beam Height Capacity Up to 24″ (600 mm) Material Length Handling Variable – integrates with roller feed or conveyor systems Positioning Accuracy ± 0.1 mm Drive System Servo-driven ball screw axes Control System Ficep CNC with touchscreen HMI interface Cooling System Internal through-spindle coolant system Electrical Requirements 460 V / 3 Phase / 60 Hz Approx. Weight ~11,000 lbs (5,000 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
