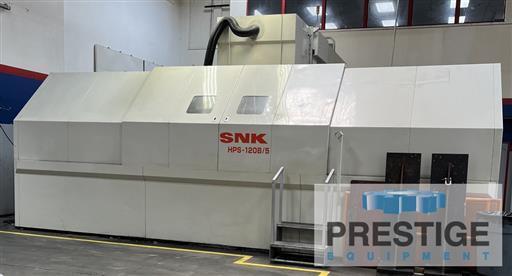

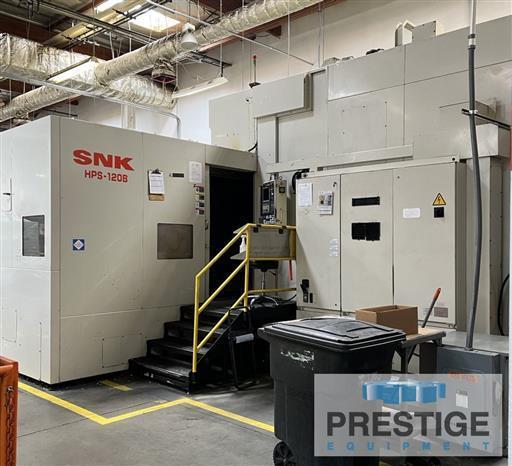

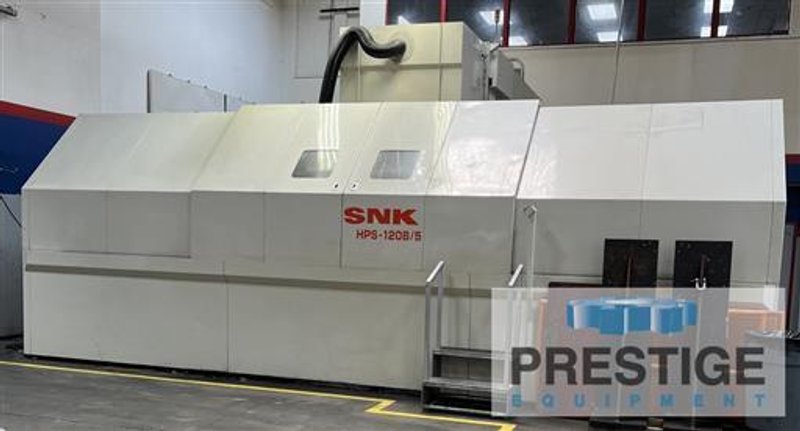

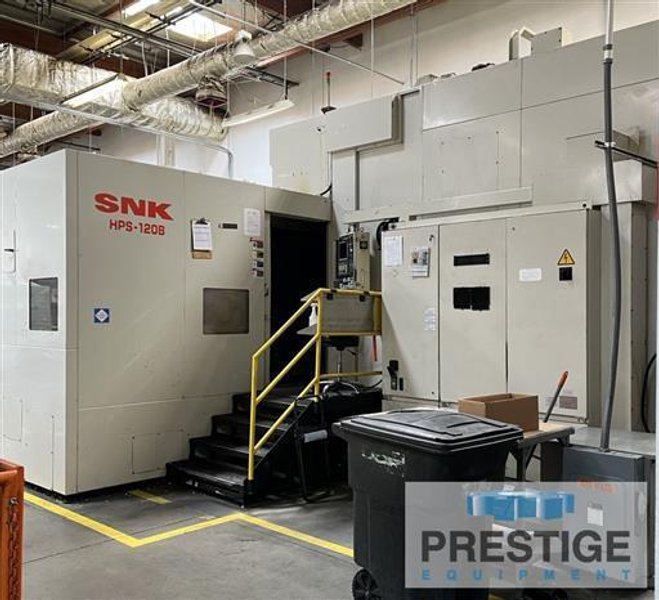

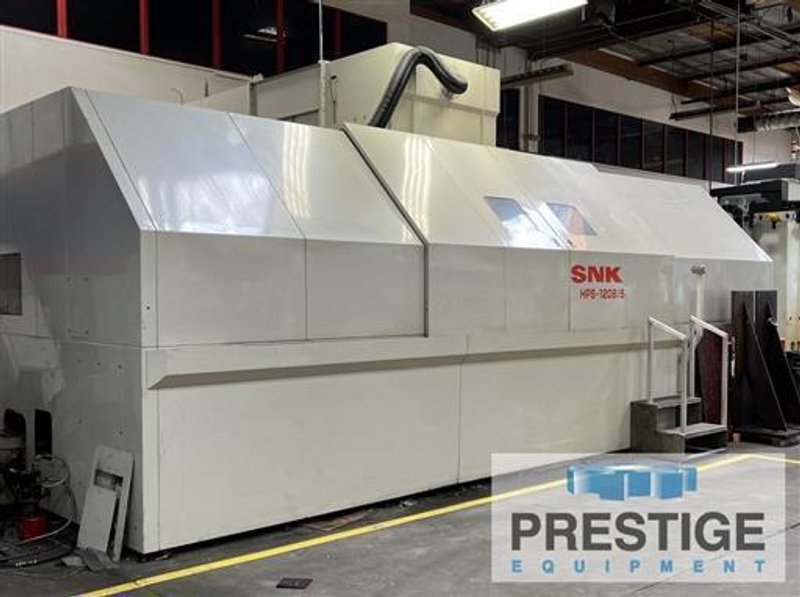

SNK HPS-120B 5-Axis CNC Horizontal High Speed Aerospace Profiler

SPECIFICATIONS:
X-Axis Travel 124.01"
Y-Axis Travel 52"
Z-Axis Travel 30"
A-Axis Spindle Head Tilt +/-90 Degrees
C-Axis Spindle Head Rotation +/-360 Degrees
Spindle Tilt Center To Spindle End 11.81"
SPINDLE:
Spindle Speeds, MAx 15,000 RPM
Spindle Nose CAT 50
Spindle Drive Motor 50 HP
TABLE:

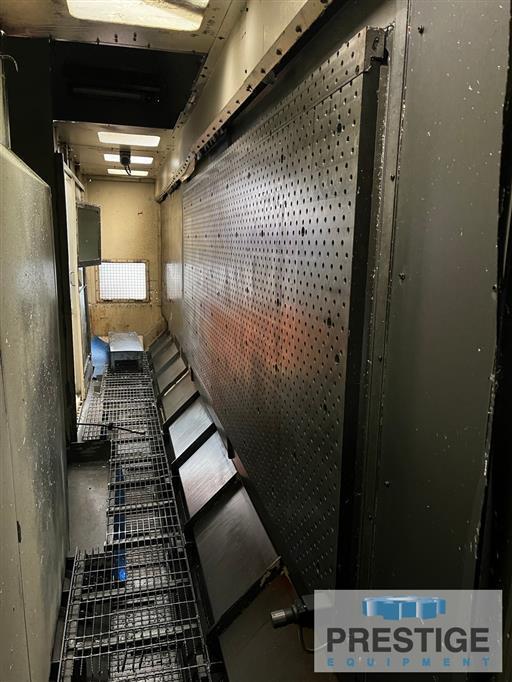

Table Size 120" x 48"
Permissable Workpiece Weight 11,000 Lbs.
FEED RATES:
Rapid Traverse, X & Z Axes 944.88 IPM
Rapid Traverse, Y-Axis 787.4 IPM
Rapid Traverse, A & C Axes 0-1800 DPM
Cutting Feedrate, XYZ Axes 393 IPM
Cutting Feedrate, A & C Axes 0-1800 DPM



Equipped With:

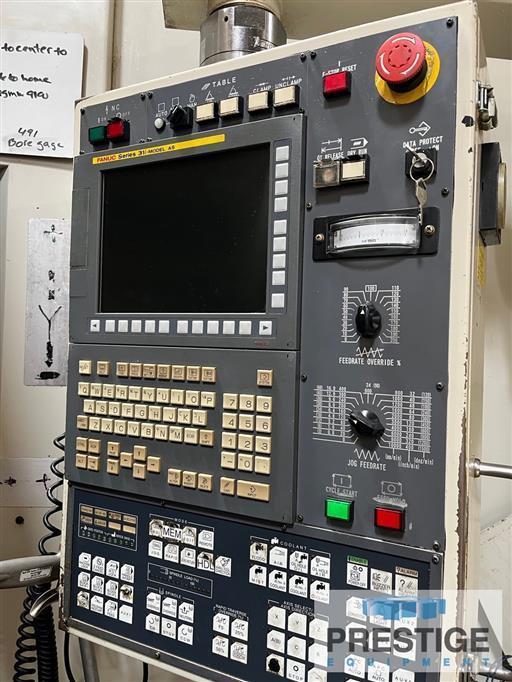

FANUC 31iMA 5-Axis CNC Control

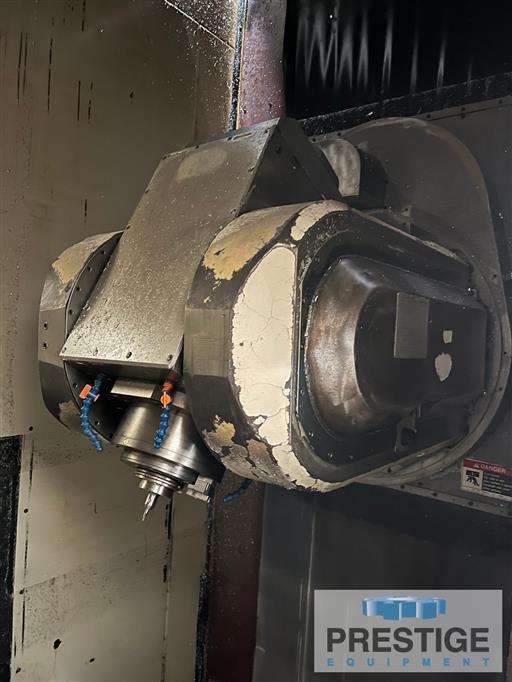

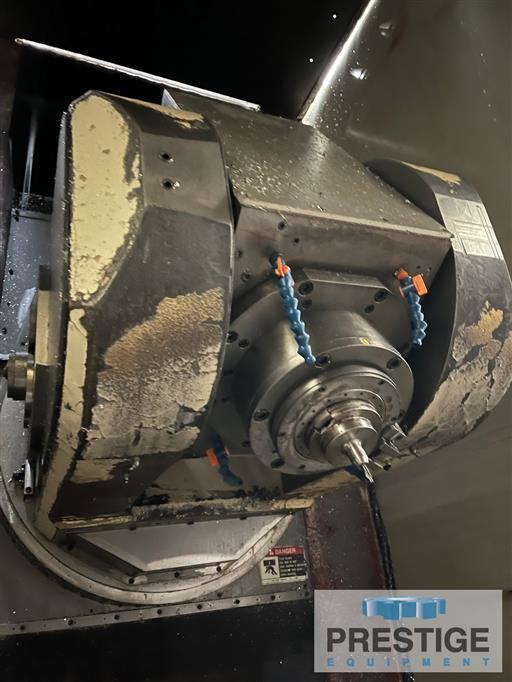

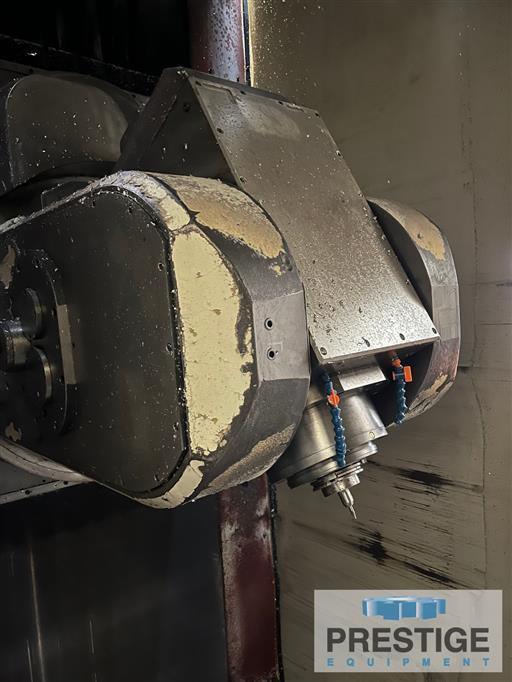

2-Axis Swivel Head
60-Position Automatic Tool Changer
Coolant Through Spindle
Box Way Construction
Full Splash Enclosure
Rigid Tapping
Chip Blaster Mist Collector
Chller Unit
Coolant Tank
Chip Conveyor
