Correa FPM 50 - X: 20 000 - Y: 3800 - Z: 1250 mm

Brand
CORREA
Category
Milling Machines
Type
Millers, Gantry, CNC
Model
FPM 50 - X: 20 000 - Y: 3800 - Z: 1250 mm
Stock #
B.06 16126
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

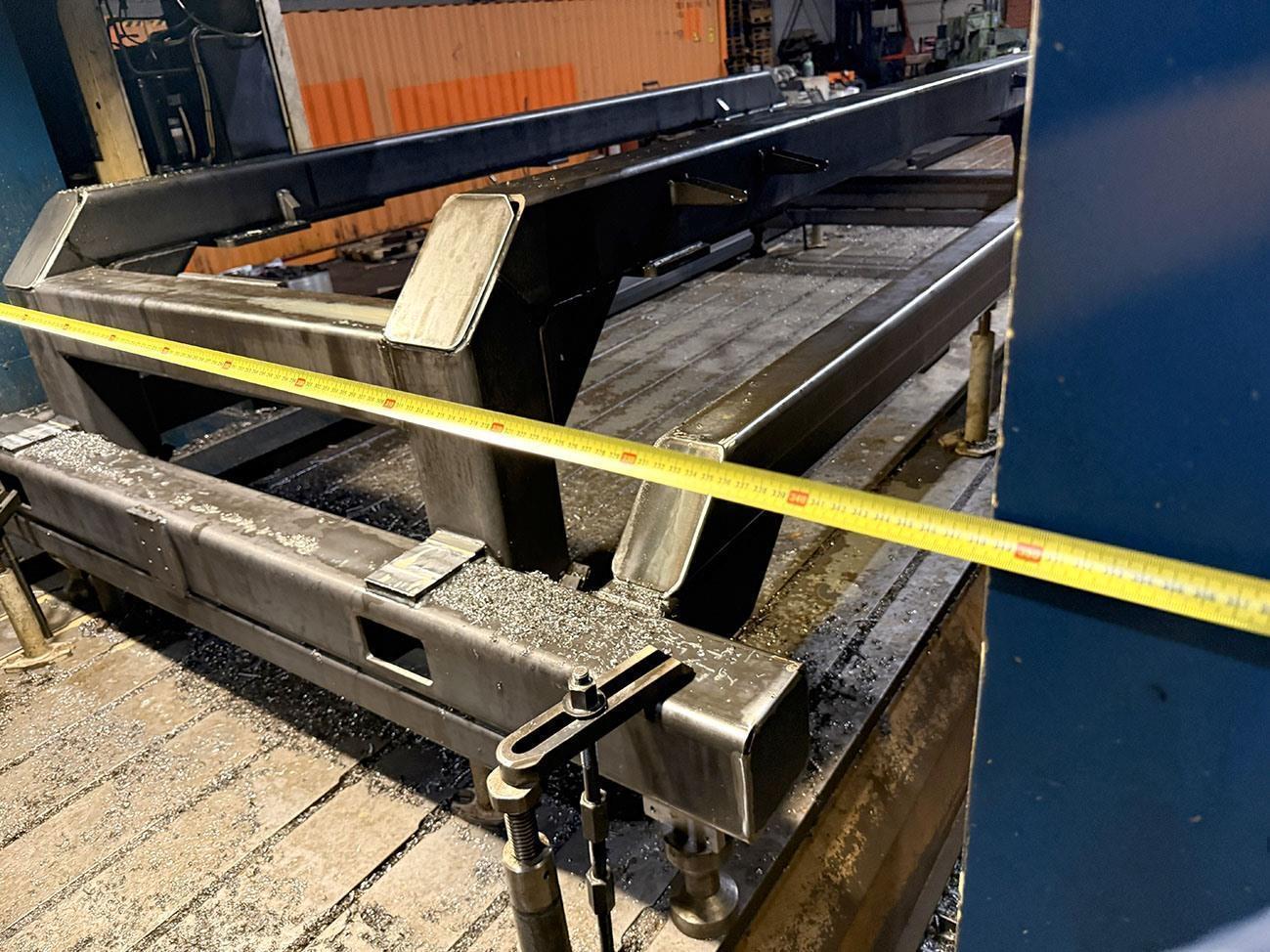

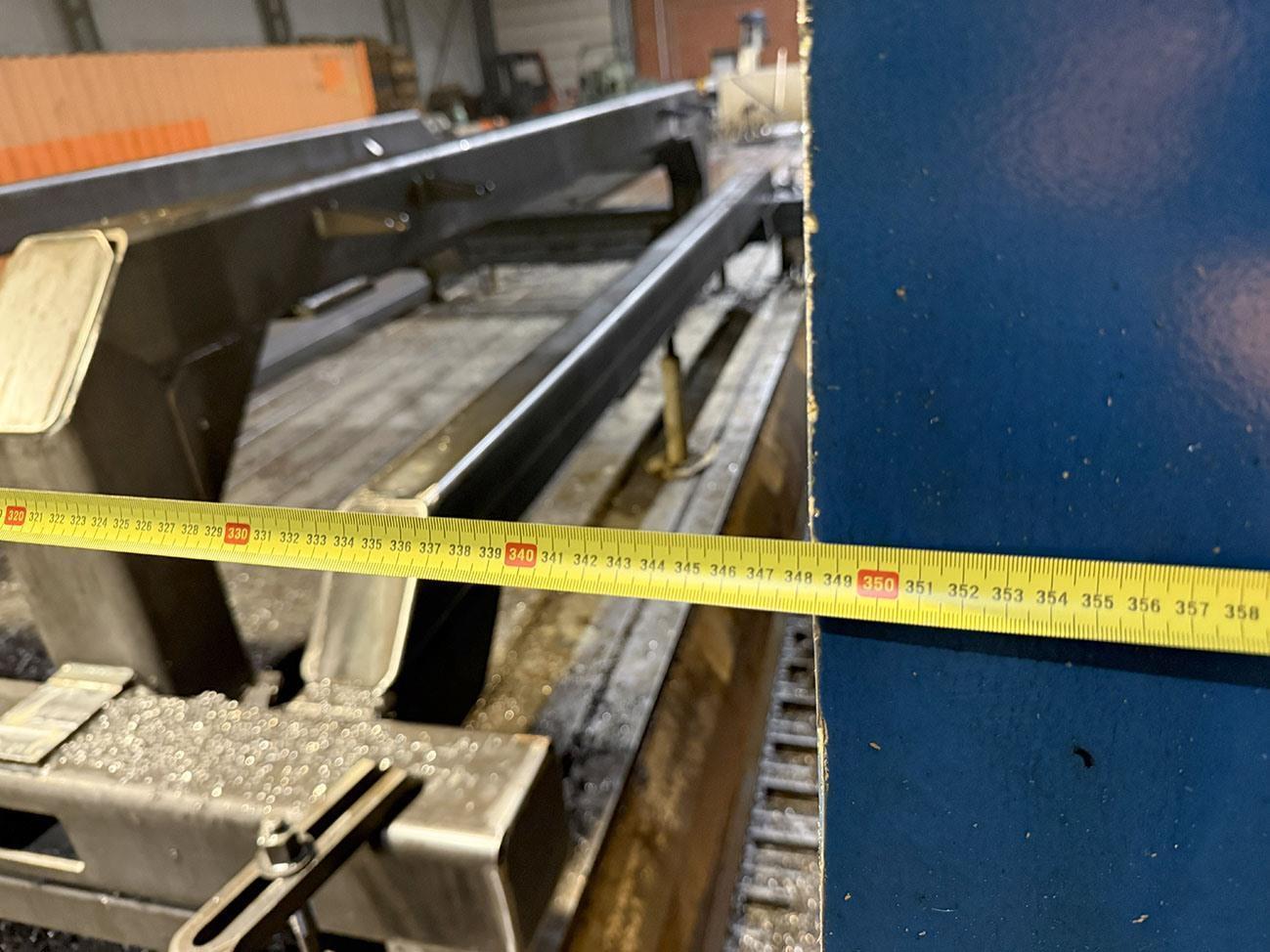

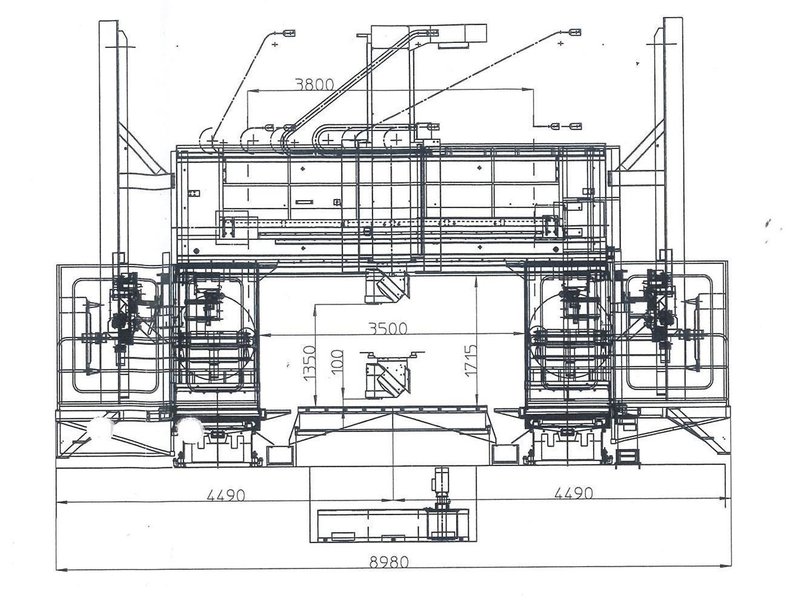

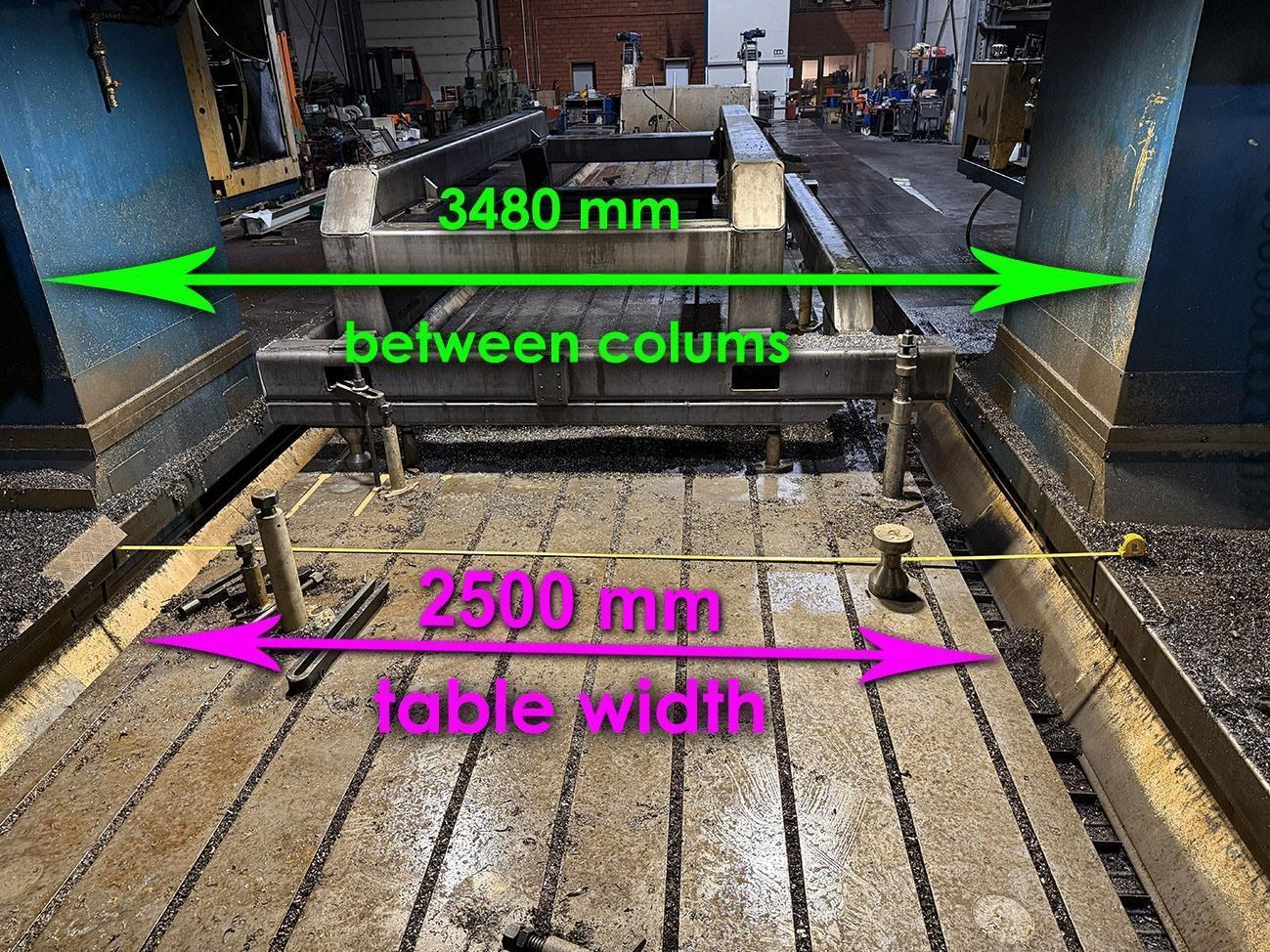

  • Passage beween uprights 3480 mm
  • Longitudinal travel X-axe 20 000 mm
  • Cross travel Y-axe 3800 mm

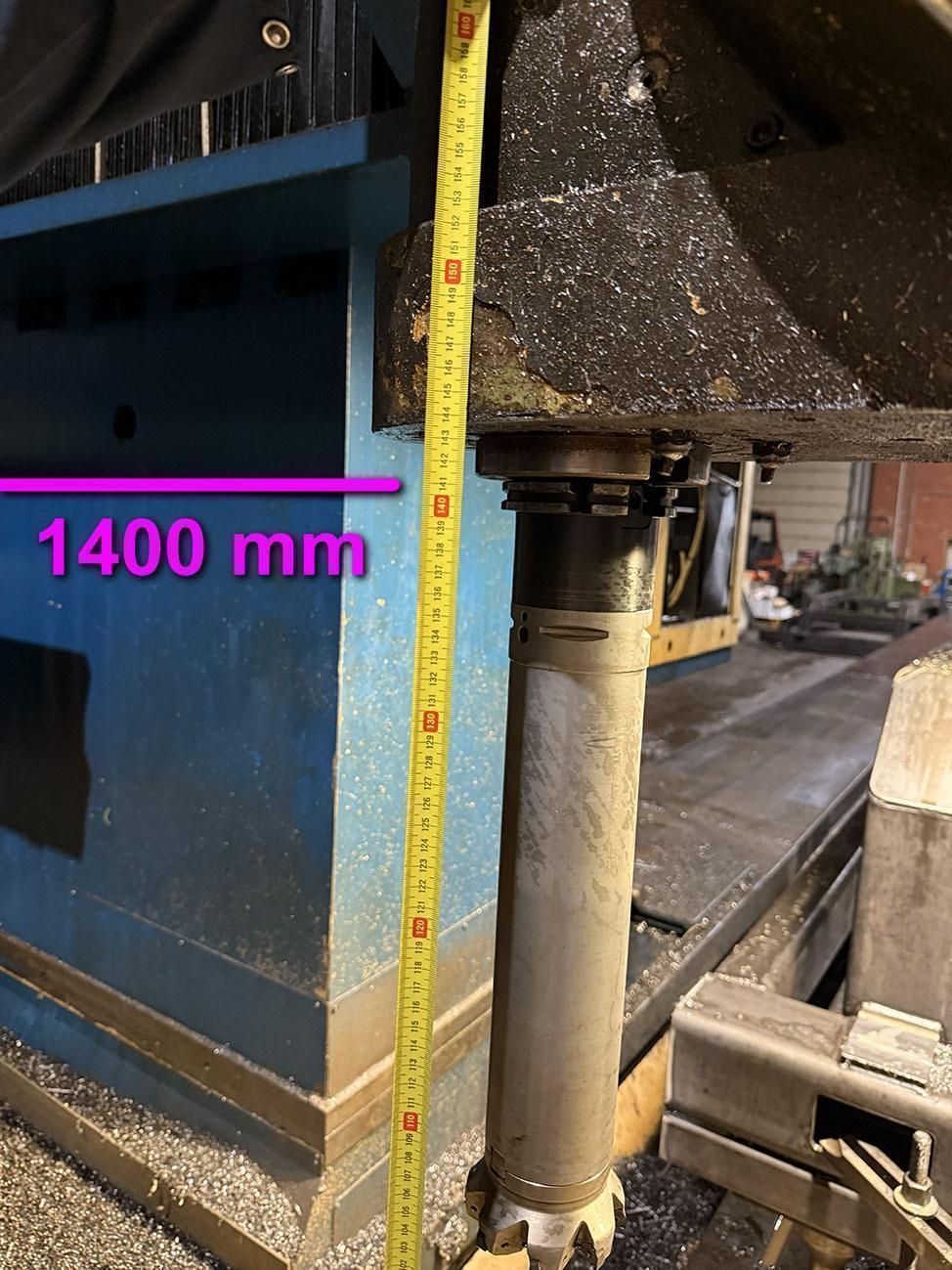

  • Travel (height) Z-axe 1350 mm
  • Dimensions Clamping space - table 20 000 x 2500 mm

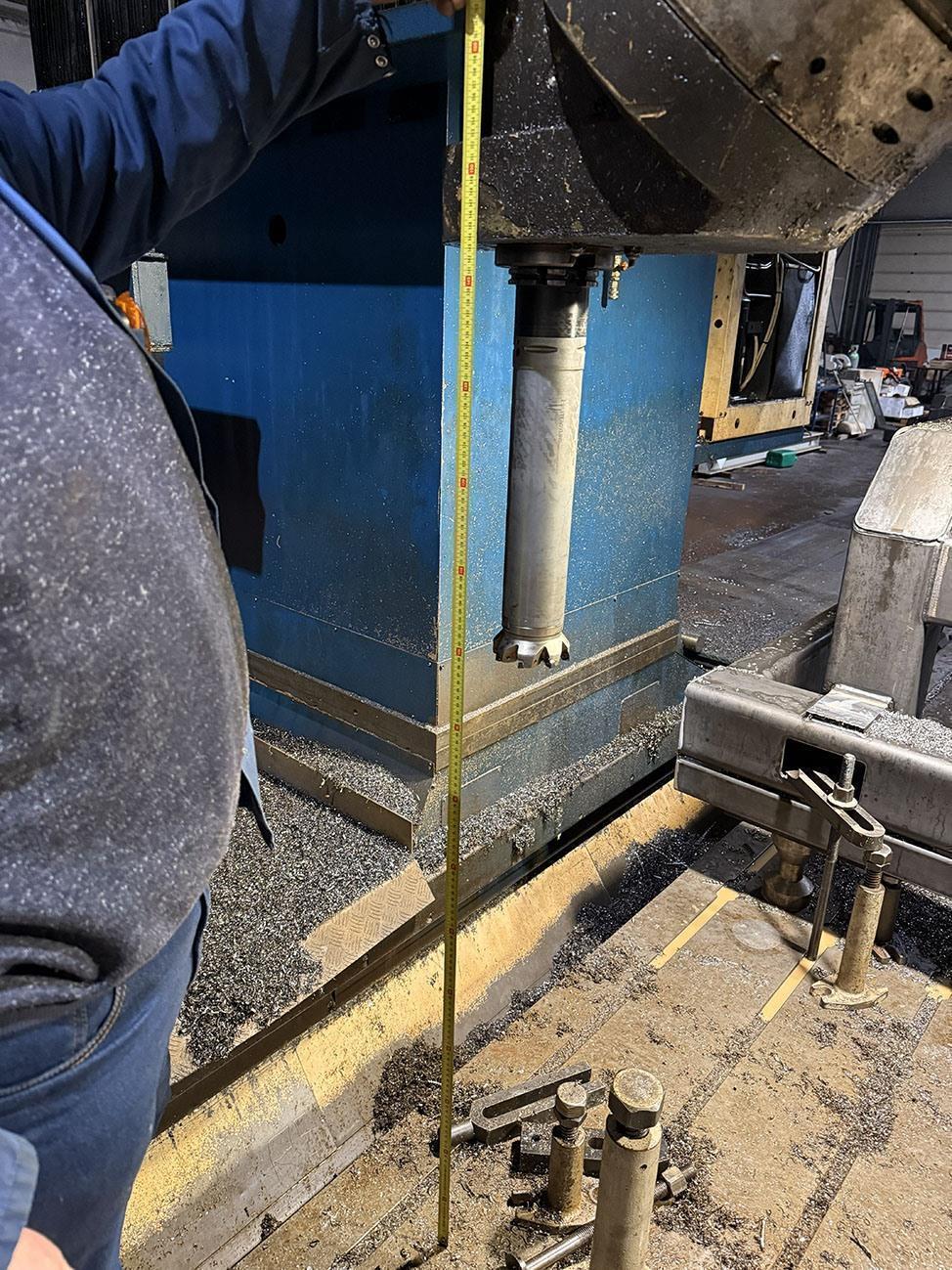

  • Max height of workpiece 1750 mm

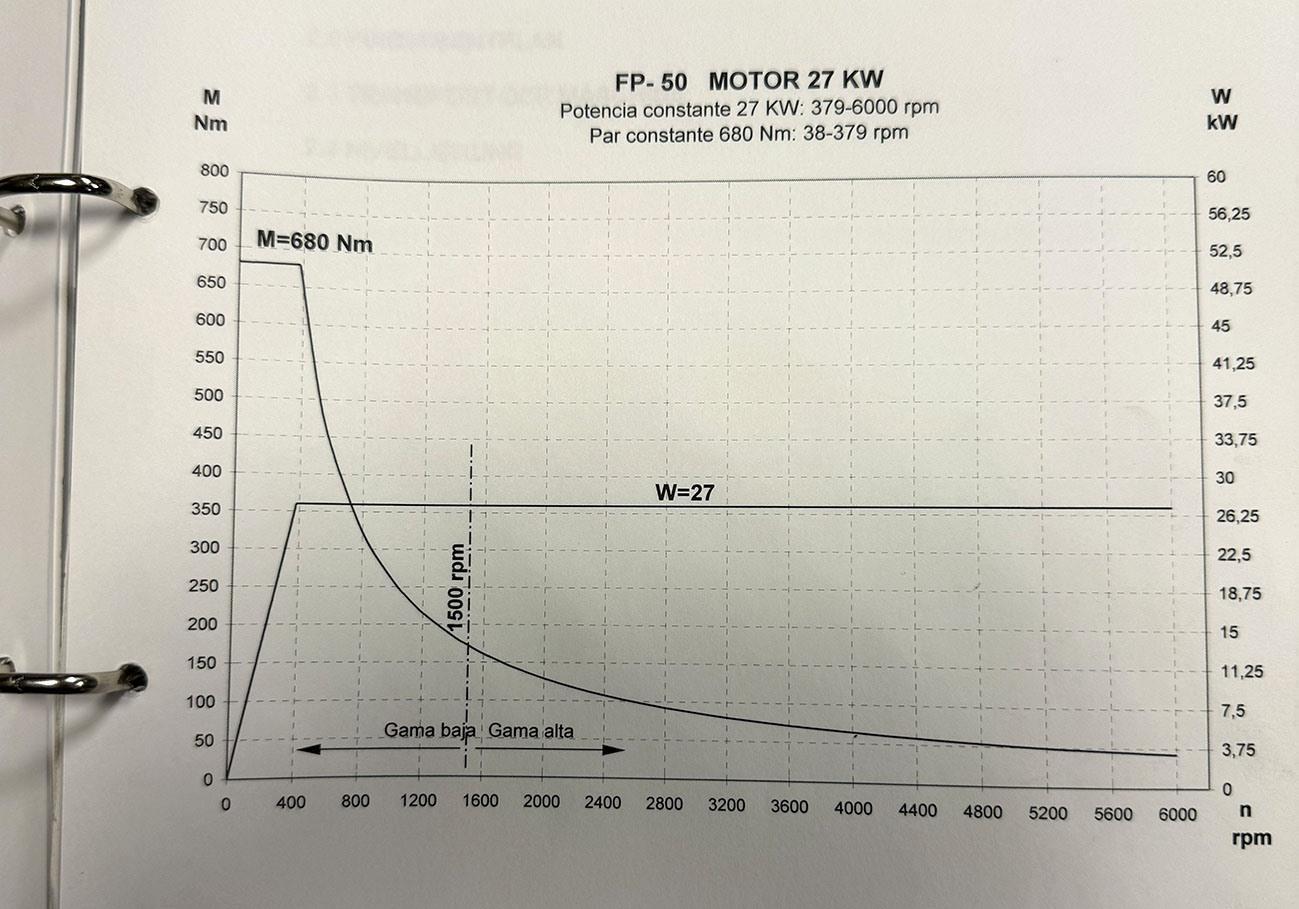

  • Power on spindle 27 kW - 660 Nm
  • Admission in millingheadspindle (ISO) ISO 50
  • Max speedrange 10 > 6000 rpm

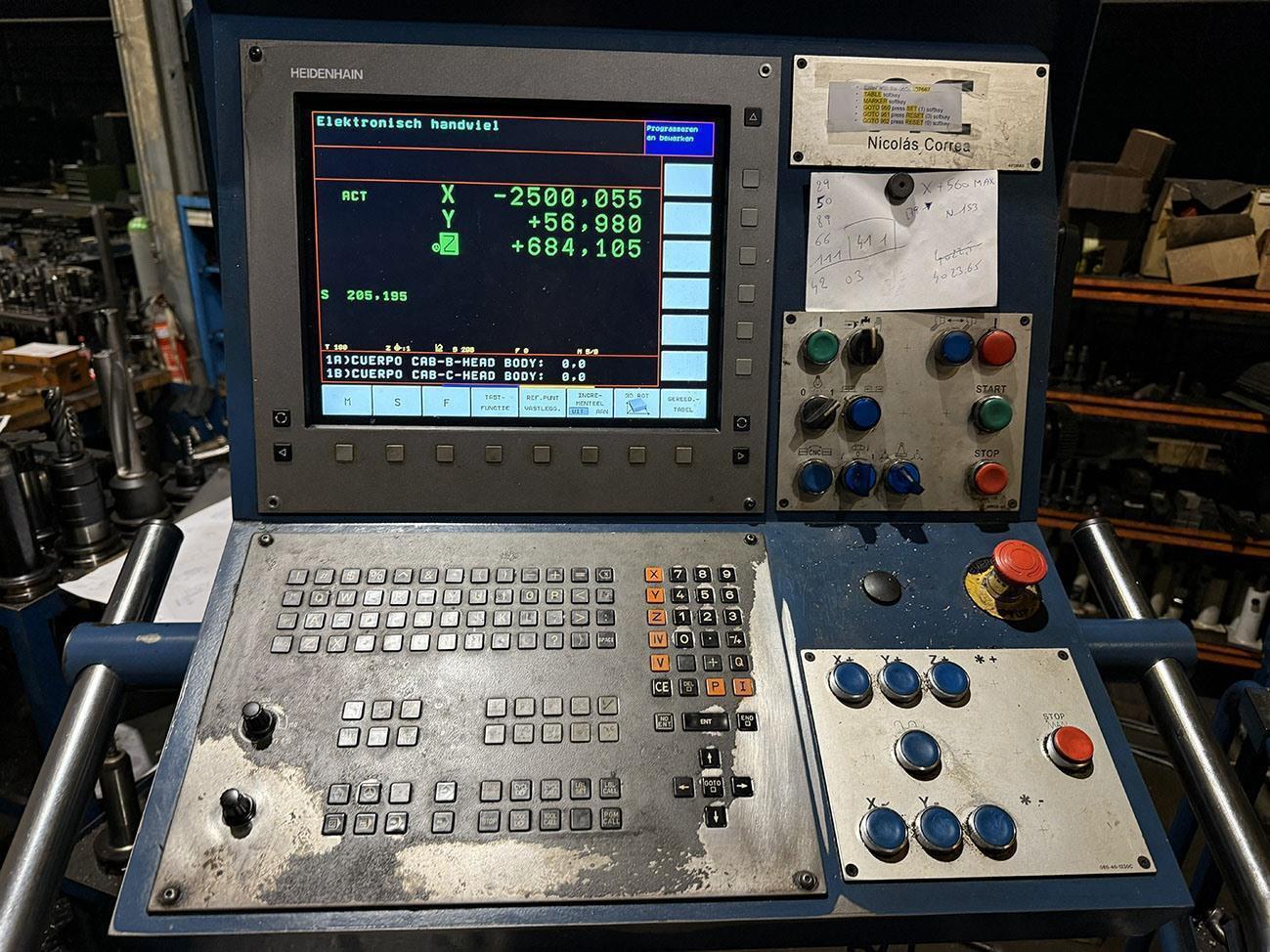

  • Control Heidenhain iTNC530
  • Weight 170 ton
  • Cooling system yes
  • Toolchanger yes
  • Number of tools 120 positions

Additional info

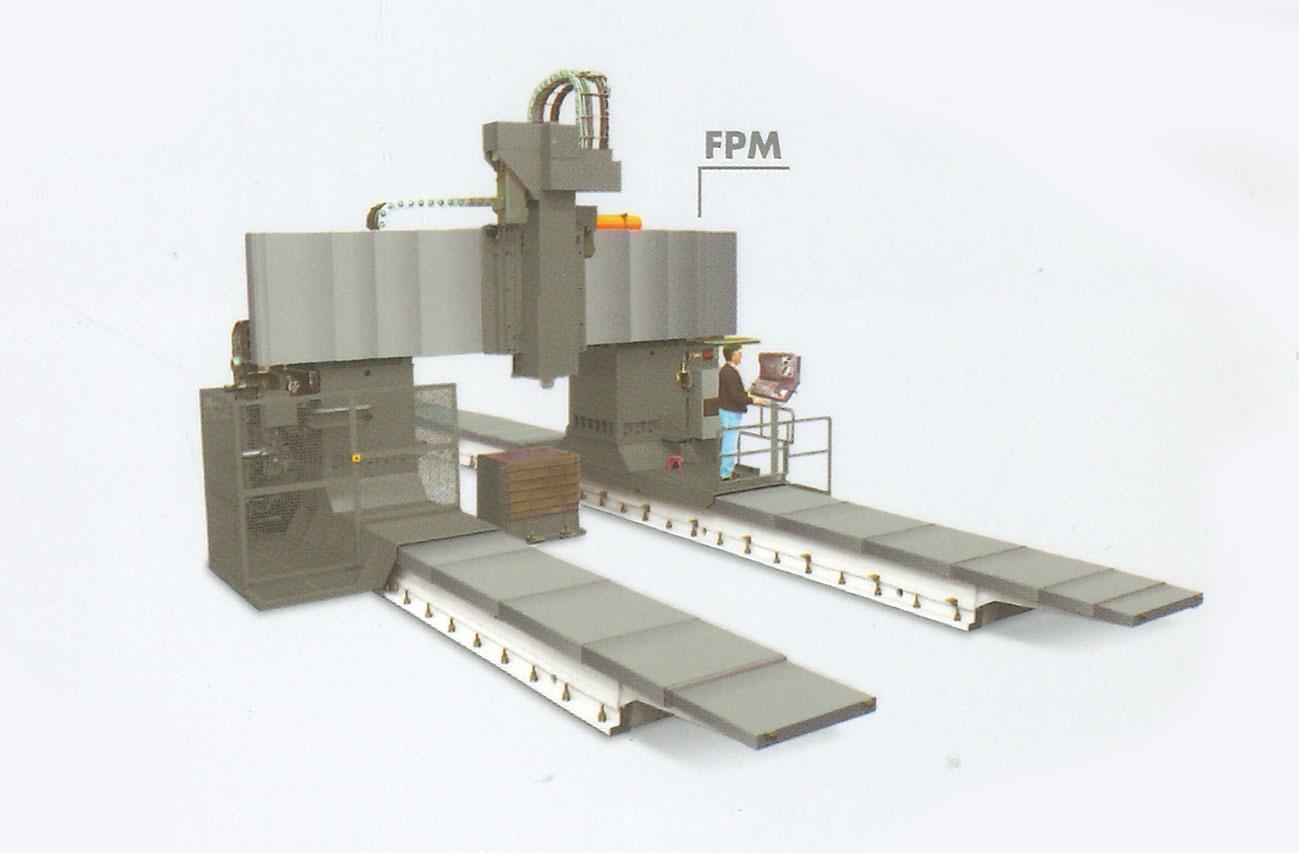

  • Heavy duty portal milling machine
    Type: FPM-50/200
    - between columns: 3480 mm
    - with auto indexing milling head (every 0.1° in both planes)
    > 27 kW / max 6000 rpm / 660 Nm
    > high pressure cooling through spindle (17 bar)
    - 2 Heidenhain operator stations
    - tool changer with 120 positions
    - 2 chip conveyors
    - with cooling and filtering unit & self cleaning system

    If you want to machine the left and right side of a workpiece, the maximum width is 3200 mm.

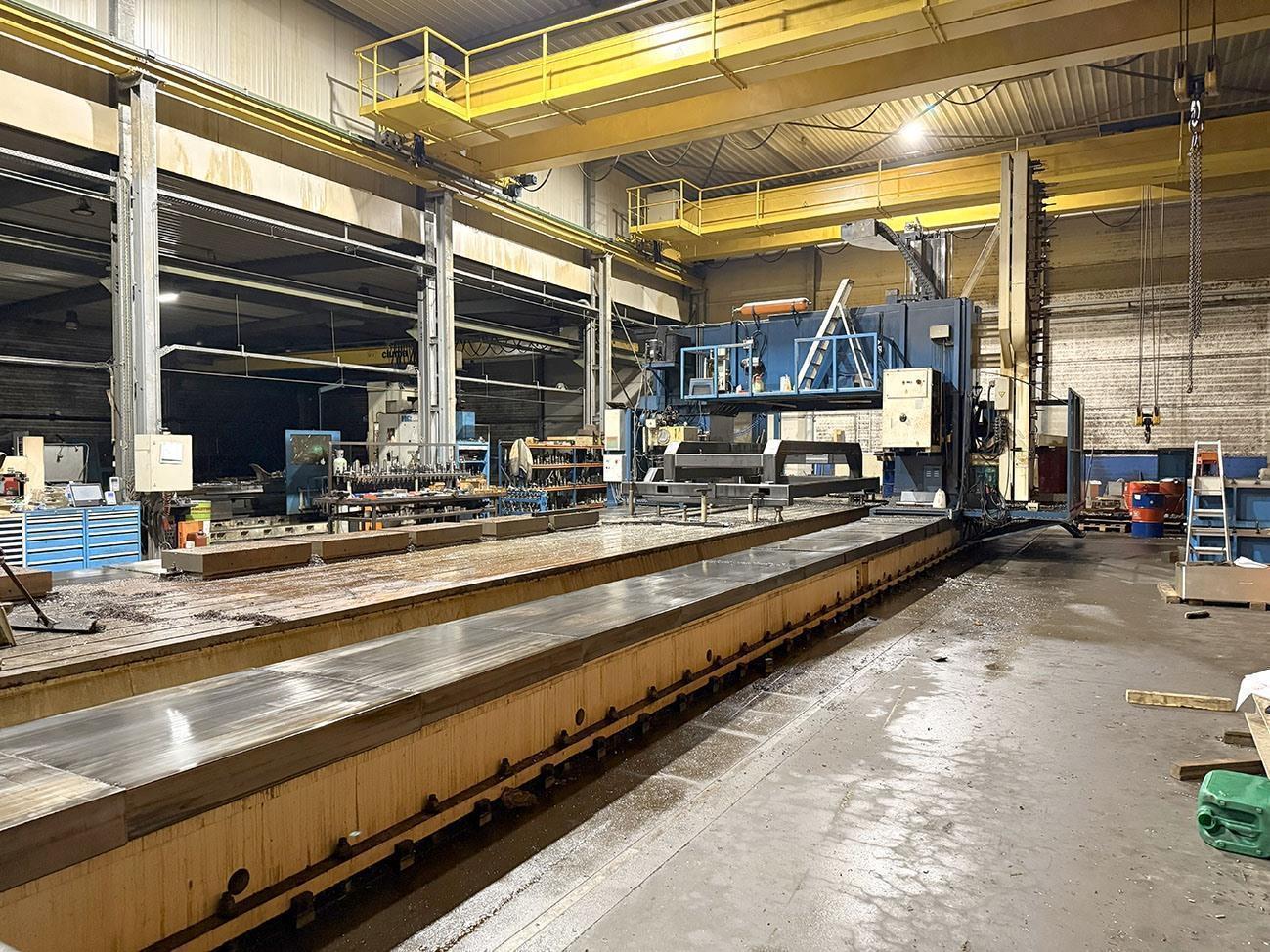

    In it's current configuration the table sits on top of the ground. But if you lower the table below floorlevel than you can fit higher workpieces onto the table.
