2050mm (80") x 20mm (.780") Fagor 4-HI Backed up Flattener (14346)
Brand
Category
Type
Model
4 HI BACKED UP
Stock #
14346
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width Of Workpiece | 80 inches |
| Max Thickness Of Workpiece | 0.78 inches |
|

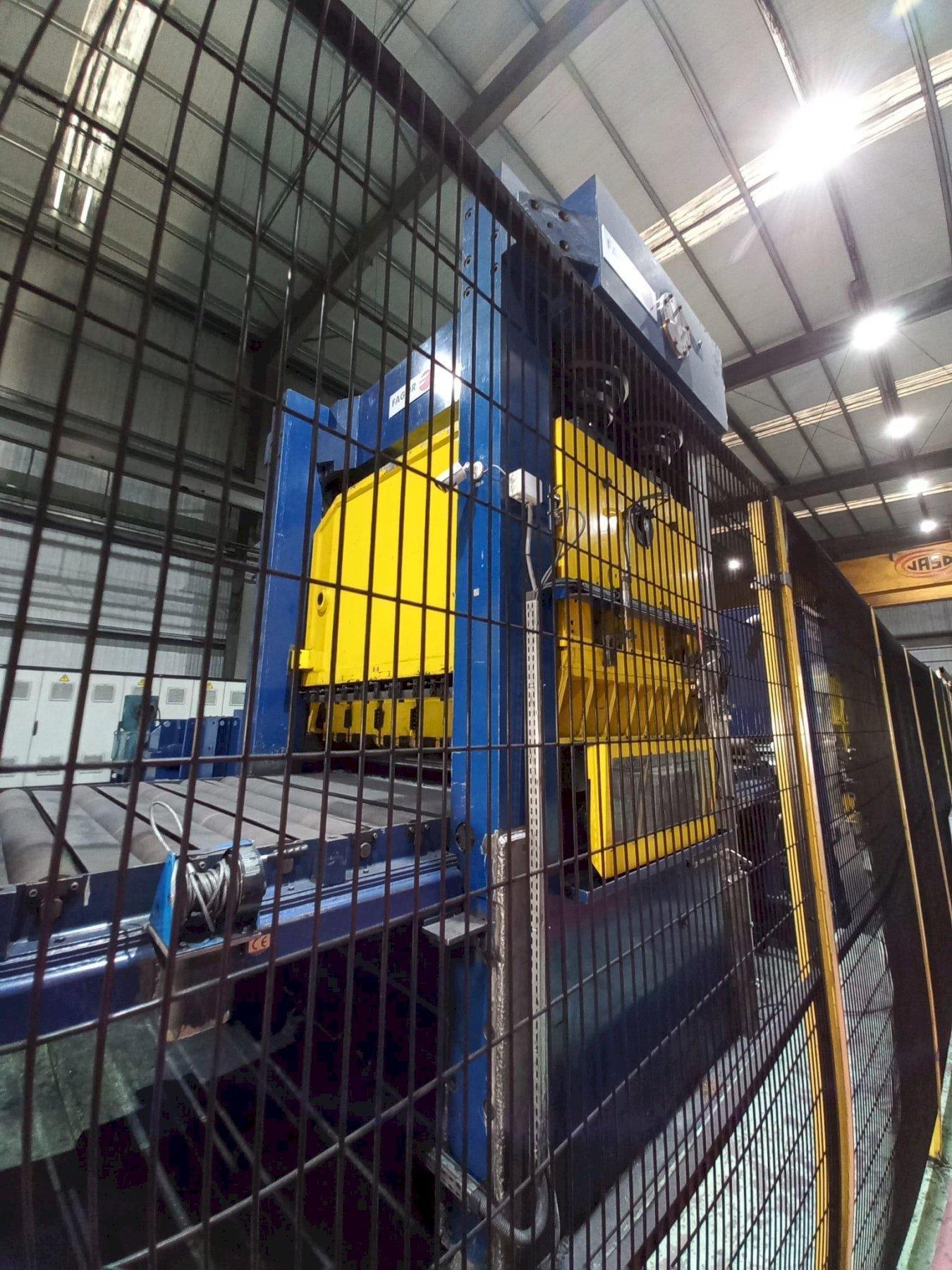

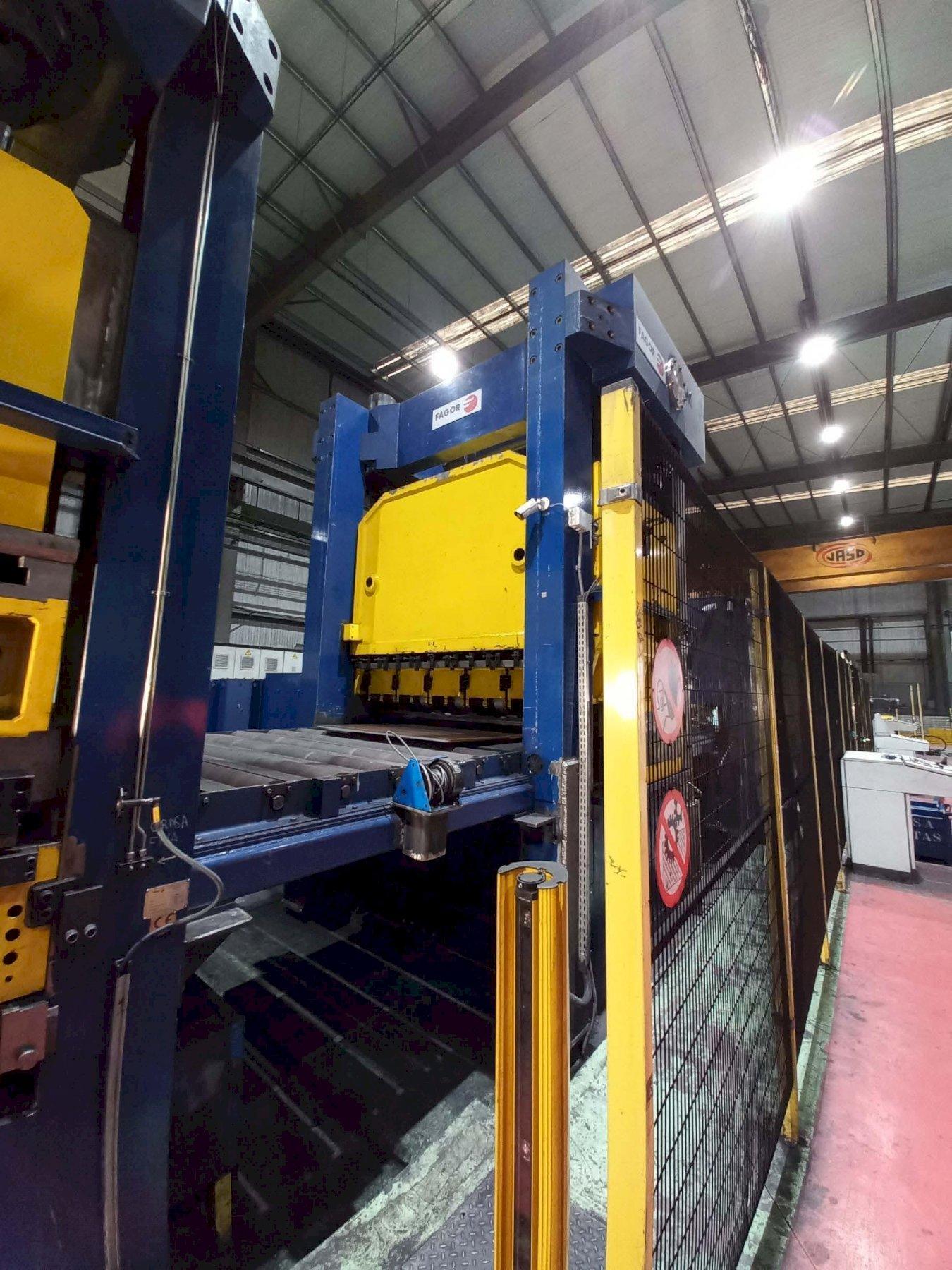

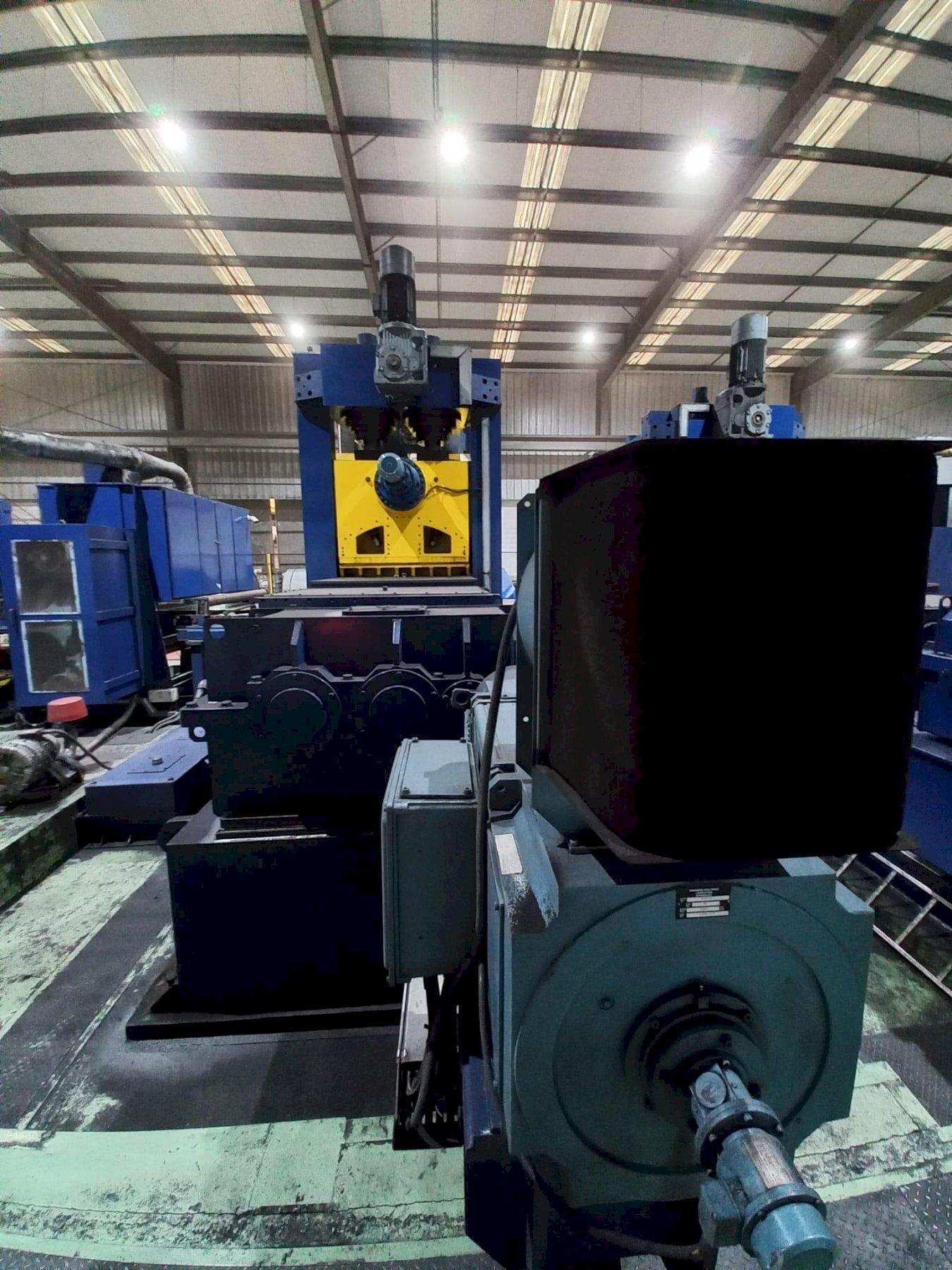

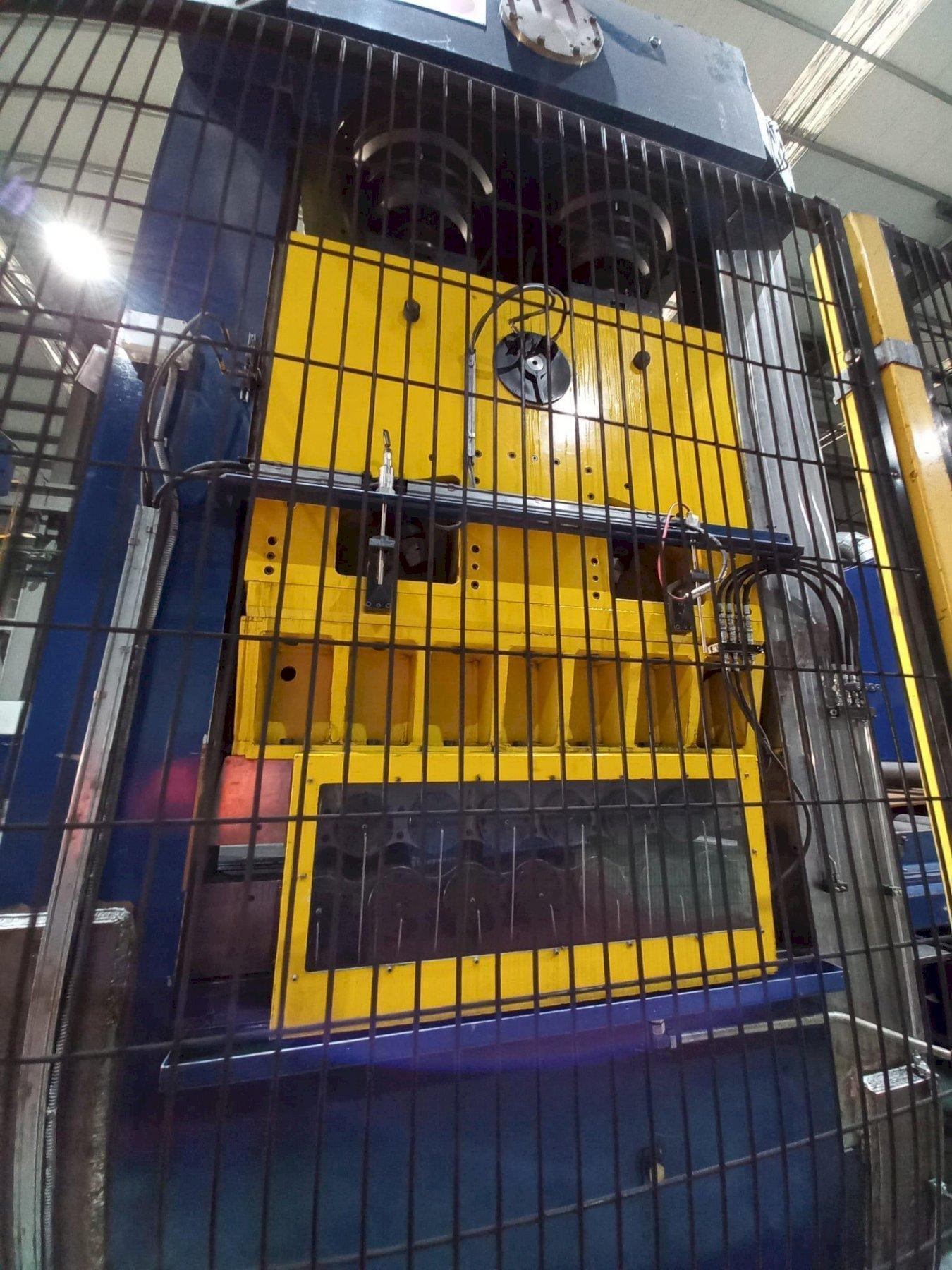

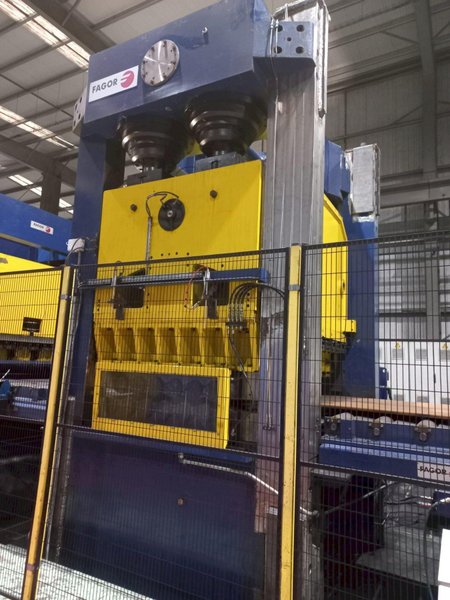

2050mm (80") x 20mm (.780") Fagor 4-HI Backed up Flattener (2009)
Type: Levelers Stock Number: 14346 Manufacturer: Fagor Arrasate Year: 2009 Material Specifications: Shear Strength: 600 N/mm2 Yield Strength: 420 N/mm2 Thickness Range: 2.8 (.110") to 20mm (.780") Width: 800mm (31.4") to 2050mm (80.7") Number of Work Rolls: 13 Work Roll Diameter: 180mm (7") Back Up Roll Diameter: 300mm (11.8") Work Roll Face: 2200mm (86") 5 Flights of Back Ups Motorized Back Up adjustment Motorized Tilt and Open/Close Entry and Exit Strip Thickness Control System Main Motor Drive: 331KW Spare Universal Shafts Spare Set of Work Rolls Spare 75 Back Up Rolls Overall Dimensions: 2600mm (102”) length 9,300mm (366”) Width 5,500mm (216”) height Total Weight: 140 Ton ** Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
