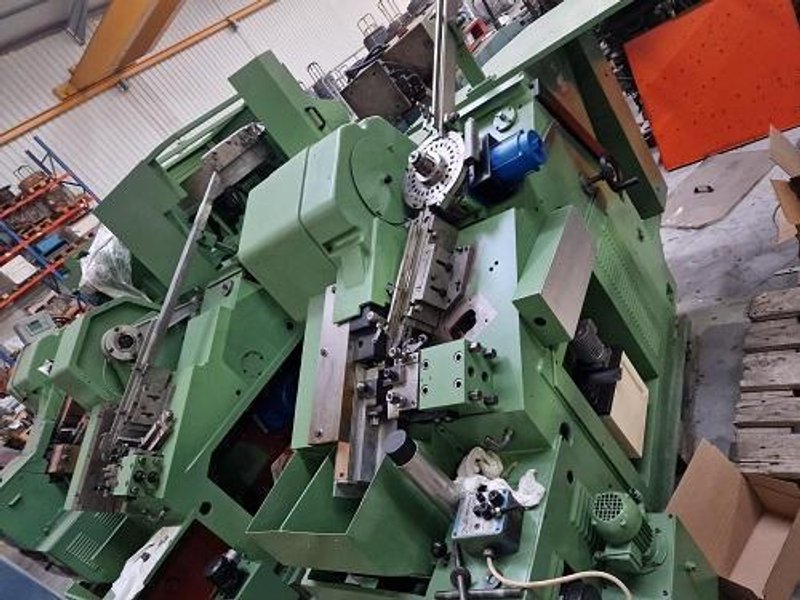

INGRAMATIC MODEL RP-1R HIGH SPEED FLAT DIE THREAD ROLLER
BUILT BY................ INGRAMATIC S.P.A, TORTONA, ITALY
YEAR....................... 1989
MODEL.................. RP1SB
SPECIFICATIONS:
MAX. DIA....................6MM
MIN. DIA....................2.5MM
MAX. THREAD LENGTH...40MM
MAX. BLANK LENGTH...75MM
PRODUCTION RATE........220-600 PPM
ELECTRICS:
MAIN DRIVE................8.5 KW
POWER SUPPLY...........380V/3/50
DIMENSIONS:
NET WEIGHT................2,000KGS
FLOOR SPACE...............1950 X 1000 X 1690MM
FEATURES:
PRESSURE FED AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
CHIP SEPARATOR
ELECTRICS
OPERATORS PUSH BUTTON CONTROLS
|
