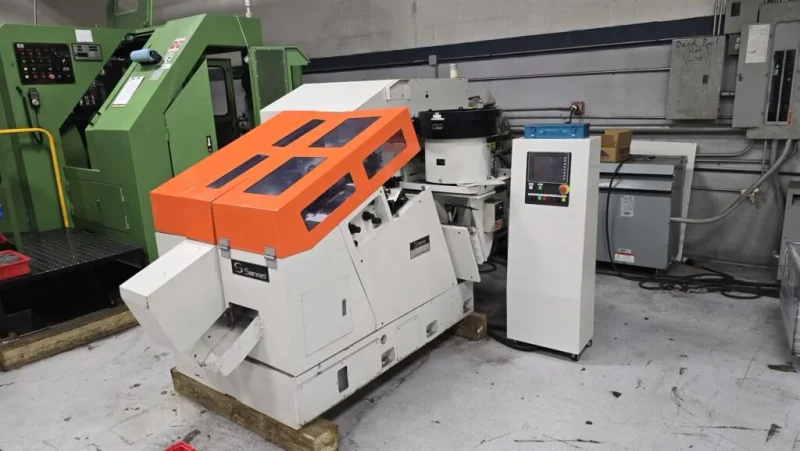

1/2" Sanmei THI-12R Evolution (2014 Showroom Model)

Max Diameter M12
Max Blank Length 150
Max Thread Length 50
Max Thread Pressure (KGS) 18000
Power (KW) 15
Speed (PPM) 50-150
Stroke (MM) 460mm
Coolant (LTR) 30

Eccentrical pin pitch alignment
Easy ratchet/lever bowl height adjustment
Pneumatic disc brake system
Recirculating continuous lubrication system

Main motor 200v 3ph 15kw
Inveter 200v 3ph 60A
Lube pump 200v 3ph 25w
Coolant pump 200v 3ph 60w
Grease pump (manual)

This is a showroom model at Truform Equipment that has had very little or no runtime and is in like-new condition

Die Information (as measured)

• Moving Side
  • Total – 255 long x 135mm tall
    • Filler – 220 x 30 x 95mm tall
    • Filler – 35 x 35 x 95mm tall
    • Die – 220 x 38 x 40mm tall
• Stationary Side:
  • Total – 200 long x 135mm tall
    • Filler – 200 x 30 x 95mm tall
    • Die – 200 x 38 x 40mm tall
