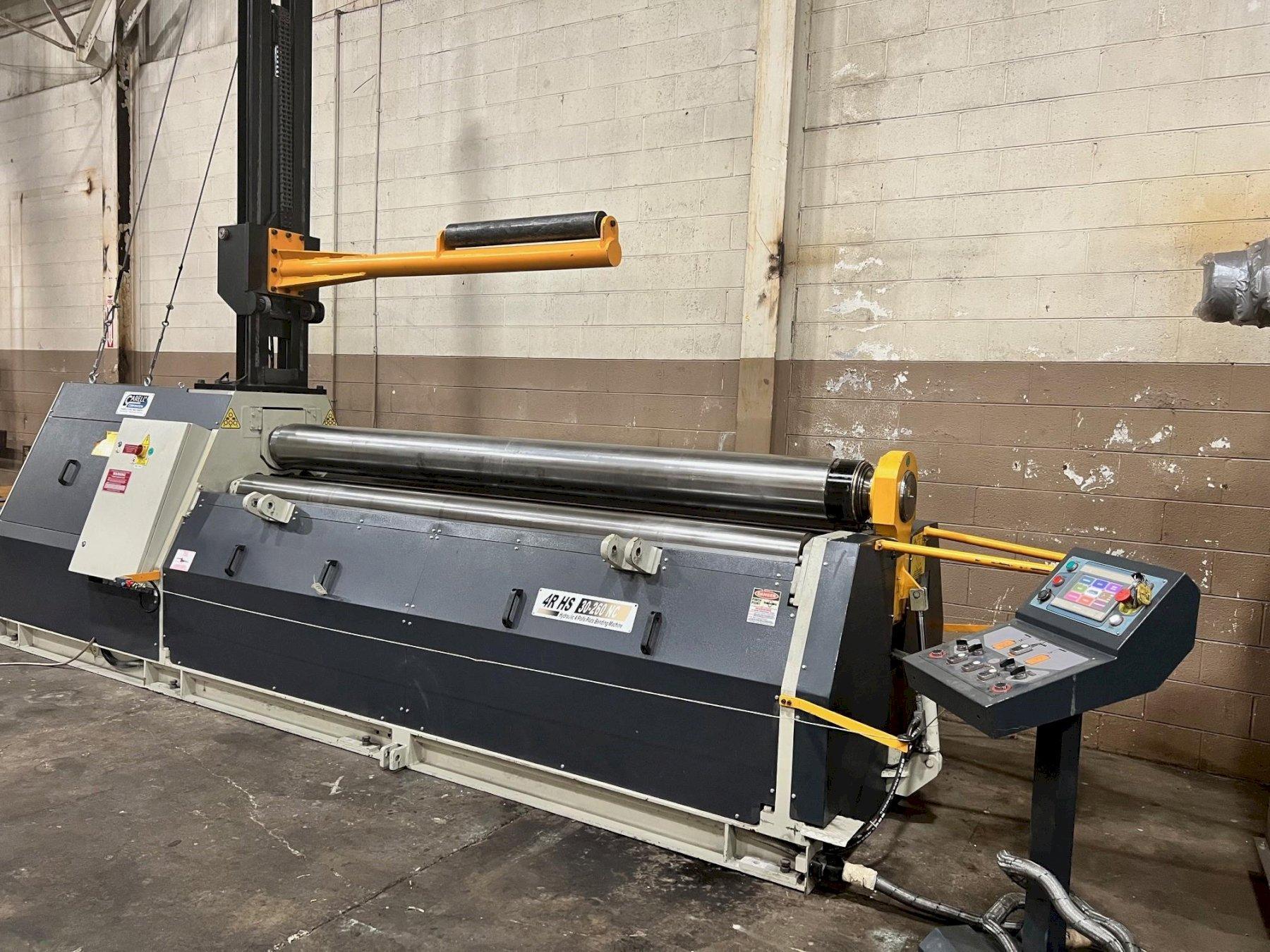

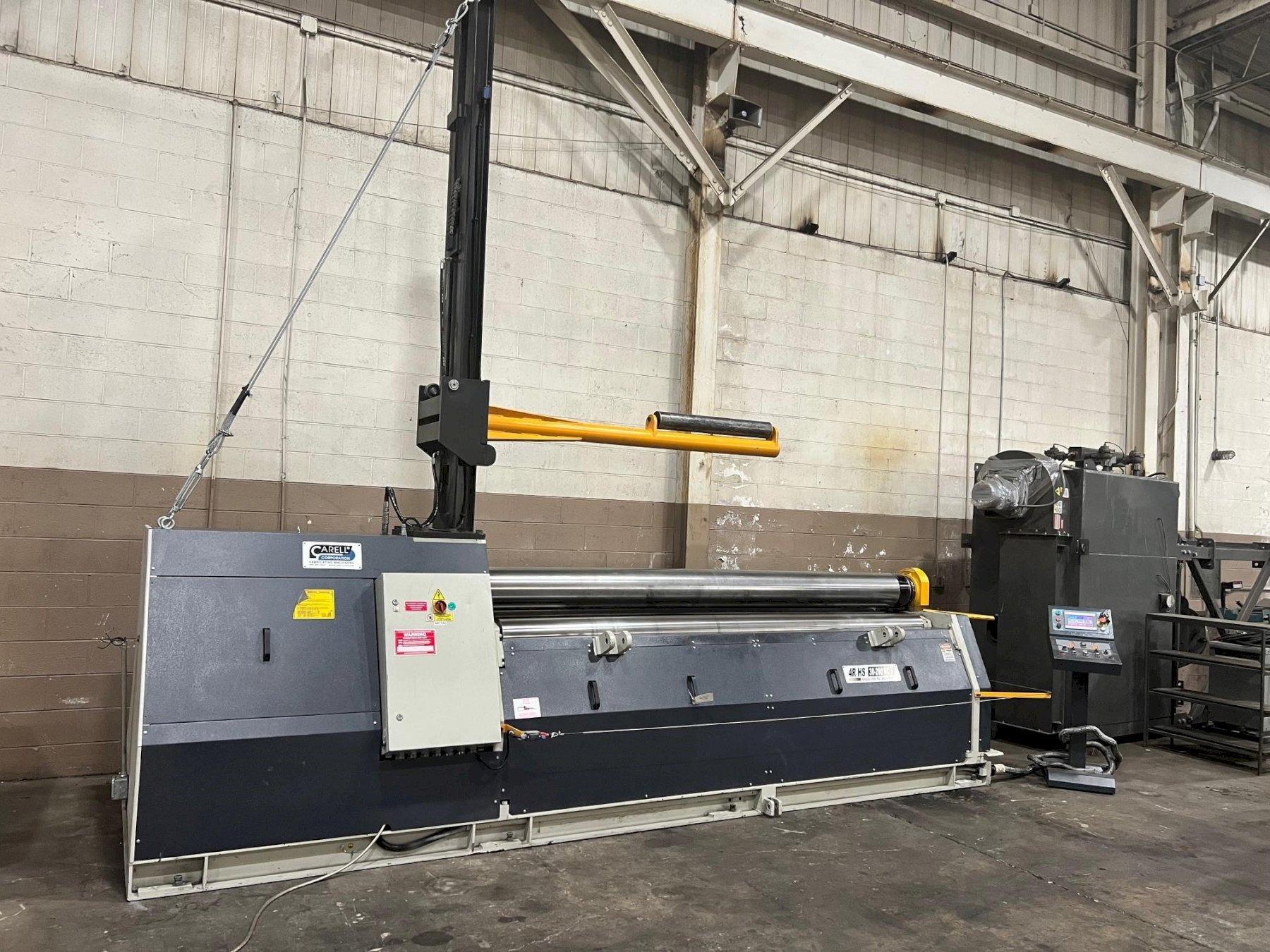

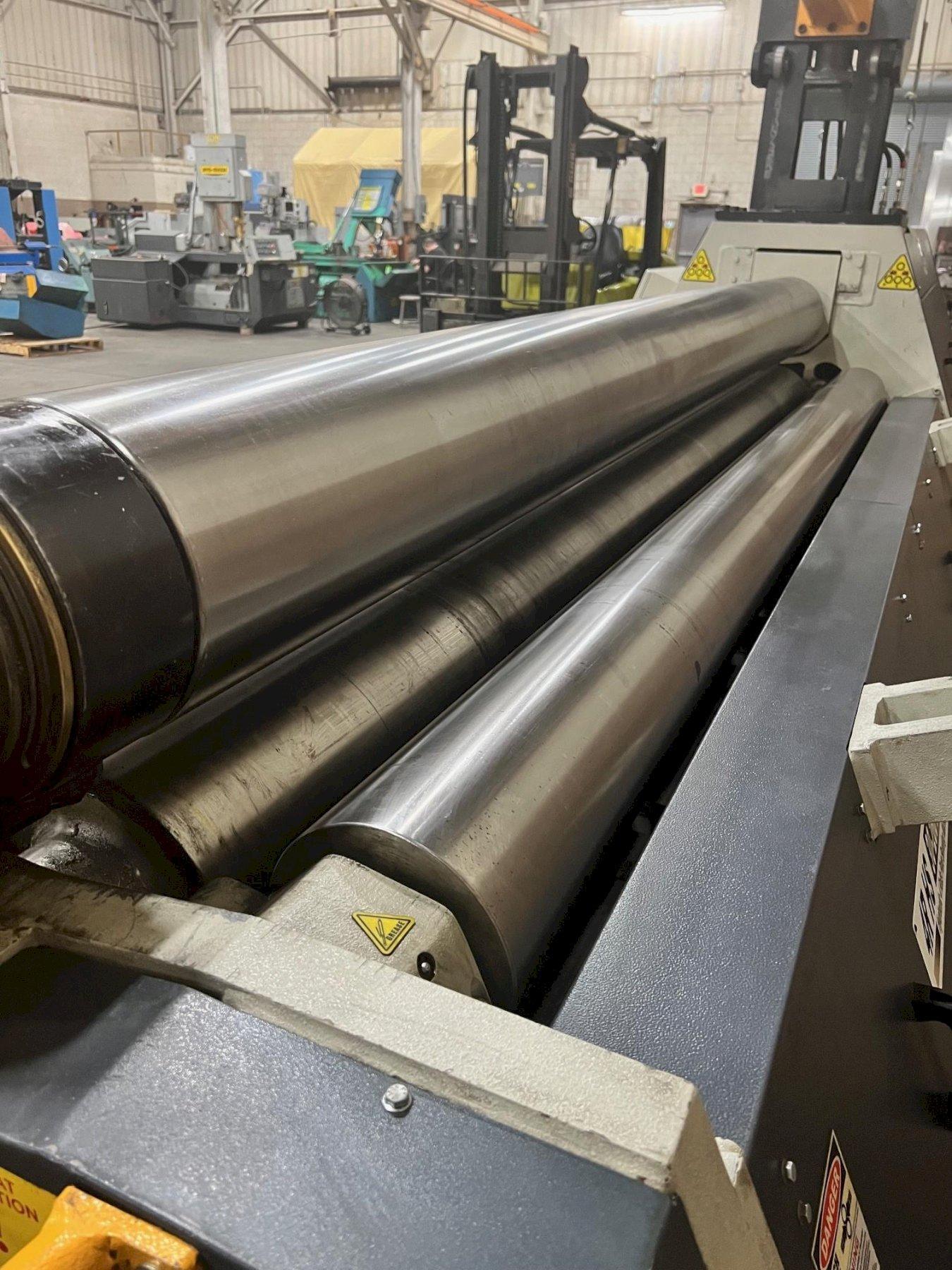

USED CARELL 10' X 3/8" 4-ROLL NC PLATE ROLL MODEL 4R HS 30X260NC, Stock# 11093, Year: 2019
Brand
Category
Model
4R HS 30-260 NC
Stock #
11093
Year
2019
Condition
Used
Location
Michigan
|
Brand: Carell

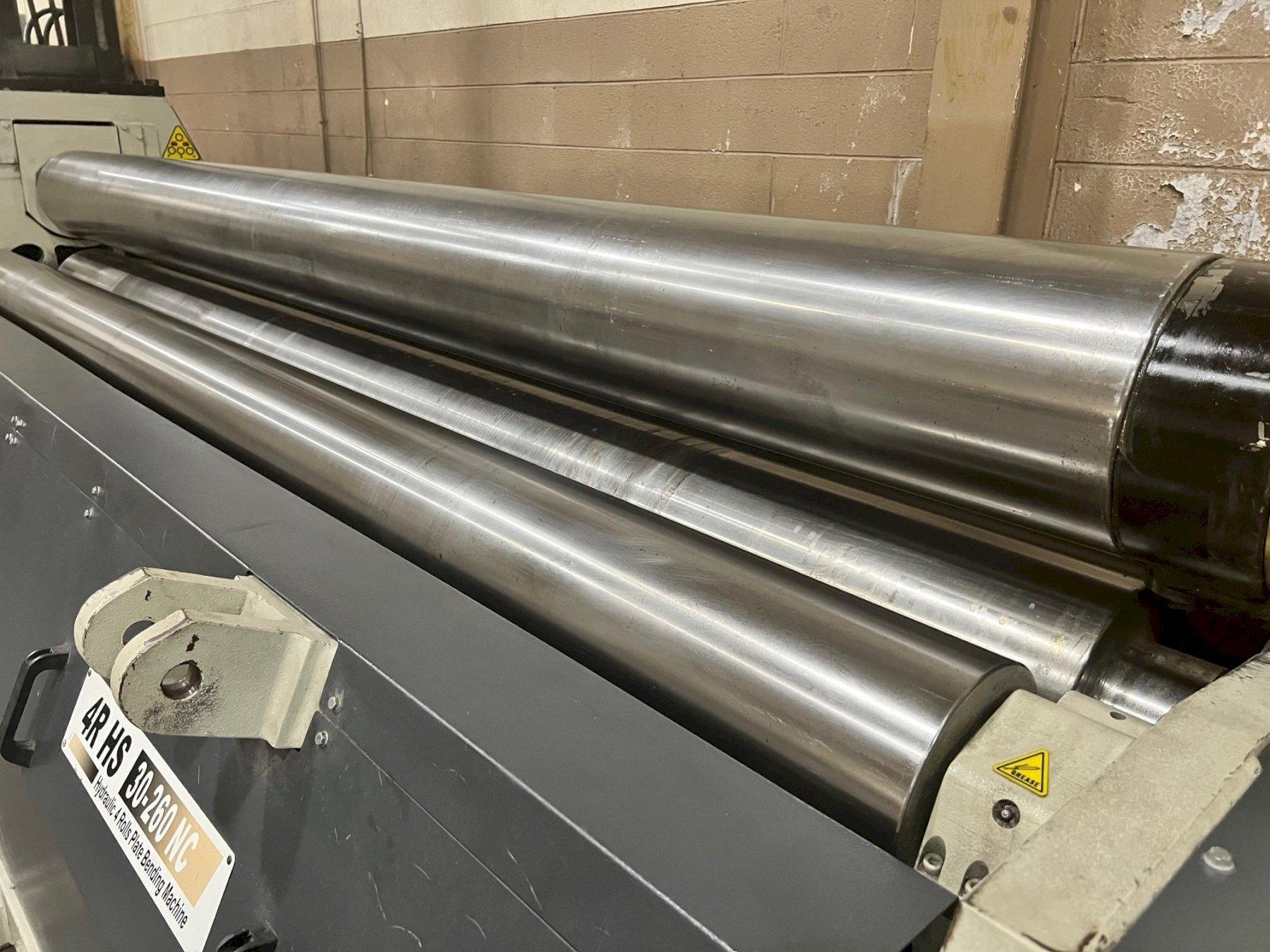

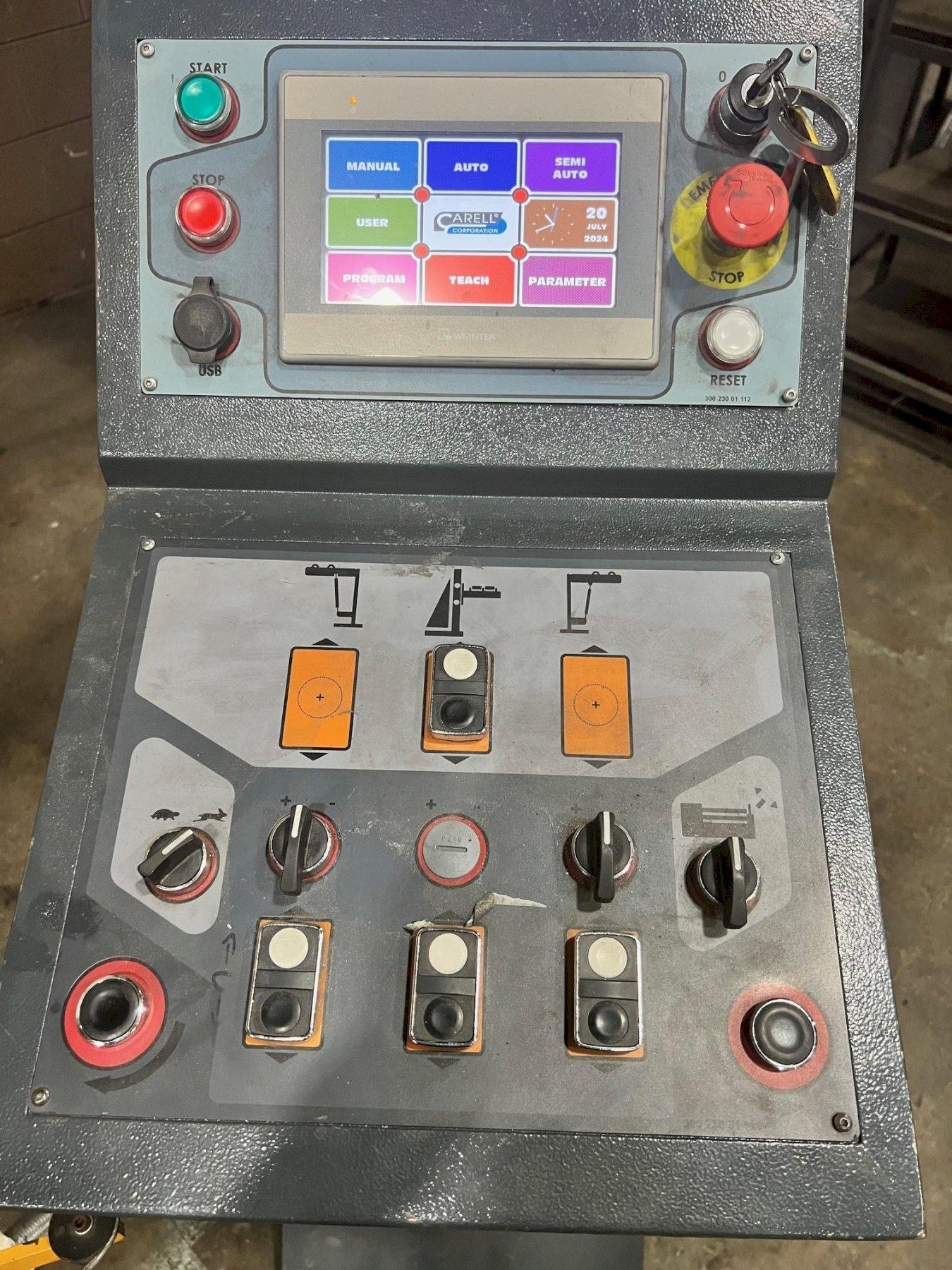

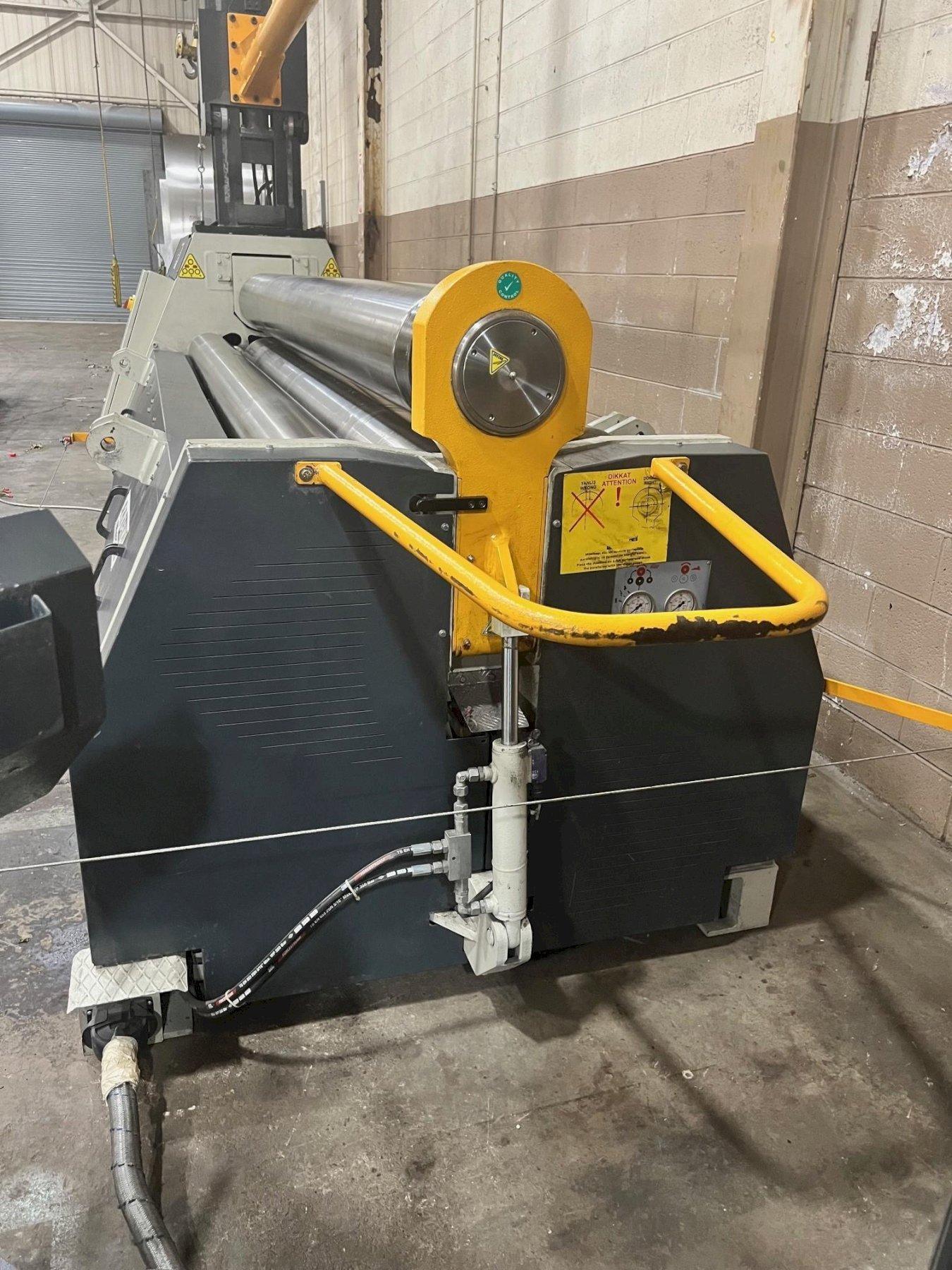

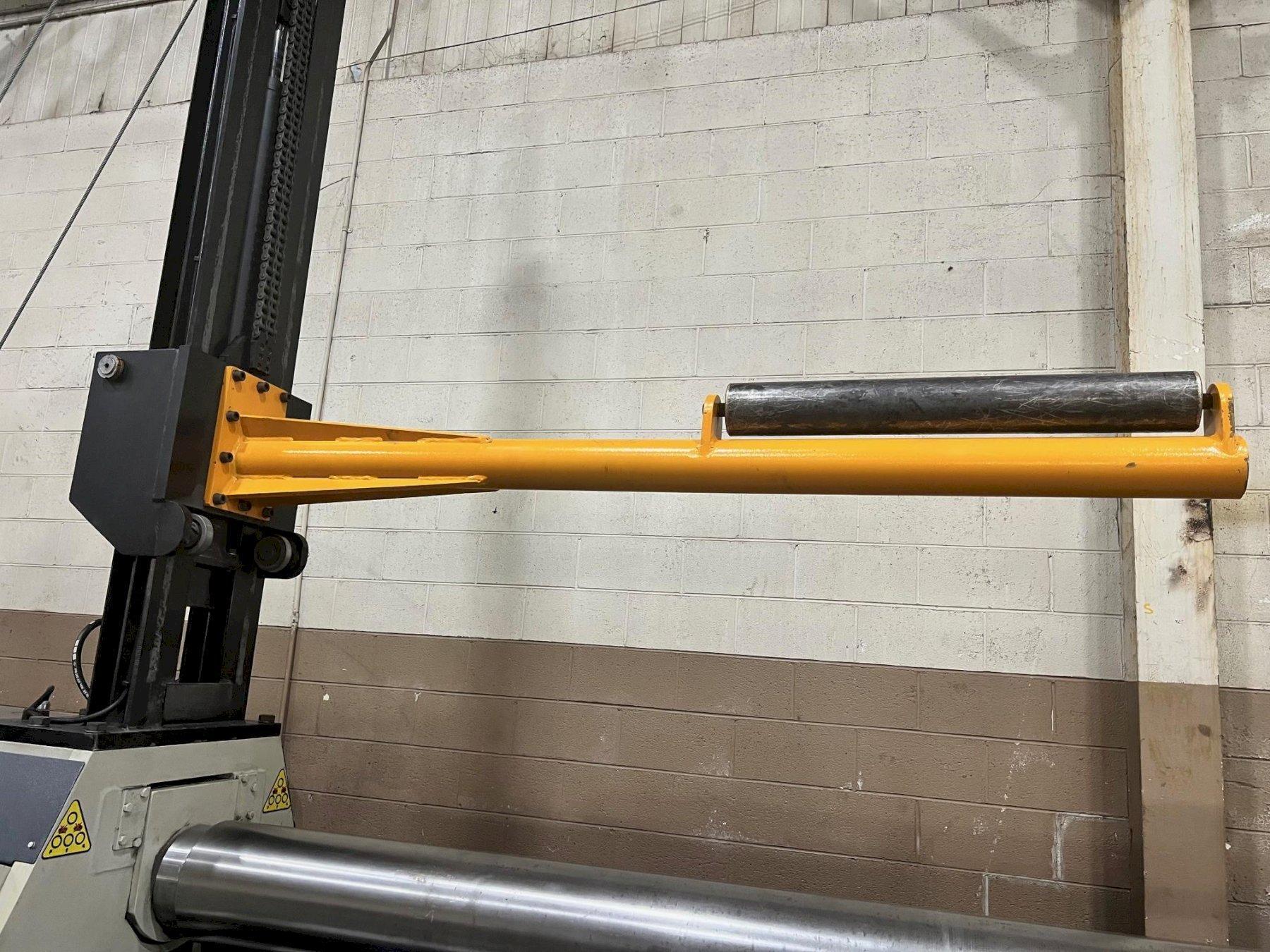

Model: 4R HS 30-260 NC Specifications: Capacity @ 36,000 PSI Rolling 5.0 > top roll OD: 3/8" x 10' Rolling 1.5 > top roll OD: 5/16" x 10' Pre-bending 5.0 > top roll OD: 5/16" x 10' Pre-bending 1.5 > top roll OD: 1/4" x 10' Capacity @ 50,000 PSI Rolling 5.0 > top roll OD: 1/4" x 10' Rolling 1.5 > top roll OD: 7/32" x 10' Pre-bending 5.0 > top roll OD: 7/32" x 10' Pre-bending 1.5 > top roll OD: 3/16" x 10' Upper roll diameter: 10.20" Lateral rolls diameter: 7.87" (2) rotation speeds: 5 / 18 FPM Hydraulic pump: continuous duty Hydraulic motors: radial piston on top roll, high torque Speed reduction: Planetary, continuous oil bath Total power: 10 H.P. Voltage: 440 volt 3 phase Dimensions: 197" x 63" x 63" Weight: 16,450 Lbs. Equipped with: Portable NC color touchscreen control Hydraulic drop end Bottom pinch roll hydraulically positioned Mechanical overhead roll support |
