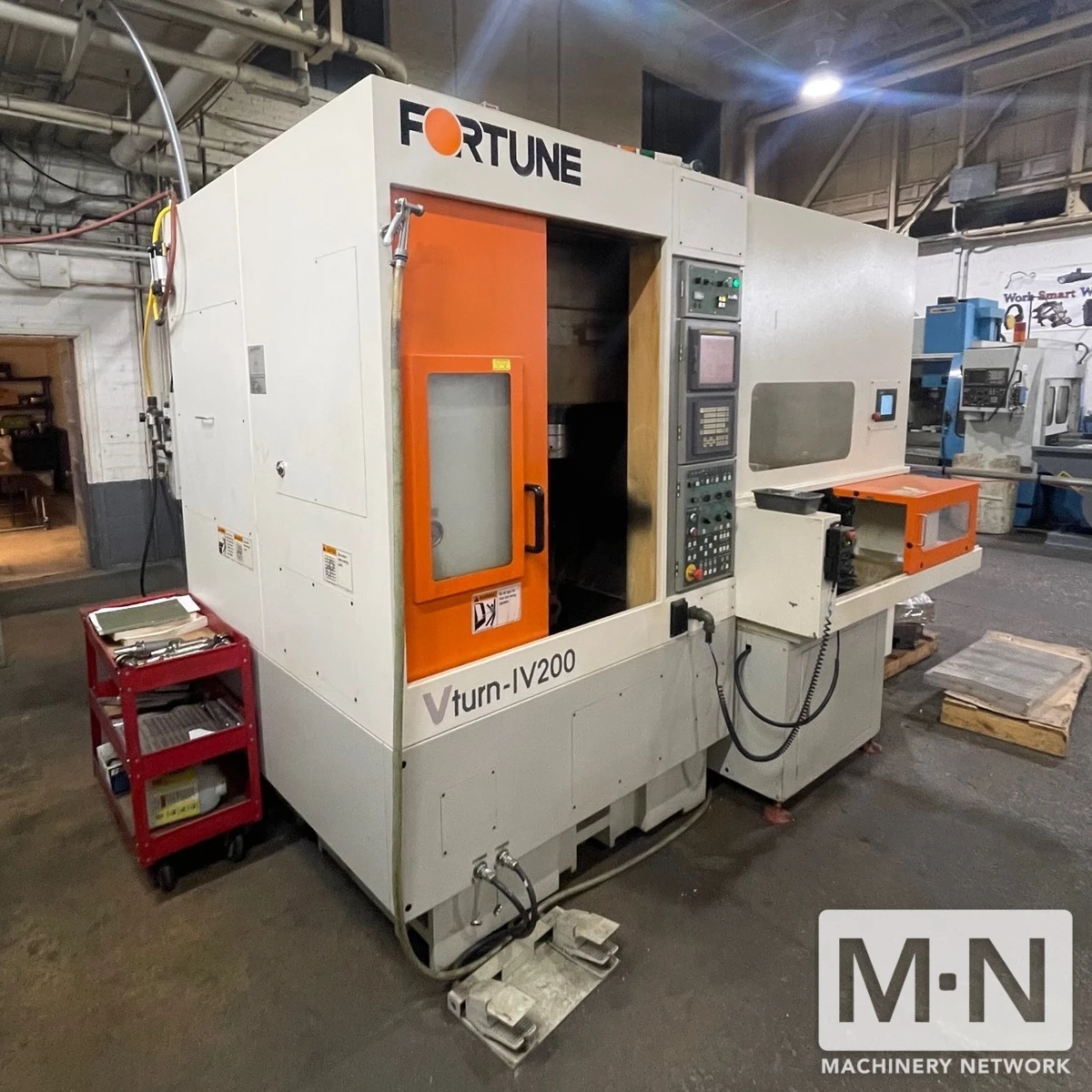

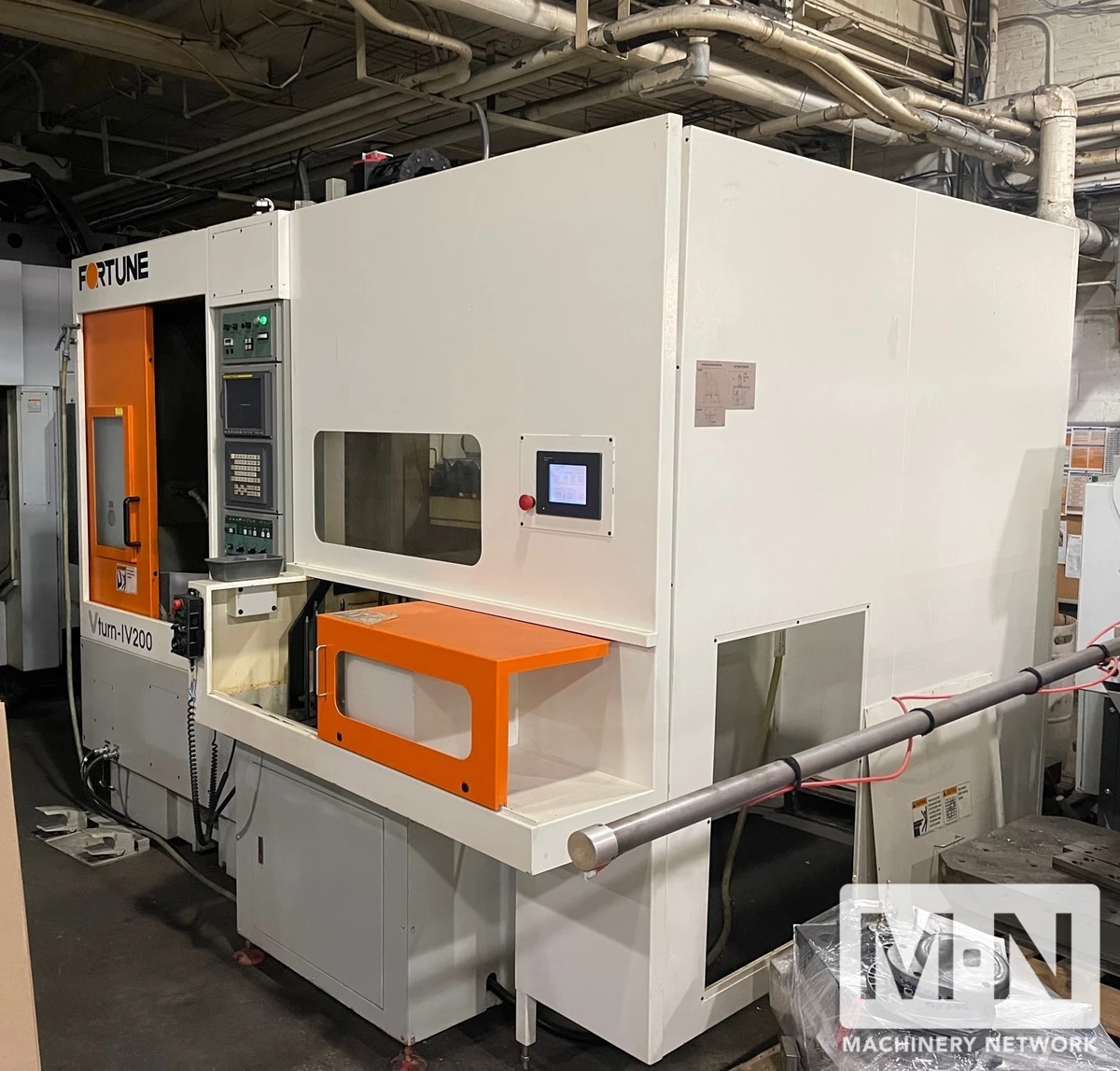

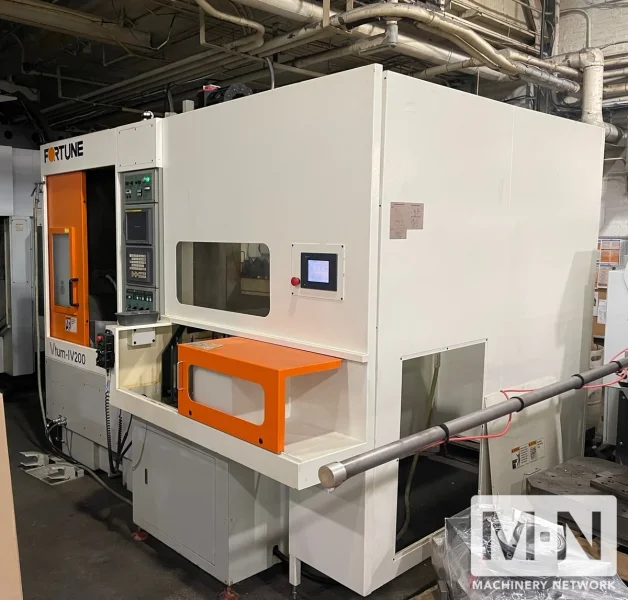

Fortune V-Turn IV200 CNC Lathe, 2004

Name: Fortune V-Turn IV200 CNC Lathe, 2004
Brand: FORTUNE
SKU: 42018
Availability: InStock

Brand

FORTUNE

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

FORTUNE

Model:

V-Turn IV200

Year:

2004

Stock #:

42018

Status:

For Sale

Description

Explore this 2004 Fortune V-Turn IV200 CNC Lathe. Features a 51" X-Axis, 14.95" Z-Axis, 8" chuck, and a robust 15 hp motor. Includes a Fanuc 21i-TB control, chip conveyor, and an 8-pallet feeder. Ready to enhance your production floor.

ImperialMetric

Swing	16"	406.4 mm
Max. Turning Diameter	13.75"	349.25 mm
X-Axis	51"	1,295.4 mm
Z-Axis	14.95"	379.73 mm

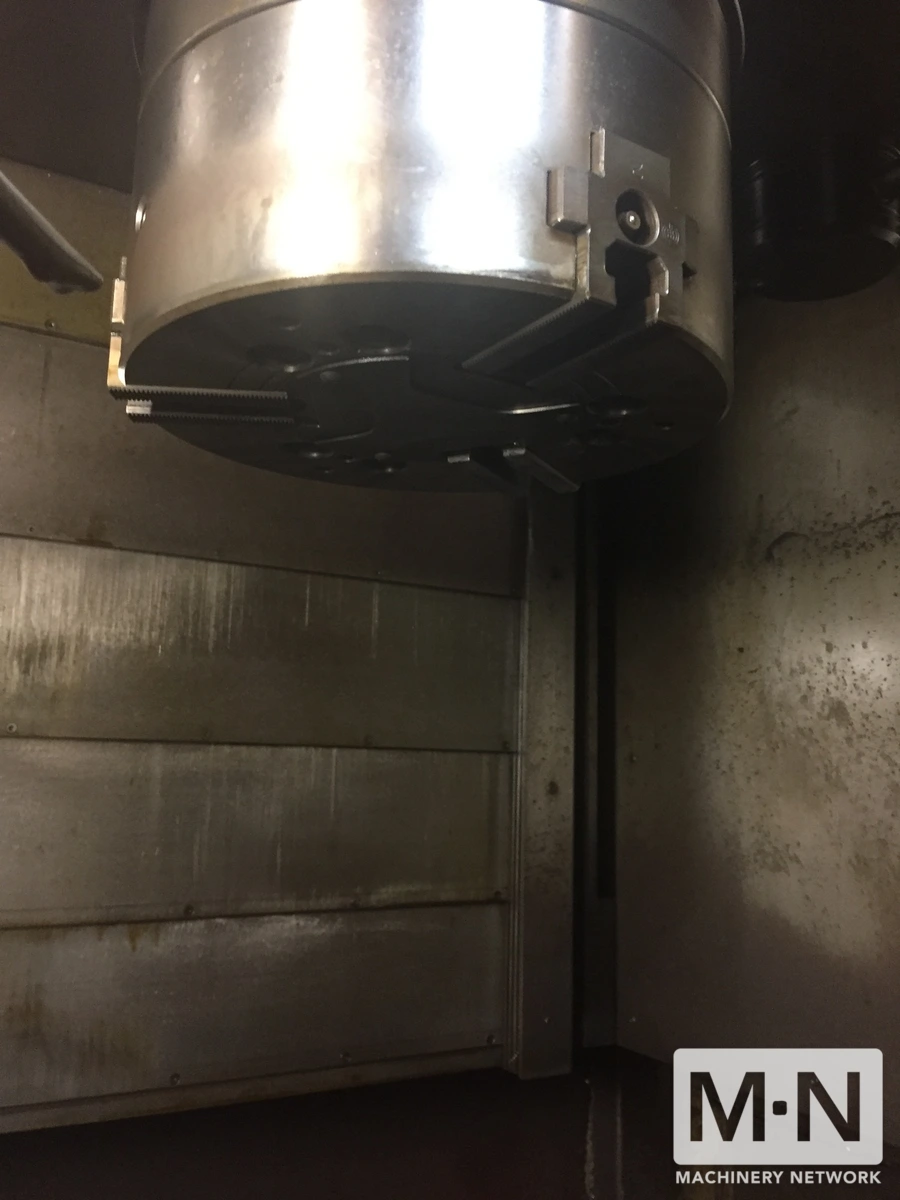

Chuck Size	8"	203.2 mm
Bar Capacity	3.93"	99.822 mm
Spindle Nose	A2-6	A2-6
Power	15 hp	11.2 kW
Max RPM	5,000 RPM	5,000 RPM

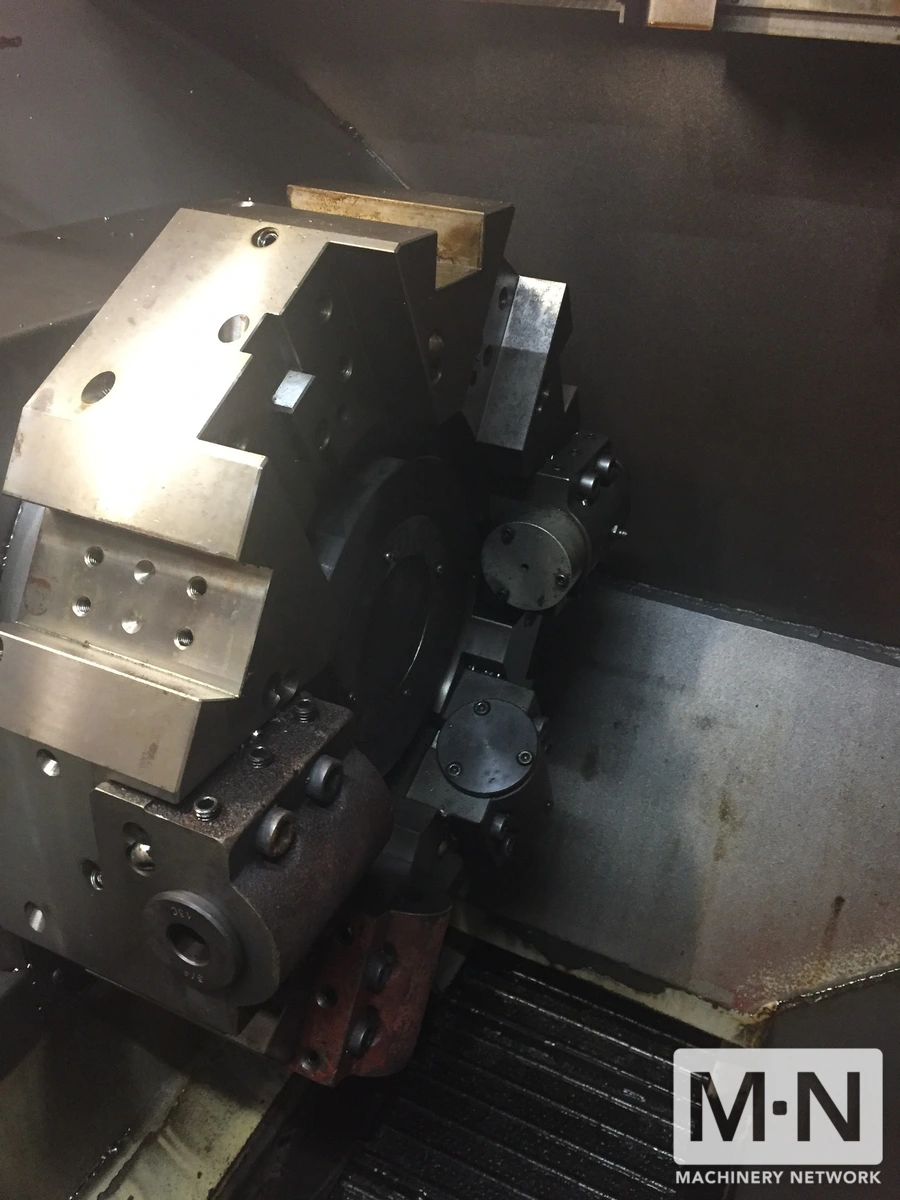

Turret Stations	12	12
Dimensions	112″ x 136″ x 105″	112″ x 136″ x 105″
Weight	15,500 Lbs	15,500 Lbs

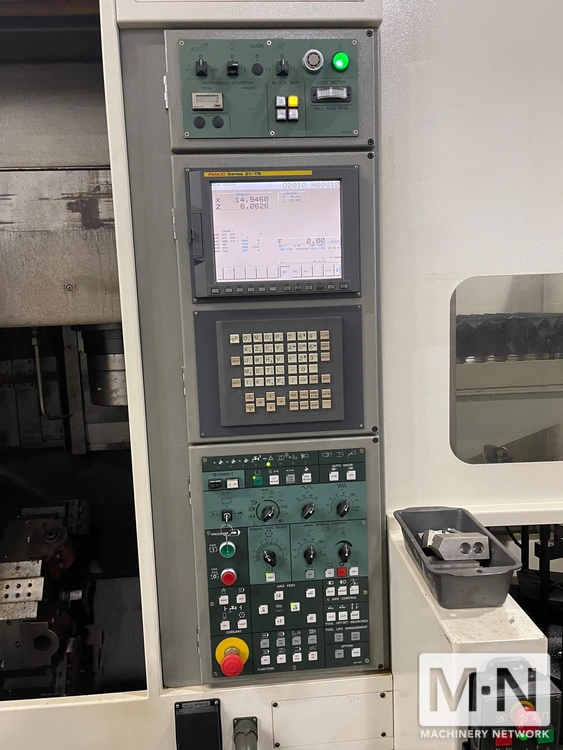

Fanuc 21i-TB CNC Control
Coolant System Chip Conveyor

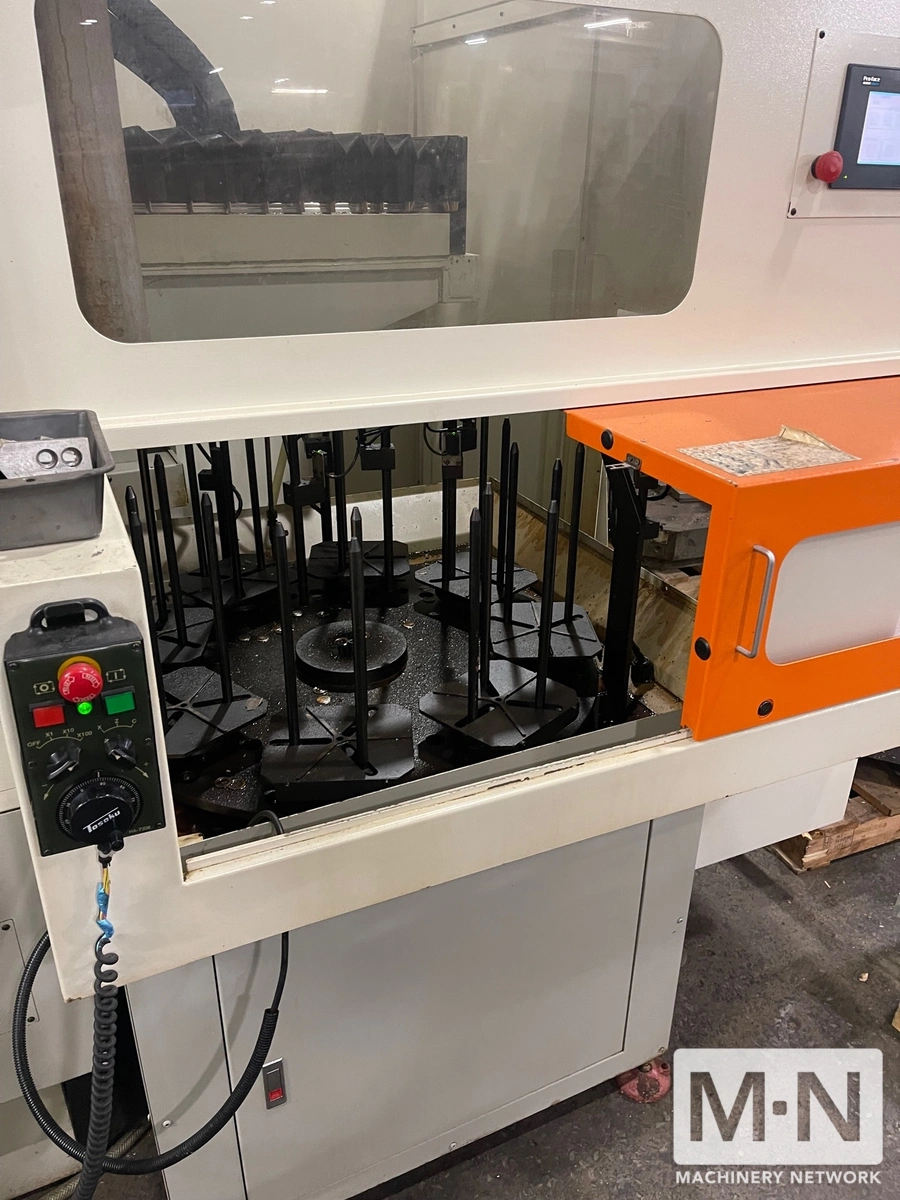

8-Pallet Work Feeder 3 Step
Warning Light Electrical
Cabinet Air Conditioner
Work Feeder Size 8 Pallets (5.90″ x 11.81″)
Coolant Tank 68 Gallons
Rapid Feedrate X/Z 1,181 IPM
Cutting Feedrate X/Z 50 IPM
