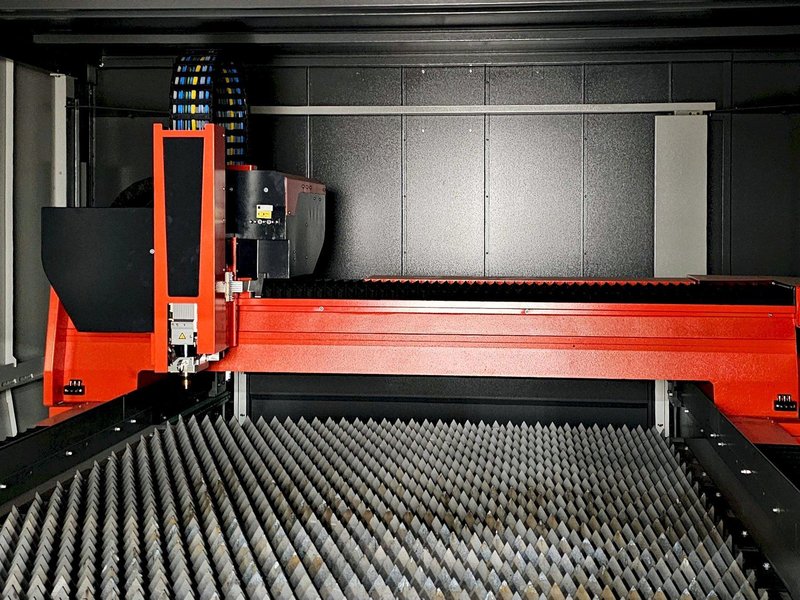

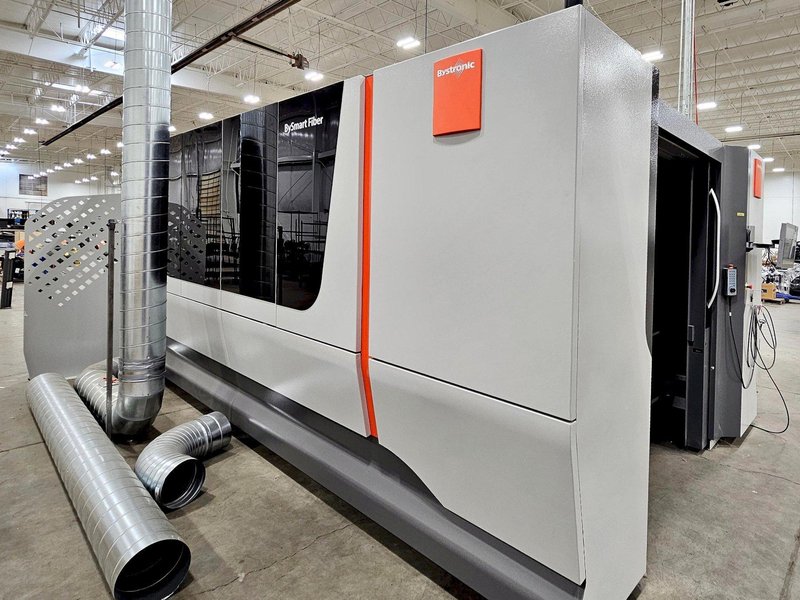

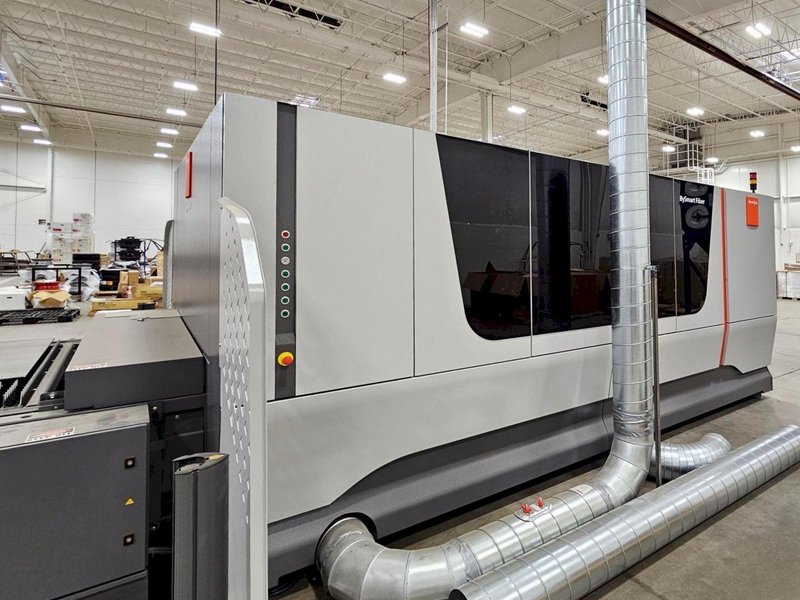

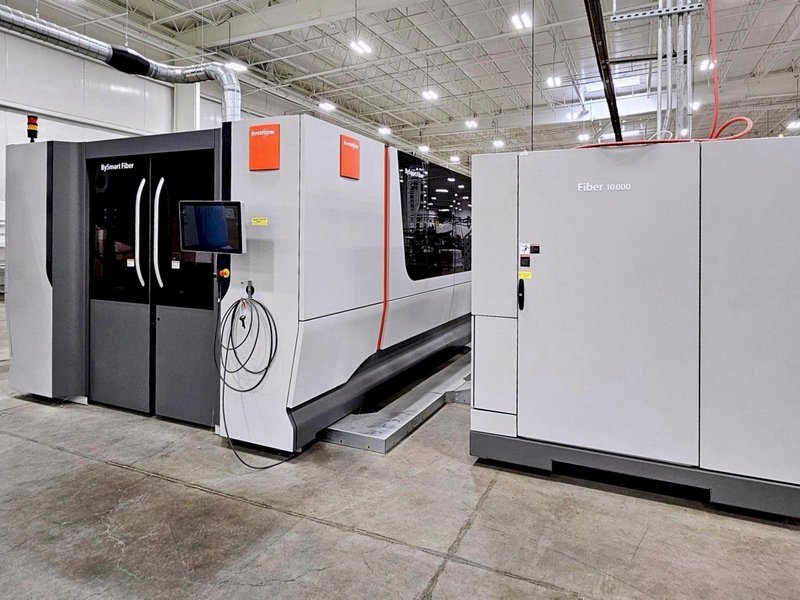

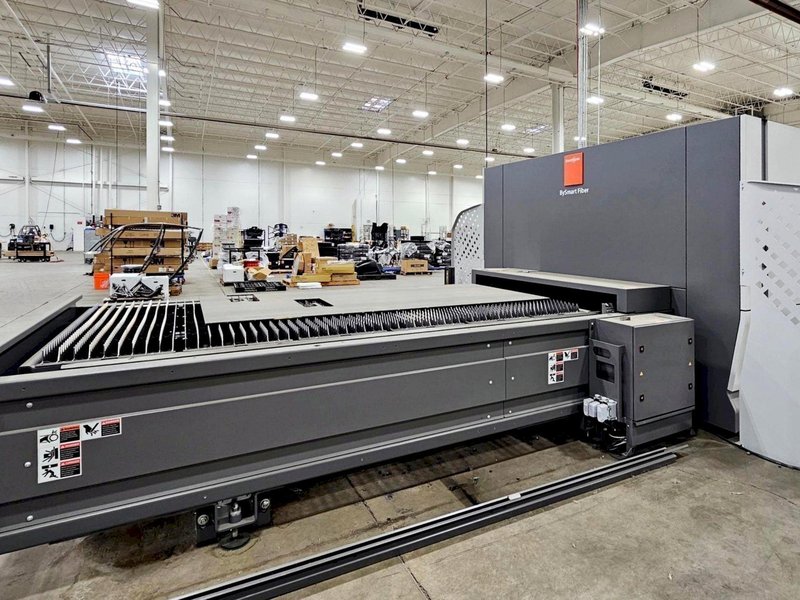

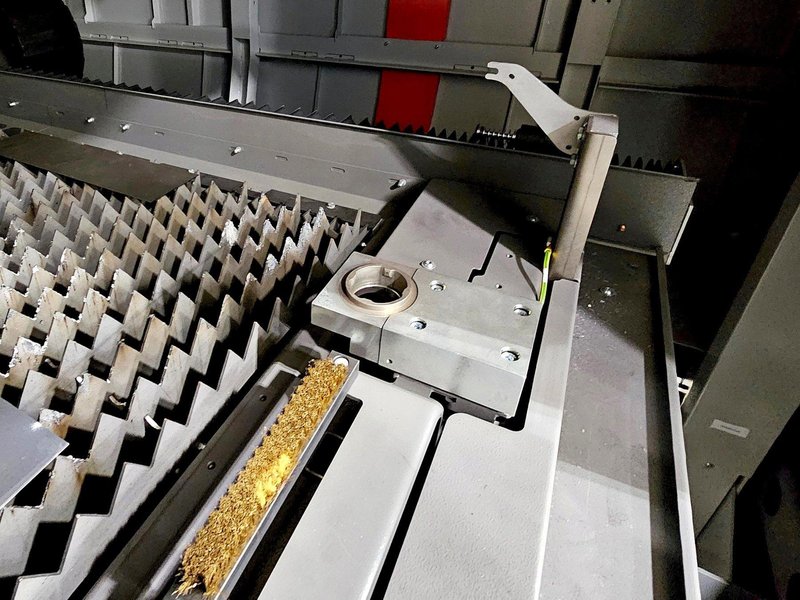

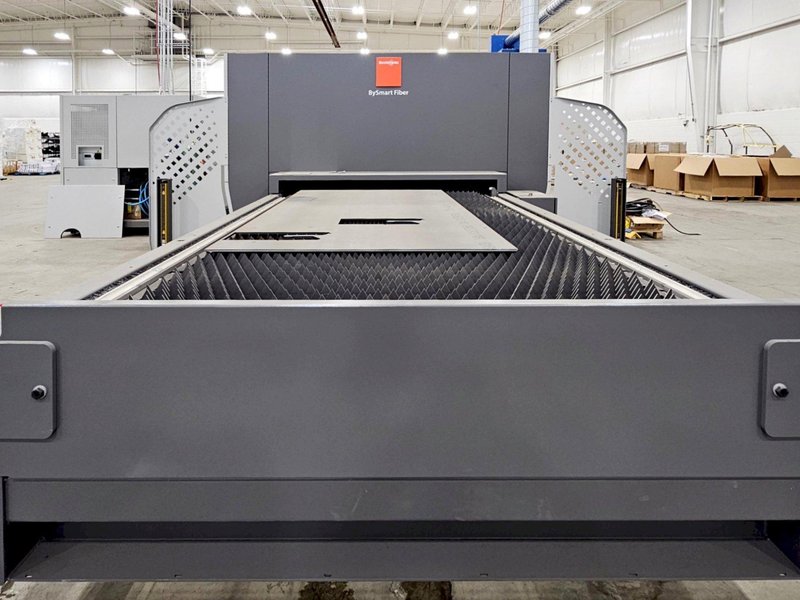

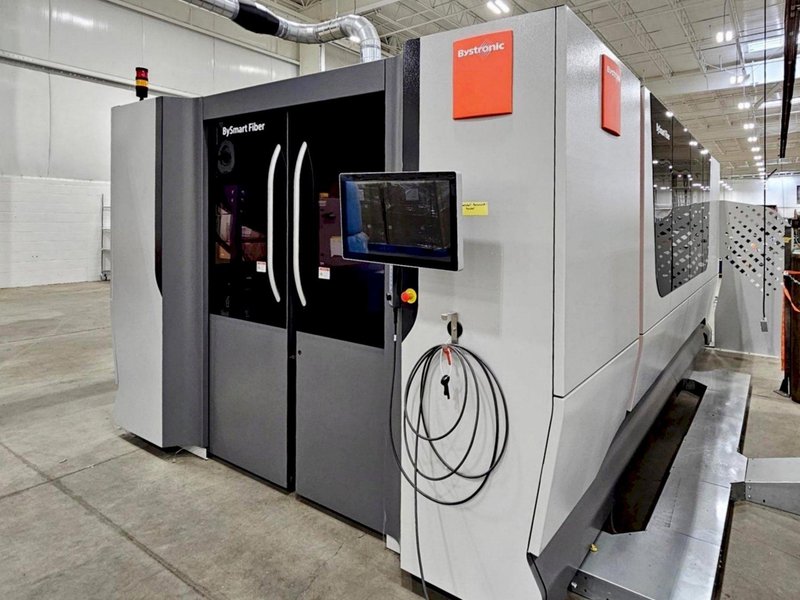

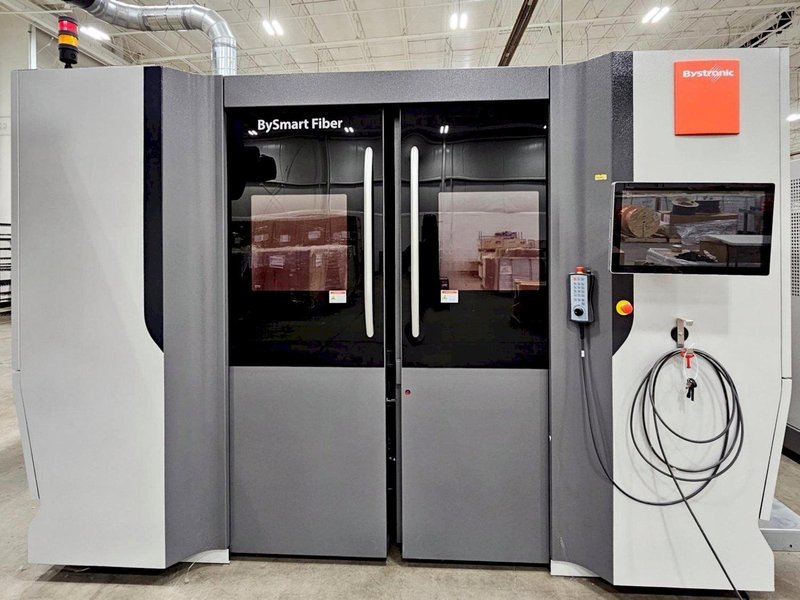

Bystronic BySmart 3015 10 kW Fiber
Brand
Category
Type
Model
BySmart 3015 Fiber
Stock #
100514
Year
2022
Condition
Like New
Location
Not specified
| Control | Byvision Cutting Touchscreen |
| Manual Control Unit | Yes |
| Nominal Sheet Size | 120” × 60” |
| Cutting Area (X) | 122.28” |
| Cutting Area (Y) | 62.28” |
| Cutting Area (Z) | 3.937” |
| Max. Pos. Speed Parallel Axis X/Y | 3,937 IPM |
| Max. Sim. Positioning Speed | 5,511 IPM |
| Edge Detection Accuracy | (±) 0.019” |
| Max. Workpiece Weight | 2,425 Lbs. |
| Max. Weight (Both Shuttle Tables) | 4,078 Lbs. |

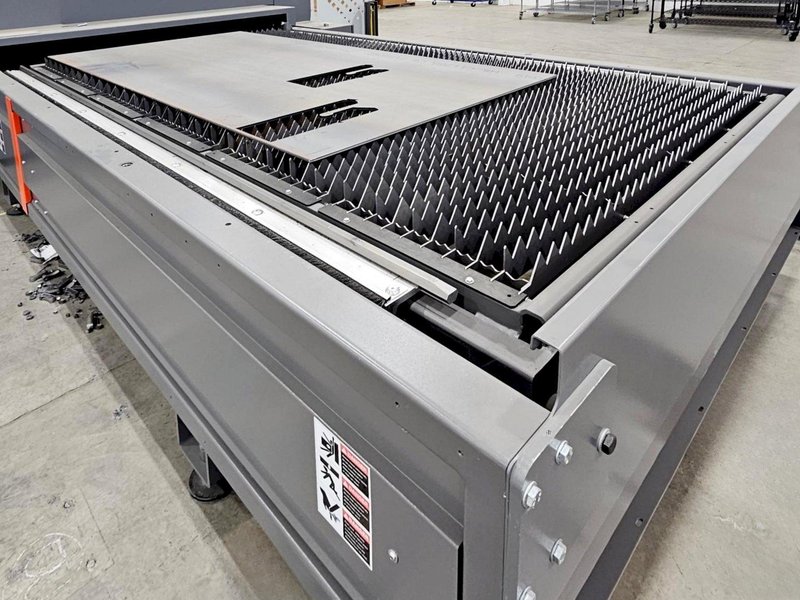

| Table Changeover Time | 27 Sec. |
| Laser Wavelength | Fiber |

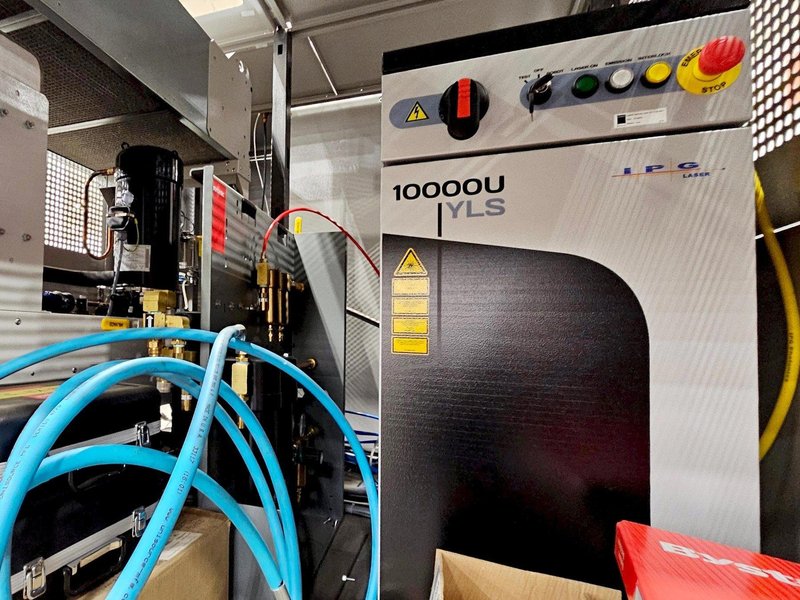

| Power | 10,000 Watts (10 kW) |
| Range Of Adjustment | 1,000 W to 10,000 W |
| Max. Cutting Sheet Thickness Steel | 1.00" |
| Max. Cutting Sheet Thickness Steel W/ BeamShaper | 1.18" |
| Max. Cutting Sheet Thickness Stainless | 1.18” |
| Max. Cutting Sheet Thickness Aluminum | 1.18” |
| Max. Sheet Thickness Brass | 0.59” |
| Max. Sheet Thickness Copper | 0.47” |
| Total Electric Consumption Of System | 17 Kw |
| Laser Dimensions | L 413” X W 271” X H 113” |
| Machine Weight (Machine Only) | 26,014 Lbs. |
|

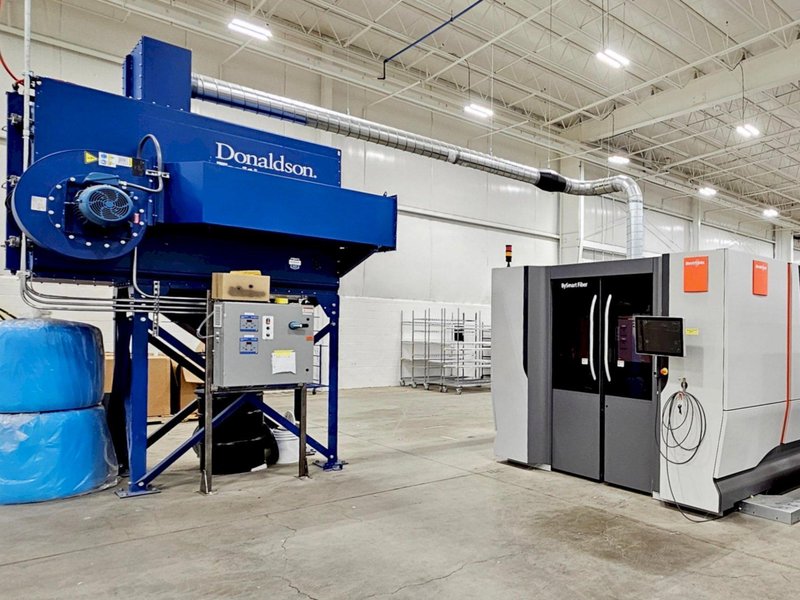

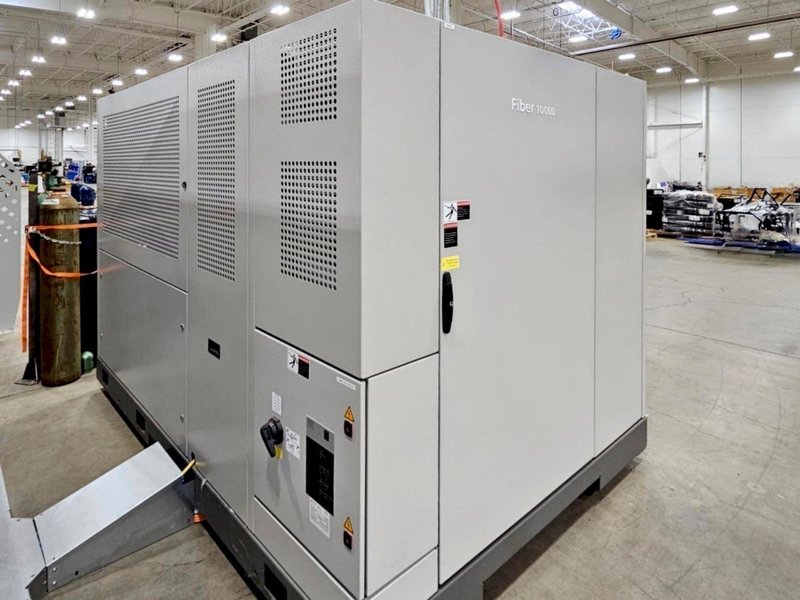

Equipped With: ByVision Touch Screen CNC Control High-Speed Cutting Chiller Unit Donaldson Dust Collection Unit |
|
