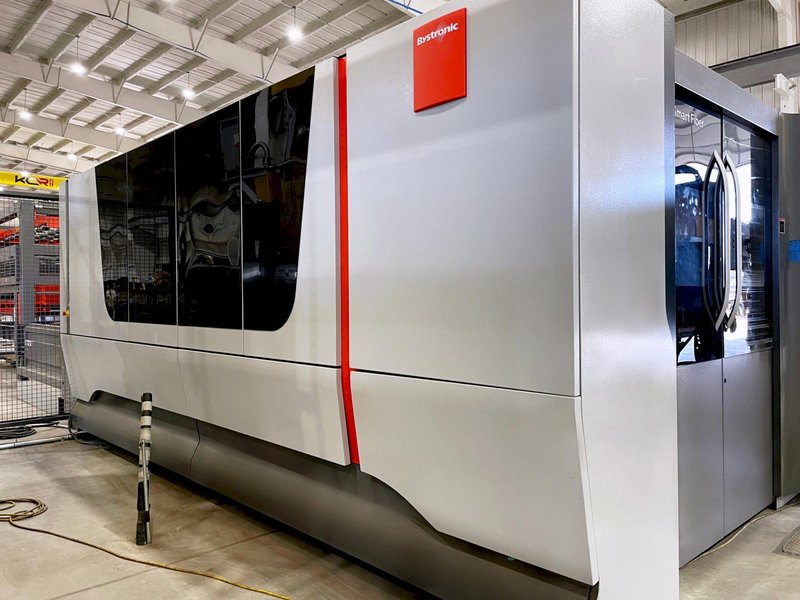

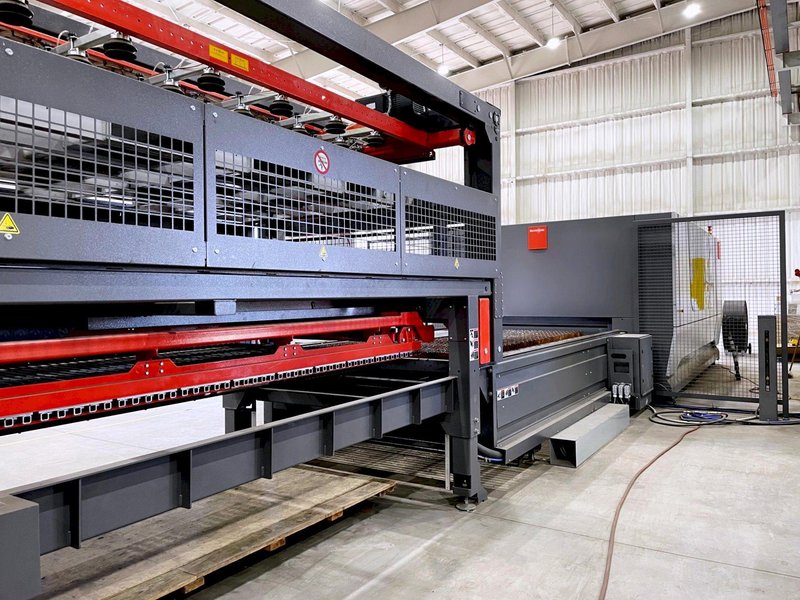

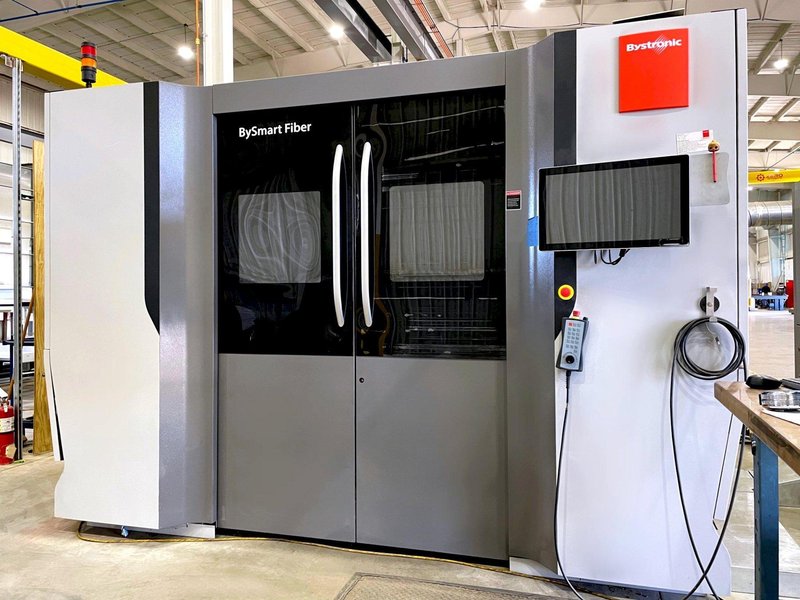

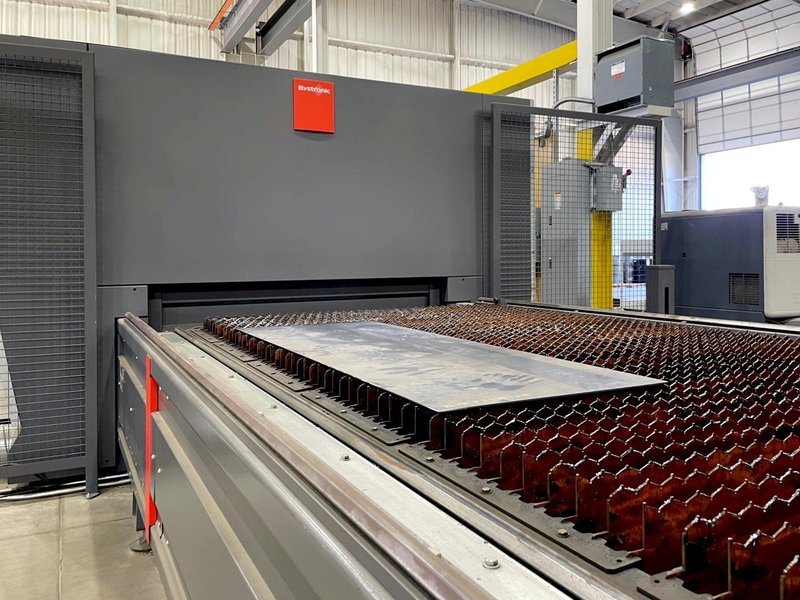

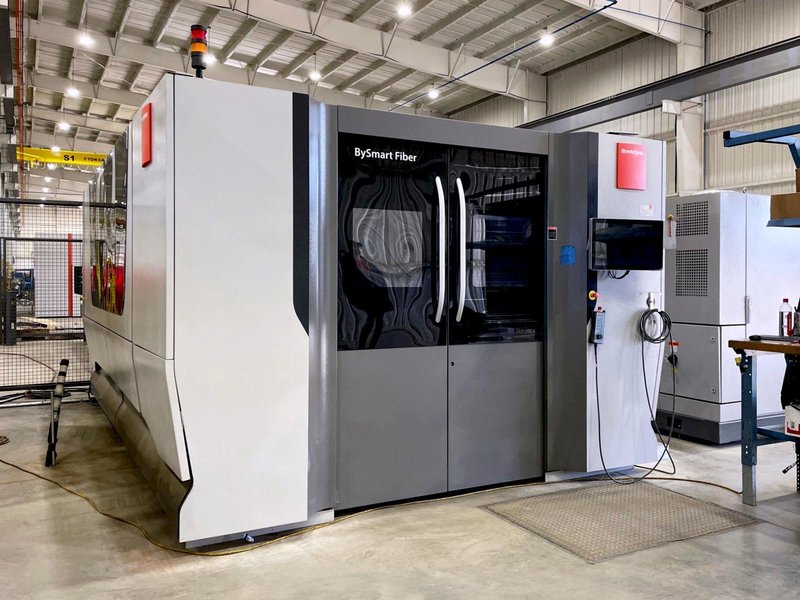

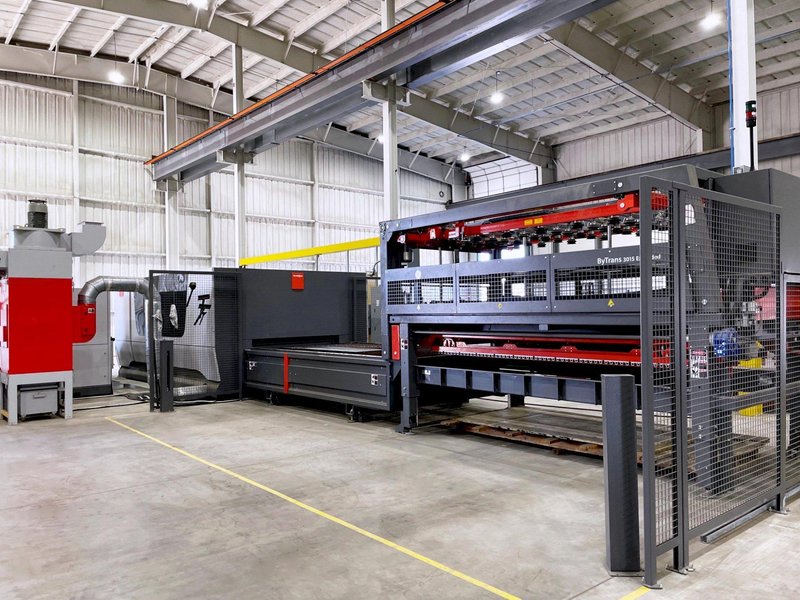

Bystronic BySmart 3015 Fiber (2019) w/ ByTrans 3015 EX
Brand
Category
Type
Model
BySmart 3015 Fiber
Stock #
100345
Year
2019
Condition
Not specified
Location
Not specified

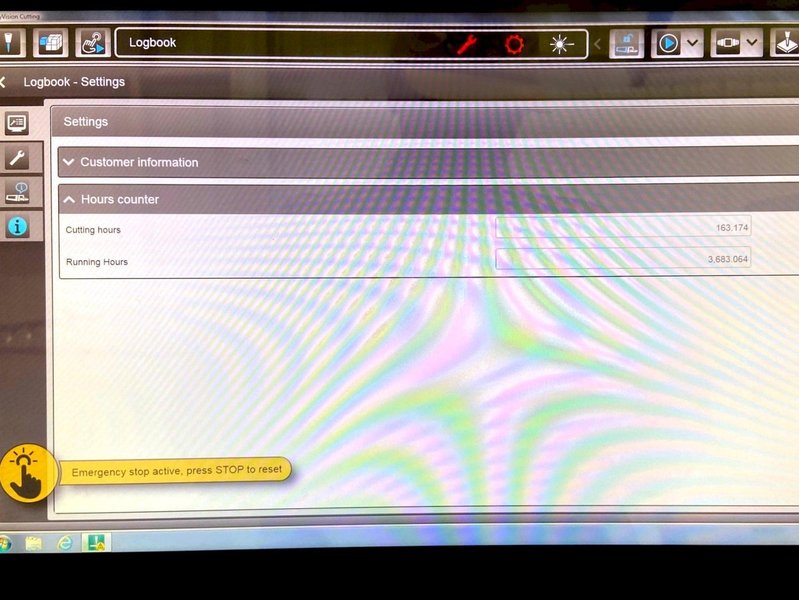

| Control | Byvision Cutting Touchscreen |
| Manual Control Unit | Yes |
| Nominal Sheet Size | 120” × 60” |
| Cutting Area (X) | 122.28” |
| Cutting Area (Y) | 62.28” |
| Cutting Area (Z) | 3.937” |
| Max. Pos. Speed Parallel Axis X/Y | 3,937 IPM |
| Max. Sim. Positioning Speed | 5,511 IPM |
| Edge Detection Accuracy | (±) 0.019” |
| Max. Workpiece Weight | 2,425 Lbs. |
| Max. Weight (Both Shuttle Tables) | 4,078 Lbs. |
| Table Changeover Time | 27 Sec. |
| Machine Weight (Machine Only) | 26,014 Lbs. |
| Laser Dimensions | L 413” X W 271” X H 113” |
| Laser Wavelength | Fiber |
| Power | 6,000 Watts (6kw) |
| Range of Adjustment | 600 W - 6,000 W |
| Max. Cutting Sheet Thickness Steel | 0.984” |
| Max. Cutting Sheet Thickness Stainless | 1.18” |
| Max. Cutting Sheet Thickness Aluminum | 1.18” |
| Max. Sheet Thickness Brass | 0.59” |
| Max. Sheet Thickness Copper | 0.47” |
| Total Electric Consumption of System | 17 Kw |
|

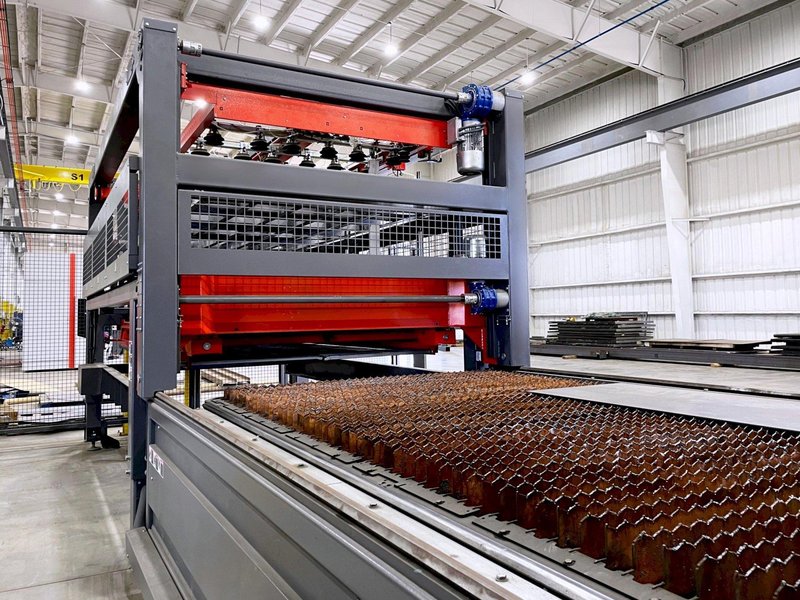

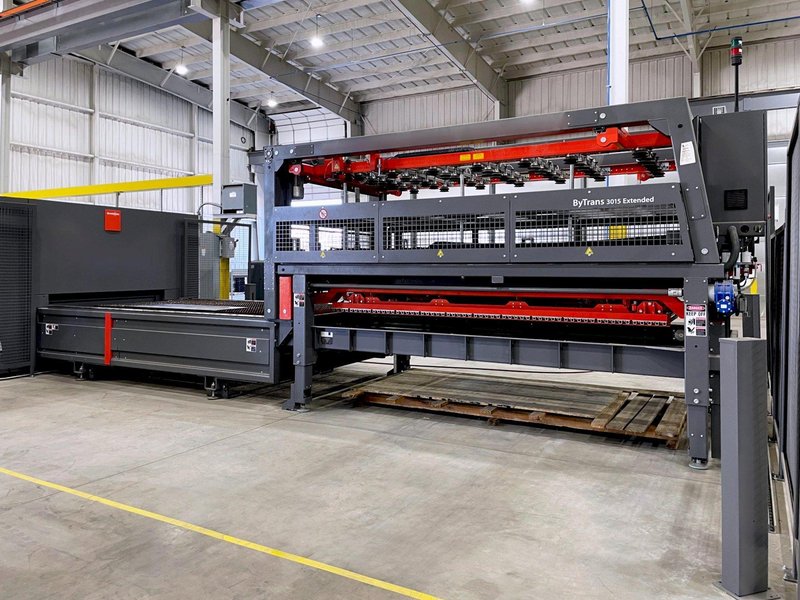

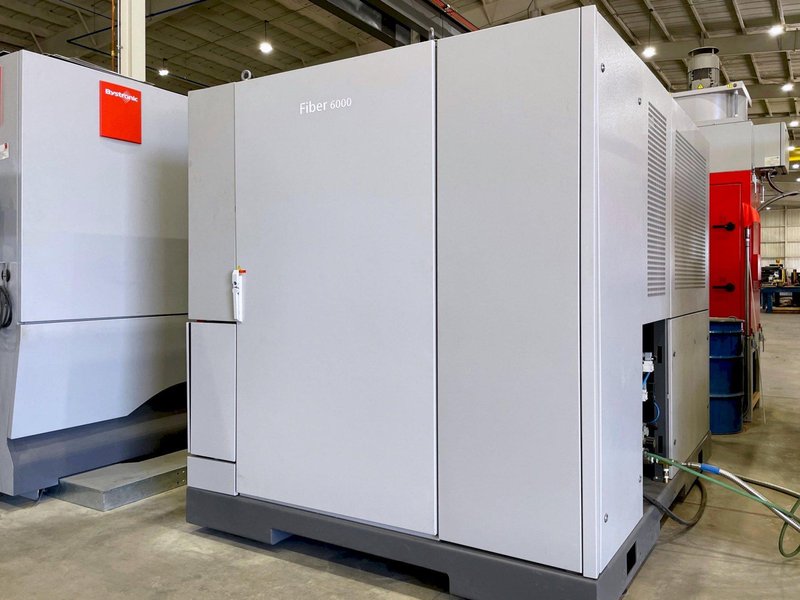

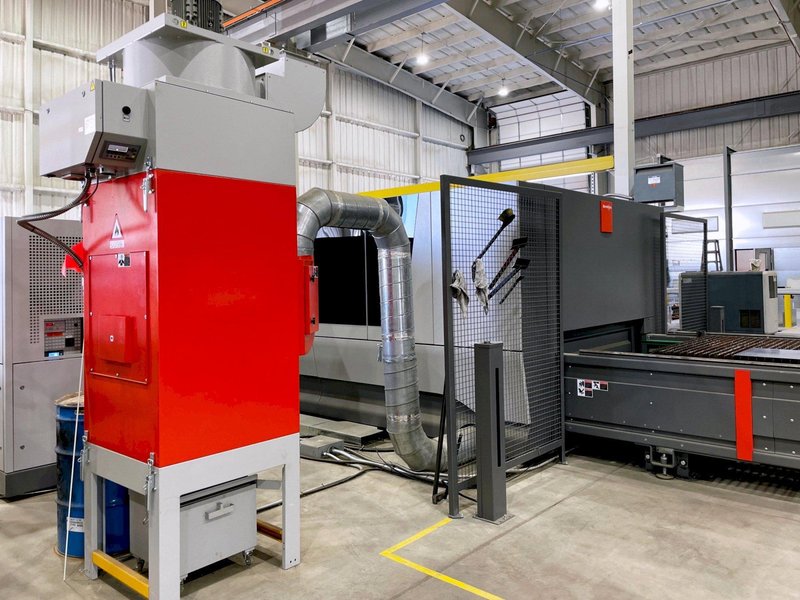

Equipped With: ByTrans Extended Automation (2 Cassettes) Bystronic Fiber 6000 Power Source Touchscreen CNC Control High Speed Cutting Chiller Unit Dust Collection Unit |
|
