12' X 160 TON BETENBENDER MODEL#12'-160 HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
12'-160
Stock #
116406
Year
Not specified
Condition
Used
Location
Not specified
|

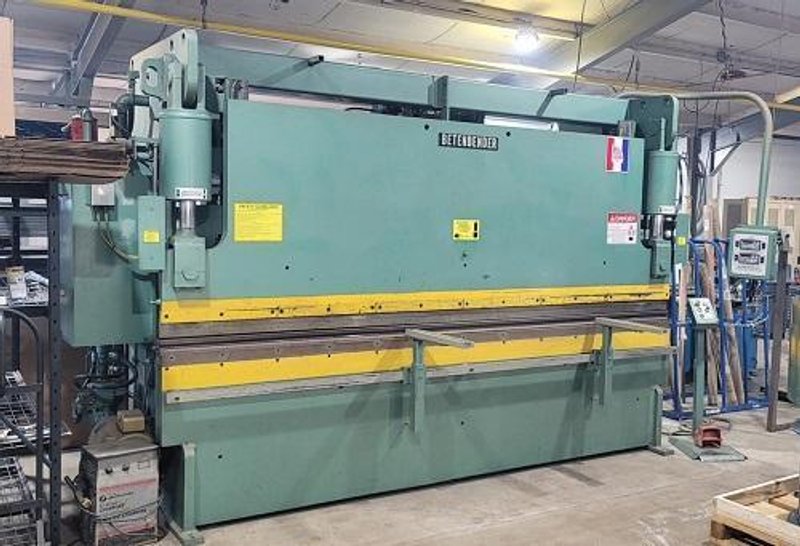

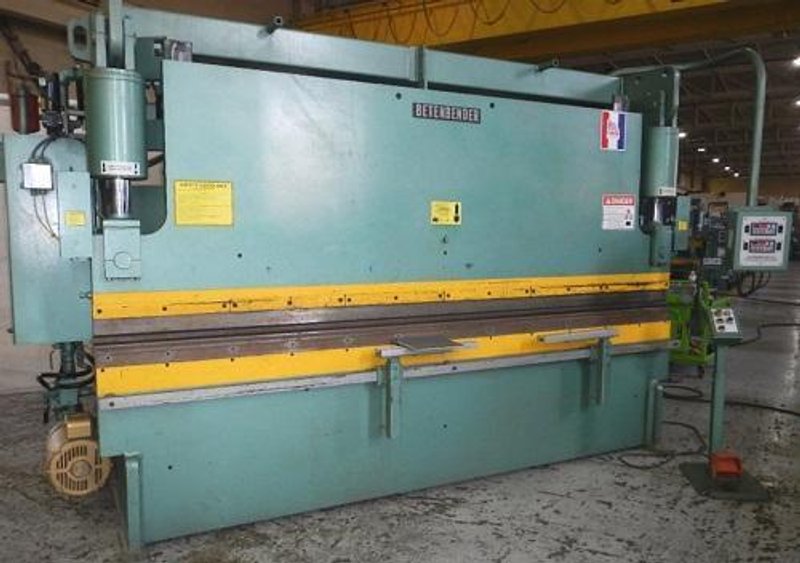

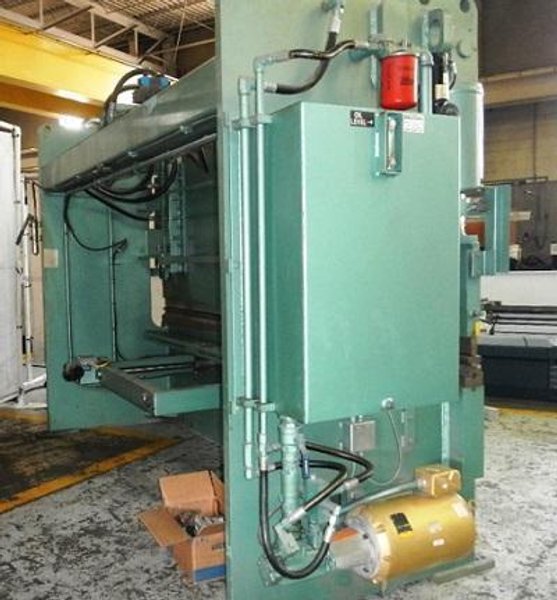

Betenbender 160 Ton x 12' Hydraulic Press Brake

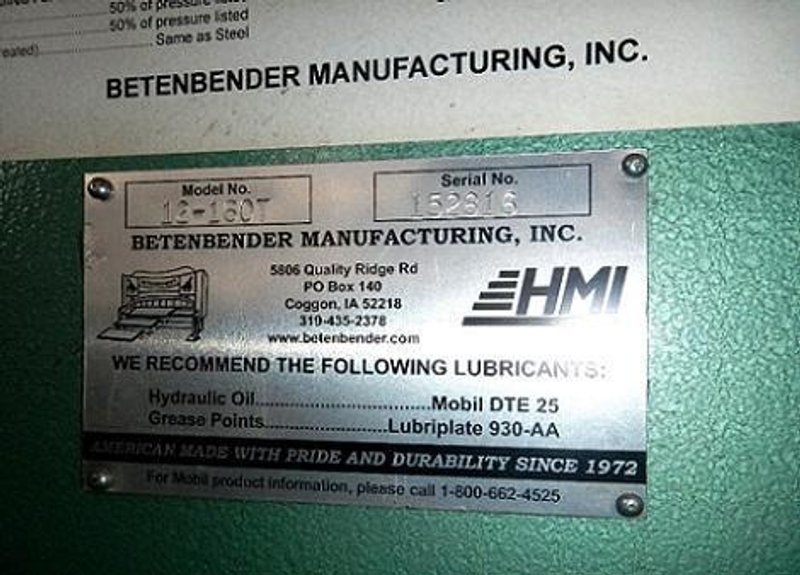

MODEL 12'-160 S/N 152816 NEW 2016
Overall Width ................... 56-1/2"
Throat Depth .................... 8"
Open Height ..................... 12"
Closed Height ................... 6"
Height of Bed ................... 37"
Distance Between Housing ........ 126-1/2"
Width of Upper Ram .............. 3"
Width of Upper End Plates ....... 50"
Press (IPM) ..................... 31"
Rapid Approach (IPM) ............ 68"
Return to Open (IPM) ............ 86"
Width of Bed .................... 5"
Width of Upper Machined Ram ..... 2-3/4"

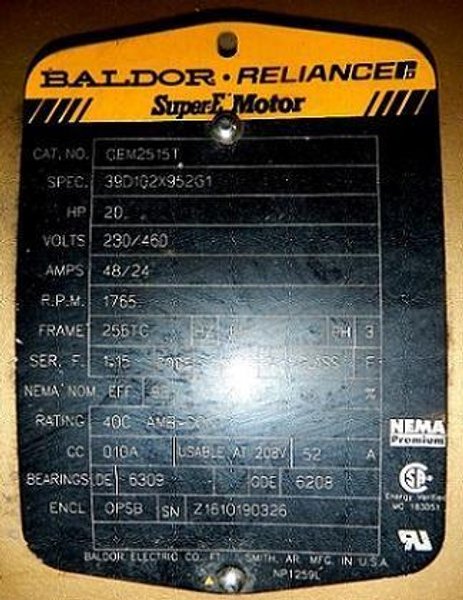

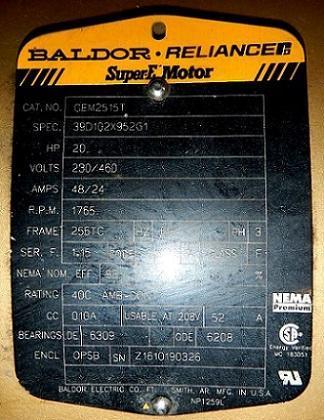

HP .............................. 20
Overall Width ................... 56-1/2"
Overall Length .................. 159"
Overall Height .................. 103"
Weight .......................... 24,000 lbs.(est)
STANDARD FEATURES:

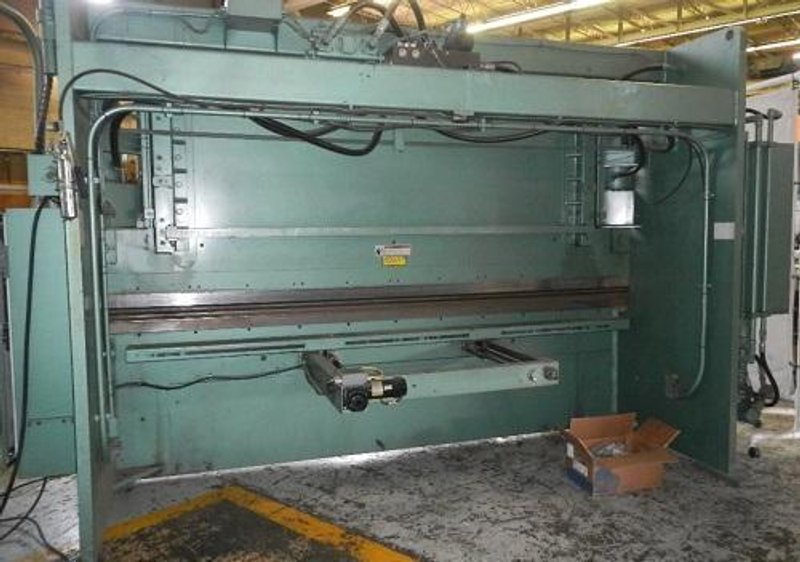

2-Axis Back Gauge Control
2-Speed Electric Shift - Standard
3-Speed Ram (95T-350T models)
NEMA Electrics
Three Position Foot Pedal
Depth Stop with Digital Readout
Bottom Time Delay

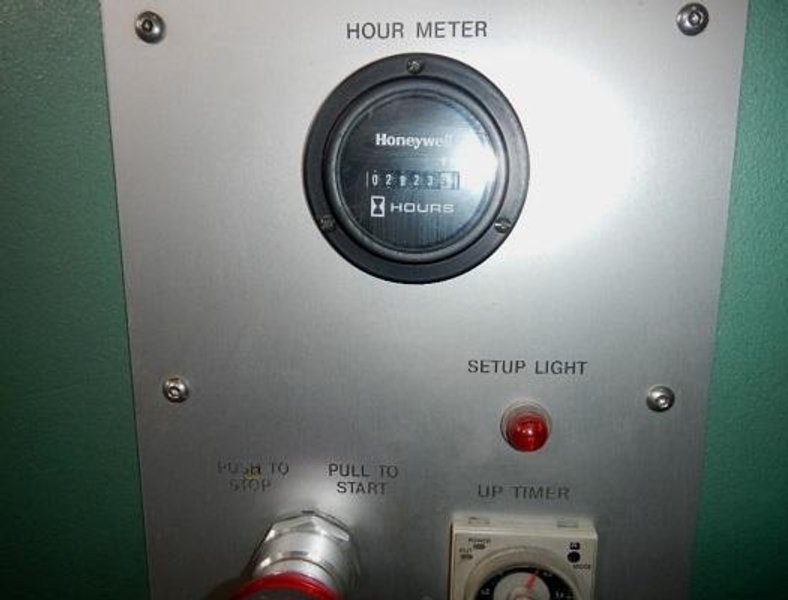

Hour Meter
All Hydraulic Fluids Included
American Made Motor and Valves
Disconnect Switch
American Made Hoses and Fittings
All Steel Construction
Hydraulic Pressure: 2750 PSI
Cylinders are steel, double acting piston type with hardened,
ground and chromed rods
Hardened Pins with Spherical bearings for alignment
Front & Back of Bed Machined Smooth for Mounting of Gauges
Multi-switch control panel (with emergency switch, run-job, and
up-down buttons) and 3-position fully guarded switch
Hand wheel control to .001 for depth of bend adjustment
Ram Tilt Micrometer
Pressure Gauge

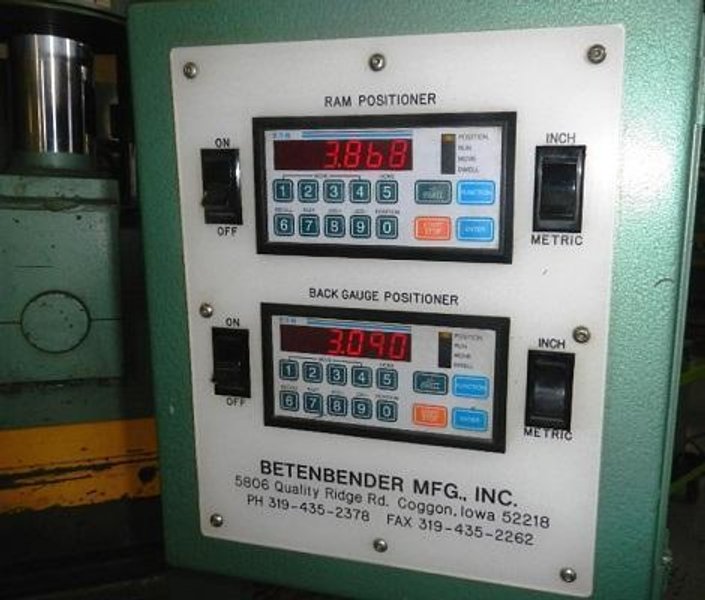

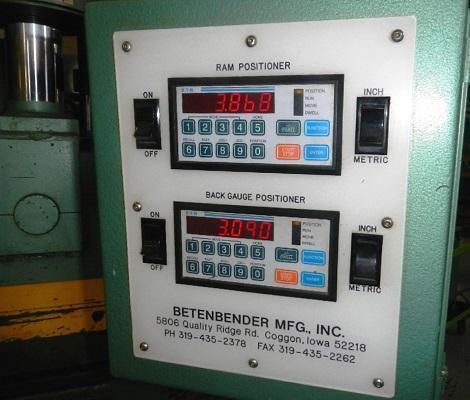

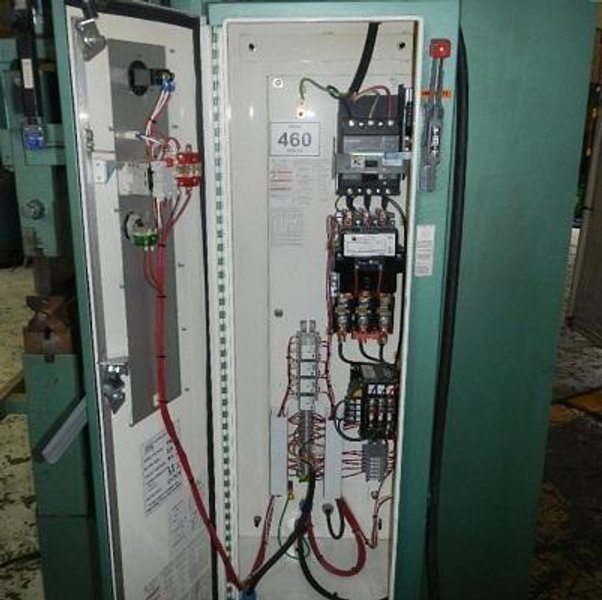

Control Panel
Ram Machined with 1/2" x 3/4" slot.
|
