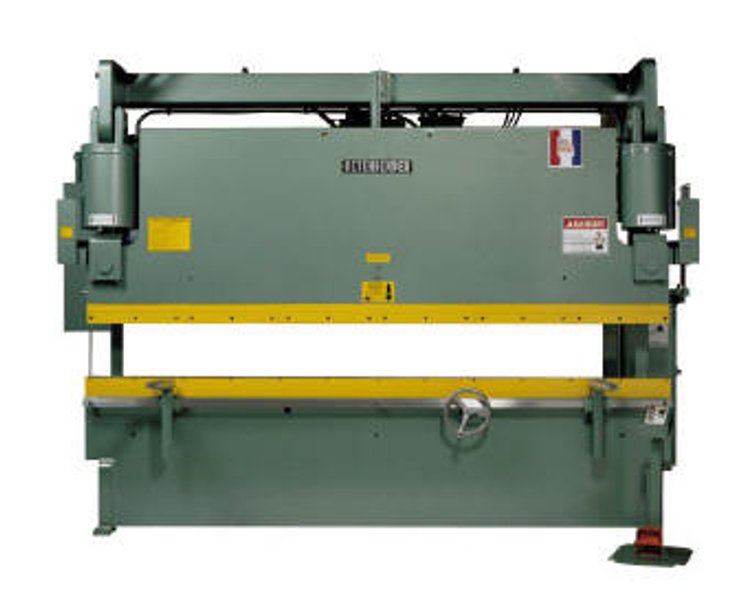

MODEL: 10'-160

GENERAL SPECIFICATIONS

All Steel Construction
Capacity: 160 Tons
Length Of Bed and Ram: 10'
Distance Between Housings: 102-1/2"
Stroke: 8"
Open Height: 14"
Closed Height: 6"
Throat Depth: 8"
Ram Speeds
Press: 31 IPM
Rapid Approach: 68 IPM
Return To Open: 86 IPM
Height Of Bed: 37"
Hydraulic Pressure: 2750 PSI

STANDARD FEATURES

20 HP Motor
Clamp Type Manual Back Gauge
Hand Wheel Control For Depth Of Adjustment
Ram Tilt Micrometer
Three Speed Ram
Three Position Foot Switch
Depth Stop With Digital Readout
Bottom Time Delay
Hour Meter
All Hydraulic Fluids Included
Pressure Gauge
Disconnect Switch
Cylinders Are Steel Double Acting Piston Type With Hardened, Ground And Chrome
Rods

Approximate Weight: 22,000 Lbs.

Many Options Available, Please Consult With Your Sales Rep.

F.O.B. Coggon, Iowa

SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
