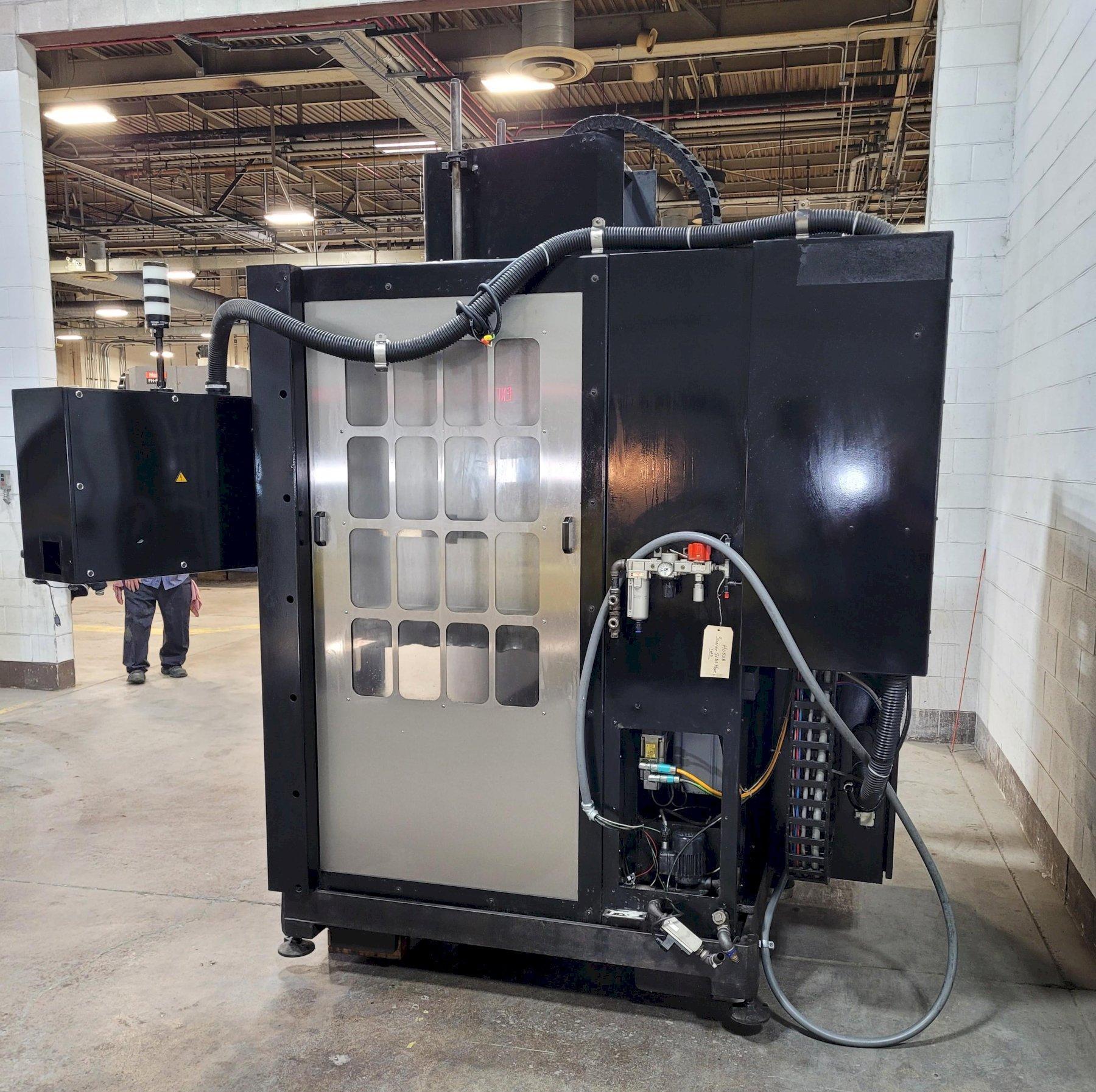

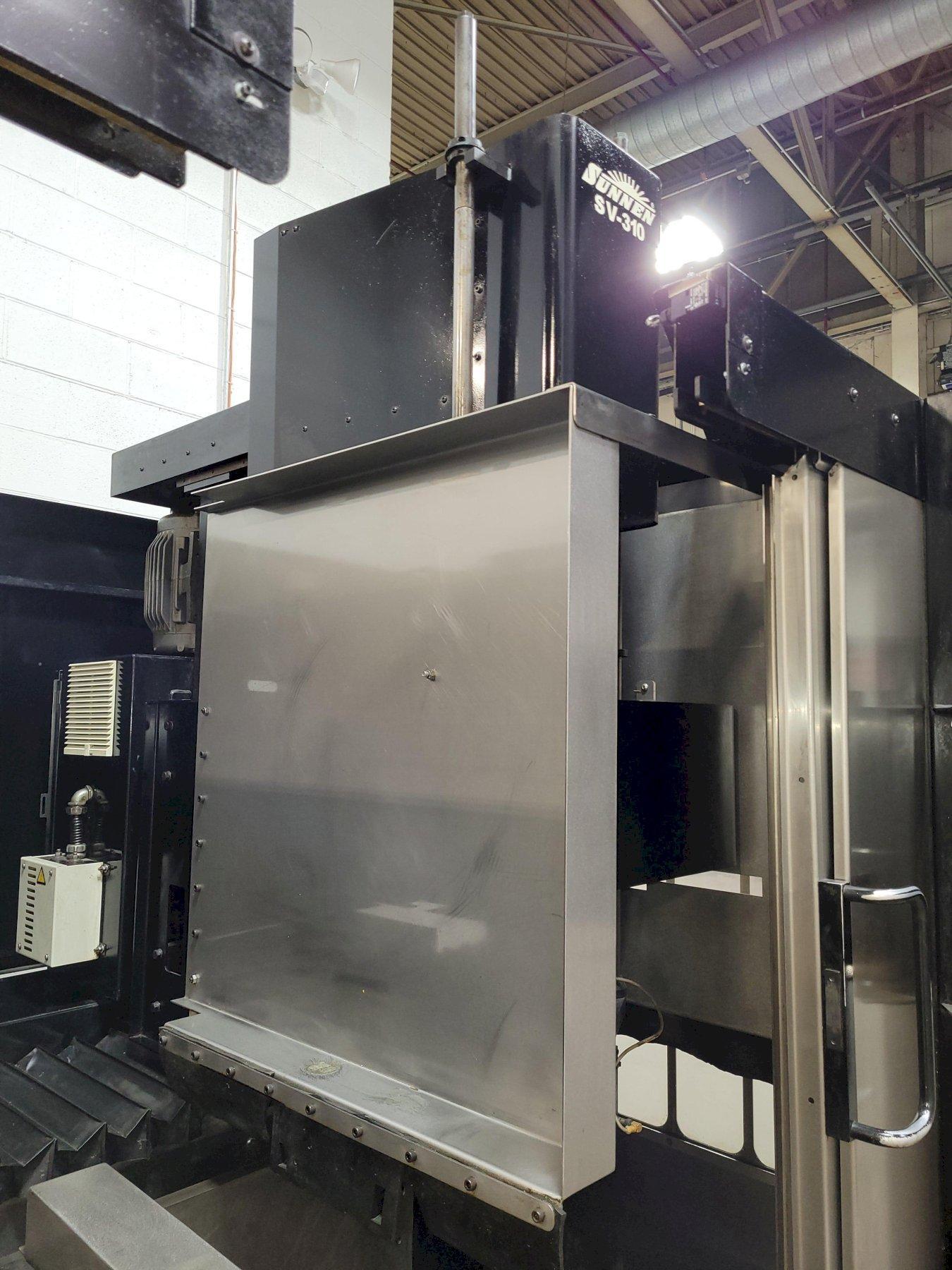

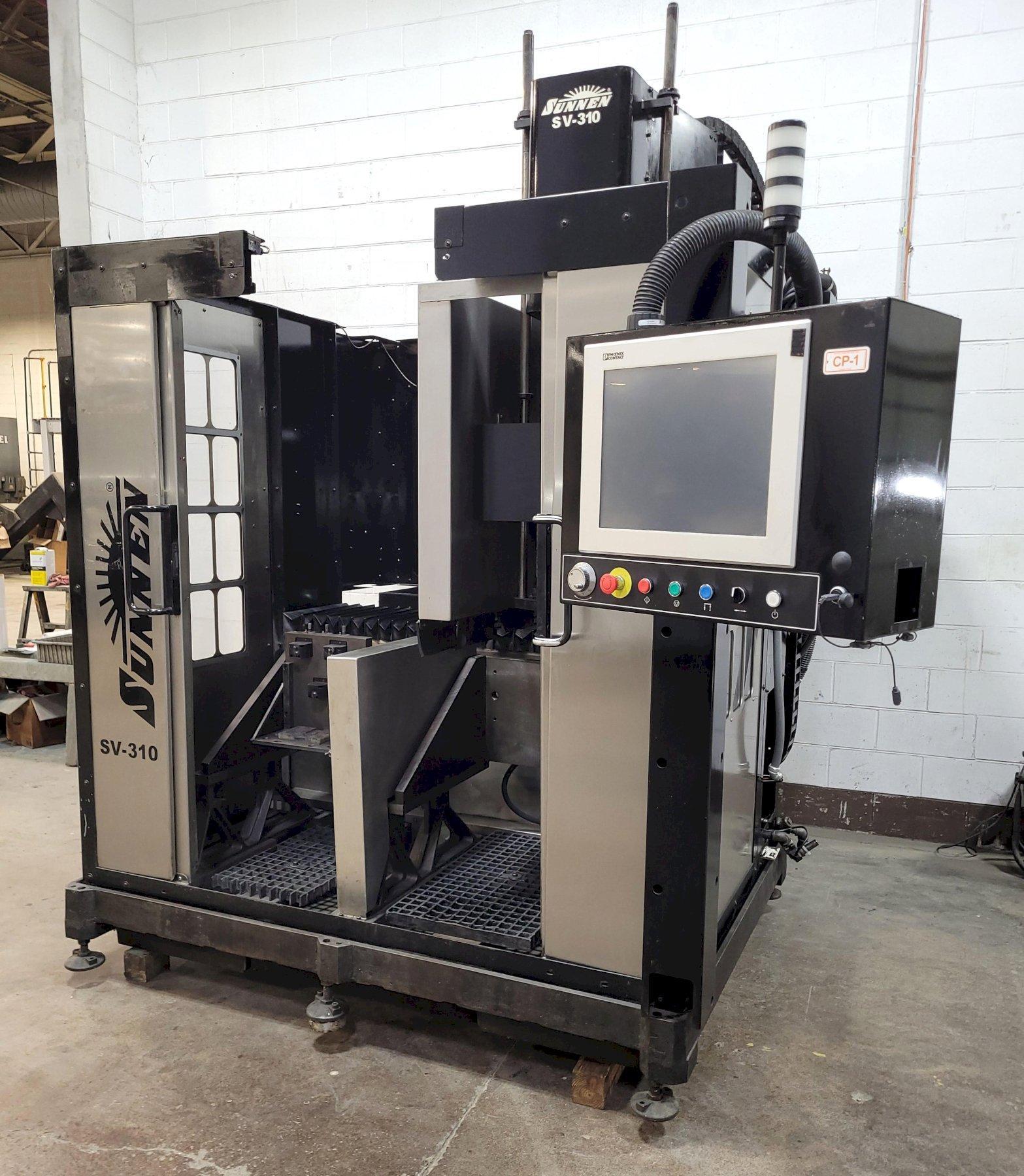

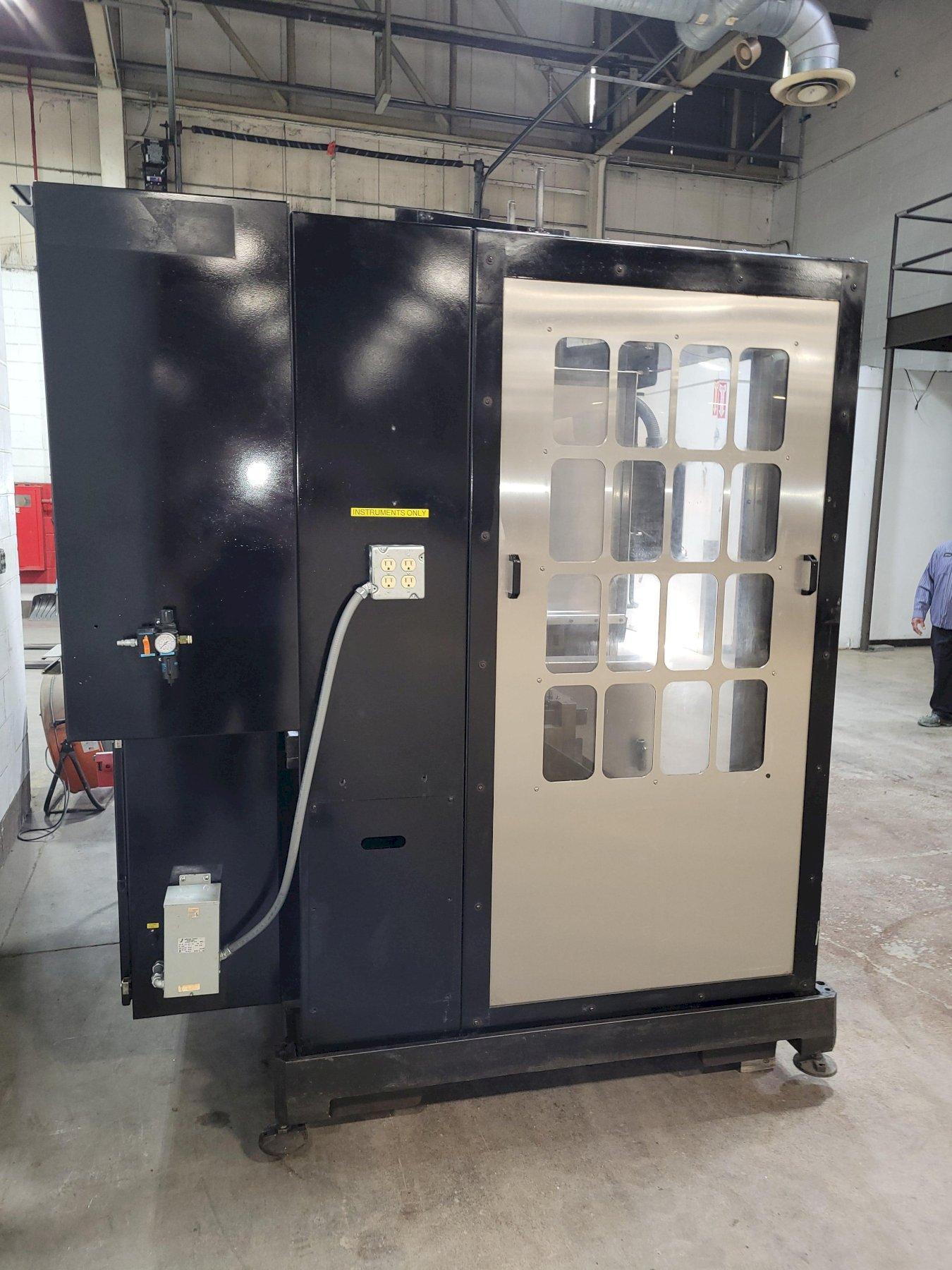

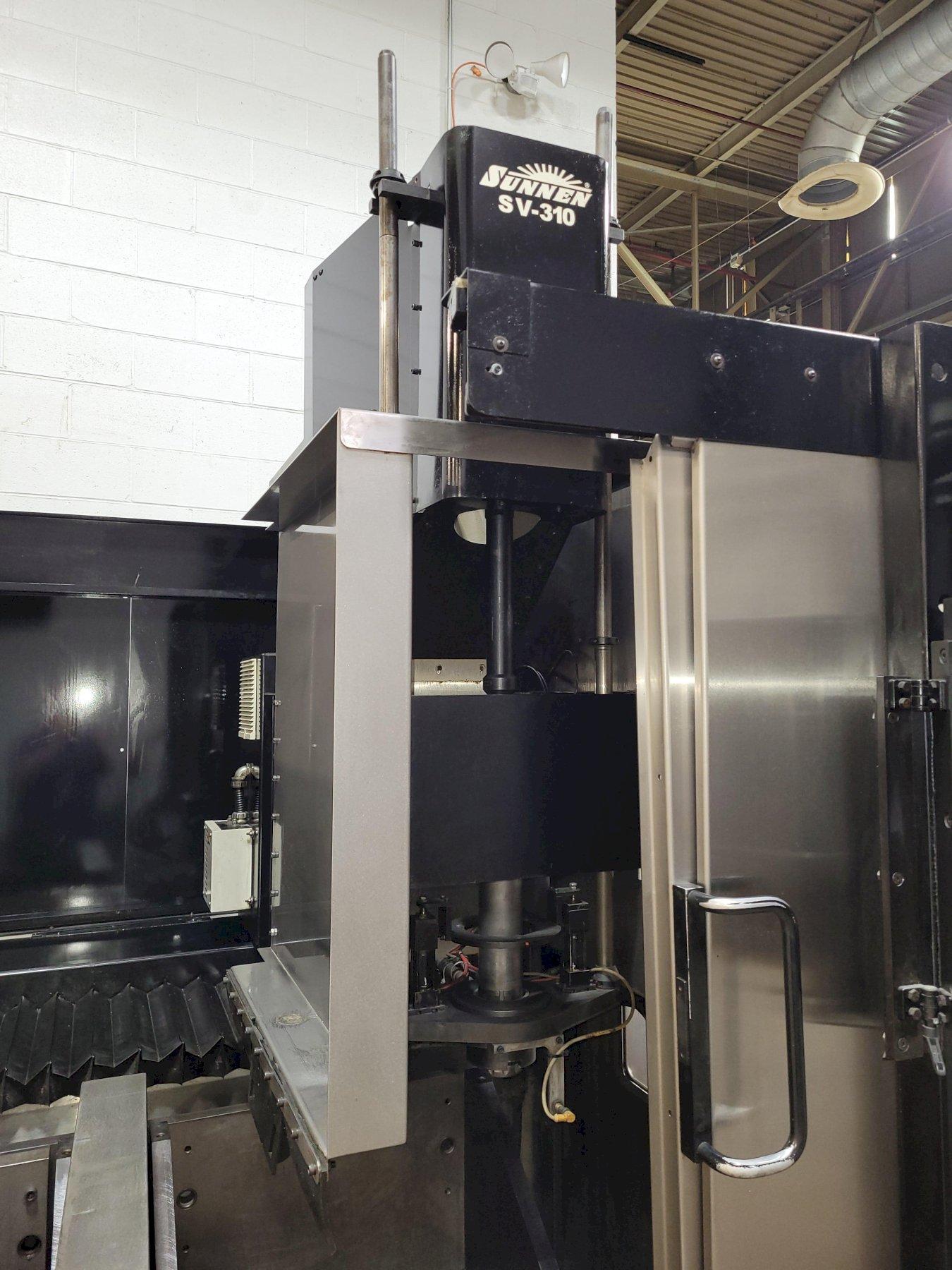

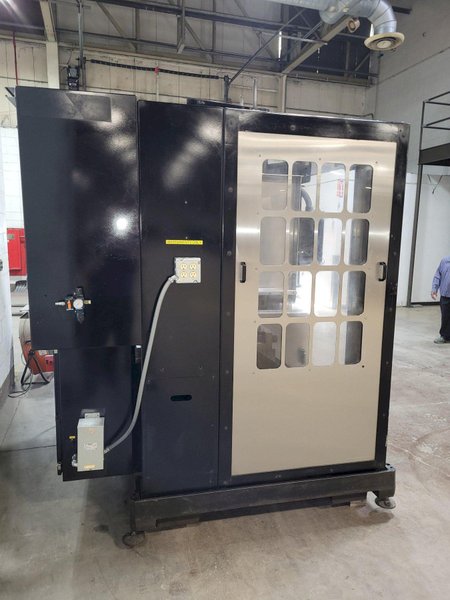

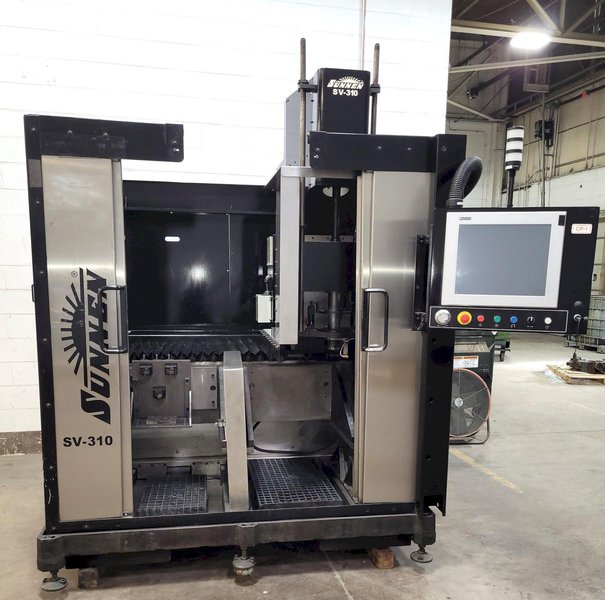

Sunnen SV-310 Vertical Honing Machine
Brand
Category
Type
Model
SV-310-S1
Stock #
HO528
Year
2007
Condition
Used
Location
Illinois
| Diameter Range (ID) | 19-200 mm (.75-8 in) |
| Workpiece Weight | 2,000 Lbs. |
| Maximum Workpiece Length | 710 mm (28 in.) |
| Workpiece Envelope | 1016 x 1778 mm (40 x 70 in.) |
| Carriage Travel (X-axis) | 1143 mm (45 in.) |
| Stroke Travel (Z-axis) | Up to 762 mm (30 in.) |
| Stroke Speed (Z-axis) | 1-160 SPM |
| Stroke (Column) Motor | 7,5 kW (7.5 HP) |
| Feed Force: Rotary | Up to 25,4 N-m (224.8 lbf-in.) Maximum Torque |
| Sump Pump Motor | 0,25 kW @ 114 LPM (.33 HP @ 30 GPM) |
| Coolant Tank | 72 Gal |
| Coolant Pump | 2 HP |

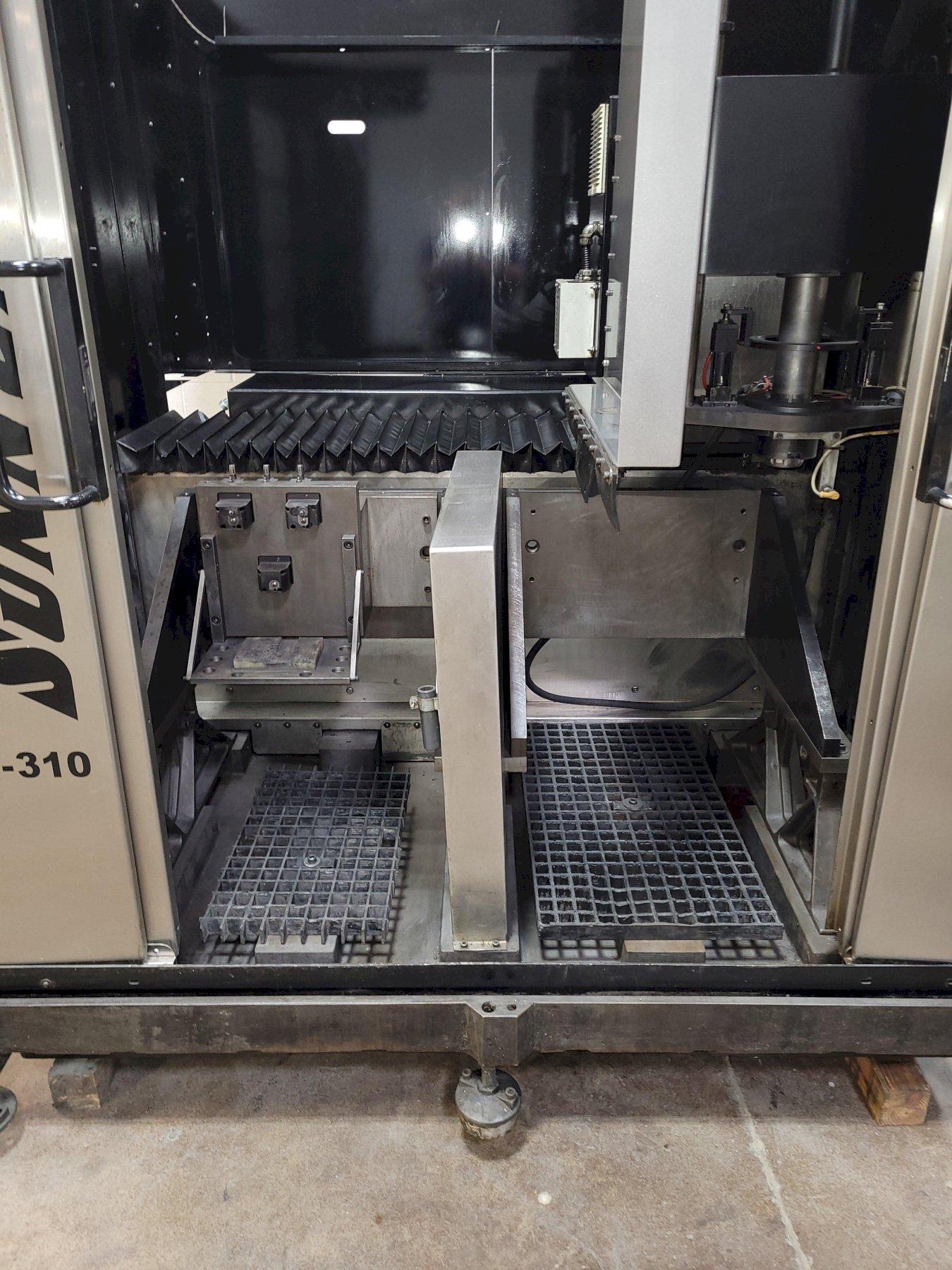

| Work Area | 3842 W x 4075 D x 3065 H mm (151x160x121 in.) |
| Floor Weight (Dry) | 4350 kg (9590 Lbs. |
|

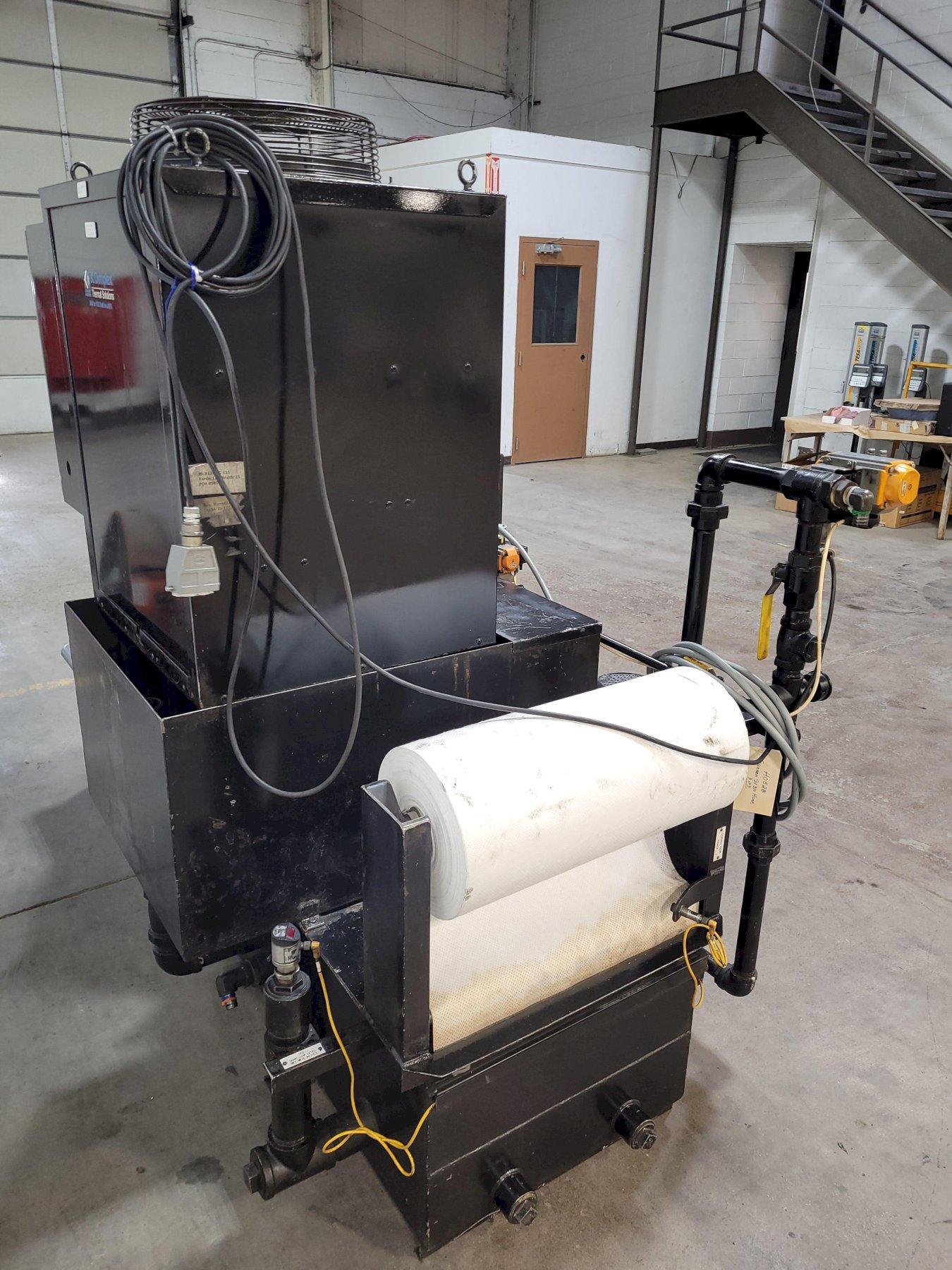

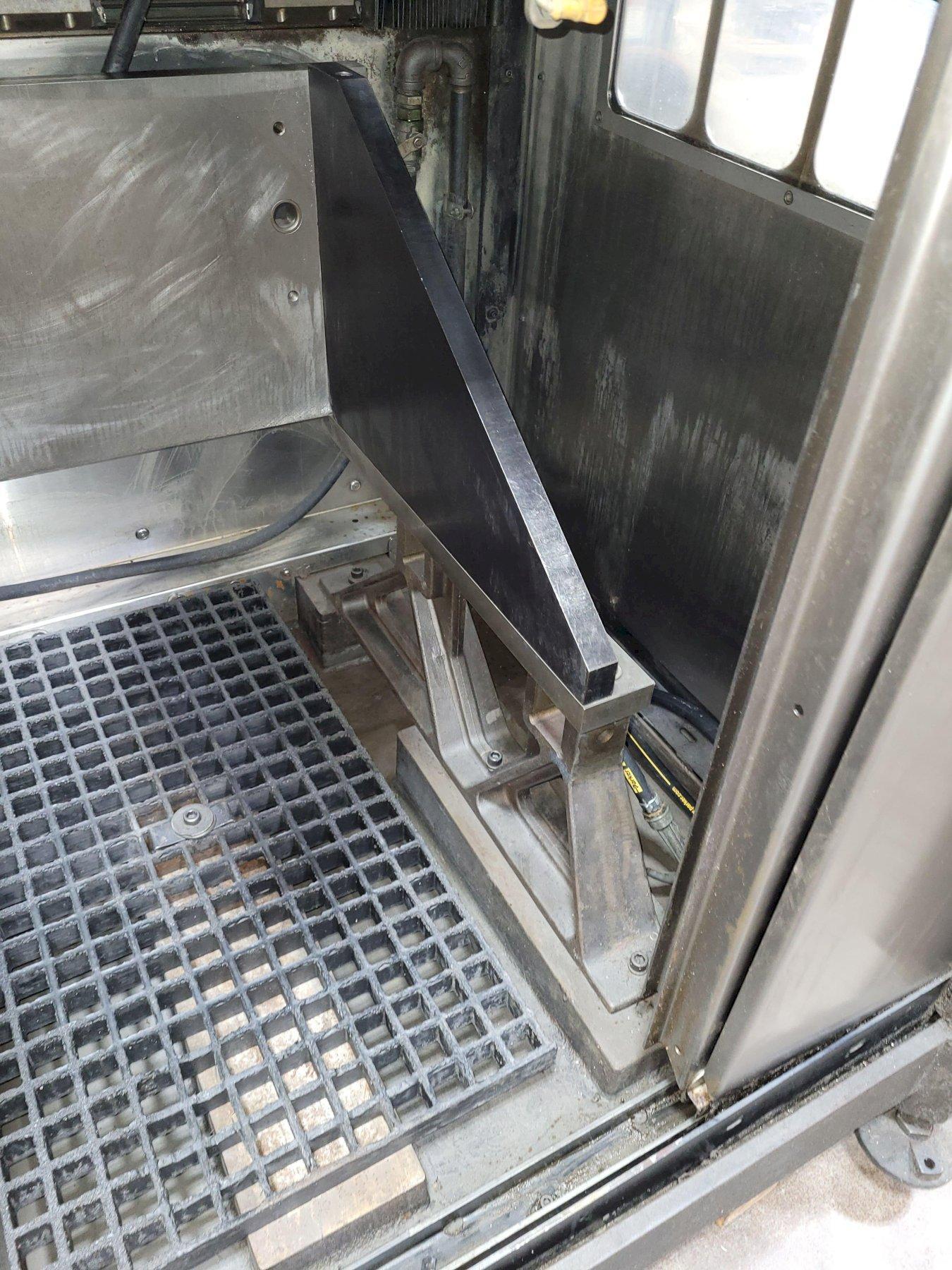

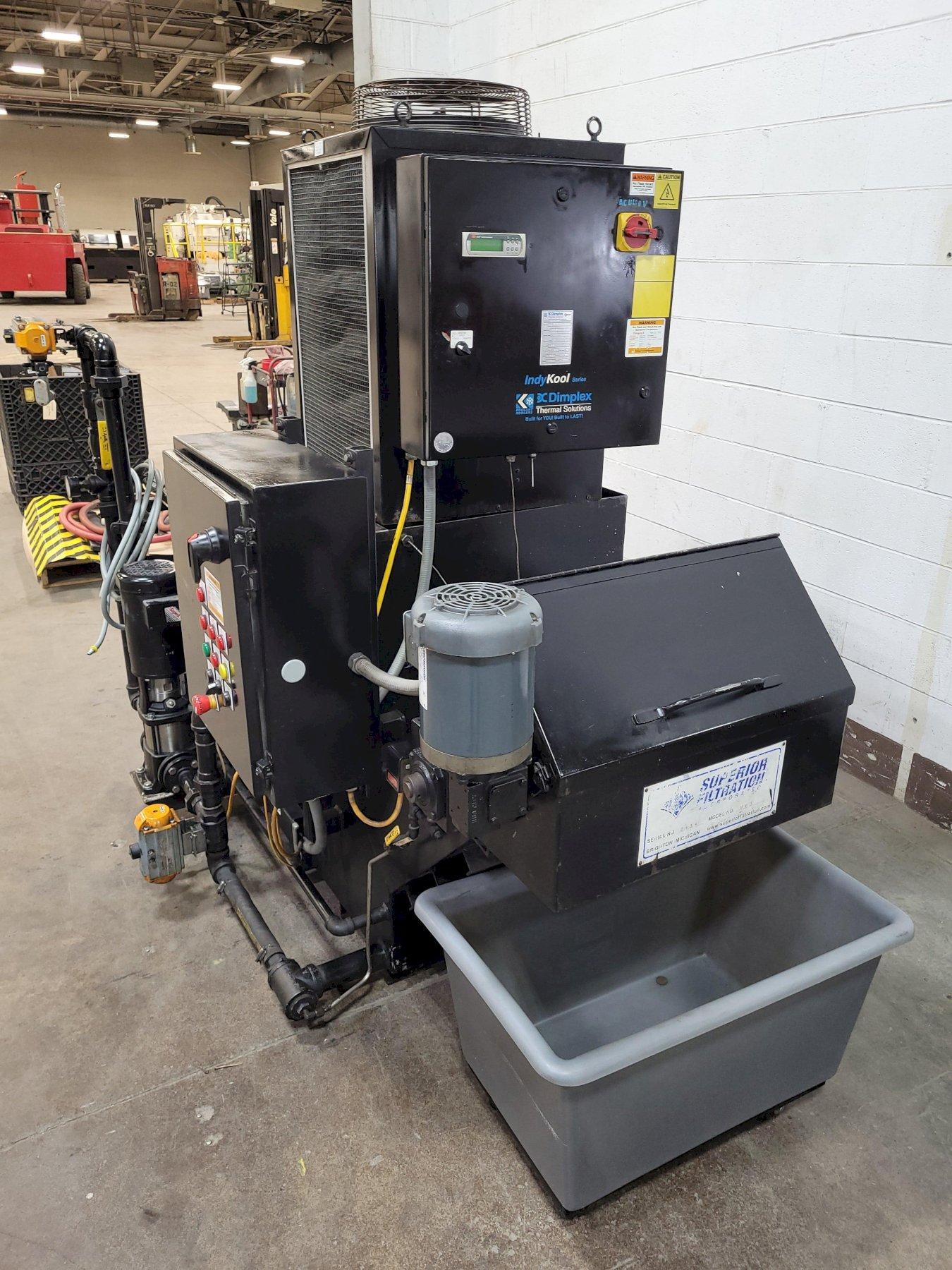

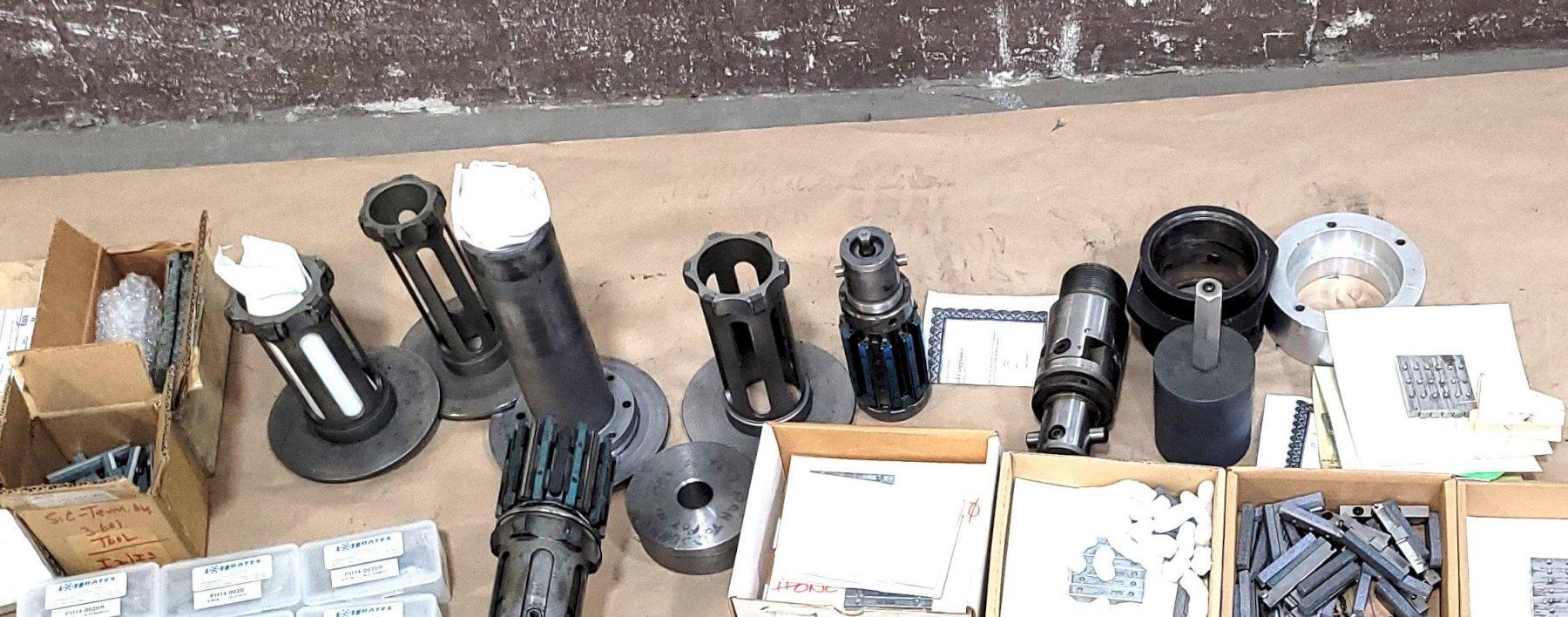

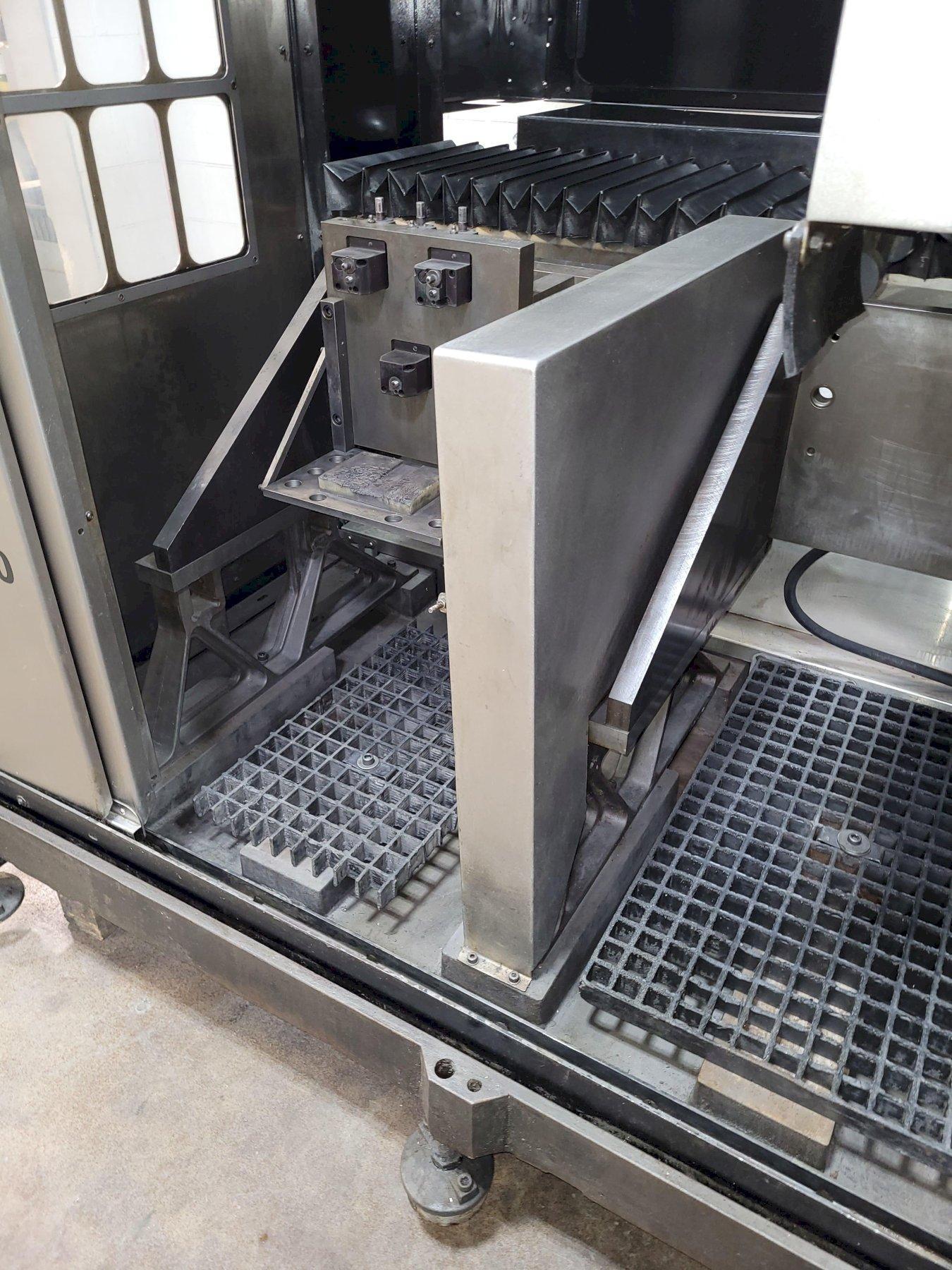

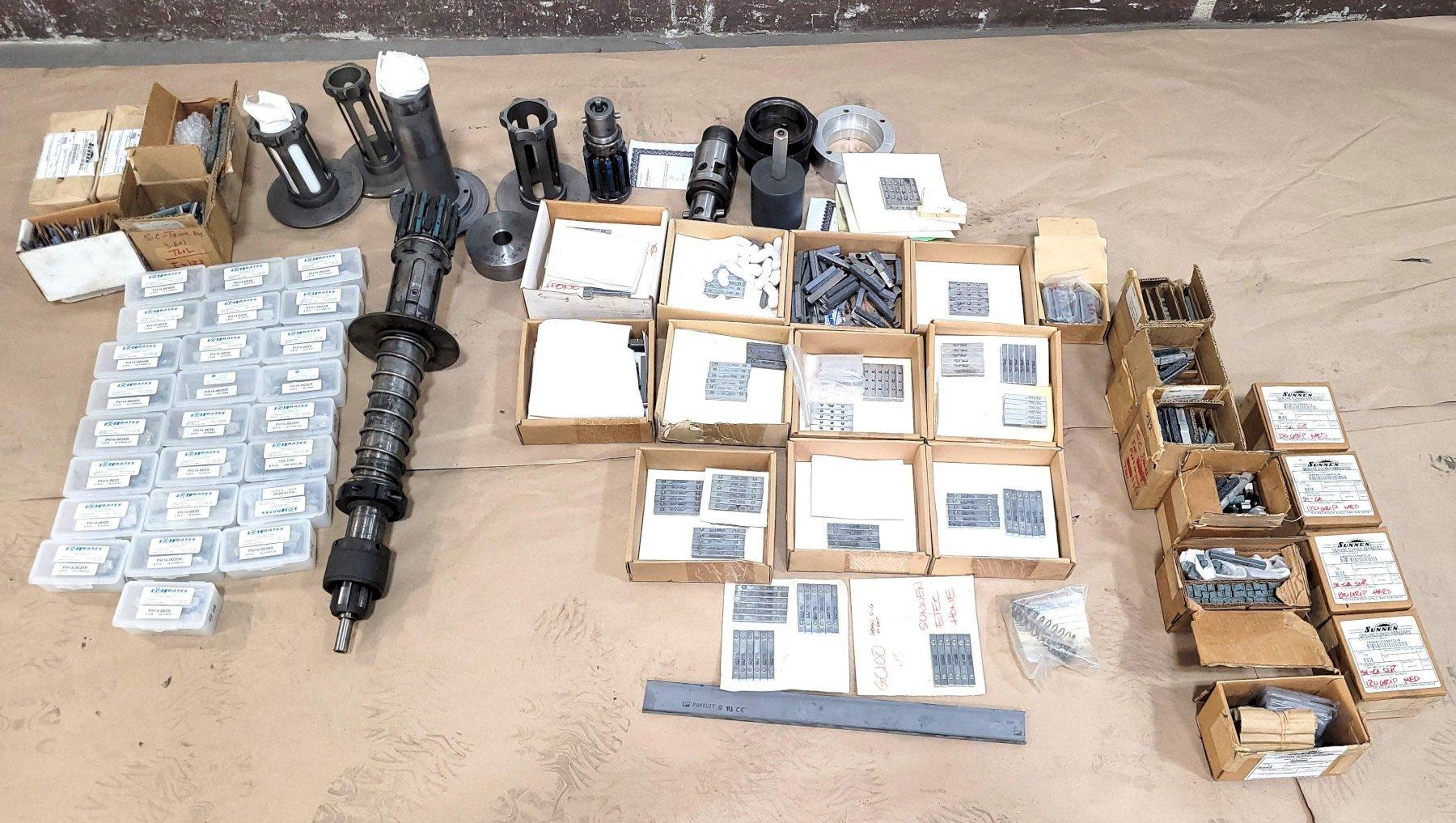

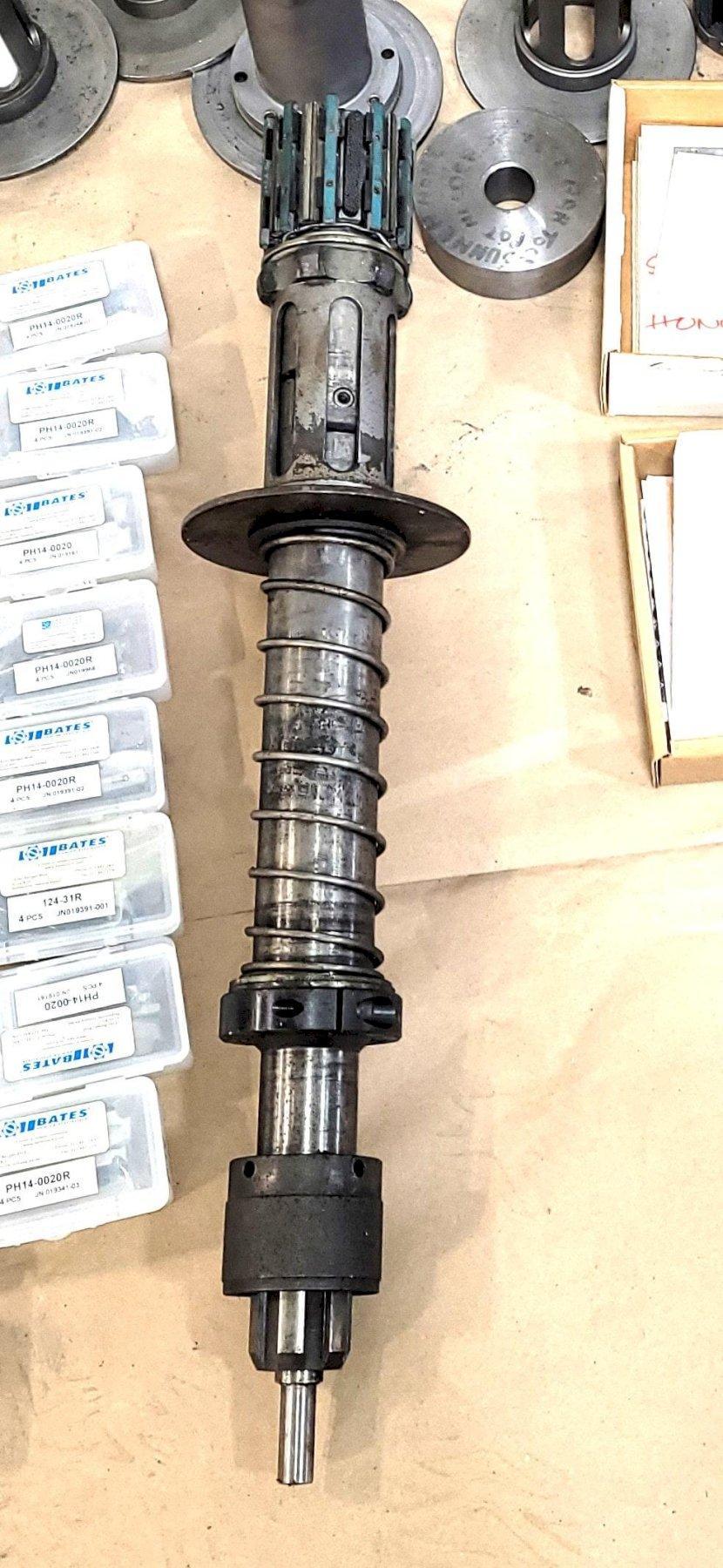

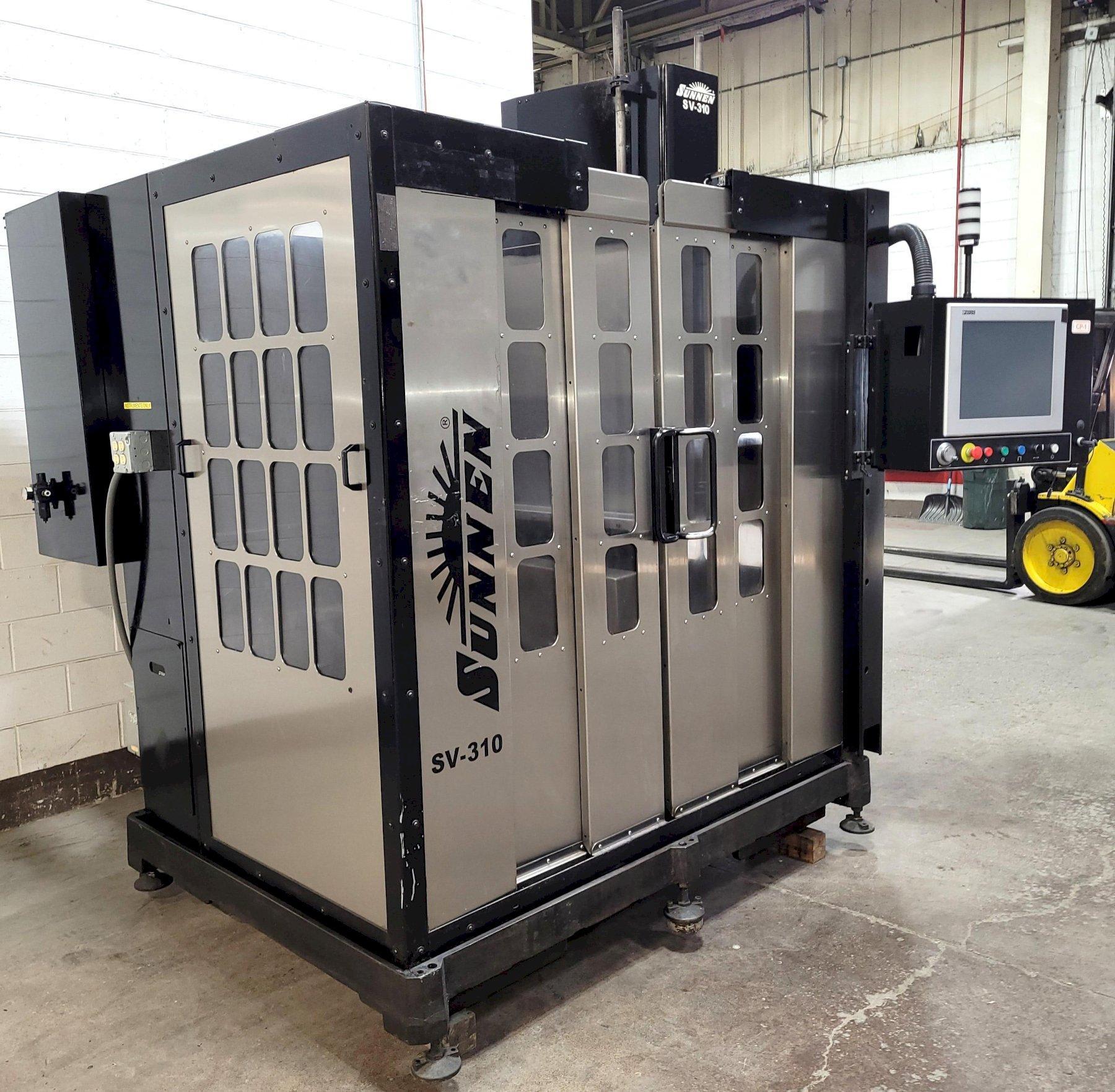

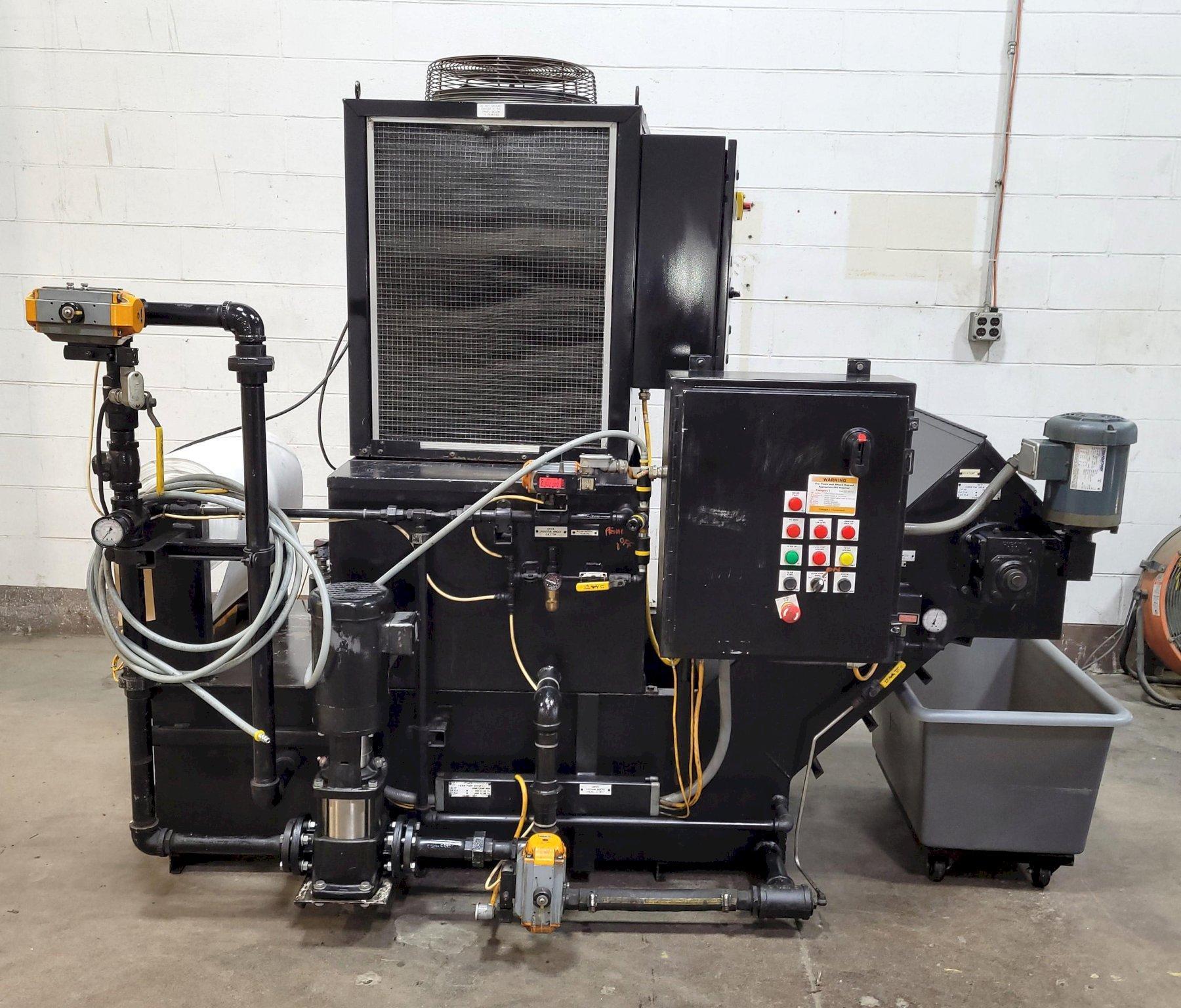

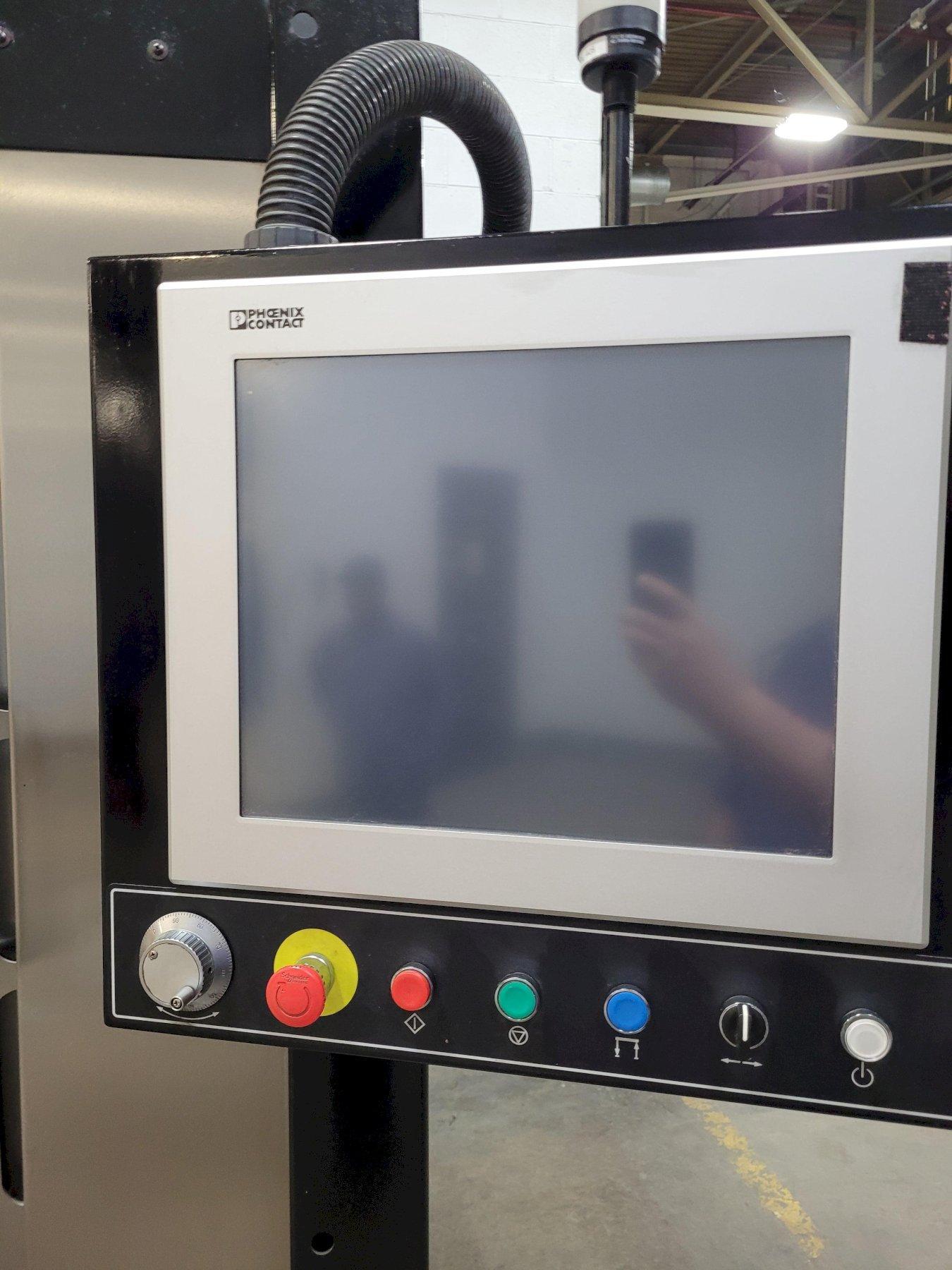

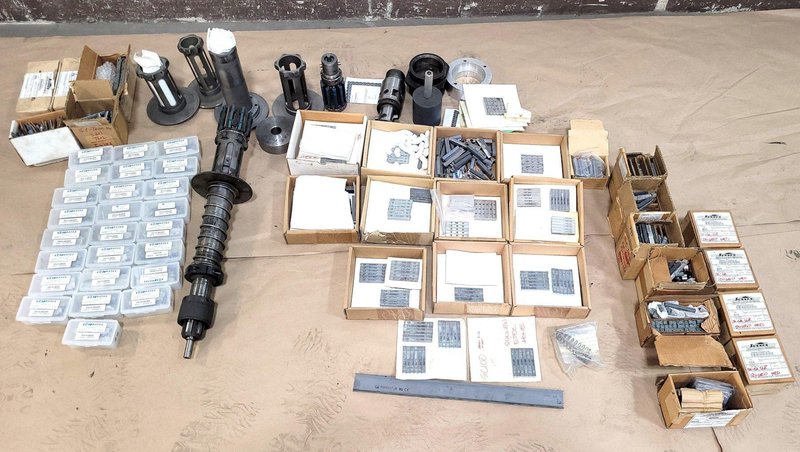

EQUIPPED WITH: Sunnen Windows 7 Ultimate, Sunnen 3.4.0.0 (2015) PC-based Programmable Stroking System with Large Pendant Mounted Touch Screen Monitor. Push Buttons. Keyboard and Mouse. USB. 2-Axis Handwheel for Final Tool Positioning and X-axis Servo for Multiple Part Set-up Positions. Programmable Depth, Dwell and Rotation including Cross-Hatch Capability. Drop Down Menus. Almost Unlimited Storage for Job Set-ups. Sunnen PH Precision Multi Stone Honing Heads. Mandrel. Large Quantity of Diamond Tools. Superior Filtration Model VV5 Coolant and Filtration System Complete with Vacuum Paper Filtration Bed. Sludge Conveyor. Koolant Koolers Chiller. Coolant Pump and Tank. Sludge Cart. Full Size Sliding Stainless Work Area Doors. (3) Pair Elevated Fixture Frame Supports. Books and Manuals. |
|
Watch https://youtu.be/FIQbp6w0yGs
