Title: Sunnen Model SV-1015-2 Single Spindle Column Type Vertical Honing Machine
Type: Hones, Vertical
Brand: SUNNEN
Model: SV-1015-2
Year: 2005
Message
Information

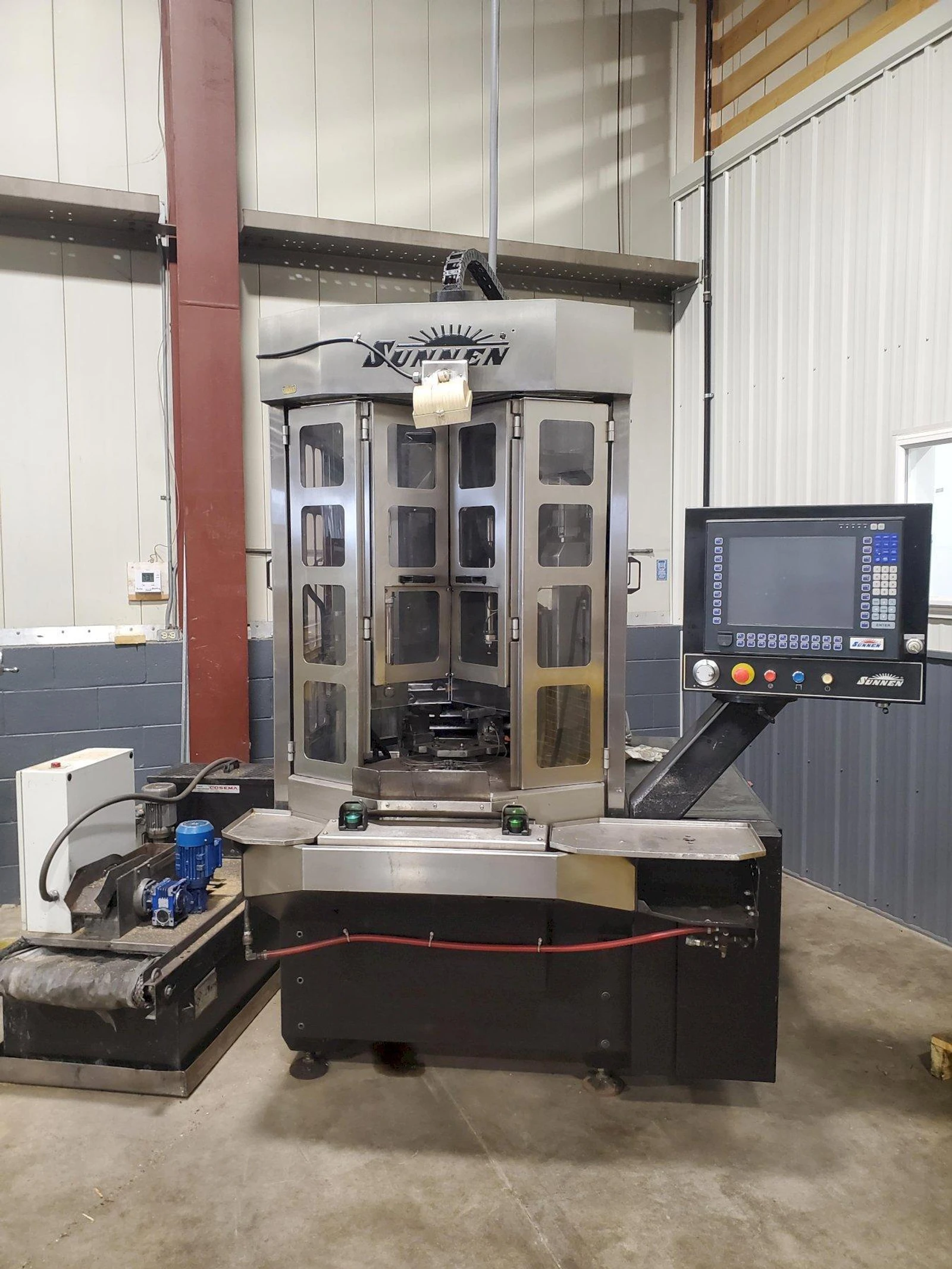

Sunnen Model SV-1015-2 Single Spindle Column Type Vertical Honing Machine

Brand
Model
SV-1015-2
Stock #
HOSV1X
Year
2005
Condition
Used
Location
Illinois

SPECIFICATIONS:

Diameter Range (ID)

0.12” – 2.56” (3-65 mm)

Workpiece Length

9.8” (250 mm)

Work Area Envelope (Table)

6” x 6” x 6” (150 x 150 x 150 mm)

Carriage Travel

24.8 (630 mm)

Carriage Speed

2 to 2000 IPM (0.001 to 0.800 MPS)

Reciprocation Speed (Stroke)

30 – 400 SPM

Column Motor

10 HP (7.5 kw)

Spindle Motor

7.5 HP (5.5 kw)

Approximate Dimensions

84” x 86” x 114” H (2104 x 2190 x 2900 H mm)

Approximate Weight

5750 Lbs

Equipped With:

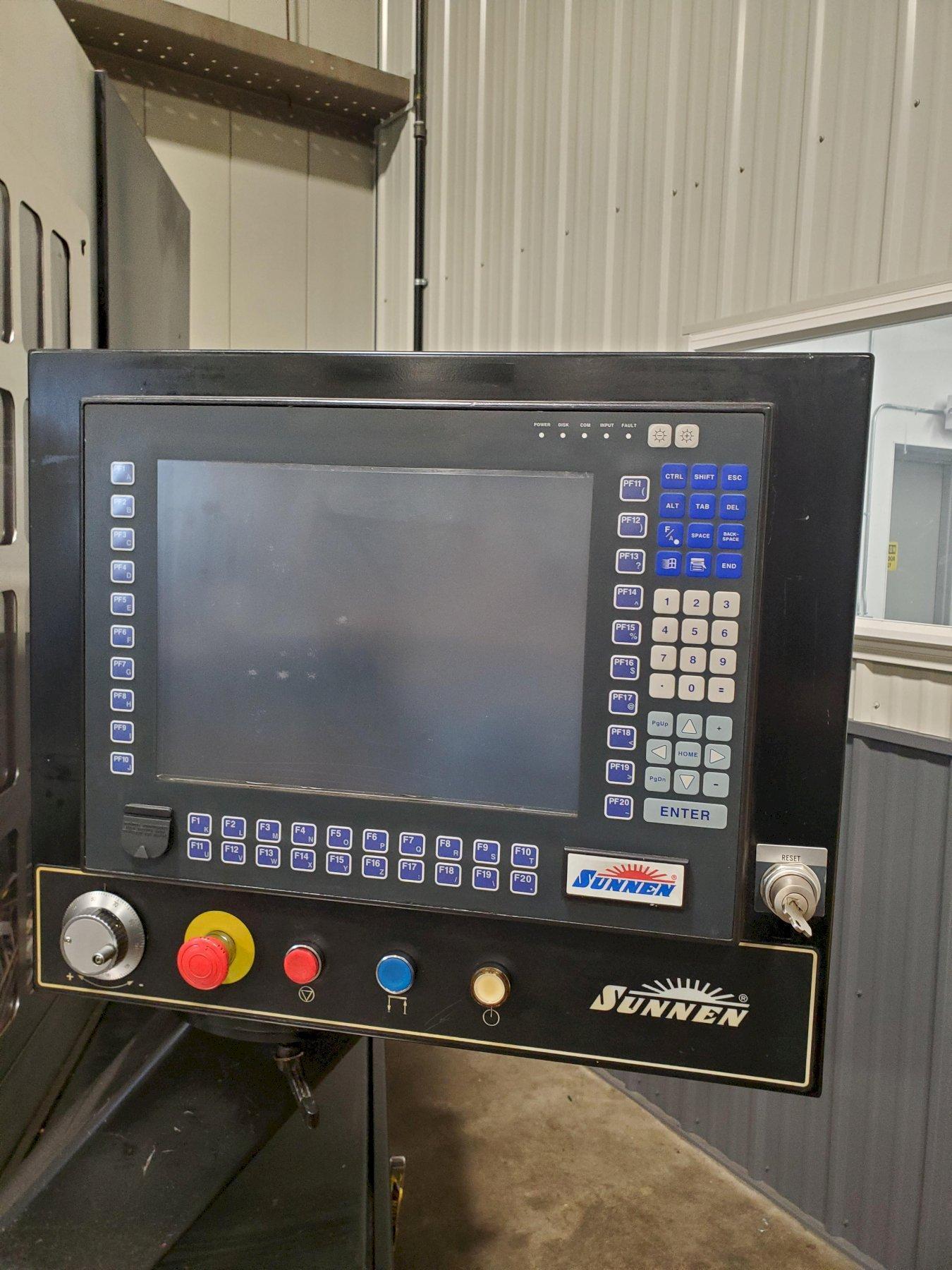

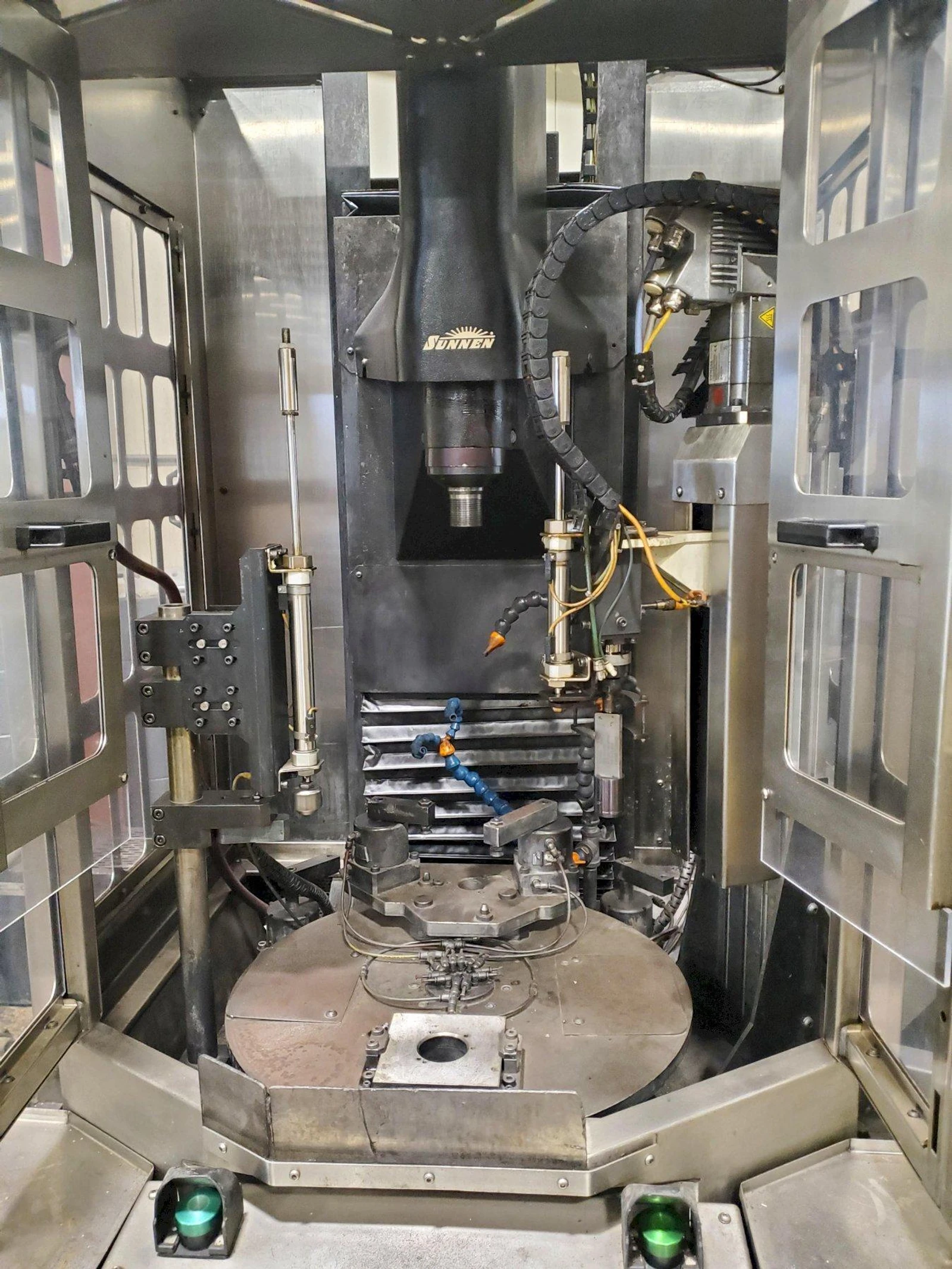

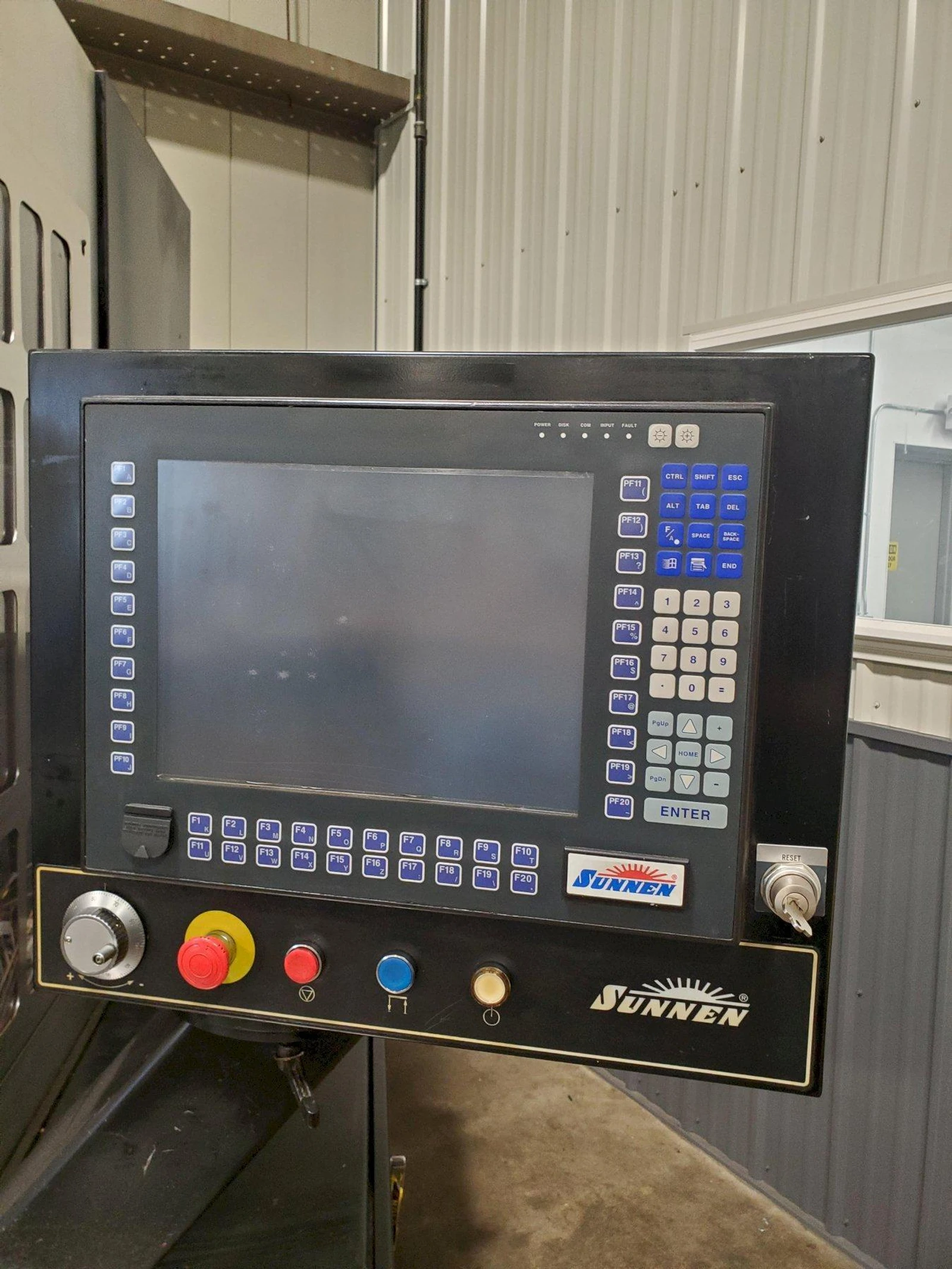

Sunnen Windows Based PC Touch Screen Controller. 2-Positions Bi-Directional Servo Driven Index Table (Infinitely Adjustable). Ball Screw Stroke Control Allows Machine to Short Stroke or Dwell in any Part of the Bore. Coolant Filtration System. Manuals and Drawings.

The Quoted Sunnen Hone Appears to be in Very Good Condition and Can Be Inspected Under Power.   * Temporary Specifications Subject to Verification. *

Watch https://youtu.be/Pr6M3gBJJbk
