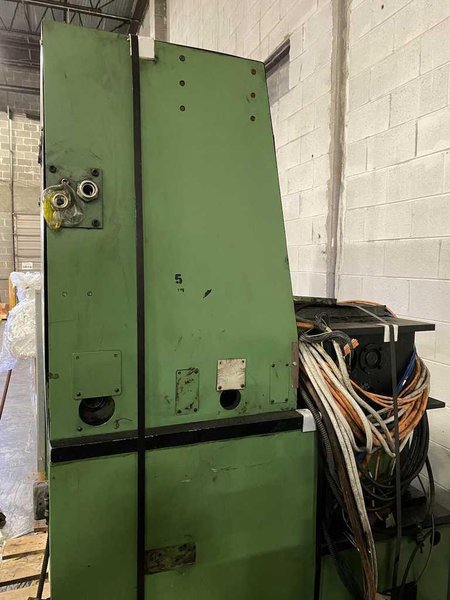

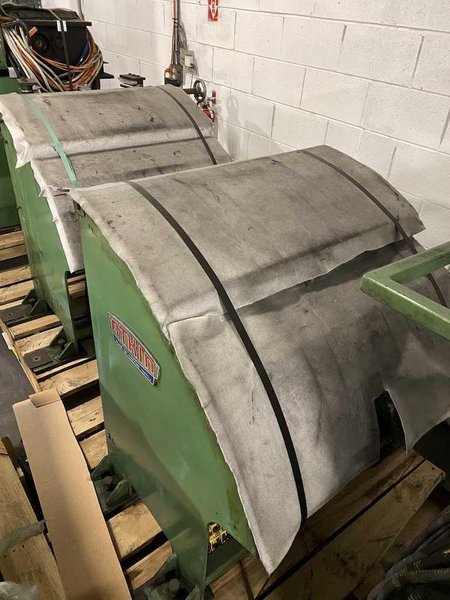

32" x 0.078" x 11,000# Atkin Cut To Length Line STOCK #3738

Materials:                  Pre-Painted Steel, Pre-Painted Aluminum

Material Width Range:       6" - 32"

Thickness Range:            0.009" - 0.078" @ 70 - 100 FPM (Approx.)

Thickness Range:            0.009" - 0.039" @ 140 FPM

Maximum Tensile:            50,000 PSI (Approx.)

Maximum Yield:              50,000 PSI (Approx.)

Maximum Coil Weight:        11,000#

Coil I.D.:                  16" - 20"

Maximum Coil O.D.:          60"

Line Direction:             Left to Right

Pass Line:                  42"

Length Accuracy:            0.0078"

Sheet Length:               4 - 78"

Max. Stack Height/Weight:   20" / 2,200#

Mode of Operation:          Loop / Grip Feed

Line Speed:                 0 - 140 FPM

20" Blanks:                 65 per minute

78" Sheets:                 17 per minute

Consisting of the following:

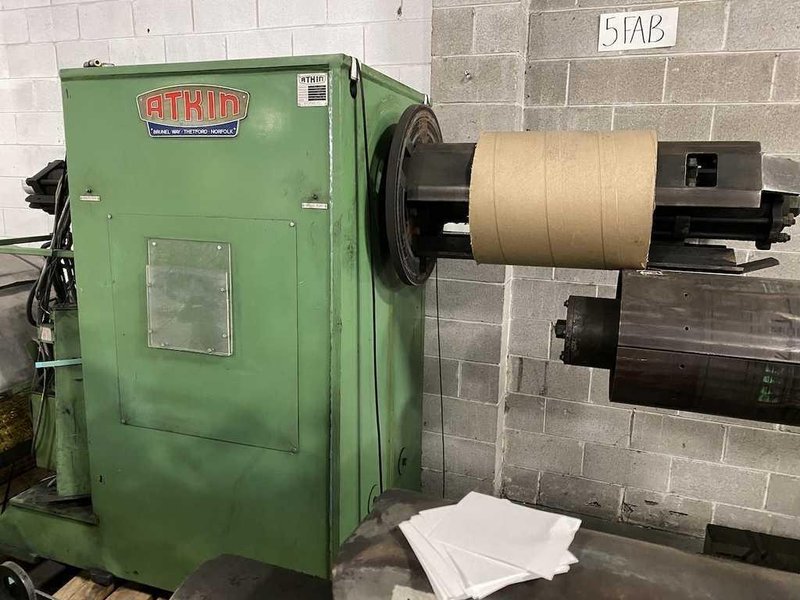

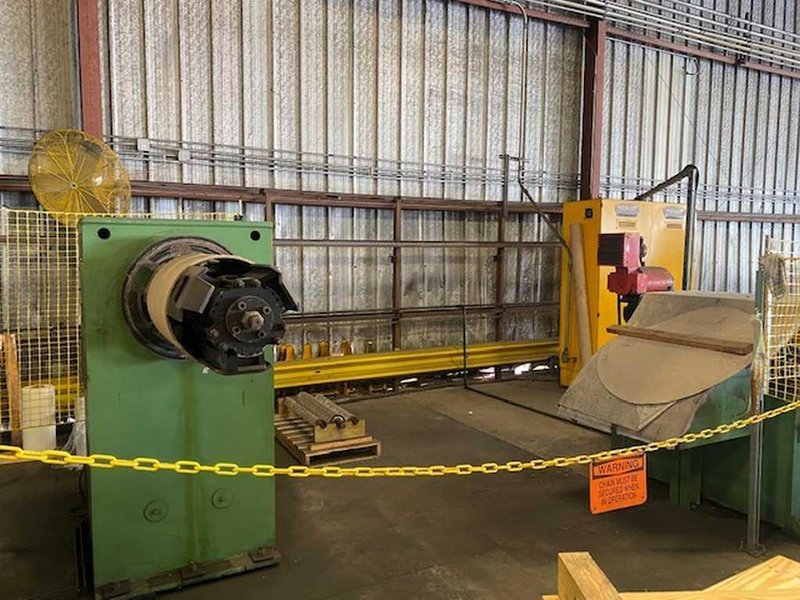

-Uncoiler:

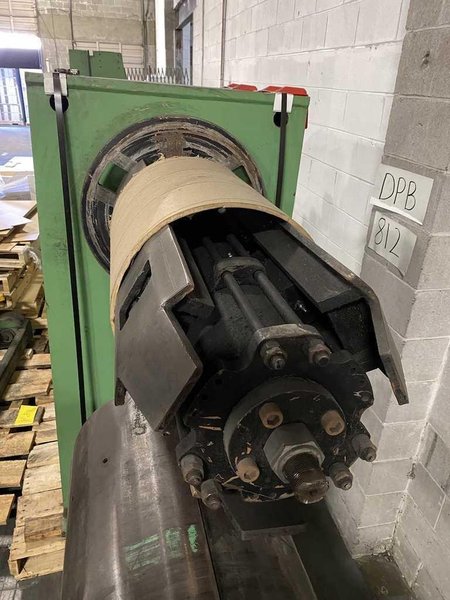

  Single Mandrel Type

  Powered Expansion

  Powered Feedup

  Disc Brake

  Front Loop Control

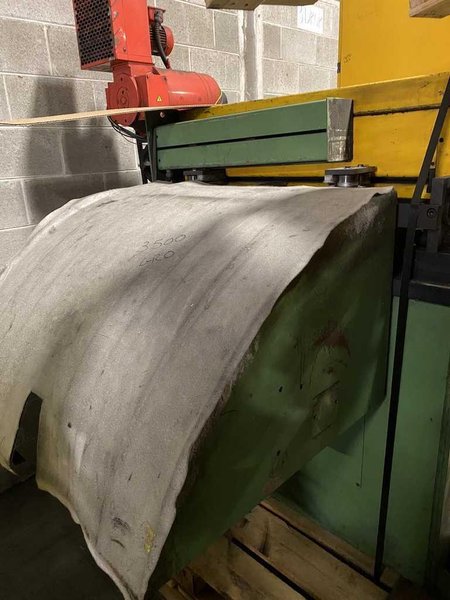

-Flattener:

  Entry Cantenary Table

  Manual Entry Side Guides

  Powered Entry Pinch Rolls

  Seven (7) Work Rolls in 3/4 Configuration

  Powered Exit Pinch Rolls

  Manual Exit Side Guides

  Machine Mounted Controls

  30 HP Motor

-Loop Section:

  Entry Cantenary Table

  Track Mounted Cross Over Table

  Exit Cantenary Table

  Inspection Table

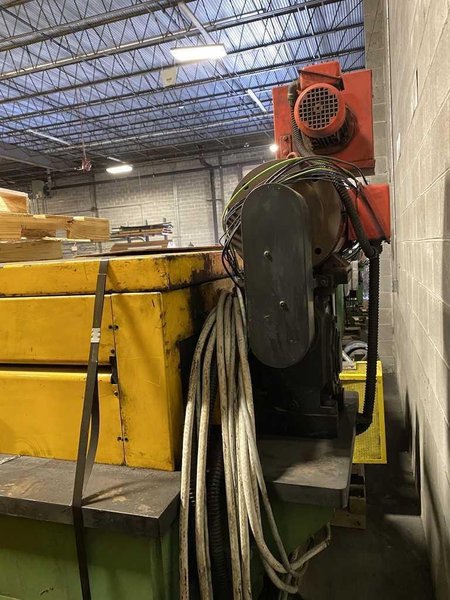

-Roll Feed Unit:

  Mounted to Shear

  Manual Entry Side Guides

  Capable of 330 FPM

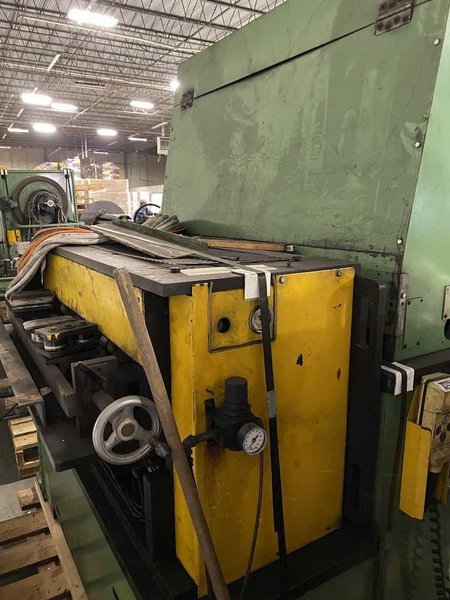

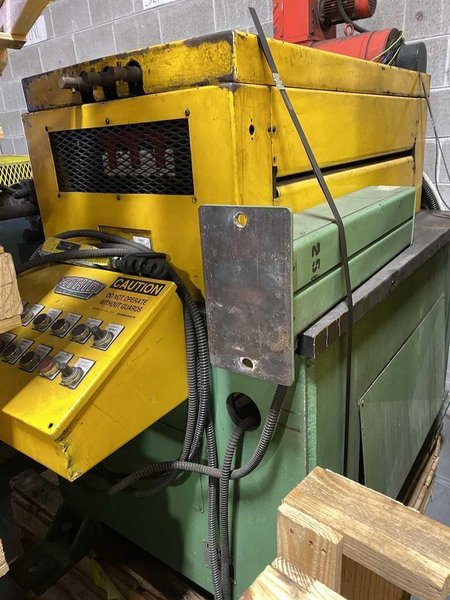

-High Speed Shear:

  Down Cut Type

  Single Rake Blade

-Runout Table:

  Powered Belt Conveyor Top

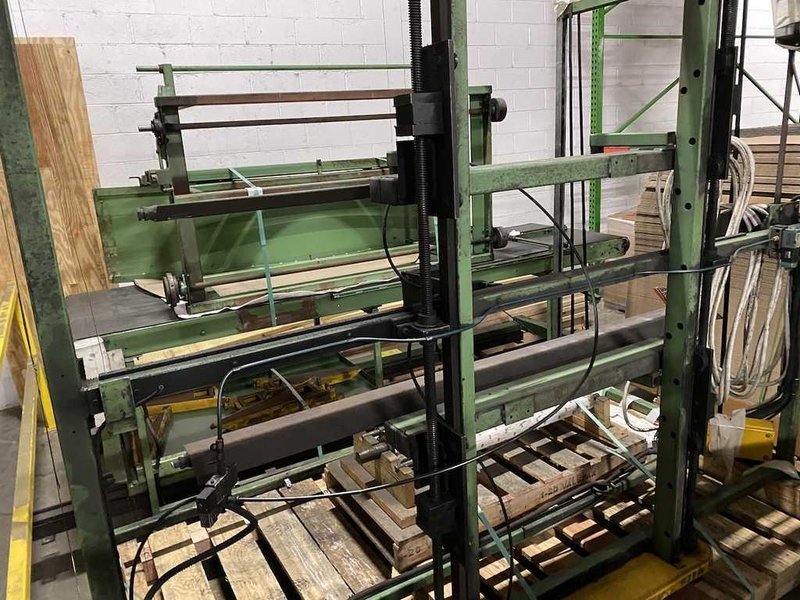

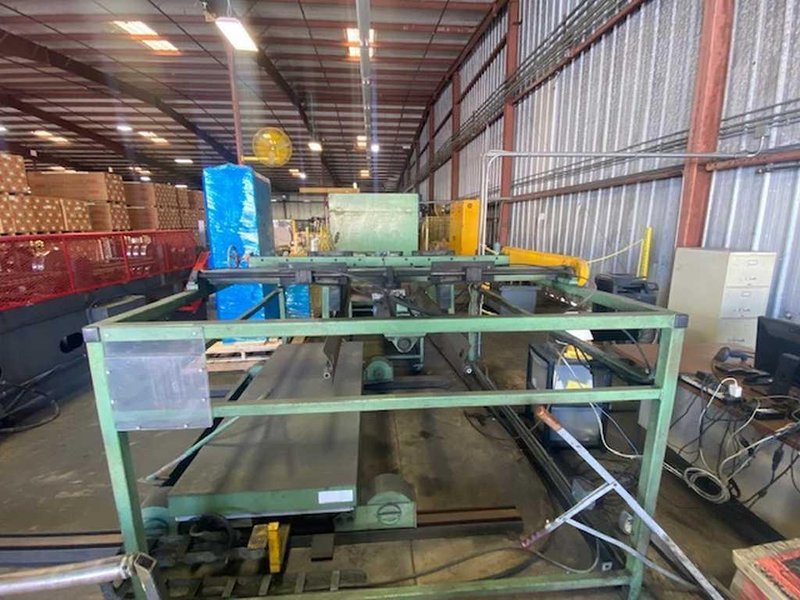

-Stackers:

  "Slide-Out" Type

  Manual Width Adjustment

  Manual End Stop

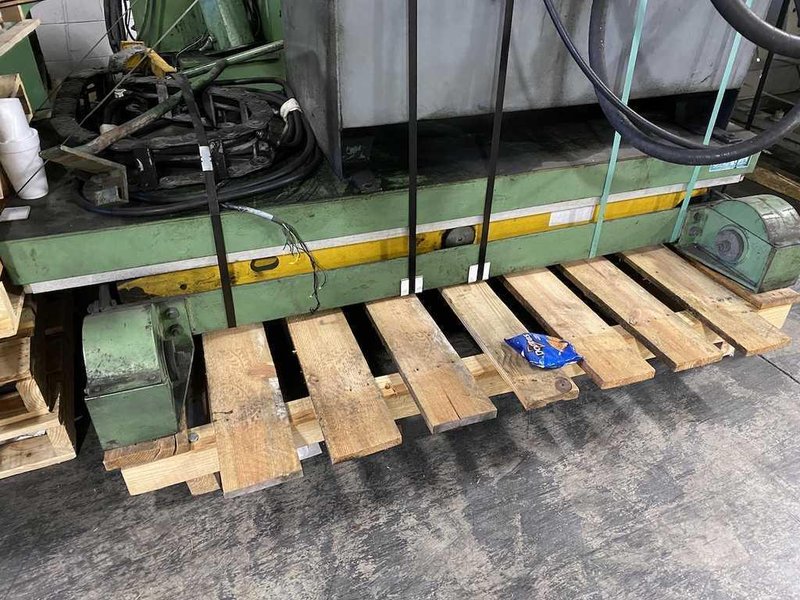

  Powered Scissor Lift Table with Side Discharge

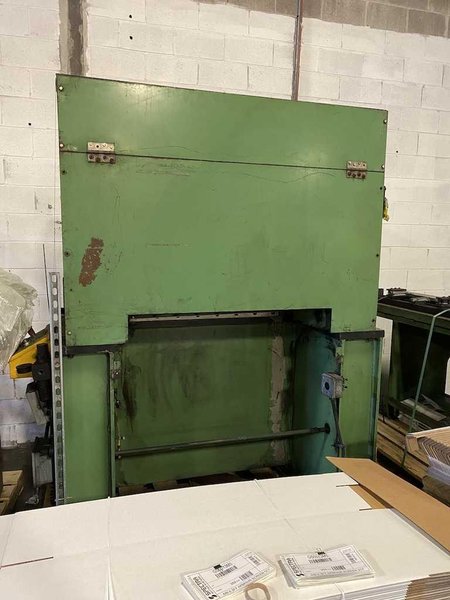

-AC/DC Control Cabinet

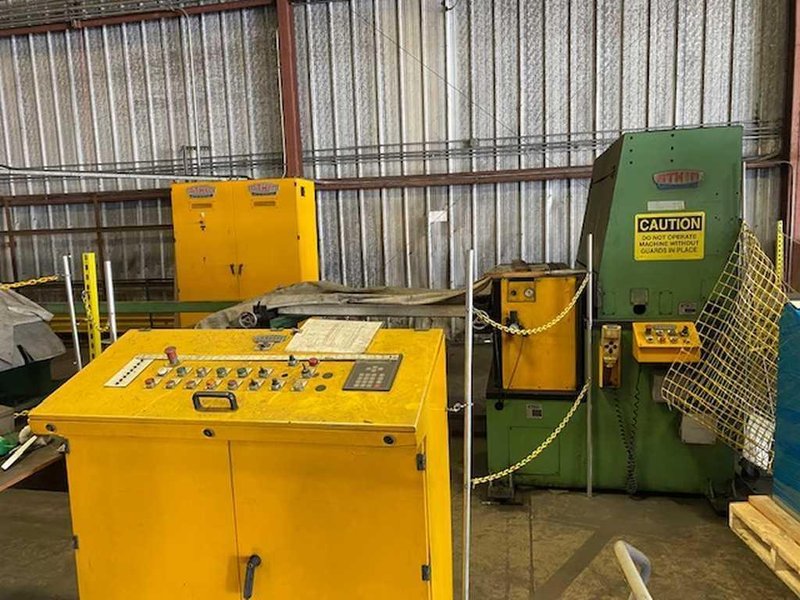

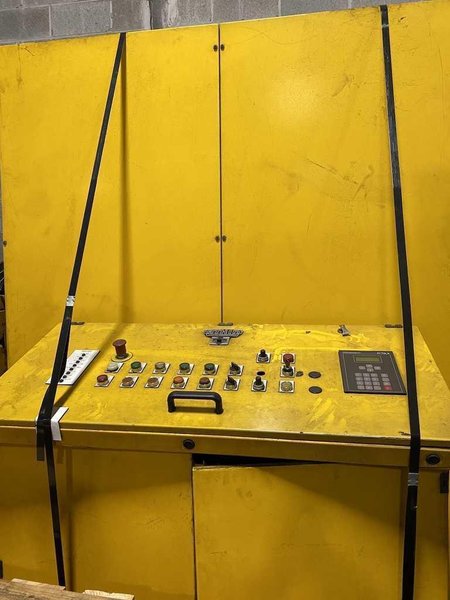

-Main Operators Control Console:

  Indramat CTA4 Controller

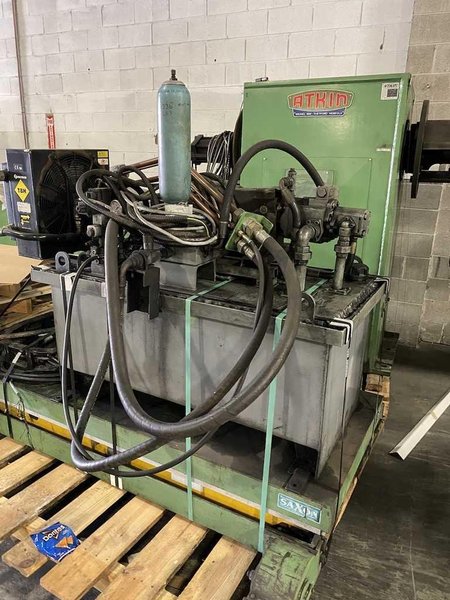

-Hyraulic Power Unit
