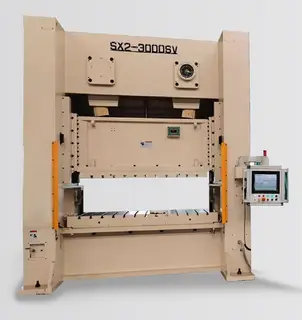

Demo Minster MMC SX2-3000G-SV Two Point Unitized-Frame Servo Press

Main Specifications SX2-3000G-SV

Unit

Unit

Capacity

kN

3000

US Tons

330

Frame Type

Straight Side, Unitized Frame

Rated Tonnage Point

mm

6

inch

.236

Working Energy

kJ

40

Full Stroke Length

mm

300

inch

11.81

SPM @ Full Stroke Length (no-load)

SPM/mm

40 @ 300

SPM/inch

40 @ 11.81

SPM @ Pendulum Motions (no-load)

SPM/mm

85 @ 50

74 @ 75

65 @ 100

58 @ 125

54 @ 150

SPM/mm

85 @ 1.97

74 @ 2.95

65 @ 3.94

58 @ 4.92

54 @ 5.91

Maximum Die Height, SDAU

mm

550

inch

21.6

Slide Adjustment

mm

120

inch

4.7

Bolster Area, L-R x F-B

mm

2400 x 1100

inch

94.5 x 43.3

Thickness of Bolster

mm

200

inch

7.9

Slide Area, L-R x F-B

mm

2400 x 900

inch

94.5 x 35.4

Side Opening, width x height

mm

800 x 450

inch

31.5 x 17.7

Maximum Upper Die Weight

Kg

2000

US Lbs

4410

Working Height From Floor

mm

1240

inch

48.9

Approximate Press Weight

Kg

28,000

US Tons

30

Air Source

MPa

0.55

Main Motor

kW

160

Accuracy

--

JIS First Class

Deflection

--

1/8000
