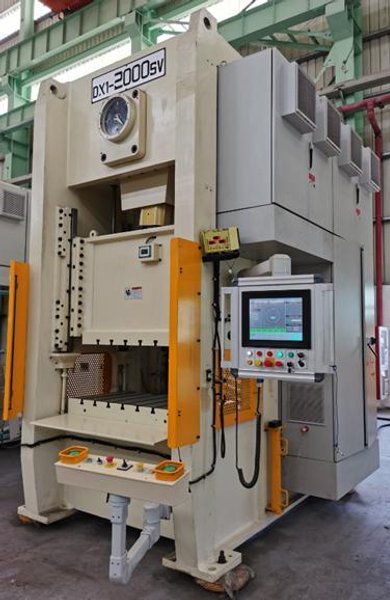

DEMO Minster MMC DX1-2000-SV D-Frame Single Crank Servo Press

Main Specifications DX1-2000-SV

Unit

Capacity

kN

2000

US Tons

220

Frame Type

D-Frame

Rated Tonnage Point

mm

6.0

inch

0.236

Working Energy

kJ

15

inch-tons

66.4

Full Stroke Length

mm

250

inch

9.84

SPM @ Full Stroke Length (no-load)

SPM/mm

50 @ 250

SPM/inch

50 @ 9.84

SPM @ Pendulum Motions (no-load)

SPM/mm

101 @ 50

89 @ 75

80 @ 100

77 @ 110

73 @ 125

63 @ 160

56 @ 200

SPM/mm

101 @ 1.97

89 @ 2.95

80 @ 3.94

77 @ 4.33

73 @ 4.92

63 @ 6.30

56 @ 7.87

Maximum Shutheight, SDAU

mm

450

inch

17.7

Shutheight Adjustment

mm

110

inch

4.3

Bolster Area, L-R x F-B

mm

1250 x 680

inch

49.2 x 26.7

Thickness of Bolster

mm

170

inch

6.7

Slide Area, L-R x F-B

mm

1000 x 650

inch

39.4 x 25.6

Upright Opening, Width x Height

mm

600 x 370

inch

23.6 x 14.6

Maximum Upper Die Weight

kg

900

lbs

1985

Floor to Top of Bolster

mm

1000

inch

39.4

Approximate Press Weight

kg

24,000

lbs

52,900

Air Source

MPa

0.55

psi

80

Main Motor

kW

182

HP

244

Bed and Slide Deflection

mm/mm

1/7000

In/ft

0.0017
